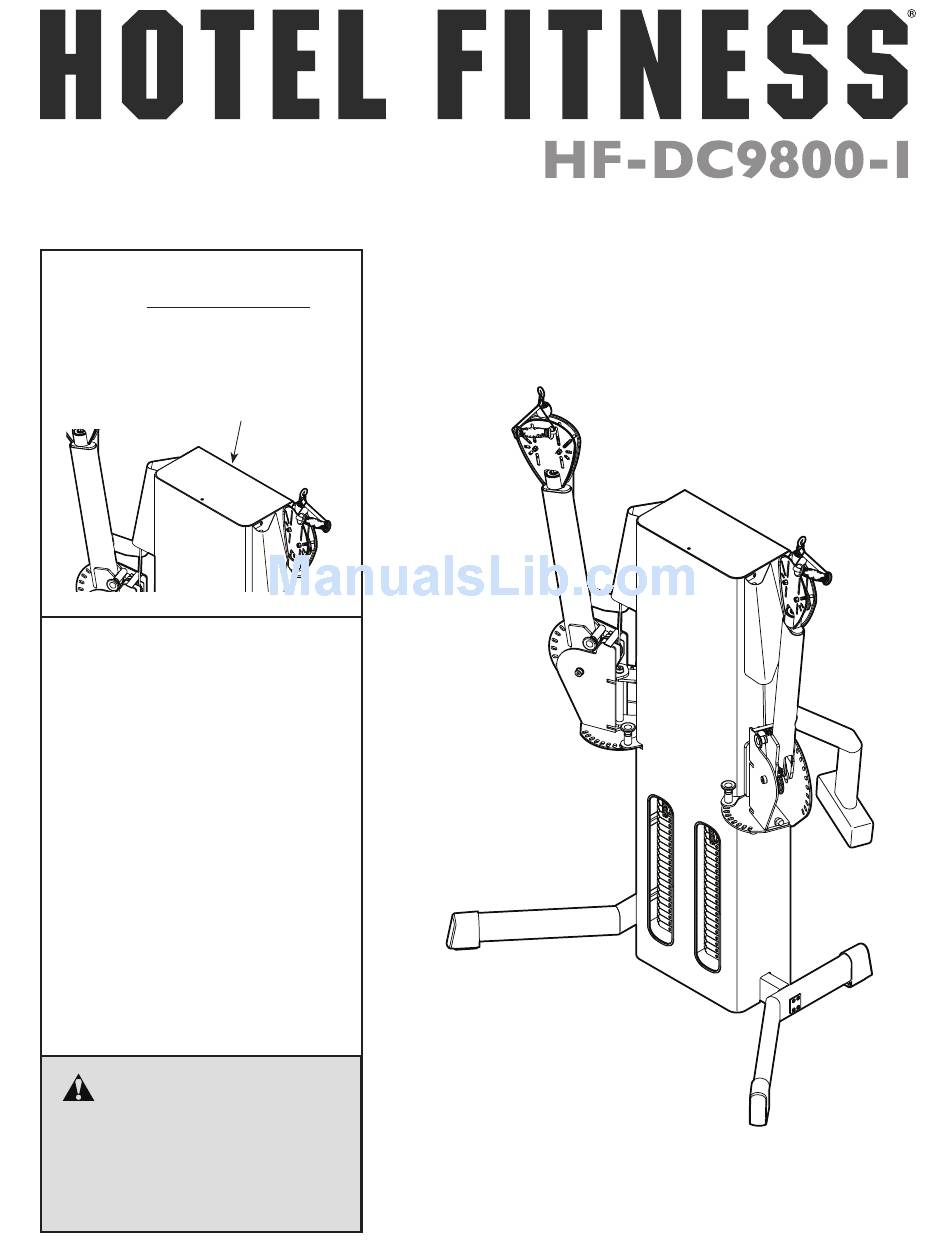

Model No. HF-DC9800-I.0
USER’'S MANUAL
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal
(inside tower)
QUESTIONS?
If you have questions, or if parts are
damaged or missing, please see
HOW TO CONTACT CUSTOMER
CARE on the back cover of this
manual.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
www.HotelFitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hotel Fitness Dc9800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hotel Fitness Hotel Fitness Dc9800

  • Page 1 Model No. HF-DC9800-I.0 USER’’S MANUAL Serial No. Write the serial number in the space above for reference. Serial Number Decal (inside tower) QUESTIONS? If you have questions, or if parts are damaged or missing, please see HOW TO CONTACT CUSTOMER CARE on the back cover of this manual.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . . 3 IMPORTANT PRECAUTIONS .
  • Page 3: Warning Decal Placement

    WARNING DECAL PLACEMENT This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see the back cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. 4 (inside access cover) Decal 1 (GZ7008)
  • Page 4: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your strength equipment before using your strength equipment. Hotel Fitness and FreeMotion Fitness assume no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the HOTEL FITNESS ® after reading this manual, please see the back cover HF-DC9800-I strength equipment. With unrestricted of this manual. To help us assist you, note the product motion, you can work your body’’s muscle groups model number and serial number before contacting us.
  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.
  • Page 7: Assembly

    ASSEMBLY •• Assembly requires two persons. •• The following tools (not included) may be required for assembly: •• Because of its size and weight, assemble the two adjustable wrenches strength equipment in the location where it will be used. Make sure that there is enough clearance one rubber mallet to walk around the strength equipment as you assemble it.
  • Page 8 2. Lift the indicated Adjustment Knob (60), slide the Left Arm Bracket (9) onto the left Pivot (59), and engage the Adjustment Knob into one of the adjustment holes in the Left Arm Bracket. Attach the Left Arm Bracket (9) to the left Pivot (59) with two 3/4"...
  • Page 9 4. Remove the eight 1/4" x 3/4" Screws (79) from the Access Cover (2) on the back of the Tower (1). Then, remove the Access Cover. Next, remove the two Top Weights (15) and the Left and Right Weight Selectors (14, 63) from the Tower (1).
  • Page 10 6. Orient twenty Weights (13) as shown in the upper inset drawing. Slide the Weights onto the left Weight Guides (21). Note: If there are numbered decals on the Weights, make sure to slide the Weight with the highest number onto the Weight Guides first.
  • Page 11 8. Remove the three 1/4" Nuts (74) attaching the Left Cable Cover (12) to the strength equipment. Then, remove the Left Cable Cover. Route one of the Cables (43) downward into the left Swivel Bracket (8) and through the Left Arm (5) as shown.
  • Page 12 9. See the inset drawing. Tighten a 3/8" Nut (16) about halfway onto the threaded end of the Cable (43). Next, slide a 3/8" Serrated Washer (20) onto the Cable and insert the Cable into the hole in the top of the left U-bracket (65). Then, slide another 3/8"...
  • Page 13: Adjustment

    ADJUSTMENT This section explains how to adjust the strength equipment. See the EXERCISE GUIDELINES on page 16 for important information about how to get the most benefit from your exercise program. Also, refer to the accompa- nying exercise guide to see the correct form for several exercises. CHANGING THE WEIGHT SETTING To change the weight setting of either weight stack, insert the Weight Pin (34) into the hole in the desired...
  • Page 14: Maintenance

    MAINTENANCE Make sure that all parts are properly tightened each time the strength equipment is used. Replace any worn parts immediately. Clean the strength equipment with a damp cloth and a mild, non-abrasive detergent; do not use solvents to clean the strength equipment. WEIGHT GUIDE LUBRICATION Clean and lubricate the full length of each weight guide by wiping it with a soft cloth containing a lightweight motor oil, 10W-40 or 10W-30 weight.
  • Page 15: Cable Diagram

    CABLE DIAGRAM The numbers in the diagram below show the proper routing of the cables. Use the diagram to make sure that the cables and the cable traps are assembled correctly. If the cables and the cable traps are not assembled correctly, the strength equipment will not function properly and damage may occur.
  • Page 16: Exercise Guidelines

    EXERCISE GUIDELINES FOUR TYPES OF STRENGTH WORKOUTS workout, and the numbers of repetitions and sets to complete. Progress at your own pace and be sensitive Note: A ““repetition”” is one complete cycle of an to your body’’s signals. Follow each workout with at exercise, such as one sit-up.
  • Page 17: Part List

    PART LIST Model No. HF-DC9800-I.0 R1112A Key No. Qty. Description Key No. Qty. Description Tower Plastic Cover Access Cover 1/4"-20-unc Set Screw Right Leg Coupler Left Leg 3/8"-16 Jam Nut Left Arm Cable Bearing Right Arm Eyebolt Counterweight 3/8" x 1" Bolt Swivel Bracket 1"...
  • Page 18: Exploded Drawing

    EXPLODED DRAWING A Model No. HF-DC9800-I.0 R1112A 27 47 23 20 23 20...
  • Page 19 EXPLODED DRAWING B Model No. HF-DC9800-I.0 R1112A...
  • Page 20: How To Contact Customer Care

    HOW TO CONTACT CUSTOMER CARE If you have questions after reading this manual, or if parts are damaged or missing, please contact the store where you purchased this product. If you are unable to contact the store, contact Customer Care at the phone number, email address, or postal address listed below.
