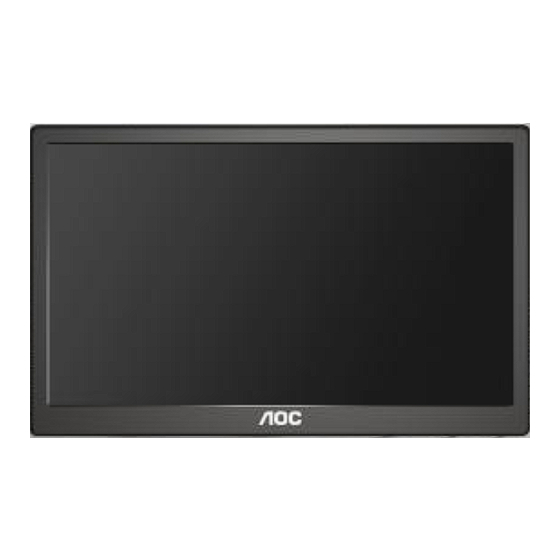

- Page 1 USB Monitor User Manual E1659F www.aoc.com © 2013 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
FCC Notice ..............................25 WEEE Declaration ............................26 WEEE Declaration for India ..........................26 EPA Energy Star .............................. 27 Service ..................................28 EU WARRANTY FOR AOC MONITORS ......................28 Warranty Statement for North & South America (excluding Brazil) ..............30... -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of... -
Page 4: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer‟s instructions when installing the product and use mounting accessories recommended by the manufacturer. -
Page 5: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 6: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the USB Monitor in severe vibration or high impact conditions during operation. -
Page 7: Setup
Setup Contents in Box Monitor CD Manual Carry Case (Option) USB Cable... -
Page 8: Setup Stand
Setup Stand Please setup the stand following the steps as below. Setup: Caution: ust put unit on a flat surface. Any uneven or sloped surface may result in unit damage or injury to user. -
Page 9: Adjusting Viewing Angle
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen. The AOC E1659F monitor supports an auto-pivot function to keep the display upright as the monitor is rotated between portrait and landscape position. The monitor has to be rotated slowly and over 75∘with the tilt angle within 30∘to activate the... -
Page 10: Connecting The Monitor
Connecting the Monitor Cable Connections In Rear of Monitor to Connect PC/Notebook/Laptop: Important!! Follow the software installation described on page 11 to 15 before connecting the USB monitor to your Notebook/Laptop/PC. 1 Connecting the USB Monitor to your computer To protect the equipment, always turn off the computer before connecting. Connect one end of the USB cable to the USB Monitor and the other end of USB cable to the computer. -
Page 11: Installation Of Usb Graphic Software On Your Computer
Installation of USB Graphic software on your computer For Microsoft ® Windows® 8 Important!! Install the USB Graphic software first before connecting the USB monitor to your computer. Windows 8 DisplayLink software can be installed from Windows update. Alternatively, the software can be downloaded from the DisplayLink website following the steps below. -
Page 12: For Microsoft ® Windows® 7
4. Connect your DisplayLink device via the USB cable to your PC. A message will be shown that DisplayLink software is configuring itself for first use. 5. The screen should flash and the DisplayLink device should start to extend the Windows desktop. - Page 13 The DisplayLink software end user license agreement windows opens (see above). 6. Click I Accept. The DisplayLink USB Graphics software installs, without notification that it has completed. Note: You may need to reboot the computer before you use your AOC USB Monitor.
-
Page 14: For Microsoft® Windows Vista
For Microsoft® Windows Vista® Important!! DO NOT connect USB Monitor to your PC/Notebook before the software install. 1. Double click on Setup.exe. The Windows User Account Control window opens (if enabled in the OS). 2. Click Yes. The USB Monitor software end user license agreement window opens. 3. - Page 15 4. Connect your AOC USB Monitor via the USB cable to your PC/Notebook. Installing device driver message The Windows User Account control window opens. 5. Click YES. DisplayLink automatically installs the AOC USB Monitor. The DisplayLink software end user license agreement windows opens (see above).
-
Page 16: For Microsoft® Windows® Xp
DisplayLink core software and DisplayLink Graphics installs. Note: The screen may flash or go black during the installation. 3. Connect your AOC USB Monitor via the USB cable to your PC/Notebook. The following message (or similar) will be seen. Windows installs the AOC USB Monitor device. -
Page 17: Setting The Usb Monitor
Shows Desktop only on 2 display marked 1 become blank. To control the behavior of an attached AOC USB monitor, it is also possible to use Windows Key ( ) + P to display a menu (and cycle through it) to switch mode. -
Page 18: To Control The Display
To Control the Display You can use the AOC USB USB Monitor in mirror mode or extended mode. Settings may vary depending on your operating system. For Microsoft® Windows® 8 and Microsoft® Windows® 7 Press the Windows® key ( ) + P to switch between different modes as shown below. -
Page 19: Media Playback
BIOS, hardware driver or operating system updates. The AOC USB Monitor utilizes an advanced video graphics controller to display the video. However, due to USB 2.0 transfer speed limitations, some or all portions of DVD playback may appear slow or choppy. -
Page 20: Pc Requirements
WinDVD 11 (www.intervideo.com) PowerDVD 12 (www.cyberlink.com) The DisplayLink USB Graphics device can display media files and DVDs using most media players. Media playback in mirror mode (XP) or in Basic mode (Vista and Windows 7) is not recommended. PC Requirements DisplayLink software can be used on PCs, from Netbooks, Notebooks/Laptops to Desktops. -
Page 21: Windows Vista
Windows 7 and Windows 8 For Windows 7 and Windows 8, the Windows Experience Index (WEI) is a useful measure of hardware level. The WEI is accessible from Computer > Properties, or from Control Panel > System. The recommended typical hardware requirements for the PC are: WEI score of at least 3 in the „Graphics;... - Page 22 Windows XP For 1-2 monitors, business usage, productivity target. This may not provide full frame rate DVD playback at full screen. 1.2GHz Single Core CPU 512MB memory For 3 monitors where 1 could run DVD video while also targeting productivity and business apps.
-
Page 23: Troubleshooting
AOC should you encounter problems that you cannot resolve. Before you call AOC service center, please read the troubleshooting advice in this manual and in your computer User's Manual. You may also want to consult with your system administrator or company technical support staff. -
Page 24: Specification
Specification General Specification Model name E1659F Driving system TFT Color LCD Viewable Image Size 39.49cm diagonal Panel Pixel pitch 0.252(H)mm x 0.252(V)mm Display Color 262K Colors Dot Clock 85.5MHz Horizontal scan range 48kHz Horizontal scan 344.23mm Size(Maximum) Vertical scan range 60Hz Vertical scan 193.54mm... -
Page 25: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 26: Weee Declaration
WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 27: Epa Energy Star
EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. -
Page 28: Service
AOC Certified or Authorized Service Center under the following condition: ● Make sure the USB Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport). - Page 29 PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE.
-
Page 30: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 31 States, Alaska, and Hawaii. Outside the United States of America, this limited warranty is only valid for Products purchased in Canada. Information in this document is subject to change without notice. For more details, please visit: USA: http://us.aoc.com/support/warranty ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty...
