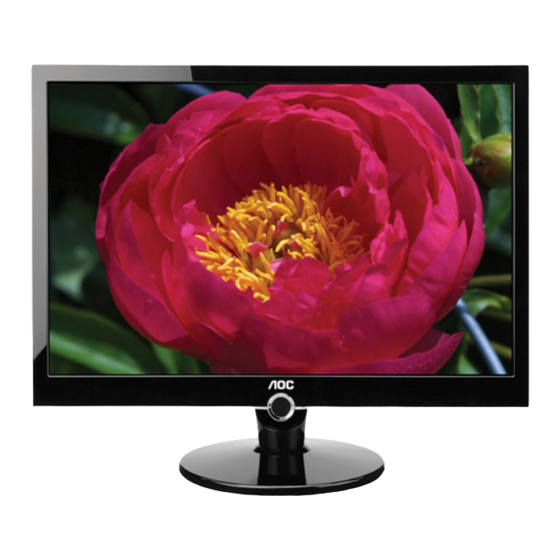

2330V User's Manual
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These
blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer
system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how
to avoid the problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the
problem.Some warnings may appear in alternate formats and may be unaccompanied by an icon. In
such cases, the specific presentation of the warning is mandated by regulatory authority.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AOC 2330V
Summary of Contents for AOC 2330V
- Page 1 2330V User’s Manual The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.
- Page 2 The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature.
- Page 3 Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer.
- Page 4 Clean the cabinet regularly with the cloth provided. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
- Page 6 Notes: Analog cable or DVI cable is not available for all countries and regions, please check with the dealer or official department of AOC for confirmation .
- Page 7 Please setup or remove the base following the steps as below. For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. ...
- Page 8 Cable Connections On Back of Monitor and Computer 1. Power 2. Analog (DB-15 VGA cable) 3.DVI To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
- Page 9 Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. Distance between the wall-mount holes : 100 x 100 mm Screw specification for wall-mount : M4 x 10...
- Page 10 The recommended resolution for this monitor is 1920 by 1080. To setup the monitor to this resolution, follow the steps below. For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization...
- Page 11 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to 1920 by 1080. For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL.
- Page 12 4 Click Appearance and Themes. 5 Double click DISPLAY. 6 Click SETTINGS.
- Page 13 7 Set the resolution SLIDE-BAR to 1920 by 1080. For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to 1920 by 1080.
- Page 14 Power / Menu Press to turn on monitor. When monitor is on, press to activate main menu. Press and hold 2 seconds to turn off. Eco (DCR) / Up Press UP key to select different brightness eco-modes: Standard, Text, Internet, Game, Movie, Sports and DCR (Dynamic Contrast Ratio).
- Page 15 Luminance Contrast Brightness Eco mode Gamma Image Setup Clock Phase H.Position V.Position Color Temp. Color Temp. User-R User-G User-B Color Boost Full Enhance Nature Skin Green Field Sky-blue AutoDetect Demo Picture Boost Frame Size Brightness Contrast H. position V.position Bright Frame OSD Setup H.Position V.Position...
- Page 16 Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed (AOC Monitor Drivers are available at : here) Adjust the Contrast and Brightness Controls.
- Page 17 Model number 2330V Driving system TFT Color LCD Viewable Image 584mm diagonal Size Pixel pitch 0.2655mm(H) x 0.2655mm(V) LCD Panel Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5 MHz...
- Page 18 FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 19: Warranty Statement
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of: ... - Page 20 EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI’ LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM.
