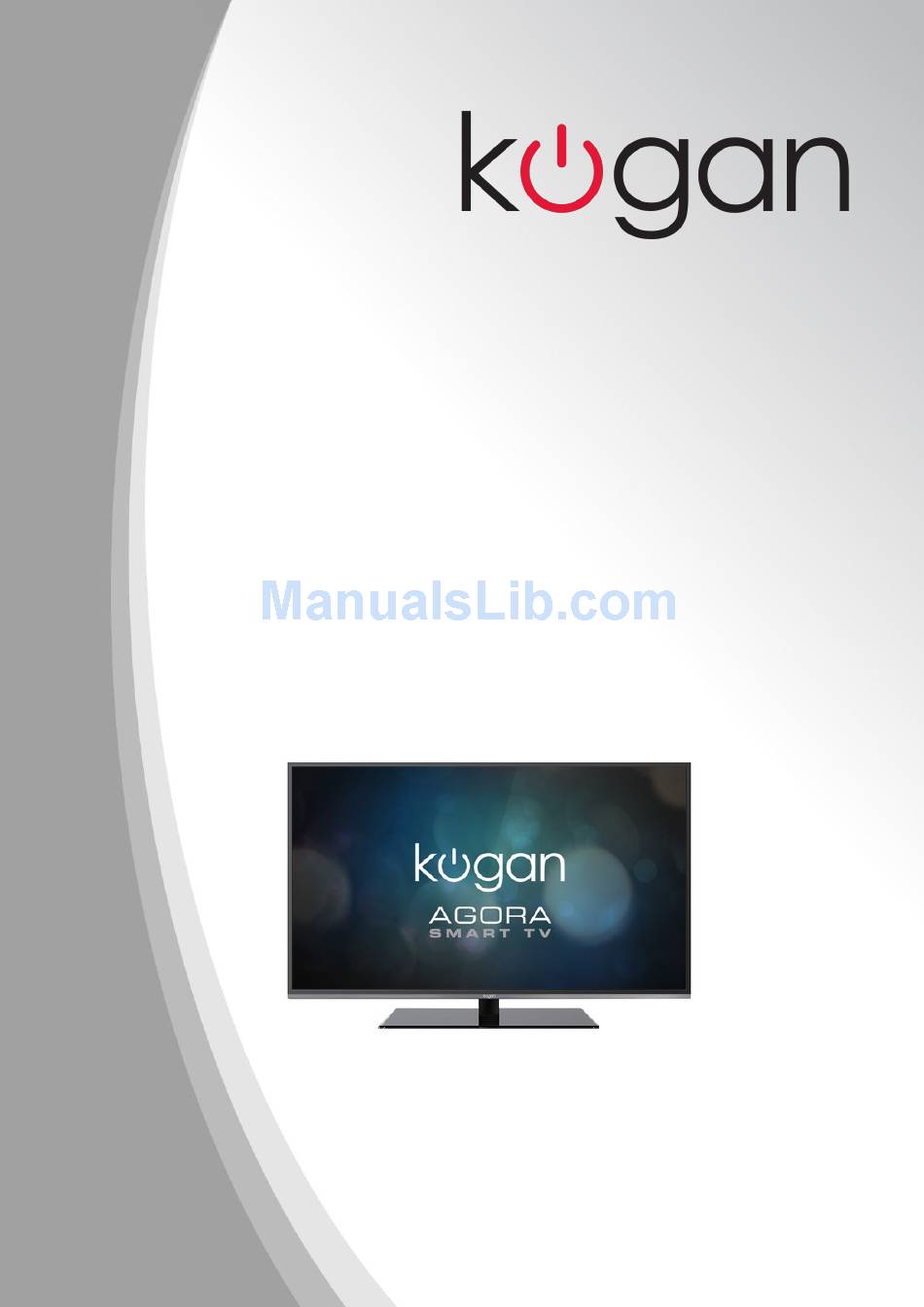

- Page 1 KALED553DSMTZA USER MANUAL...
- Page 2 SMART TV Application Features 1- Android 4.2 dual-core smart TV 5- MHL 2- Network Connection 6- Application Installation (Wired/Wireless/PPPOE/WLAN) 3- DLNA 7- Google Play Store 4- Home Share 8- USB 3.0 1. Android 4.2 Dual Core Smart TV Equipped with a dual-core processor, the latest CPU (1.2G) and a Mali400 Quad Core GPU, this Smart TV contains a robust system configuration designed to run the newest software applications.
- Page 3 SMART TV Android 4.2 Launcher Introduction 1 – Add to home screen. (Add apps to the home page) 2 – All Apps 3 – Change Wallpaper 4 – Search 5 – Settings 6 – Mass Storage (USB/SD/TF) 7 – Network (Wireless/WLAN) 8 –...
- Page 4 2. NETWORK CONNECTION (Wired/Wireless/PPPOE/WLAN HP) The instant network page gives you quick and easy access to information via the internet. CABLE NETWORK WIRELESS NETWORK...
- Page 5 PPPOE PPPOE is point-to-point protocol over ethernet. For detailed operations please contact your Internet Service Provider. WLAN HP (Hotspot)
- Page 6 3. DLNA DLNA is the Digital Living Network Alliance, which lets you enjoy your music, photos and videos anywhere, anytime. Note: 1 – Make sure your devices (PC, Smartphone, iPad etc..) have a DLNA compatible program installed. 2 – Ensure your devices and the TV is in the same local area network.
- Page 7 4. HOME SHARE Easily browse the internet or receive data from your home smart devices. Your PC, NAS, Router with USB together with your TV creates a whole new home entertainment centre. To enjoy Home Share, you need to access the internet first. Please refer to wireless connection information to connect to your network.
- Page 8 6. APPLICATIONS INSTALLATION Note: You can download applications from the Google Play Store or from other online stores directly if your TV has these stores installed, or you can install applications from USB/SD/TF which contains the suitable .apk software. For USB/SD/TF installation: 7.
- Page 9 Important Safety Instructions and Maintenance Important Safety Instructions CAUTION Risk of electronic shock, do not open. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. High Voltage Refer all servicing to qualified service personnel.
- Page 10 Important Safety Instructions and Maintenance Important Safety Instructions Do not push or scratch the front filter, or place any objects on top of the TV set. The image may be uneven or the screen may be damaged. To avoid the fire, no naked flame source, such as lighted candles, should be placed on the apparatus.
- Page 11 Important Safety Instructions and Maintenance Installation Do not place the set on an unstable cart, stand, table or shelf. The set may fall, causing serious personal injury as well as damage to the product. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
-
Page 12: Table Of Contents
Important Information Keep small accessories out of reach of children so they are not mistakenly swallowed. Table of Contents Accessories -----------------------------------------------------------------------------------------------5 Introduction -----------------------------------------------------------------------------------------------6 Features---------------------------------------------------------------------------------------------------------6 Specifications--------------------------------------------------------------------------------------------------7 Stand and wall-mounting instructions (optional)------------------------------------------------8 General Description --------------------------------------------------------------------------------10 Overview of back panel------------------------------------------------------------------------------------10 Overview of front panel-------------------------------------------------------------------------------------11 Overview of remote control-------------------------------------------------------------------------------12 Teletext --------------------------------------------------------------------------------------------------------14 Installing Batteries in the Remote Control------------------------------------------------------------16... -
Page 13: Accessories
Accessories Please make sure the following item is included with your LED TV. If the remote control is missing, contact the Kogan support team. HOME Remote Control Note: Detail operation please refer to HELP menu on the TV. -
Page 14: Introduction
Introduction Features TV adopts 47”/55” TFT display screen Zero X radiation complies to green environment protection requirement Connect to computer directly to realize TV/monitor combo. MHL2.0 Android4.2 USB3.0 16:9 wide screen Auto tuning and fine tuning ... -
Page 15: Specifications
Introduction Specifications KALED473DSMTZA KALED553DSMTZA Model Display size 47” Diagonal max.) 55” Diagonal max.) LED panel resolution 1920X1080 1920X1080 Speaker output power Power supply ~110-240V, 50/60Hz ~110-240V, 50/60Hz TV receive system Digital: DVB-T Digital: DVB-T Analog: PAL: BG, I, DK, Analog: PAL: BG, I, DK,... -
Page 16: Stand And Wall-Mounting Instructions (Optional)
Stand and wall- mounting instructions (optional) How to assemble the stand If you need to remove or assemble the stand please read the following instructions. - Before attaching/detaching the stand, make sure to turn off the TV. - Before performing work, spread cushioning over the base area to lay the LED TV on. This will prevent it from being damaged. - Page 17 Stand and wall- mounting instructions (optional) Wall mounting instructions (optional) Your LED TV is able to accommodate wall mounting with the use of a wall mount bracket (not supplied with LED TV, please contact your local hardware store) and the mounting holes on the back of the unit.
-
Page 18: General Description
General Description Overview of back panel You can connect the TV with video devices such as DVD/VCD player, VCR and video camera to enjoy the high quality picture. USB 3 USB 2 SPDIF USB 1 Microphone DVD player Headphone Video output Blu-ray disc player DVD player Camcorder... -
Page 19: Overview Of Front Panel
General Description Overview of front panel The buttons on the lower-left panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. INPUT MENU PROG POWER SWITCH PROG/ Press this button to turn TV on or off. Press to change programs. -
Page 20: Overview Of Remote Control
General Description Overview of Remote Control 1. INPUT: This button is used to switch among different sources: DTV,ATV, AV,YPbPr,VGA, HDMI1, HDMI2, HDMI3, HDMI4. Select a source and press OK button to confirm. 2. POWER: Press this button to switch to standby mode, and press it again to turn TV on. - Page 21 General Description Overview of Remote Control 17. HOME: Press this button to enter the main interface directly. ASPECT: Press this button to switch the screen mode. VOL and VOL: Press these buttons to adjust TV volume. 20. PROGand PROG: Press these buttons to change channel upward or downward.
-
Page 22: Teletext
General Description General Description Teletext Teletext is an information system broadcast by certain channels which be consulted like a newspaper. It also offers to subtitles for viewers with hearing problems or who are not familiar with the transmission language. You can press these buttons to operate the teletext: Text Press TEXT button to enter or exit teletext mode. - Page 23 General Description Teletext Cancel The CANCEL button will exit from any Teletext on the display. Press CANCEL button again to exit Teletext and return to live TV broadcast. Subtitle Turning the Teletext subtitles on or off. Subtitles is a separate mode with only a few buttons available.
-
Page 24: Installing Batteries In The Remote Control
General Description Installing Batteries in the Remote Control Installing Batteries Open the battery compartment cover on the back side. Insert two 1.5V AAA size batteries in correct polarity. Don´t mix old or Point the remote towards the remote used batteries with new ones. control sensor of the TV and use it within 8 meters. -
Page 25: Connecting Vcr
External Connection Connecting VCR These instructions assume that you have already connected your TV to an antenna or a cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable system. VCR Rear Panel AUDIO OUT ANT ANT OUT S-VIDEO TV Rear Panel... -
Page 26: Connecting A Camcorder
External Connection Connecting a Camcorder The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR. Each Camcorder has a different back panel configuration. When connecting a Camcorder or DVD, match the color of the connection terminal to the cable. -
Page 27: Connecting A Dvd Player/Set-Top Box Via Dvi
External Connection Connecting a DVD Player/Set-Top Box via DVI This connection can only be made if there is a DVI Output connector on the external device. TV Rear Panel DVD Player/ Set-Top Box White DVI to HDMI Cable (Not supplied) Audio Cable (Not supplied) Each DVD player/STB has a different back panel configuration. -
Page 28: Connecting Dvd Player/Set-Top Box Via Hdmi
External Connection Connecting DVD Player/Set-Top Box via HDMI This connection can only be made if there is a HDMI Output connector on the external device. DVD Player/ TV Rear Panel Set-Top Box HDMI Cable (Not supplied) What is HDMI? HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression. -
Page 29: Connecting Digital Audio System
External Connection Connecting Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV. TV Rear Panel Digital Audio System (Black) Coaxial Cable (Not supplied) 5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH. 1. -
Page 30: Connecting Pc
External Connection Connecting PC PC Audio Cable (Not supplied) D-Sub Cable (Not supplied) Each PC has a different back panel configuration. The HDMI jacks do not support PC connection. 1. Connect a D-Sub Cable between VGA/PC IN connector on the TV and the PC output connector on your computer. -
Page 31: Basic Operation
Basic Operation Turning the TV On and Off How to turn the TV on or off 1. Insert the power cord plug into a polarized AC outlet. 2. If TV is in standby mode, press POWER button on the remote control or button on the bottom panel of LED TV. -
Page 32: The Main Interface
Basic Operation Menu operation The main interface ou will enter the main menu directly after the TV is turned on. Arrow buttons: Select menu and the selected menu's background will be orange. OK button: Enter the options which you've selected. INPUT button: You will enter the relevant function options directly. -
Page 33: Applications Of The Tv
Basic Operation Menu operation Applications of the TV Application menu shows all those applications which are together with the TV and those which you've downloaded. Menu Button: Open or Close the app's menu Exit Button: Return to the main menu Arrow Button: Select the application which you want OK Button: Enter the application you've selected. -
Page 34: Menu System Instruction
Menu system instruction TV Menu Sound Image Program Input Source Function Time Menu button: Open the TV menu. Exit button: Close the TV menu. Arrow buttons: Select the application which you want. OK button: Enter the selected application settings menu. Note: Enter the function option by click the status bar. - Page 35 Menu system instruction Sound Equalizer 1. Press ▲/▼ key to select an equalizer item. Equalizer 2. Press OK key to enter the equalizer submenu 120Hz The sound settings can be adjusted to suit your 500Hz user preferences. 1. Press ▲/▼ key to select a particular item. 1.5KHz 2.
-
Page 36: Image
Menu system instruction Image Picture Mode Dynamic Aspect Ratio 16:9 Color Temp Cool Backlight Window Adjust Picture Mode Your TV has five picture settings (Standard, Soft, Vivid, User, Dynamic) that are preset at the factory. Only "User" mode can be set to your preference by adjusting particular items such as Contrast, Brightness,Color,Sharpness,Tint. -
Page 37: Program
Menu system instruction Program Auto Search ATV Manual Search DTV Manual Search Program Edit Signal Information Auto Search Search Type ATV/DTV Press / key to select "Auto Search" option. Then Australia Bulgaria Denmark press OK key to start a notice window. In this notice Austria Croatia Finland... -
Page 38: Program Edit
Menu system instruction Program DTV Manual Search DTV Manual Search In the ATV/DTV source, you can choose “DTV Manual Search” to enter “DTV Manual Search” menu. CH37 You can use /button to choose the channel and Search press OK button to search, and then the TV will store Signal Strength the DTV channel if there is a DTV signal present. -
Page 39: Input Source
Menu system instruction Input Source There are two ways to select input source. 1.Input Setup Press INPUT key on the remote control to enter "INPUT SOURCE" menu. These options for you to select: DTV, ATV, AV, YPbPr, VGA, HDMI1, HDMI2, HDMI3, HDMI4 . Use key to move the cursor to the input you desired and press OK key to confirm. -
Page 40: Function
Menu system instruction 4. 3D Auto: When it is ON, all 3D source films will automatically switch to 3D mode. When it is OFF, only the source film with 3D format sigh will automatically switch to 3D mode. 5. Left Right/Up Down/ 3D Clarity: set source films into different mode on the basis of different 3D format. -
Page 41: Pvr File System
Menu system instruction Function enter password" menu will appear, enter your 4-digit Lock password to enter " Lock " submenu (the default Lock System password is 0000, password Set Password is 1980). Block Program Lock System Parental Guidance 1. Press / key to select " Lock System "... -
Page 42: Time
Menu system instruction Function Screen Saver This option is only used in ATV mode. 1.Press / key to select “Screen Save” option. 2.Press / to choose on or off. Noise Reduction 1. Press/key to select "Noise Reduction" option. 2. -
Page 43: Pvr
Menu system instruction Time Off Time Off Time In "Off Time" item, press OK button to enter the submenu, Switch set the time to turn off the TV set. Time 00:00 Sleep Timer 1. Press / key to select "Sleep Timer" option. 2. - Page 44 Menu system instruction Select Disk: Press “OK” button to enter submenu and press “ ” to choose the disk for PVR. Time Shift Size: Press “OK” button to enter submenu and press / “ ” to choose the size. Format: Press “OK” button to enter format submenu. The disk must be formatted when first used for PVR.
- Page 45 Menu system instruction DTV EPG (Electronic Program Guide) In DTV mode, press “GUIDE” button to enter the Electronic Program Disabled At Guide menu, press "RED” button to "Record" Setting. 2007-01-18 16:01 Thursday Friday Saturday Sunday Monday Tuesday Wednesday 9 Nine Digital 16:00 THE SHAK 90 Nine Digital HD Record Setting...
-
Page 46: Digital Media Player
Digital Media Player Introduction This TV is embedded with one USB port digital media player. It can find devices that support USB1.1/2.0/3.0, including flash disk, USB hard disk and digital camera. It supports functions as: Display pictures, Play music files, Play video files. Note: please do not remove the cable during the data transfer. - Page 47 Digital Media Player USB support character 1. Photo Press menu button to play/exit the "photo menu". Those menu items from left to right function as the following in turn: a.Wallpaper b.List c.Prev d.Play/Pause e.Next f.Stop g.Sequence h.Anticlockwise i.Clockwise j.Zoom in k.Zoom out l.DragMode 002.jpg Wallpaper DragMode...
- Page 48 Digital Media Player USB support character 3. Movie Press menu button to play/exit the "movie menu". Those menu items from left to right function as the following in turn: a.Prev b.Pause/Play c.Next d.Stop e.Advanced setting Prev Advanced setting Pause/Play Stop Next 4.
- Page 49 Digital Media Player USB support character Select the S b Channel item and press OK to open the Sub Channel selection menu. Press / key and press OK to select a channel. “ ” YPbPr HDMI1 HDMI2 HDMI3 HDMI4 3D Left Right 3D Up down 3D -Off 3D - 2D...
-
Page 50: Troubleshooting
If you have any problem, check the cou ter measures for each symptom listed below. The following symptoms may have been caused by inappropriate adjustment rather than actual malfunction of the unit. If the trouble persists, contact the Kogan Customer Centre. Care... - Page 51 Troubleshooting Check your area is covered by Digital Video Broadcasts. After Auto Tuning only Try re-tuning or manually tuning missing channels. some channels are Check that you are using the correct antenna type - please available see pg.16 'Antenna connection'. Check if the channel has been blocked in the main menu Channel cannot be settings.
-
Page 52: Picture Defects And The Reason
Troubleshooting Picture defects and the reason Ghosting may also occur when still pictures are displayed continuously. It may disappear after a few moments.
