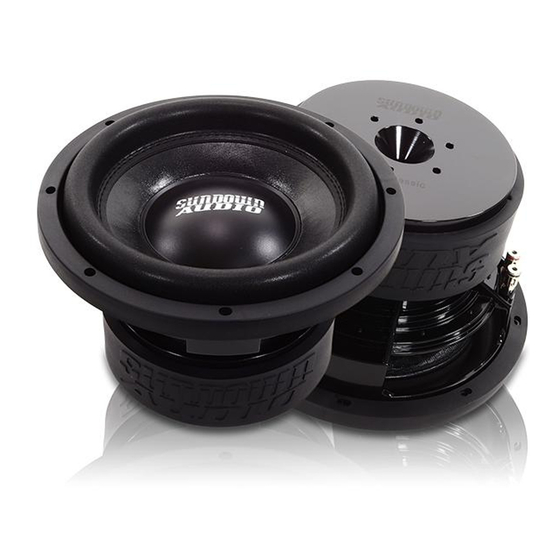

Sundown Audio SA?10D2 Specifications

Specifications SA‐10 D2 SA‐10 D4 SA‐12 D2 SA‐12 D4 SA‐15 D2 SA‐15 D4
RE (ohms) 4.29
FS (Hz) 35.4
Vas (L) 10.13
Qes 0.52
Qms 5.41
Qts 0.48
Le (mH) 3.41
BL (NA) 20.40
Mms (Grams) 230
Cms (uM/N) 87.8
Sens (1w/1m) 81.0
1/4"
Cut‐Out 9
Depth 6"
1/2"
OD w/ Gasket 10
Displacement 0.10 ft^3 0.10 ft^3 0.14 ft^3 0.14 ft^3 0.17 ft^3 0.17 ft^3
Box Specs Sealed
0.5 ft^3
F3 – 51 Hz
Specifications are measured after about 5 minutes of break‐in time. You will see the CMS loosen up another 33% after some serious play time
which will both reduce the FS and Qts figures of the drivers. Some Re variance is shown based on coil temperature from break‐in period. D2 is
closer to 4.0 in series and D4 7.0 in series at room temperature. This does not affect box calculations.
Box specifications are suggestions – other volumes and tunings can be used based on the needs of your application. The SA series woofers are
compatible with most quality pre‐fabricated enclosures as well. They also lend themselves favorably to fourth order band‐pass enclosures.
Features:

600‐watts RMS Power Handling

19.0mm X‐Max by 70% BL method one‐way (38.0mm peak to peak)

Thick black anodized aluminum voice coil formers for maximum strength and heat dissipation

4‐layer copper high temperature voice coil windings with 45mm winding length

Double layer permanently bonded high strength Nomex spider pack for maximum longevity and durability

Thick flat tinsel lead wires tied down to the spider to prevent lead noise and breakage

Custom tooled triple joint support ring

Custom tooled frame spacer / ventilation ring

High efficiency air‐flow management integrated into the motor for maximum voice coil cooling

Dual Aluminum Faraday rings for reduced inductance and inductive distortion (pole cap and magnet ID)

Two‐Year Warranty against defects in materials and workmanship (full warranty text on our web‐site)
The Sundown SA series woofers represent the result of several years of testing and R&D into making the
most rugged, longest lasting, and best sounding sub‐woofers possible in their price range. Not only do the SA
series drivers have the capacity for extremely high output on the street and in the SPL lanes but they are also
designed with low distortion in mind via their high linear excursion and dual faraday rings. The SA line has
consistently proven itself to customers in the USA and worldwide both on the streets and in the SPL lanes since
their introduction in mid‐2009.
Due to constant R&D, testing, and improvement specifications are subject to change.
Sundown Audio SA 10/12/15 Woofers
7.08 4.57
36.6 33.71
10.66 21.21
0.54 0.58
5.30 5.34
0.49 0.52
4.71 3.40
24.82 21.64
205 280
92.4 79.43
81.6 83.21
1/4" 1/8"
9 11
1/2"
6" 6
1/2" 5/8"
10 12
Ported Sealed
1.0 ft^3 1.0 ft^3
Tune – 35 Hz F3 – 46 Hz
F3 – 29 Hz
7.07 4.61
33.96 34.88
24.63 54.69
0.55 0.72
5.15 6.52
0.49 0.65
4.84 3.39
25.67 21.76
237 338
92.27 61.42
84.22 86.81
1/8" 1/8"
11 14
1/2" 1/2"
6 7
5/8" 5/8"
12 15
Ported Sealed
2.0 ft^3 2.5 ft^3
Tune – 35 Hz F3 – 41 Hz
F3 – 28 Hz
7.75
36.95
52.35
0.85
6.63
0.75
4.98
25.87
315
58.8
86.68
1/8"
14
1/2"
7
5/8"
15
Ported
3.5 ft^3
Tune – 35 Hz
F3 – 28 Hz
