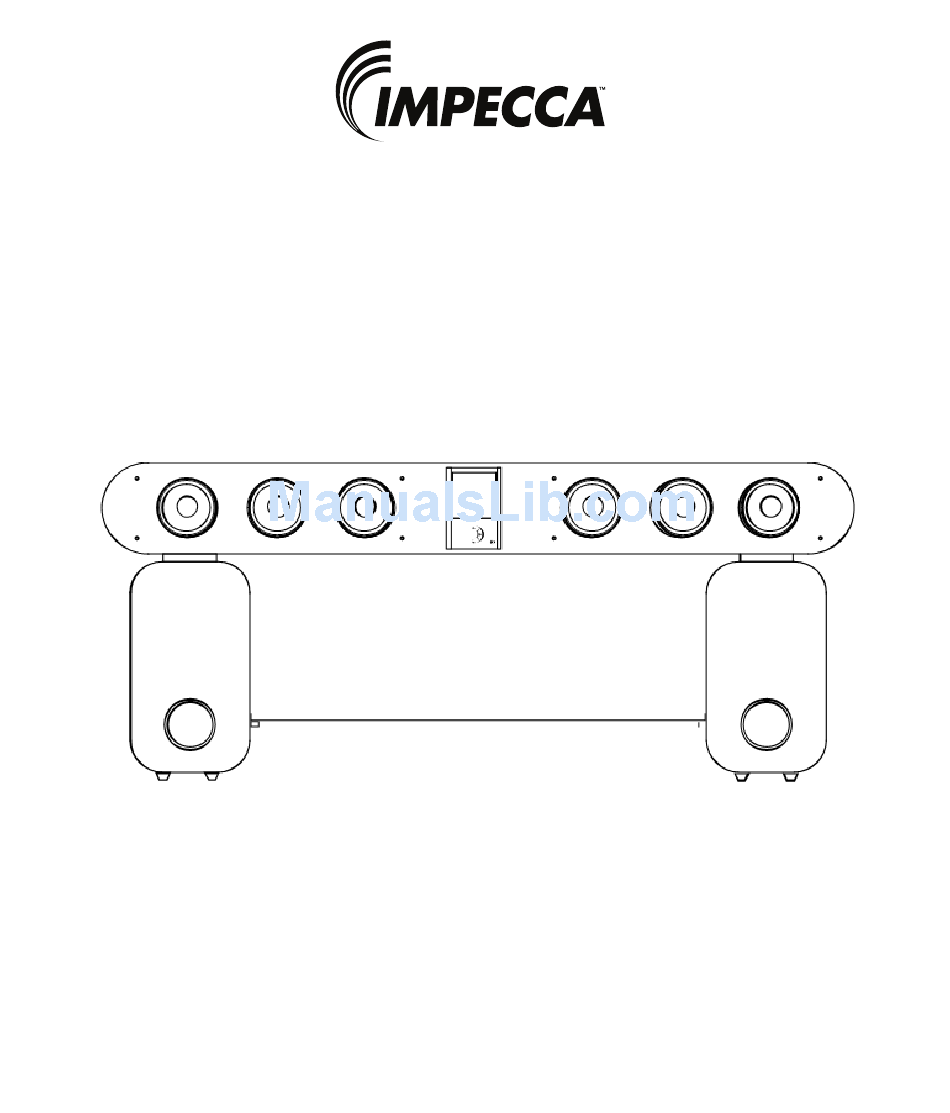

- Page 1 Simply Impeccable TVS150 Product Introduction TV stand with Built-in Home Theatre System...
-
Page 2: Table Of Contents
Thank you for purchasing our product (TVS510). The TV Stand designed with the most advanced SRS TruSurround HD/HD4 technology in the world, which brings you multi-channel surrounded sound ef- fect. This outstanding TV stand with the Built-in Home Theatre System will greatly enrich your audio entertainment. -
Page 3: Safety Warning
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 4: Parts Description
Do not climb on this system. Do not scrape with rough or sharp objects. 3. Parts Description 1.Main box 6. Install screw 2. Subwoofer box 7. woofer piper 3. Glass plate 8. Connection strap 4. Control panel 9. Connection hole 5. -
Page 5: Front Panel Control
4. Front Panel Control 1. LCD screen 2. Volume up 3. Volume down 4. Standby 5. Mode 6. Receiver 7. 3.5mm AUX MP3 Input 5. Remote Control Mute Power On/Off Reset Volume up Volume down Subwoofer up Subwoofer down Center up Center down Surround up Surround down... -
Page 6: Rear Panel Control
6. Rear Panel Control 1. Power On/Off 2. Fuse 3. Power cable 4. Power cable 5. OPTICAL Input 6. AUX Input... -
Page 7: Assembly
7. Assembly Gently put the main box on both of the subwoofer boxes. Connect the main box with the subwoofer boxes by the holes and straps, then push the main box ahead to fasten. Install screw into the subwoofer box holes. Put the glass plate upon it. -
Page 8: Specifications
8. Specifications 1. Output power (130W): Subwoofer 30watts x 2 Center 18watts x 1 Front 13watts x 2 Front 13watts x 2 2. Frequency Response: 25Hz-20KHz 3. Power requirement: 120V.AC 60Hz 4. Dimension (W x H x D): Subwoofer unit 7.4x13.8x15.23 in. -
Page 9: Using The Appliance
9. Using the appliance 1) First, according to section No.7 – assembly, assemble the product correctly. According to section No.6 – Rear panel control, connect the DVD/mp3/mp4, TV and the product correctly. 2) Put the plug in the wall socket with the 220V/50HZ power supply. (Fig. 9-1) 3)Put two pieces of batteries into the remote control correctly. - Page 10 5) Press the ‘ST-BY’ button on the control panel or ‘POWER’ button on the remote control, the product works. (Fig. 9-5) Description: as the product with power on, the screen light turns of and the product switch to sleep mode after 3 seconds if one does not press the ‘ST-BY’ button;...
- Page 11 7) Volume choices: A Main volume (Fig. 9-9) a. Adjust the volume use ‘VOL+’ or ‘VOL-’ buttons on the control panel b. Adjust the volume use ‘VOL+’ or ‘VOL-’ buttons on the remote control B Subwoofer volume (Fig. 9-10): Adjust the volume use ‘SUB+’ or ‘SUB-’ buttons on the remote control C.
- Page 12 7) Reset: press ‘RESET’ button, the product resume to default setting (Fig. 9-14, Fig. 9-15) 8) Shutdown steps: A. press the ‘VOL-’ button on the control panel or remote control to make the product volume down B. press the ‘STBY’ button to switch the product to STBY mode C shutdown (Switch the button ‘ON’...
-
Page 13: Troubleshooting
10. Troubleshooting NO. problem Cause Solution 1.the plug does not be put in Put the plug in the wall socket appliance the wall socket does 2. the wall socket does no t Make sure wall socket ha s work at all work 220V/50Hz power supply 3.
