JVM6175SF/RF/EF
GE 1.7 cu. ft. Over-the-Range Sensor Microwave Oven
®

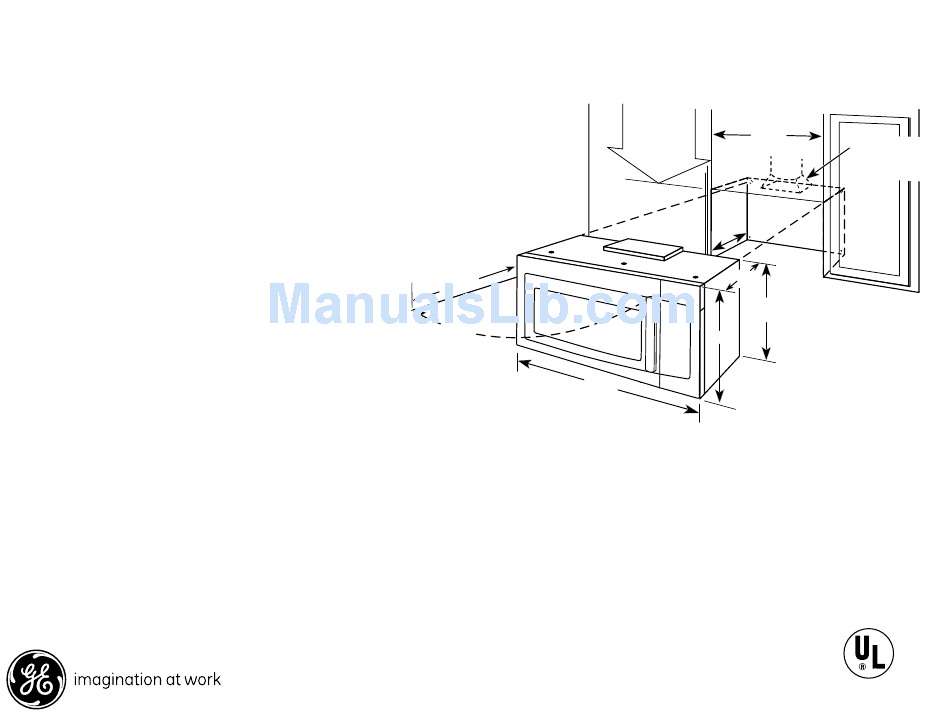

Dimensions and Installation Information (in inches)
Note: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above Spacemaker microwave oven.
No additional wiring, venting or cabinet rebuilding necessary
in many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed with
the Spacemaker microwave oven.
Important Information: When installing the Spacemaker
microwave oven over a range, allow minimum of 2" from bottom
of Spacemaker microwave oven to top of range backguard to
allow for removal of light covers.
Ventilation Options: The Spacemaker microwave ovens
are designed for adaptation to the following three types of
ventilation:
• Outside exhaust (vertical – as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless – see Filter Kit drawing)
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product/kit for current
dimensional data.
(without obstruction)
For answers to your Monogram or GE
®
questions, visit our website at geappliances.com
or call GE Answer Center service, 800.626.2000.
®
Minimum distance from
door hinge side to
adjacent wall should
equal 1/2 inch.
22-7/8 "
105°
Door open
29-7/8"
appliance
®
66" MIN.
30"
Mounting
MIN.
height
width
from
required
floor
13"
MAX.
12"
MIN.
15"
16-1/2"
(rear)
15-7/8"
Specification Revised 7/13
Exhaust outlet
connects to
3-1/4" X 10" duct
Listed by
Underwriters
Laboratories
340177
