Microsoft 9DR-00002 - Wireless Notebook Presenter 8000 Product Dimensions

Version Information
Product Name
Product Version
Mouse Version
Transceiver Version
Product Dimensions
Mouse Length
Mouse Width
Mouse Depth/Height
Mouse Weight
Transceiver Length
Transceiver Width
Transceiver Depth/Height
Transceiver Weight
Compatibility and Localization
Interface
Operating Systems
Top-line System Requirements
Compatibility Logos
Software Localization
Tracking Technology
Mouse Tracking System
Imaging Rate
X-Y Resolution
Tracking Speed
Wireless Technology
Wireless Platform
Wireless Frequency
Wireless Range
Bluetooth Profile Support
Power Requirements
Battery Type and Quantity
Battery Life
Product Feature Performance
Mouse Button Features
Right & Left Button Life
Side Button Life
Wheel Button Life
Mouse Scrolling Features
Wheel Vertical Scrolling Life
Wheel Horizontal Scrolling Life
Mode Button Feature
Mode Switch Button
Power Switch Features
Power Switch Life
Presenter/Media Controller Button Features
Presenter/Media Controller Button Life
Transceiver Features
Storage Temperature & Humidity
Operating Temperature & Humidity
Certification Information
Country of Manufacture
ISO 9001 Qualified Manufacturer
ISO 14001 Qualified Manufacturer
Laser Compliance
Restriction on Hazardous Substances
FCC/IC ID
Rev. 1103A
®

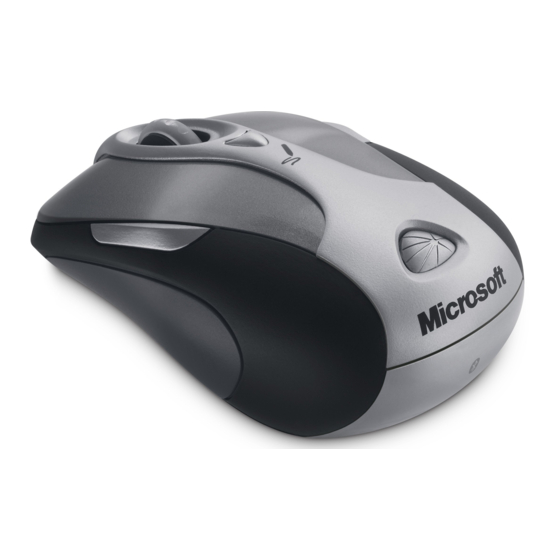

Microsoft Wireless Notebook Presenter Mouse 8000
Microsoft Wireless Notebook Presenter Mouse 8000
Microsoft Wireless Notebook Presenter Mouse 8000
Microsoft Transceiver v3.0 for Bluetooth
3.68 inches (93.5 millimeters)
2.22 inches (56.3 millimeters)
1.47 inches (37.3 millimeters)
4.5 ounces (128 grams) includes 2 AAA alkaline batteries; battery weight may vary
2.10 inches (53.4 millimeters)
0.73 inches (18.6 millimeters)
0.34 inches (8.65 millimeters)
0.24 ounces (6.80 grams)
USB Compatible
® ®
Microsoft Windows 7, Windows Vista , and Windows XP with Service Pack 2 (excluding Windows XP 64-bit)
Requires a PC that meets the requirements for and has Windows XP with Service Pack 2 (excluding Windows XP 64-bit) XP service pack 2
• 45 MB free (Install 100 MB)
• CD Drive
• USB Port
• Microsoft IntelliPoint software, version 7.0
Important: For best results and Bluetooth device compatibility, use the included Microsoft Mini Bluetooth Transceiver.
• Certified for Microsoft Windows Vista
• Certified USB logo
• Bluetooth compatible product
Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian
Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English
language version will be installed.
Microsoft-proprietary high-definition laser technology
Dynamically adaptable to 6000 frames per second
1000 points per inch (39.38 points per millimeter)
Up to 15 inches (381 millimeters) per second
Bluetooth 2.0
2.4 GHz wireless
30 feet (9.14 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and
receiver.
• Serial Port (SPP)
• Object Push (OPP)
• Personal Area Networking (PANU)
• Human Interface Device (HID)
• Hard Copy Cable Replacement (HCRP)
• Dial-Up Networking (DUN)
2 AAA alkaline batteries (included)
3 months typical with low battery LED feature
5 buttons including scroll wheel button, magnify, and Instant Viewer
3,000,000 actuations
1,000,000 actuations
350,000 actuations
Tilt wheel enables vertical and horizontal scrolling
• 100,000 revolutions (away from user) at no more than 60 rotations per minute
• 300,000 revolutions (toward user) at no more than 60 rotations per minute
100,000 actuations per side
Mode button enables user to switch between mouse and presenter/media controller functionality
100,000 actuations
On/off power
4,000 actuations
6 buttons including previous slide, next slide, volume up, volume down, laser pointer, and blank screen/play/pause
500,000 actuations
Supports up to 7 Bluetooth compatible devices
-40 °F (-40 °C) to 140 °F (60 °C) at <5% to 65% relative humidity (non-condensing)
32 °F (0 °C) to 104°F (40 °C) at <5% to 80% relative humidity (non-condensing)
People's Republic of China (PRC)
Yes
Yes
This device complies with International standard IEC 60825-1:2001-08 for both a Class 1 and Class 2 laser product. This device also complies with 21
CFR 1040.10and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.
This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals
(REACH) regulation regarding Substances of Very High Concern.
This Class B digital apparatus complies with Part 15 of the U.S. Federal Communications Commission (FCC) rules, Canadian ICES-003, and RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. The term "IC:" before the certification/registration number only signifies that the
Industry Canada technical specifications were met. Tested to comply with FCC (U.S. Federal Communications Commission) Standards.
For home or office use. Model numbers: 1065, Microsoft
FCC IDs: C3K1065 and C3K1063, IC IDs: 3048A-1065 and 3048A-1063
®
Microsoft Wireless Notebook Presenter Mouse 8000
®
Wireless Notebook Presenter Mouse 8000; 1063, Microsoft
®
Transceiver v3.0 for Bluetooth.
Page 1 of 2
