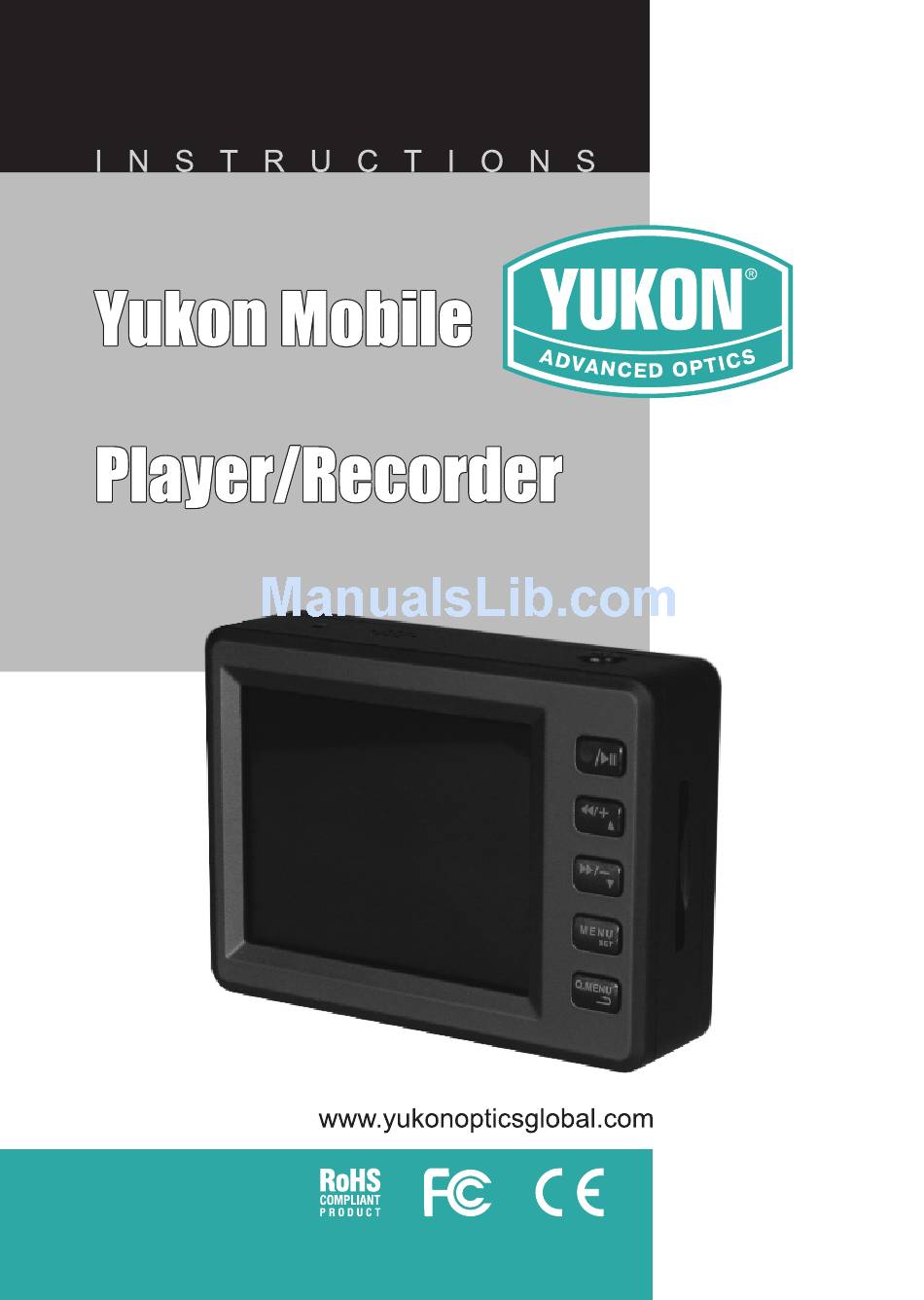

Summary of Contents for Yukon Mobile
-
Page 3: Table Of Contents
Motion detection Overwrite Enable Playback Recording moving images from TV set and other video sources Playback of media files on Yukon MPR Playback of moving images on PC Playback of moving images on TV screen Updating media files Copying recorded files... - Page 4 Setting recording parameters Resolution setting Frame rate setting Storage setting Setting video time Setting TV-OUT Setting LCD OFF Setting MPR’s Auto Off Setting vibration Language setting Setting date and time Setting format Specifications...
-
Page 5: Led Indicator
REC/OFF switch button SD card slot ] Play / OK Power/photo ] REW / VOL + Speaker Built-in microphone џ џ Yukon Mobile Player/Recorder AC Charger џ SD memory card џ USB cable џ џ User manual AV IN cable џ... - Page 6 Getting Star ted AUTO 2009/07/17 13:21:15 000333 20120105_234207.AVI 689K 20120105_234153.AVI 3.91M 20120105_234025.AVI 7.34M 20120105_234007.AVI 5.0M 20120101_013126.AVI 2.37M 20120101_010421.AVI 16.55M 20120101_010259.AVI 25.65M 02:41:07 02345MB 20120105_234451.WAV 1019K 20120105_233946.JPG 20120105_234354.WAV 20120105_233943.JPG 520K 20120105_234324.WAV 20120105_233938.JPG 196K 20120105_233934.JPG 20120105_222448.WAV Recording symbol Elapsed recording time Motion detection symbol Remaining memory Date/Time Recorded video files...
- Page 7 Your Yukon MPR operates with a mobile phone battery pack (KB-02 series) Open the cover by slightly pushing and pull it back. Insert the battery pack with the corner of " " facing toward the battery compartment as illustrated. Close the battery cover.
- Page 8 Battery pack capacity Continuous recording time (approx.) 140 min (fully charged battery) 1400 mAh Battery pack capacity Continuous recording time (approx.) 240 min (fully charged battery) 1400 mAh Insert the SD card with the " " mark facing the SD slot as illustrated.
-
Page 9: Ev Adjustment
Moving images are recorded in AVI (MPEG-4) format. a. When the MPR is turned off, connect a digital NV device and slide the switch button (5) upwards. The LED indicator flashes red meaning video and audio recording is in progress. LED indicator REC switch button b. - Page 10 Recording with digital night vision monoculars Ranger 5x42/Ranger Pro 5x42 l Connect the plug of the Ranger’s AV cable to the Ranger’s “AV out” port (see scheme 1 below). Connect the yellow plug of the recorder’s AV IN cable to the yellow jack of the Ranger’s AV cable.
-
Page 11: Motion Detection
Basic Operations a. When the MPR is off, connect a digital NV device, press and hold the power button [ ] for two seconds to enter preview screen. b. Press the menu button [ ] and select "System setting", press [ ] to enter System Setting menu. -
Page 12: Overwrite Enable
Basic Operations a. When the MPR is off, connect a digital NV device, press and hold the power button[ ] for two seconds to enter preview screen. b. Press the menu button [ ], select "S ystem setting " and press [ to enter System Setting menu. -
Page 13: Playback
a. In the state of preview, press [ ], select "Record Playback". b. Select "Video", "Photo" or "Audio" and press [ c. Enter "Video", select the required video file with [ ] or [ ] key. d. Press [ ] key to play back the selected video file. 20120105_234207.AVI 689K 20120105_234153.AVI... - Page 14 a. Press and hold the power button [ ] for two seconds to enter preview screen. b. Press [ ] to start recording, the red LED indicator is flashing during recording. "Rec" shows in the upper left corner of the screen. AUTO 2009/07/17 13:21:15 000333...
- Page 15 Basic Operations a. In the state of preview, press [ ] to enter the Media Playback mode. b. Enter "Photo", select the required Photo files with [ ] or [ ] key. c. Press [ ] key to play back the selected photo file. d.
- Page 16 a. Remove the SD card, connect it with the computer via a card reader. b.Connect the MPR with the computer via a USB cable. "PC Connection" message shows on the screen. a. In the state of preview, connect the MPR with TV/monitor via AV output cable.
- Page 17 c. Press [ ] or [ ], and [ ] in "TV-OUT Setting" option to select "PAL" or "NTSC". Image will be transmitted from the MPR to the TV. d. Further operations are the same as the MPR's (playback of moving images on the MPR).
- Page 18 Remove the SD card, connect it with the computer via a card reader. Connect the MPR with the computer via a USB cable. "PC Connection" message shows on the screen. c. Media formats Music MP3/MP2.5 Movie Photo JPG/JPEG a. In the playback mode, press [ ] to enter submenu.
- Page 19 a. In the playback mode press [ ] to enter submenu. b. Select the required file, press [ c. Select "Delete", press "All" or "Current" or "Cancel" as illustrated. Press [ , select "Yes" or "No" as illustrated.
- Page 20 a. In the state of preview,press [ ] into record system setting. b. Select “ Resolution " and "Microphone" submenu, press [ You can use either internal microphone or attach an external one using microphone input (2). c. Press [ ] to back to the state of preview.
- Page 21 Setting Operations Setting Operations a. In the state of preview, press the [ ] button, select "System setting ". b. Press [ ] or [ ], select "FPS Setting" as illustrated. c. Select "15FPS", "25FPS" or "30FPS"and press [ d. Press [ ] to return to the system setting menu.
- Page 22 a. In the state of preview, press the [ ] button, select "System setting". b. Press [ ] or [ ], select "Video Time". c. Select "10 Minutes", "20 Minutes" or "30 Minutes" and press [ d. Press [ ] to back to system setting menu. a.
- Page 23 a. In the state of preview, press the [ ] button, select "System setting ". b. Press [ ] or [ ], select the "LCD OFF" as illustrated. c. Select "1 Minute", "5 Minutes" or “Disabled" and press [ d. Press [ ] to return to the system setting menu.
- Page 24 Setting Operations a. In the state of preview, press the [ ] button, select "System setting ". b. Press [ ] or [ ], select the "Vibrate Setting" as illustrated. Vibration Setting c. Select "ON" or "OFF" and press [ d.
-
Page 25: Setting Date And Time
Setting Operations Setting Operations Setting date and time a. In the state of preview, press the [ ] button, select "System setting ". b. Press [ ] or [ ] and select “ Date and time ". c. Select "Time stamp", select "ON" or "OFF", press [ ].as illustrated. - Page 26 Setting Operations a. In the state of preview, press the [ ] button, select "System setting ". b. Press [ ] or [ ], select "Format". c. Select “Internal Memory" or "SD Card", press [ ] as illustrated. d. Press [ ] to back to system setting menu as illustrated.
- Page 27 Model# 27041 Screen 2.5" TFT LCD Color system PAL/NTSC Resolution 320x240 Recording format 720x576 720x480 Recording resolution 640x480 320x240 30fps/25fps/15fps Frame rate Motion detection Cycle recording Time stamp Video time 10/20/30Mins LCD Off 1/3/5 Mins/Never Auto Power Off 5/10 Mins/Never Vibration Function TV-OUT NTSC/PAL...
