Ohio Steel 4048P-ATV User Manual

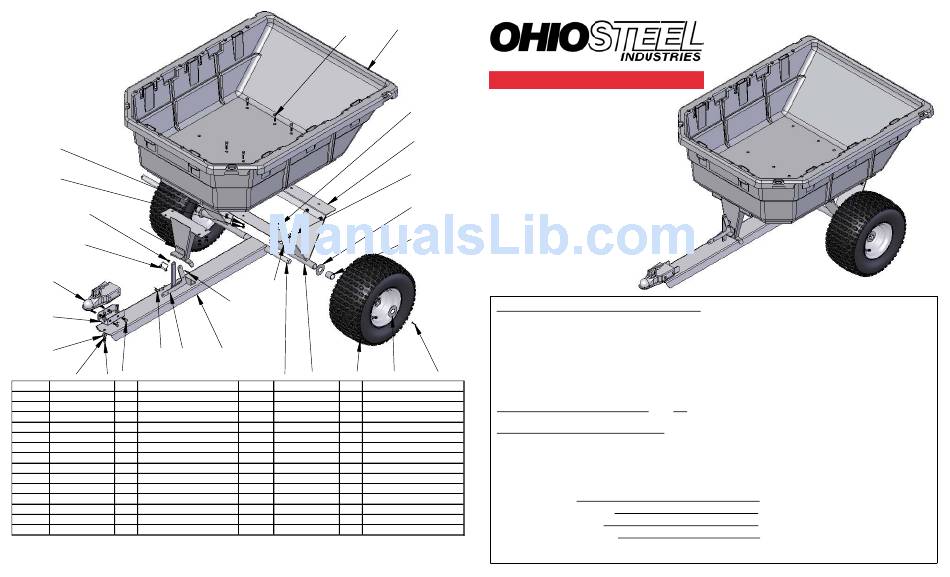

Repair Parts

8
9
18
2
19
25
24
21
16 15
20
22 23
REF. NO. PART NO. AMT. DESCRIPTION
1 4048PATV-01 1 Body
2 4048PATV-02 1 Front Support
3 4048PATV-03 1 Hitch
4 4048PATV-04 2 Axle Holder
5 4048PATV-05 2 Under Carrige
6 4048PATV-06 2 Wheel
7 STDBH3131500 12 5/16"-18 X 1-1/2" Hex Bolt
8 STDWSL313 12 5/16" Split Lock Washer
9 STDNH313 12 5/16"-18 Hex Nut
10 4048PATV-10 1 Axle 4048PATV
11 STDCP1251500 2 Cotter Pin
12 STDWA1000 4 1" Axle Washer Thin
13 4048PATV-13 2 HDPE Axle Spacer
15 4048PATV-15 1 Latch
*Standerd hardware items can be purchased locally.
For missing parts or questions call 1-800-652-2321
1
7
20
17
3
10 4 6 12
REF. NO. PART NO. AM T. DESCRIPTION
16 4048PATV-16 1 Latch Spring
17 STDBH250750 1 1/4"-20 X 3/4" Hex Bolt
18 STDNH250 1 1/4"-20 Lock Nut
19 STDSP2501750 1 1/4" X 1-3/4" Safety Pin
20 STDBH3751000 14 3/8"-16 X 1" Hex Bolt
21 STDFW375SAE 4 3/8" Flat Washer
22 STDWSL375 14 3/8" Split Lock Washer
23 STDNH375 14 3/8"-16 Hex Nut
24 HK178-2 1 Hitch Coupler Plate
25 HK178-1 1 Hitch Coupler
30 4048PATV-30 1 Decal -Not Shown
31 4048PATV-31 1 User Guide-Not Shown
32 4048PATV-32 1 Hardware Bag-Not Shown
- 4-
POLY ATV CART
23
Model 4048P-ATV User Guide
• 12.5 cu. ft. heaped capacity.
• 1000 pound weight capacity.
5
• Durable, structural foam body.
• 1 7/8" Ball hitch coupler.
22
• Molded slots for dividing loads.
• Center ledge for adding shelf.
• Durable needle bearings for
12
high speed use.
• Molded stake pockets and tie
down areas.
13

LIMITED ONE-YEAR WARRANTY

If this product fails due to a defect in material or workmanship within one year
from the date of purchase, we will at our option repair or replace it free of charge.
This warranty excludes tires and wheels, which are expendable and become
worn during normal use.
This warranty does not cover:
11
• Repairs necessary because of operator abuse or negligence.
• Equipment used for commercial or rental purposes.
Proof of Purchase Required For All Warranty Claims.

ORDERING INFORMATION

After the one year warranty period all parts maybe ordered by calling
1-800-652-2321.
When ordering repair parts, always give the following information:
• Product -
• Model Number -
• Part Number -
• Part Description -
Ohio Steel Ind. 2575 Ferris Road, Columbus Ohio 43224, website: www.ohiosteel.com
POLY ATV CART .
4048P-ATV .
.
.
