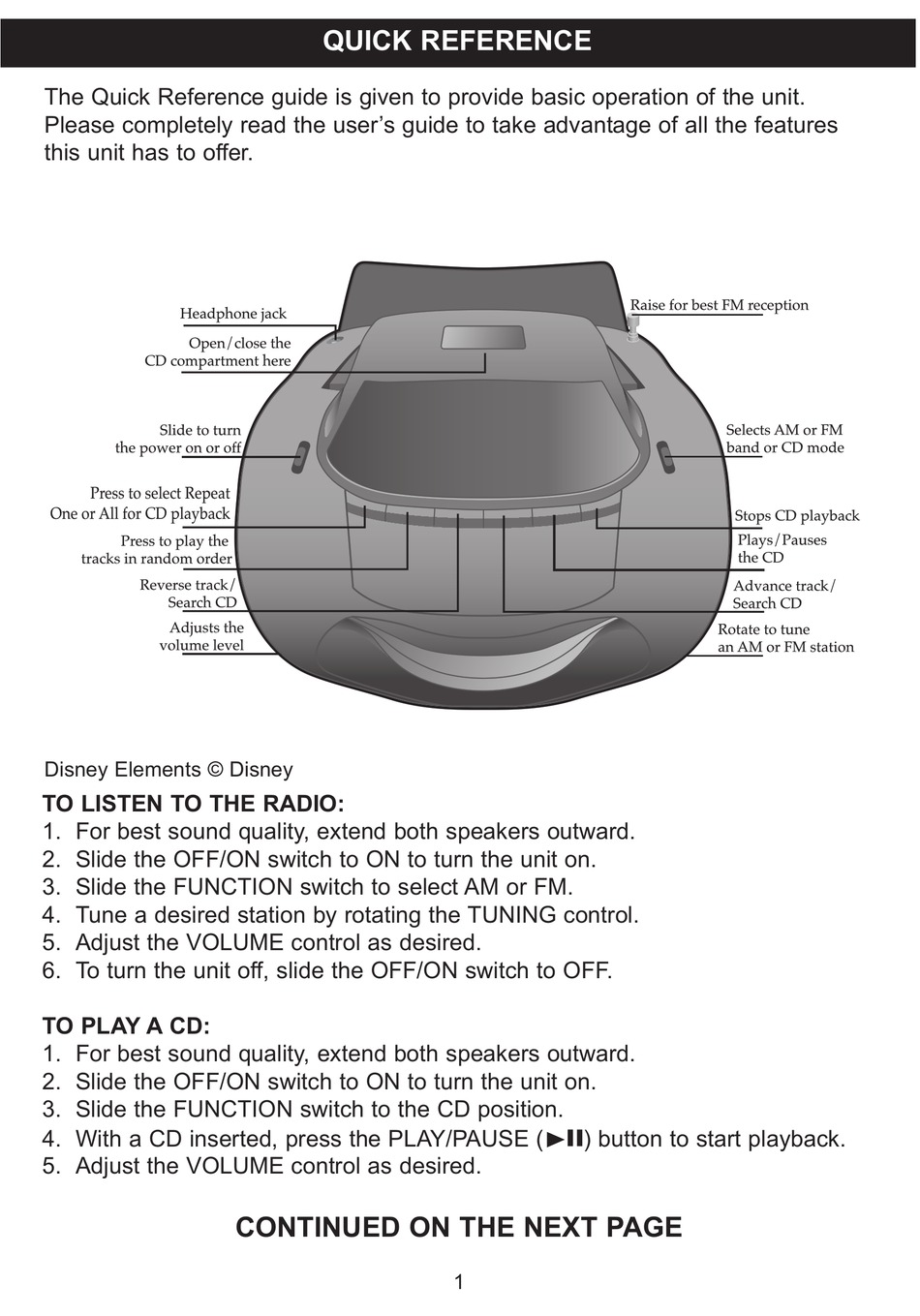

The Quick Reference guide is given to provide basic operation of the unit.
Please completely read the user's guide to take advantage of all the features
this unit has to offer.
Disney Elements © Disney
TO LISTEN TO THE RADIO:
1. For best sound quality, extend both speakers outward.
2. Slide the OFF/ON switch to ON to turn the unit on.
3. Slide the FUNCTION switch to select AM or FM.
4. Tune a desired station by rotating the TUNING control.
5. Adjust the VOLUME control as desired.
6. To turn the unit off, slide the OFF/ON switch to OFF.
TO PLAY A CD:
1. For best sound quality, extend both speakers outward.
2. Slide the OFF/ON switch to ON to turn the unit on.
3. Slide the FUNCTION switch to the CD position.
4. With a CD inserted, press the PLAY/PAUSE (®p) button to start playback.
5. Adjust the VOLUME control as desired.
QUICK REFERENCE
CONTINUED ON THE NEXT PAGE
1
