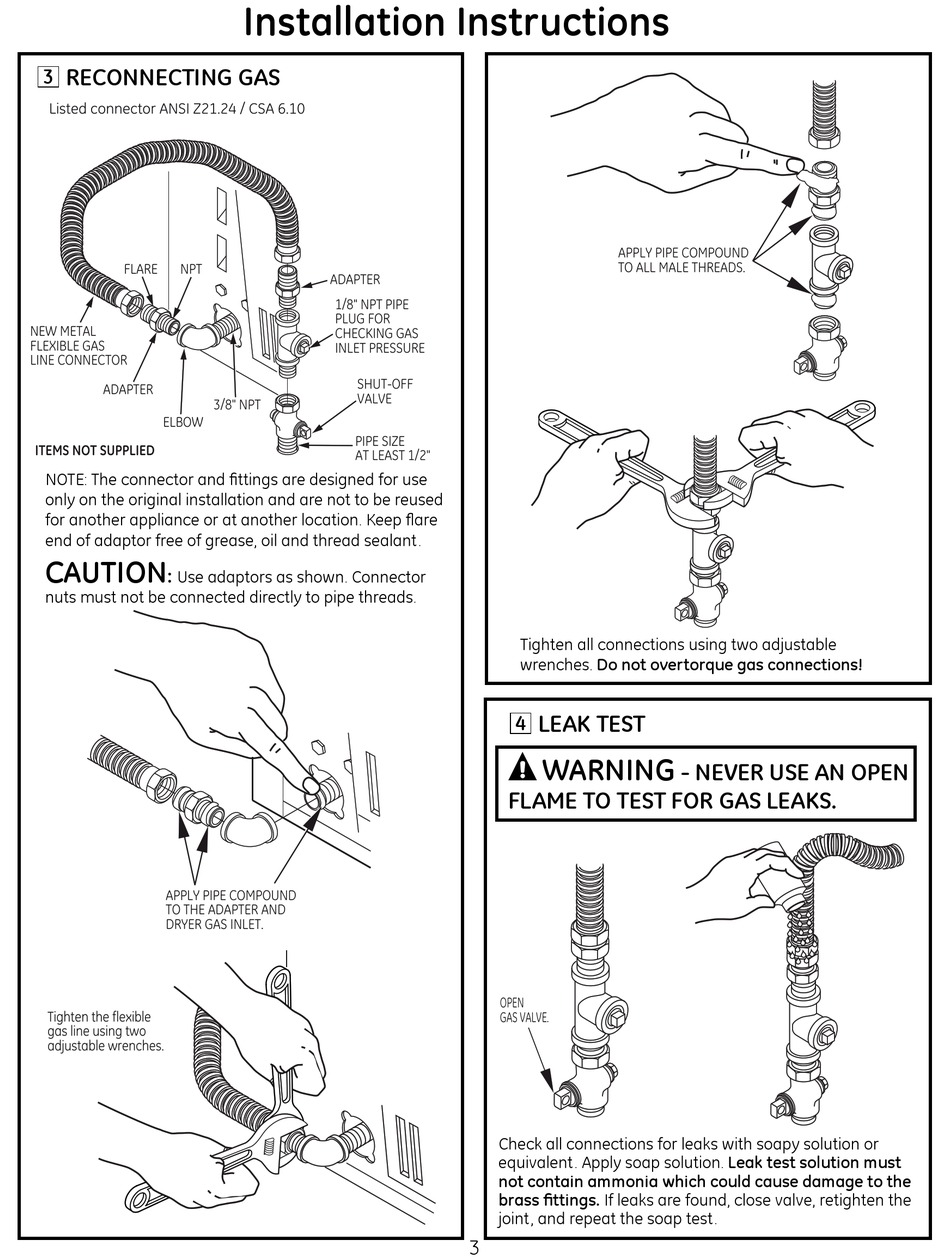

GE DCCB330GJWC Installation Instructions Manual page 3

RECONNECTING GAS
Listed connector ANSI Z21.24 / CSA 6.10
NPT
FLARE
NEW METAL
FLEXIBLE GAS
LINE CONNECTOR
ADAPTER
ELBOW
ITEMS NOT SUPPLIED
CAUTION
APPLY PIPE COMPOUND
TO THE ADAPTER AND
DRYER GAS INLET.
Tighten the flexible
gas line using two
adjustable wrenches.
I
ADAPTER
1/8" NPT PIPE
PLUG FOR
CHECKING GAS
INLET PRESSURE
SHUT-OFF
VALVE
3/8" NPT
PIPE SIZE
AT LEAST 1/2"
I
APPLY PIPE COMPOUND
TO ALL MALE THREADS.
LEAK TEST
WARNING
FLAME TO TEST FOR GAS LEAKS
OPEN
GAS VALVE.
NE ER USE AN OPEN
L
