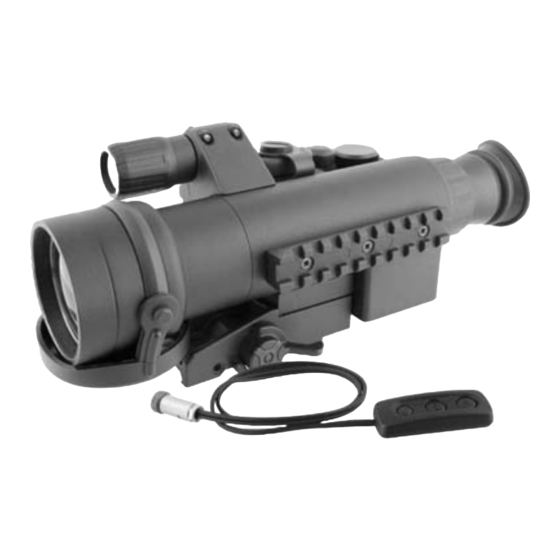

DISTINGUISHING FEATURES OF THE SENTINEL
• Two-color range finding reticle
• High quality image and resolution
• High magnification, 2.5x or 3x
• Close observational range of focus - 5 meters (5 yards)
• Lightweight and extremely durable titanium body
• Built-in high-power PULSE non-hazardous IR illuminator with beam focus
• Incremental reticle brightness adjustment
• IPX4 rating against water intrusion
• Precision internal windage/elevation adjustment
• Ergonomic design
• Quick power-up
• Vertical positioning of the battery ensures uninterrupted power supply when shooting
• Remote stabilized power supply
• ECLIPSE protective flip-up objective lens cover
• Weaver MIL-STD-1913 rail
• Protective carrying case
• Remote control with secure attachment
• Photo and video adaptable
Warning: Failure to follow the instructions and guidelines outlined in this instruction manual can cause damage to the
scope, and it will void any applicable warranty.
Advertisement
Table of Contents
Related Manuals for Yukon SENTINEL 26015T
Summary of Contents for Yukon SENTINEL 26015T
- Page 1 DISTINGUISHING FEATURES OF THE SENTINEL • Two-color range finding reticle • High quality image and resolution • High magnification, 2.5x or 3x • Close observational range of focus - 5 meters (5 yards) • Lightweight and extremely durable titanium body •...
-
Page 2: Operating Instructions
OPERATING INSTRUCTIONS The SENTINEL night vision riflescope is intended for observation and shooting at dusk or during nighttime hours. It is a passive starlight device, and in most conditions does not require an artificial or IR light source. The scope is built with a high performance Gen1 image intensifier tube. The built-in IR illuminator enhances a viewing ability in environments of absolute darkness. -
Page 3: Battery Installation
• Regular maintenance of the scope will help keep the device free from malfunctions and untimely wearing of parts and connectors. Failure to observe these warnings will void the manufacturer's warranty. BATTERY INSTALLATION • Turn the knob of the battery compartment cover 90º counterclockwise (1) to match the red dot on the knob with the red dot on the battery compartment cover. - Page 4 • Set up the objective focus ring knob (6) to be aligned with the mark "100"; it will become tighter as it reaches the mark, which is normal. • Focus on the selected object by rotating the eyepiece ring (7). •...
-
Page 5: Horizontal Scale
Examine the results. If the results are noticeably skewed to one of the sides from the center, adjust by turning the windage/elevation adjustment knobs RIGHT & UP as needed. Repeat control shots until the aiming point matches the center of target. Remember: one click equals 20 mm (3/4 inch) at a distance of 100 meters (110 yards). -
Page 6: Maintenance
USE OF THE REMOTE-CONTROL CONSOLE The Sentinel is supplied with a remote-control console. The console has three buttons: 1) “ON” button (13) turns on/off the riflescope (fixed when pressed). 2) “IR” button (14) - turns on/off the built-in IR Illuminator (fixed when pressed). 3) “Quick start”... -
Page 7: Troubleshooting
• The Yukon IR Flashlight with mount (# 29072); • The Yukon Directional Microphone with NVRS adapter (# 27022). STORAGE Always keep the scope in its carrying case in a dry, well ventilated space. Storage temperature should not be below +10°С (+50°F), and humidity no higher than 70%. Remove the batteries if the scope will not be used for more than 1 month. - Page 8 on the screen while the production processes and do or return the scope. image is focused. not interfere with the reliability or performance of the scope; the size of the dots are specified in the technical requirements for IIT's and the scope itself.
