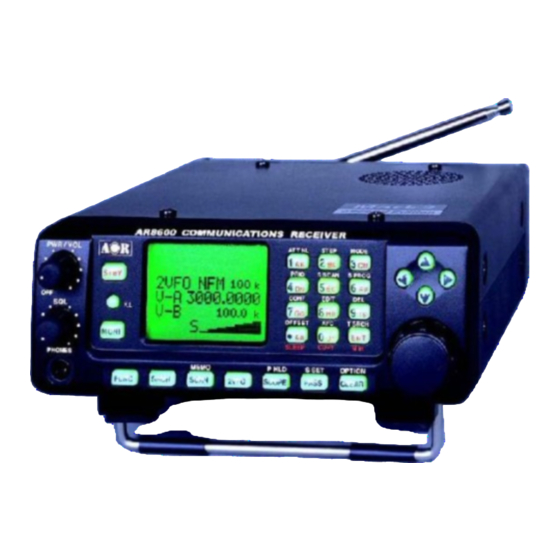

AOR AR8600 Mark2 Operating Manual

®
Due to continuous development of our products, the AR8600 has been enhanced in several areas. The upper frequency
range has been extended to 3.0GHz (3000MHz), lower band sensitivity has been increased (now officially covering to 100kHz)
with an enhancement to short wave performance by the addition of further bandpass filters and selection of alternative I.F.
filters. Mini-Circuits RMS1 / RMS2 mixers have been employed with active SPM aerial switching devices (not diode-switching)
abundantly employed throughout the signal path. The AR8600 Mark2 provides remarkable short wave performance, making
other similar wide band competitors mediocre by comparison. However daily operation of the AR8600 Mark2 is largely
unaffected, just a few operational changes need be noted.
• An LCD / keypad illumination (lamp) dimmer has been added
• The LCD / keypad illumination can be squelch activated
• The rear panel ACC configuration has been amended with audio out now being squelch controlled
• The calibration of SCAN / SEARCH LEVEL has been changed
The following comparison chart between the AR8600 and AR8600 Mark2 provides cross referencing to the specific page
numbers of the operating manual:
Item
Frequency coverage
Lamp dimmer
Squelch operated lamp
ACC socket Pin 6 & 7
ACC socket Pin 4 & 5
Scan / Search - LEVEL
LAMP DIMMER
There are now effectively three states of LAMP, lamp off / lamp on / dimmer on. While
the lamp is bright for daily operation, in areas of permanent low lighting, it is nice to dim
the lamp. An additional line has been added to the CONFIG MENU, 'DIMMER' with a
value of OFF or ON, the default is OFF. To access the CONFIG menu
. The first item in the config menu is "BEEP".
cursor to the line marked "DIMMER". Use the main dial or ï ð keys to toggle the
DIMMER ON / OFF. The
to accept the data and return to a standard display. Alternatively
move to the next item on the config menu. Refer to pages 106 - 107 of the operating manual.
SQUELCH OPERATED LAMP
When the lamp is set to AUTO, the lamp will illuminate when the squelch opens. In AUTO mode, the lamp illuminates either
when the keypad is operated or when a signal opens the squelch, after a few seconds the lamp will switch off. There may be
an audible 'click' under some circumstances when the lamp automatically switches on and off.
Refer to pages 106 - 107 of the operating manual.
AR8600 Mark2 ADDENDUM
AR8600
530kHz - 2040MHz
not available
not available
audio not squelch
controlled
Tape motor
switching contact
available
key may be used as a short cut to OFF.
(paperwork V1.1)
AR8600 Mark2
100kHz - 3000MHz
added
added
audio squelch
controlled with mute
Not used as audio is
squelch controlled
revised calibration
òto move the
Page number
P.143
P.106 - 107
P.106 - 107
P.8
P.8
P.68 - 69
to abort entry or
ò to
