Summary of Contents for Bully Dog GM DURAMAX 6.6L 2001-2006

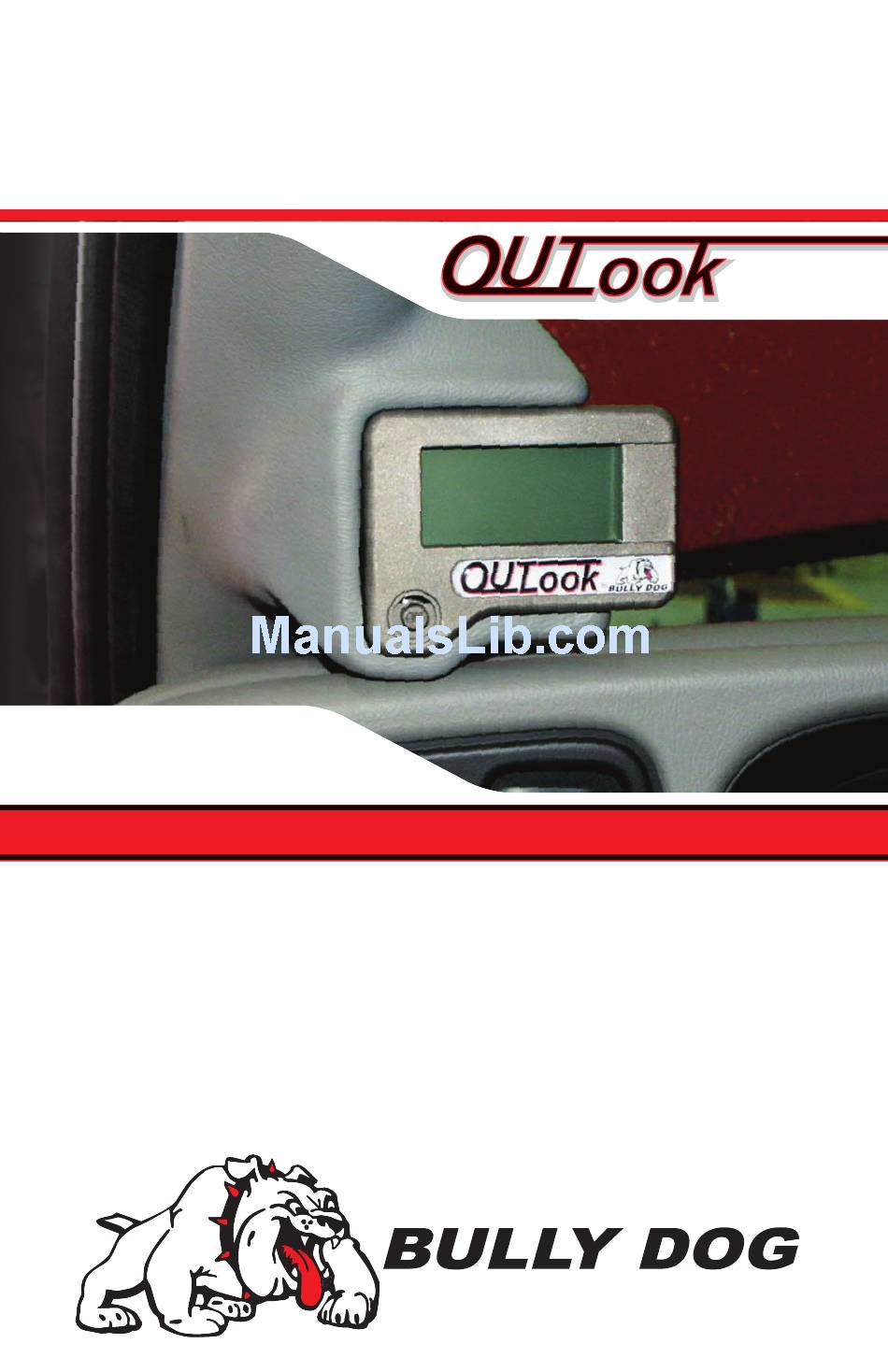

- Page 1 GM DURAMAX 6.6L 2001-2006 Part # 40366 v1.0.0 INSTALLATION MANUAL ®...
- Page 2 Never exceed recommended vehicle or tire top speed ratings. DISCLAIMER OF LIABILITY Bully Dog Technologies, LLC. Its distributors, jobbers, and dealers (hereafter Seller) shall be in no way responsible for the product’s proper use and service. THE BUYER HERBY WAIVES ALL LIABILITY CLAIMS.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................... PAGE 3 BILL OF MATERIAL ..................PAGE 3 HARNESS DESCRIPTIONS ................PAGE 4 OUTLOOK INSTALLATION ................ PAGES 5-12 Sub-Harness Install ......................page 5 OBD 2 Harness Install ....................page 6 Main Harness Install .....................page 7 Pyrometer Installation ....................page 8-10 Mounting Options .................... -
Page 4: Introduction
INTRODUCTION You have just purchased the most technologically advanced Vehicle Monitor available for diesel pickups, manufactured by Bully Dog Technologies. The OutLook Monitor comes with more user friendly features than any other vehicle monitor in the market place. The OutLook Monitor also comes with free technical support, just call: 1-866-285-5936. -
Page 5: Harness Descriptions
HARNESS DESCRIPTIONS Notice: included with this product are four individual wiring harnesses. Read the description of each the harness below , the installation instructions will refer to the diff erent harnesses by name. OUTLOOK MAIN HARNESS: The OutLook Monitor sits on one end of this harness and on the other end notice it has two green plugs (one male and one female). -
Page 6: Outlook Installation
Monitor INSTALLATION INSTRUCTIONS INSTALLING THE OUTLOOK SUB-HARNESS Skip this step if installing on a 2006 vehicle. The OutLook Sub-Harness is not used during installation on a 2006 vehicle. In this step you will connect the Information plug to 2003-2005 vehicles. INFORMATION PLUG: 1. -
Page 7: Obd 2 Harness Install
INSTALLING THE OBD 2 HARNESS In this step you will connect the OBD 2 Plug, run the green connector and power wire through the fi rewall, and connect the power wire. Connecting the OBD 2 Plug: Plug the OBD 2 Harness into the OBD 2 Plug located on the bottom side of the dash on the drivers side of the vehicle. -
Page 8: Main Harness Install
Monitor INSTALLING THE OUTLOOK MAIN HARNESS: In this step you will run the OutLook harness plugs and wiring through the fi rewall and connect the Main Harness to the Sub-Harness and the OBD 2 Harness. 1. For a clean install fi rst peel back the weather stripping on the driver’s side door seal right next to the dash and down. -
Page 9: Pyrometer Installation
INSTALLING THE PYROMETER: In this installation section you will tap and mount the pyrom- eter probe into the exhaust either pre-turbo or post turbo and then connect the end of the pyrometer to the OutLook Main Harness. Doing so will allow you to monitor Exhaust Gas Temperatures which is a very important diagnostic... - Page 10 Monitor POST TURBO MOUNT: 1. Find a location on the exhaust pipe that is 3-6” downstream from the turbo charge output. Then drill a 5/16” hole and run a 1/8” pipe tap into the hole. Mount the pyrometer probe in the hole , use a 9/16” wrench to tighten the probe holder or tube fi...
- Page 11 PRE-TURBO MOUNT: 1. Drill a 5/16” hole into the exhaust manifold where all the exhaust runners of the manifold come together just before the turbo exhaust inlet. Then tap the hole with a 1/8: pipe tap and mount the pyrometer probe in the hole.
-
Page 12: Mounting Options
Monitor OUTLOOK MONITOR MOUNTING INSTRUCTIONS Bully Dog off ers three diff erent options for mounting the OutLook Monitor. Each lo- cation option places the OutLook Monitor in an easily accessed viewing area for the driver. WINDSHIELD MOUNT: 1. Locate the windshield mount included with the OutLook Moni- tor as seen in. - Page 13 OUTLOOK CUSTOM A-PILLAR MOUNT (NOT INCLUDED WITH THE OUTLOOK) The pillar comes in black, it can be painted to match any color by purchasing OEM paint color at any auto paint store. 1. Pull Back the weather stripping on the driver’ s side of the vehicle to prepare the install.
-
Page 14: Operating Instructions
Monitor OPERATING INSTRUCTIONS This section of the instructions describes how to use the joystick to navigate menus and control power levels. These instructions also provide descriptions on each of the menus and sub-menus, and shows how to complete a performance test. NAVIGATION/JOYSTICK OPERATION The joystick moves in four directions: up, down, left, and right. -
Page 15: Vehicle Selection Details
Used if you have a 2006 Duramax with a Power Pup Downloader or Stock. • 01-05 GM W/BULLY DOG MODULE ONLY: Used if you have a 6.6L GM Duramax along with a Bully Dog Rapid Power or Dyno Dominator plug in module. • 01-05 GM W/ OTHER OR STOCK: Used if you have a 6.6L GM Duramax along with a competitors products, a Bully Dog downloader, or stock. -
Page 16: General Display
Monitor GENERAL DISPLAY Once you have selected a vehicle upon initial use, the OutLook will then load the general display screen. Below is an example of the general display screen. It has four quadrants which display vehicle diagnostics and performance tests. It also has a power bar which displays the percent of power being used by the vehicle from a performance upgrade. - Page 17 TOP LEFT DISPLAY: Select this to enter a sub-menu with a list of OutLook Display Options that you select to view in the top left display quadrant of the OutLook screen. All of the OutLook Display Options are listed in this instruction set with options specifi...
- Page 18 Monitor VIEW LAST 10 READINGS: This feature lets you view the View Last 10 Readings View Last 10 Readings View Last 10 Readings View Last 10 Readings Quarter Mile Times last pyro readings taken per key cycle, the last 10 pyro read- 0-60 Times ings taken per key cycle, the last 10 boost readings per key Peak Boost / Start Cycle...
-
Page 19: Outlook Display Options
OUTLOOK DISPLAY OPTIONS The list below is all of the OutLook display options applicable to this make, model and year of vehicle. Once you select to display one of the options below it will be displayed either in the top left, top right, or bottom right quadrant of the OutLook Monitor screen. - Page 20 . Tells you in an easy-to-read % how much your transmission is slipping. SLIP POWER REDUCTION: The % that engine power is reduced by a Bully Dog Module, using Tranny Smart Software, to account for transmission slippage. Only available with a Bully Dog Rapid Power or Dyno Dominator Module.
- Page 21 1⁄4 MILE TIME: This performance test will display and record how long it takes the vehicle to travel .25 miles from a complete stand still and how fast the vehicle was traveling at the exact point of completion. If for some reason the test must be restarted simply press left on the OutLook Joystick and the perfor- mance test will restart itself and also refresh the screen instructions.
- Page 22 Monitor...
- Page 24 Downloaders Downloaders Intake Systems Intake Systems Exhaust Systems Exhaust Systems Exhaust Systems Performance Modules See More at: bullydog.com ® For Free Technical Support Call: 866-bullydog (866-285-5936)
