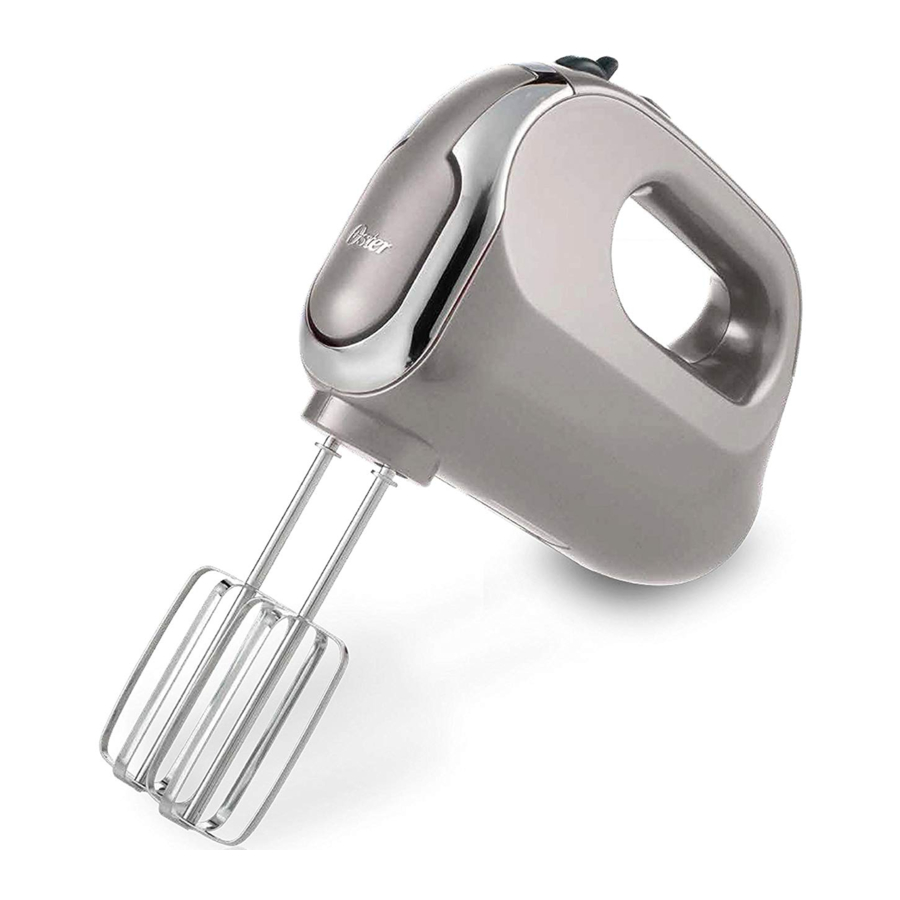

Oster 7 Speed Clean Start Hand Mixer User Manual

u Y H m
sing our and ixer
Before using your mixer for the first time, wash the beaters, dough hooks
and whisk. Rinse and dry.
Be sure speed control is in the "OFF" position and unplugged from an
electrical outlet. Insert beaters one at a time, by placing stem end of beaters
into the opening drive holes on the bottom of the mixer. Turn beater slightly
and push in until beater clicks into position.
Note that the beaters are interchangeable but dough hooks are not. When
using dough hooks, the dough hook with the collar on the stem (see drawing
on page 4) fits into the large drive hole on the mixer. If dough hooks do not
click into the drive holes, reverse and try again.
Plug cord into an appropriate outlet.
m
ixing
To avoid splatters start unit on lowest speed and slowly increase to desired
speed setting.
Slowly guide mixer around sides and through center of bowl, going in the
same direction. Be careful not to overbeat the mixture. Overbeating tends to
make some mixtures tough.
Whenever scraping of the bowl is required, stop the mixer and scrape sides
and bottom of bowl with a rubber spatula as needed. Turn speed control to
"OFF" and rest mixer on its heel rest while adding ingredients. Be sure to
position beaters over mixing bowl so any drippings will fall back into mixing
bowl.
When mixing is complete, set speed control to "1" and raise beaters slowly
from batter to clean off clinging food. Be sure to turn unit to "OFF" before
raising beaters completely out of mixing bowl.
e b , d H , W
jecting eaters ougH ooks or Hisk
Be sure speed control is at the "OFF" position and cord is removed from
electrical outlet. Scrape off any excess batter with a rubber spatula. Grasp the
stems of the attachments with your hand and press the beater eject Button.
Attachments will release into your hand.
English-5
China en Impreso China in Printed
33431. Florida Raton, Boca Solutions, Consumer Jarden de nombre
el bajo operando Inc. Products, Sunbeam por Distribuido reservados. derechos los Todos
Solutions. Consumer Jarden de nombre el bajo operando Inc. Products, Sunbeam 2012 ©
www.oster.com
1.800.667.8623 : Canadá
1.800.334.0759 : EE.UU.
Service Consumer Sunbeam
llame: productos los sobre preguntas Para
GCDS-OST27178-PH
33431. Florida Raton, Boca
Solutions, Consumer Jarden as business doing Inc. Products, Sunbeam by Distributed reserved.
rights All Solutions. Consumer Jarden as business doing Inc. Products, Sunbeam 2012 ©
www.oster.com
1.800.667.8623 : Canada
1.800.334.0759 : USA
Service Consumer Sunbeam
contact: questions product For
FPSTHMBGB_12ESM1.indd 1
H t a s
oW o djust tHe Peed
1. You can select a speed by turning the position selector to the speed required,
from Speed 1 to Speed 7.
2. No matter where the position selector is situated, you can get a higher speed
immediately by pressing the "Burst" button.
n : Do not press the "Burst" button if the speed control/eject button is at the
oTe
"OFF" position. This may damage the mechanism.
s s
election oF Peeds
Speeds 1 through 7: For continuous use of stirring, beating or mixing of
ingredients and thin batters. May also be useful for whipping egg whites or
flour into various doughs. May be used in mixing cake dough, making sauces
and even heavy doughs.
s g H m
Peed uide For and ixer
s m t
Peed ixing asks
1 Stir U se when stirring liquid ingredients or when mixing
dry and liquid ingredients together alternately in a
recipe. Use when preparing any of the ready-prepared
or packaged instant puddings.
2 Mix U se when a recipe calls for combining ingredients
together. Use for quick breads or muffins that require a
brisk action, just enough to blend.
3 Blend U se when preparing cake mixes or for directions calling
for medium speed. Use to cream butter and sugar
together.
NOTE: This is the maximum recommended speed for
dough hook usage.
4-5 Beat U se when preparing a frosting from a recipe or
package. Use when whipping cream for desserts.
6-7 Whip U se to mash potatoes to develop a light and fluffy
texture. Use when whipping egg whites.
BURST OF POWER During especially heavy mixing tasks, press the
®
Mixer Button Button to drive through the mixture with ease.
English-6
English-4
conveniently together for easy access and travel.
Lets you store your hand mixer and accessories
ase c torage s
whites, yolks or cream.
The whisk is used to beat air into mixtures such as egg
W
Hisk
larger drive hole on the mixer.
fits into the drawing) feature (see stem the on collar the
are not. When using dough hooks, the dough hook with
Note that the beaters are interchangeable but dough hooks
results. best
other heavy batters and doughs. Use at lower speeds for
Use these hooks to knead bread dough, pizza dough or
ooks H ougH d
c Y m
aring For our ixer
c c
are and leaning
1. Before cleaning any part of the mixer, set the position selector to the "OFF"
position, then unplug the cord from the outlet and eject the beaters. Be sure
to dry all parts thoroughly before using them again.
2. The beaters, dough hooks and whisk may be washed in hot, soapy water or
in a dishwasher.
3. The mixer and the cord can be cleaned with a damp cloth but the final
clean must be with a dry cloth. DO NOT IMMERSE MIXER IN WATER
WHILE CLEANING. THIS MAY CAUSE ELECTRIC SHOCK, INJURY, OR
DAMAGE TO THE PRODUCT.
4. To remove stubborn spots, wipe surfaces with a piece of cloth, slightly
dampened, in soapy water or a mild, non-abrasive cleaner.
5. Do not use any abrasive cleaner or material to clean any part of the hand
mixer, as it can harm the body of the product.
s
torage
Store hand mixer and attachments in a clean, dry location such as a cabinet or
shelf.
u s c
sing tHe torage ase (select models only)
Place accessories and hand mixer in the storage case. Store assembled mixer and
case as desired.
m
aintenance
Other than the recommended cleaning, no further user maintenance should be
necessary. If for any reason your hand mixer should require repairs, do not try
to fix it yourself. Send it to the nearest Authorized Sunbeam Appliance Service
Center.
English-7
English-3
for all types of batters. The beaters are dishwasher safe.
The beater design allows for thorough, fast mixing results
b
eaters
attachments. any inserting or removing
NOTE: Make sure hand mixer is unplugged before
noticeable "click".
to release the beaters or dough hooks. There will not be a
button. The design allows for a smooth push of the thumb
Hand Mixer features a convenient beater eject Oster This
®
utton b ject e eater b
the mixer will return to the original speed setting.
through the mixture with ease. Once the button is released,
especially heavy mixing tasks, press the button to drive
the selected speed setting at the press of the button. During
feature allows for an added boost to Power of Burst The
®
F P b
eature oWer oF urst
®
counter. your
The heel rest keeps the mixer stable when sitting upright on
est r eel H
designed to assist you in preparing delicious foods.
Hand Mixer with Retractable Cord has been Oster The
®
ixer m and H our Y bout a earning l
1-Year Limited Warranty
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, or if in Canada, Sunbeam
Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS")
warrants that for a period of one year from the date of purchase, this product will be free from defects
in material and workmanship. JCS, at its option, will repair or replace this product or any component
of the product found to be defective during the warranty period. Replacement will be made with a new
or remanufactured product or component. If the product is no longer available, replacement may be
made with a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and
is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty
performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right
to alter, modify or any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following:
negligent use or misuse of the product, use on improper voltage or current, use contrary to the
operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized
Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood,
hurricanes and tornadoes.
What are the limits on JCS's Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any
express, implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of
merchantability or fitness for a particular purpose is limited in duration to the duration of the above
warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or
otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of,
or inability to use the product including incidental, special, consequential or similar damages or loss
of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against
purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so the above limitations
or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from
province to province, state to state or jurisdiction to jurisdiction.
How To Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1-800-334-0759 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1-800-334-0759 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer
Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam
Corporation (Canada) Limited, doing business as Jarden Consumer Solutions located at
20 B Hereford Street, Brampton, Ontario L6Y 0M1.
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE
ADDRESSES OR TO THE PLACE OF PURCHASE.
English-2
eaters B
ase C
ooks h ough D W
torage s hisk
utton B
-e B
jeCtor eater
ontrol C
PeeD s ff /o n o
h
anDle
B M
rgonoMiC e utton ixer
oWer P of urst B
®
m H Y F
ixer and our oF eatures
www.oster.com. at us visit please products, OSTER
®
Hand Mixer! To learn more about Congratulations on your purchase of an OSTER
®
elcome W
Hand Mixer with
User Manual
Storage Case
Batidora Manual
Manual de Instrucciónes
con Funda para
Almacenaje
FPSTHMBGB
MODEL/MODELO
Visit us at www.oster.com
P.N. 160913
English-1
INSTRUCTIONS THESE SAVE
extension cord.
an with use not Do cord. longer a over tripping or in entangled becoming
A short power-supply cord is provided to reduce the risk resulting from
nly o anada c and U.s. The in Urchased P rodUcTs P or f
feature.
Do not attempt to defeat this safety not fit, contact a qualified electrician.
way; if the plug does not fit fully in the outlet, reverse the plug. If it still does
other). This plug fits a polarized outlet only one the than wider is blade (one
To reduce the risk of electrical shock, this appliance has a polarized plug
nly o anada c and U.s. The in Urchased P rodUcTs P or f
o U h i U T
nly se oUsehold for s niT his
children.
lose Supervision is necessary when any appliance is used by or near C •
Do not leave hand mixer unattended while it is operating. •
Do not use hand mixer for other than intended use. •
o not place hand mixer on or near a hot burner or in a heated oven. D •
Remove beaters from hand mixer before washing them. •
Do not use outdoors or for commercial purposes. •
Do not let cord touch hot surfaces, including a stove. •
o not let cord hang over edge of table or countertop. D •
may cause fire, electrical shock or injury.
he use of attachments not recommended or sold by Sunbeam Products T •
Do not use with an extension cord. •
adjustment. mechanical or electrical or repair
Return appliance to the nearest Authorized Service Center for examination,
appliance malfunctions, or if it is dropped or damaged in any manner.
o not operate hand mixer with a damaged cord or plug, after the D •
the risk of injury to persons and/or damage to the hand mixer.
spatulas and other utensils away from beaters during operation to reduce
void contact with moving parts. Keep hands, hair, clothing, as well as A •
and before cleaning.
nplug from outlet while not in use, before putting on or taking off parts U •
o disconnect, turn off controls and unplug from outlet. T •
product.
the to damage and/or injury personal cause may This liquid. other or
o protect against risk of electrical shock, do not put hand mixer in water T •
USE BEFORE INSTRUCTIONS ALL READ
following: the including followed, be
always should precautions safety basic appliances, electrical using When
SAFEGUARDS IMPORTANT
10/9/12 10:14 AM
