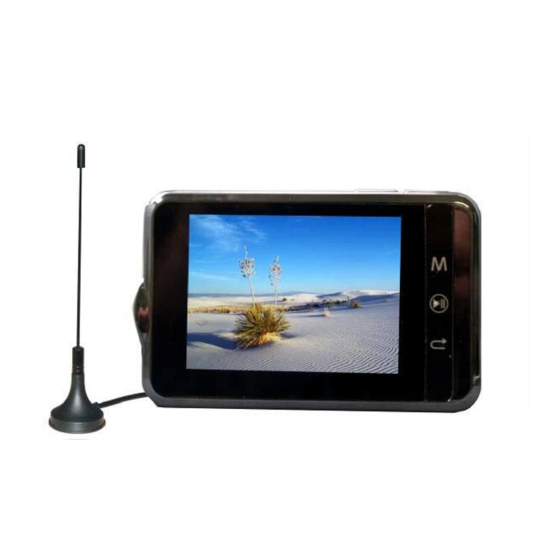

Portable digital television with a fully functional media player

Hide thumbs

page of 25

/ 25
Bookmarks

Quick Links

Download this manual

DV 5000 Series User Manual

Need help?

Do you have a question about the DV 5400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delstar DV 5400

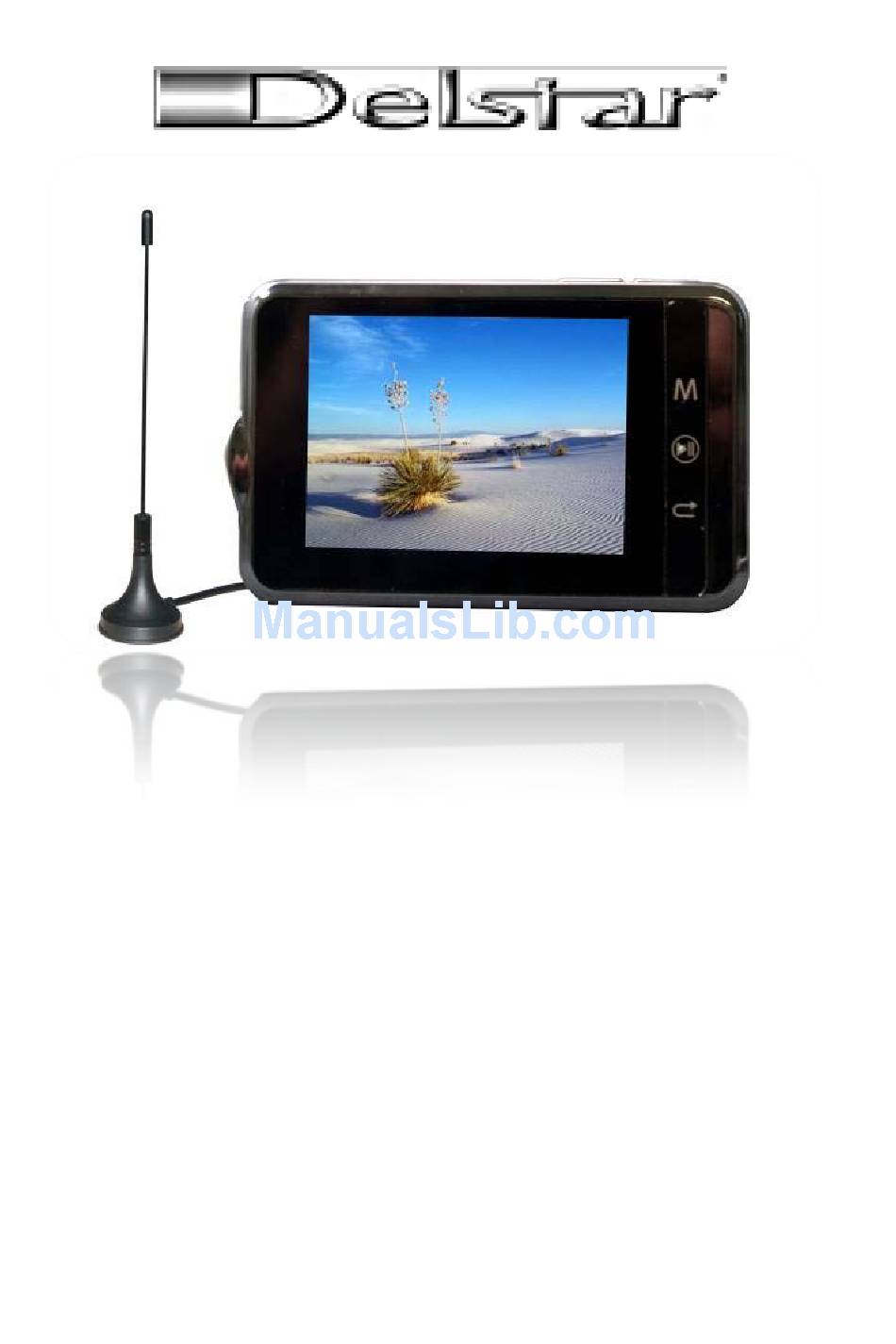

Page 1 DV 5000 Series User Manual...
Page 2 Congratulations on your purchase of a Delstar DS 5400 Series TV/ MEDIA PLAYER! The Delstar DV 5400 is a high performance Portable Digital Television with a fully functional Media Player. The DV 5400 has a dazzling 3.5” color screen that performs the following capabilities: T.V player, e-book reader, calendar viewer, picture viewer, Mp3 player, Video Player, Game Player and Built in Microphone for Voice Recording.
Page 3 Delstar DV 5400 General View 1. Internal antenna- Extendable Telescoping Antenna 2. External Antenna slot- External Magnetic Antenna for optimum reception(included) 3. Built in Speaker- Speaker for music and video playback 4. Micro SD Memory Card Slot- Insert microSD/microSDHC (up to 4GB) 5.
Page 4 10 hours. After your initial chare, it will only take up to 5 hours to fully charge the DV 5400. You can charge your player using the USB port on your computer, but we recommend that you use the ac wall charger (included).
Page 5 1. Take the supplied USB cable and connect the larger end to the supplied AC wall adaptor. 2. Take the smaller end of the wire and connect it to your DV 5400 via the USB port. 3. It will normally take 4-5 hours to achieve a full charge; this will allow 3-5 hours of constant viewing time.
Page 6 Main Menu Options TV- allows you to scan for Digital Signals first, and subsequently watch the digital stations you have located second. Music – allows you to browse and listen to music, audio books, and recordings The Music Menu includes: All Music, Artist, Album, Genre, My Favorite, Record, Directory, and Update Media Library.
Page 7 (shown below) asking you what you would like to do with the drive. 4. You will be able to access the DV 5400 in My Computer as a “Removable Disk” (shown below). If you have a SD card installed in the DV 5400 then you will see two “Removable Disk”...
Page 8 Removing the player from your computer: WARNING: Do not disconnect the player while it is transferring data! Disconnecting the player from the computer while data is being transferred may damage the player. Windows – Simply disconnect the USB cable from the player after you have finished charging, transferring, firmware upgrading, or synchronizing files.
Page 9 To upgrade the Firmware Go to Setting> System Setting>Upgrade. Restorable To restore the DV 5400 to its original settings, simply go to the Main Menu, select System Settings, and select Restorable. Choose yes. On the main menu, use the Volume+/- buttons to highlight “TV”, press the M button to enter the TV menu;...
Page 10 Choose Auto Scan from the list by pressing the M button. If you have never ran the scan before it will automatically begin, If you have ran a scan before, the TV will inform you that you are about to change the “program list.”...
Page 11 If the DV 5400 does locate a signal it will bring you to the channel list. There you will be able to select the channel to start viewing.
Page 12 TV Settings The TV settings sub menu allows you to set up the following three options: Area Setting, Time Zone Setting, and the Daylight Savings Time Setting...
Page 13 Music, EBook, Video, Picture, and Record. Note: Do not delete these folders! 5. Drag and drop music files from your computer to the Delstar 5400 MUSIC folder. You can also drag and drop files to a microSD™ card inside your player by going to My Computer >...
Page 14 Drag and Drop (Mac) 1. Connect your Delstar DV 5400 player to your MAC computer. 2. Double-click on the “removable disk” icon that appears on your desktop. 3. Double-click on your Music folder. 4. Drag and drop music files from your computer to the player’s Music folder.
Page 15 6. Press the channel-, <, once to return to the beginning of the current song. Press the channel- button, <, twice to go back to previous song; or press-and-hold it to rewind. 7. Use the Volume+/- buttons to adjust the volume level during music playback.
Page 16 Shuffle Mode 1. Select Play Mode from the Music sub menu. 2. Use the volume+ button to choose Shuffle, the other option is “in order”, which will return the player to its normal track playing mode. 3. Press the M button to select the Shuffle mode. Music EQ (MSEQ) 1.
Page 17 Display 1. The Display option allows you to control what is being displayed during music playback. 2. The options are Lyrics, Frequency Chart, and Closed. 3. To make a selection simply highlight it and press the M button to finish. Playing music from a microSD™...
Page 18 Delete Song 1. Select a song to delete by highlighting it. 2. Press the M button, your options will be Delete File or Exit. 3. Press the M button on “Delete File” to delete the file. Watching Videos 1. From the main menu, select Video. 2.
Page 19 Video Options To adjust the Video Options, press the M button during video playback. There are two options for Video playback: *Select Time Play: this allows you to select the time in the video that you wish to watch. Press the menu key to enter select time play menu, press Channel </>...
Page 20 Slideshow 1. Open the pictures submenu by pressing the M button while you are viewing a photo. 2. Select Slide show from the submenu by pressing the M button. 3. The slide show feature has the following time options to flip between photos: 3 sec, 5 sec, 10 sec, 20 sec, and Turn Off.
Page 21 E-Book Reader 1. In the main menu, select e-book. 2. Browse through the folders until you get to the E-Book Folder. 3. Select an E-Book to read (E-Books need to be in the .TXT format) 4. Press the M button to begin reading your desired e-book. 5.
Page 22 Browser Mode: Allows you to choose the way a book is browsed. The options include: auto mode and manual mode Tools Stopwatch 1. Go to Tools in the main menu and press the M button. 2. You will see the following two options: Stopwatch and Calendar.
Page 23 Recording with Built in Microphone The Delstar DV 5400 media player has a built-in microphone allowing you to record your own voice, an interview, or other speech. 1. From the main menu, select Record. 2. To begin recording simply press the Play/Pause button.
Page 24 Settings 1. Choose Settings from the Main Menu 2. The settings menu will have the following options for you to set: Display Setting Display settings include: Light Time: Allows you to set how long the backlight is on for Brightness: Allows you to set the brightness on the unit Light Mode: Allows you to select the light display mode, it includes two options: Lighter and Darker System Setting...
Page 25 Deutsch, Italian, Japanese, French, Spanish, and Chinese. Please note, do not attempt firmware update without contacting Delstar Service & support. Any firmware update without first contacting Delstar will void the warranty. Contact Delstar at 1 800 998 7771 Our address is: Delstar 1060 N.W.
