AD-8125
Label Printer
INSTRUCTION MANUAL
WM+PD4000812

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-8125 and is the answer not in the manual?

Questions and answers

Related Manuals for A&D AD-8125

Summary of Contents for A&D AD-8125

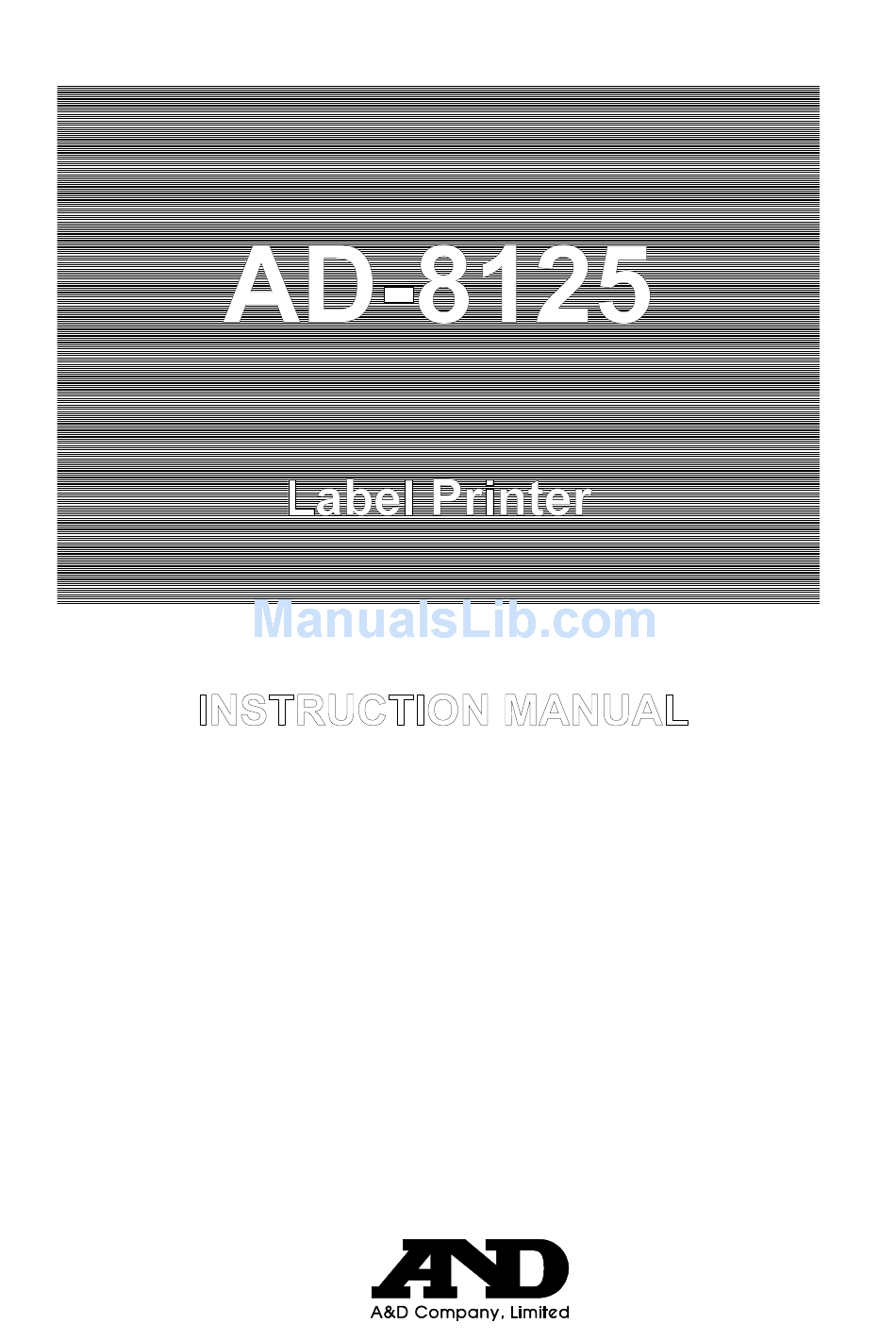

  • Page 1 AD-8125 Label Printer INSTRUCTION MANUAL WM+PD4000812...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION......................1 2. PART NAMES......................... 2 3. PREPARATION....................... 3 3-1. The DIP Switch Functions ....................... 3 3-2. Loading the Paper ........................... 4 4. USING THE PRINTER ....................6 4-1. Weighing Settings..........................6 4-2. Basic Printing........................... 6 4-3. Applied Printing..........................7 5.

  • Page 3: Part Names

    2. PART NAMES Part name Description FEED key Feeds the paper by the amount of one label. PAPER LED Flashes when the paper has run out. BUSY LED Indicates the communications status with a scale or a personal computer. POWER LED Illuminates when the power is turned on.

  • Page 4: Preparation

    3. PREPARATION 3-1. The DIP Switch Functions The DIP switch assembly for the settings is located on the base of the printer. The switch assembly is protected by a white plastic cover. Open the cover with a screwdriver. Please note that DIP switch No.10 is labeled as 0.

  • Page 5: Loading The Paper

    3-2. Loading the Paper Load the paper in the printer as follows: 1. Remove the front cover and the paper cover from the printer. 2. Release the head securing fixture to raise the print head. 3. Attach the roll core to the paper. Place the paper in the paper holder as shown.
  • Page 6 6. Thread the paper through the paper guide, fold the paper at the label peeling bar and place the paper on the paper take-up core. 7. Secure the paper using the paper securing fixture. Pull the paper edge by hand so that no slack exists in the paper.

  • Page 7: Using The Printer

    4. USING THE PRINTER 4-1. Weighing Settings Set the weighing instrument to enable use of the label printer as follows. 1. The baud rate, data format, data category, data output method, etc. on the weighing instrument must be set. Please see the instruction manual of the weighing instrument in use.

  • Page 8: Applied Printing

    2. Set the functions for the counting scale. (See 4-1 above) 3. Conduct measurement using the counting scale and press the “PRINT” key to print the label. Printing example ID 000000 +4050 PC +500.0 UW +0.123456 *12+00.123456* 4-3. Applied Printing This function can be used with counting scales in the FC-i / FC-Si series program versions 2.10 onwards which have a UFC function.

  • Page 9: Printing Example

    Set the length of the label from 28 mm to 62 mm (by 1 mm). When using the “L command”, turn the power off once and turn on again to work with new label size. Printing example Received data: Printing example: C,1,7,2,AD-8125 AD -8125 C,3,4,1,Label Printer Label Printer C,5,2,1,e.g. Barcode ITF B,6,6,7,1,123456789012 e.g.

  • Page 10: Maintenance

    5. MAINTENANCE 5-1. Cleaning the Printer Clean the printer periodically to maintain the optimum performance of the printer. Print head: Wipe lightly using a cotton swab moistened with alcohol. Other parts: Wipe lightly using a dry lint-free cloth to remove paper dust. 5-2.

  • Page 11: Specifications

    6. SPECIFICATIONS 6-1. General Power supply: 24VDC, 2.5A Power consumption: Standby: 10VA Printing: 60VA (when the printing rate is 50%) Operating temperature range: 5 C to 40 C, Non condensing External dimensions: 178(W) x 242(D) x 158(H) mm, excluding the protrusions Weight: Approx.

  • Page 12: Label Printer Paper

    6-4. Label Printer Paper Paper supplied by A&D: Length 34 mm AX-PP158-34-S (Approx. 800 pcs x 5 rolls) Length 40 mm AX-PP158-40-S (Approx. 700 pcs x 5 rolls) Length 46 mm AX-PP158-46-S (Approx. 600 pcs x 5 rolls) Recommended thermal paper: LD4131 manufactured by LINTEC Corporation Label width: 58 mm Label Length:...
  • Page 13 MEMO...
