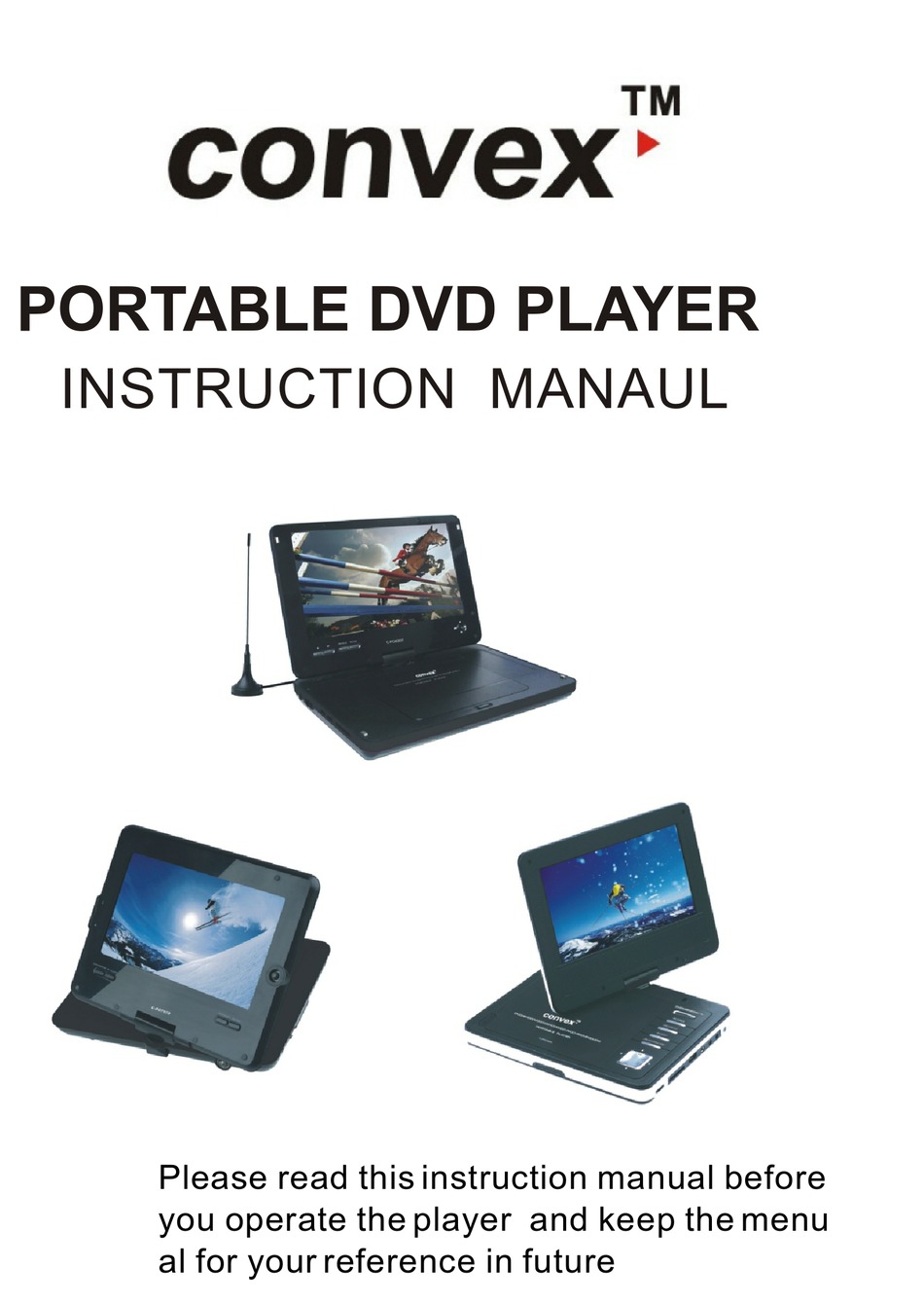

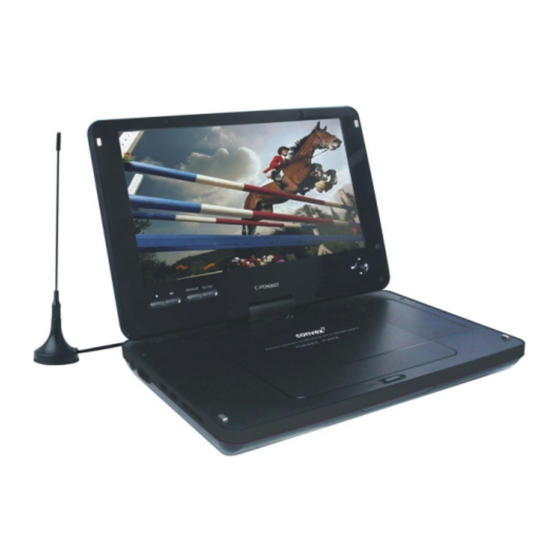

PORTABLE DVD PLAYER INSTRUCTION MANAUL ³ ¾ Please read this instruction manual before you operate the player and keep the menu al for your reference in future... - Page 2 Important safety instruction and attentions Warning: Please study c arefully this instr uction and all warnings or instruction on DVD player Personal safety is fully considered in this products design and production, it might lead to danger of electronic shock or fire. Please pay attention to following reminder to guarantee your safety when you install, use or maintain it.
- Page 3 Important safety instruction and attentions 15. Laser Don't take the cover away lest your eyes be hurted by the laser. 16. Disc Please don't use any crack,distored or repaired disc or it might bring hurt to machine 17. Change the battery When you change the battery,please use the recommended or same model ones.
- Page 4 DVD Player User s Manual DVD and the type it player Type Disc Play time Remark Data format of Disc Diameter 1 side:120min DVD format disc 12cm 2 side:240min Compressed Digital Audio Compressed Digital Video 1 side:80min (Moving picture) 2 side:180min MPEG2 Compressed Digital Audio 12cm...
- Page 5 Function and name DC 9V power input Power switch, "ON" is power on , "OFF" is power off. Audio and video compound output socket to connect A/V input port of TV or display's Audio and video compound output socket to connect A/V input port of external equipment's To adjust the volume Earphone output socket, earphone of resistance 32...
- Page 6 Remote Control Unit Diagram DVD/TV DVD/USB/SD POWER ANGLE AUDIO POWER ANGLE AUDIO AV IN AV IN -/-- TIME TIME SETUP TITLE SETUP TITLE CH– ENTER ENTER PICTURE MENU PICTURE MENU SUBTITLE SUBTITLE PROGRAM PROGRAM REPEAT MUTE REPEAT MUTE SLOW SLOW ZOOM ZOOM ON/OFF...
-
Page 7: Basic Operation
Basic Operation 1. Turn On your DVD Player Press the Power button on the player, and Read appears on the TV screen. If there hasn't a disc in the DVD player, No disc will be displayed on both the screen. 2. - Page 8 Basic Operation 8. Fast forward /Fast backeard Press fast forward or fast backward key ,the unit play speed will be increased forward or backward,Speed:X2,X4 till X32.When you press it again,it come back to paly in normal.(the play key can resume to normal paly as well as) 9.
- Page 9 Basic Operation 15.screen dispaly Screen key can supply infromation lf disc playing ,On DVD player screen display key once,it shows(Title)(Chapter)(playing time).press secondly, thirdly and fourthly times,it shows(Title),(Chapter)(Time of title leaving).press this button fifthly, it shows three iten as floows: When playing VCD/SVCD etc disc ,press OSD key fristly ,shows (Chapter) (Title time),press secondly shows (Chapter)(Title leave time),press thirdly shows (Chapter)(playing time).press fourthly,shows (Chapter)(leave time),press fifthly resume to original mode.no any information.
- Page 10 Basic Operation if it is SVCD,VCD and on PBC OFF state, current play song is last one already,to press next, it will be on stop state. 22. number key 1-10+ Choose sons (compatible with DVD, SDVD,VCD CD MP3 etc disc) (1) For DVD disc you can choose song on menu page and title page;during it is playing,you can choose title directly.
-
Page 11: System Setup
Basic Operation 25. USB and SD/MMC/MS card Press USB card or SD/MMC/MS card into the unit . Press (DVD/USB/AV input) , it shows function menu . Direction key Choose USB or SD/MMC/MS to start to paly.. 26. AV IN and ANALOG TV (ATV) Connect AV IN or anntenna of ANALOG TV with the unit , press this function key ( DVD/ATV/AV IN ) shows the function menu .Use direction key choose AV IN or Analog TV and press enter key to enter you choosed function. -
Page 12: Additional Operation
Additional Operation Preference General Audio General Video Video Preference Audio Audio setup page General Setup page Equalizer TV Display Normal / PS Angle mark Normal / LB 3D Processing OSD lang Wlde Screen saver HDCD Last Memory Set TV Display Mode GO TO Equualizer page PHOTO(2) PHOTO(3) - Page 13 Additional Operation General Audio Video General Audio Video Preference Preference Preference Page Video Setup Page Sharpness High TV Type NTSC Brightness Medium Audio Contrast Subtitle Disc Menu Parental Password Defauit Sharpness GO TO Preference page PHOTO(4) PHOTO(5) 4. initial setup e.g photo 5 1)TV system To choose according to your television colour system:NTSC,PAL, AUTO.please select according your television, if your television...
- Page 14 Additional Operation Image ,TV setup e.g photo 6,7 On mode of DVD,AV input,TV ,press the image key on remote controller,it wil appear following menu window(note:TV search function setup is only refer to those models with TV function) Contrast: Screen 16:9 Brightness Dispmodel English...
- Page 15 Additional Operation Auto Search 527.25 SEARCH 527.25 Fine S-COLOR S-SYS PHOTO(8) 3)manual search after you choose a frequency band and TV system,please press the left and right key on the remote controller.It will search toward up or down start from current channel.
-
Page 16: Troubleshooting
Trouble Shooting If you are suffering from following problem,please refer to following supplied method.if the problem still can't be solved,please contact the maintaining centre. Trouble Reason and solution 1. To check the player connection between the earphone or TV is properly. No sound 2. -
Page 17: Specification
Specification DISC SPEC DVD/SVCD/DVCD/CVD/VCD1.0,1.1,2.0 version CE-DA CDIFMV Video format DVD:MPEG 2 VCD:MPEG 1 MPEG 4 Audio format MPEG 1,MPEG2,PCM,DOLBY,DIGITAL,ANALOG STEREO,VIRTUAL SURROUND Signal output Video system:NTSC and PAL Video audio:compound signal(AV)output Video output:1.0V p-p(75U) Audio output:2.0V rms Audio character SNR :>80dB Total harmony wave loss:<0.06% Frequency response:20 20KHz AC power/DC power swicth:input 100V 40V 50/60Hz(AC)/ output(DC) 9V-2A...
