GLDA690FWW/GLDA690FBB/GLDA696FSS
GE
Stainless Steel Interior Dishwasher
®

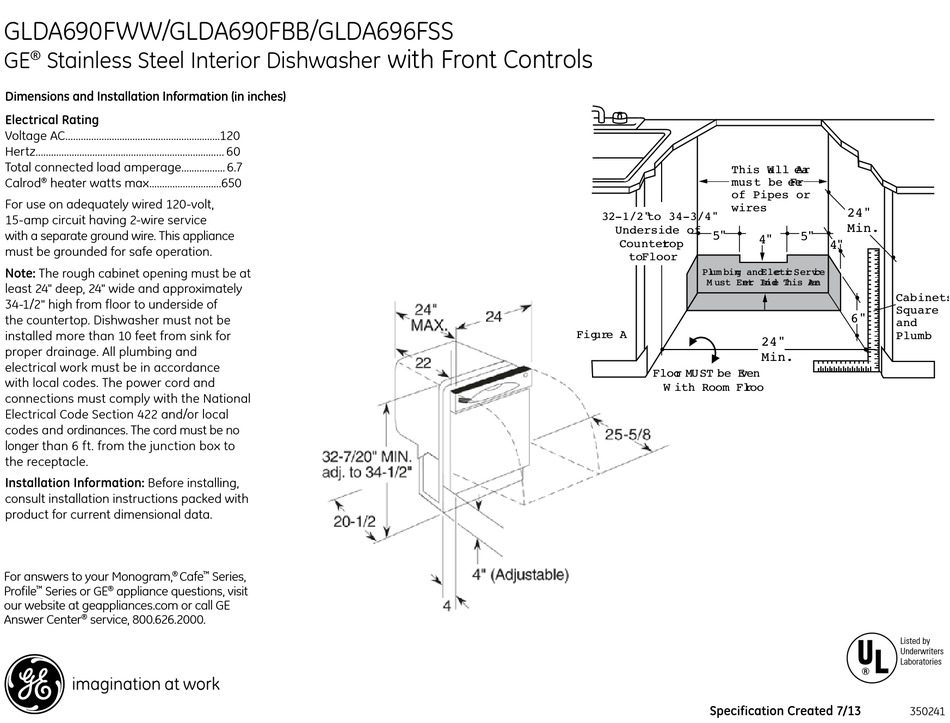

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC............................................................120
Hertz......................................................................... 60
Total connected load amperage................. 6.7
Calrod
heater watts max............................650
®
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: The rough cabinet opening must be at
least 24" deep, 24" wide and approximately
34-1/2" high from floor to underside of
the countertop. Dishwasher must not be
installed more than 10 feet from sink for
proper drainage. All plumbing and
electrical work must be in accordance
with local codes. The power cord and
connections must comply with the National
Electrical Code Section 422 and/or local
codes and ordinances. The cord must be no
longer than 6 ft. from the junction box to
the receptacle.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
Cafe
®
Profile
Series or GE
®
appliance questions, visit
our website at geappliances.com or call GE
Answer Center
service, 800.626.2000.
®
Series,
with Front Controls
This W a ll Ar
must be Fr
of Pipes or
wires
32-1/2" to 34-3/4"
Underside of
5"
Counter t op
to Floor
Pl um bin g and Ele ctr i c Serv i ce
M ust Ent
er In sid e T his Ar
Fig ure A
Floo r MUST be E ven
W ith Room Floo
r
• Th e rough cabinet openin
g must be at least
24" wide and appro
ximatel
flo or to underside of the count
Specification Created 7/13
ea
ee
24"
Min.
5"
4"
4"
ea
Cabinets
Square
6"
and
Plumb
24"
Min.
24" deep,
y 32-1/2" to
34- 3/4 " high f
ert o p.
Listed by
Underwriters
Laboratories
350241
