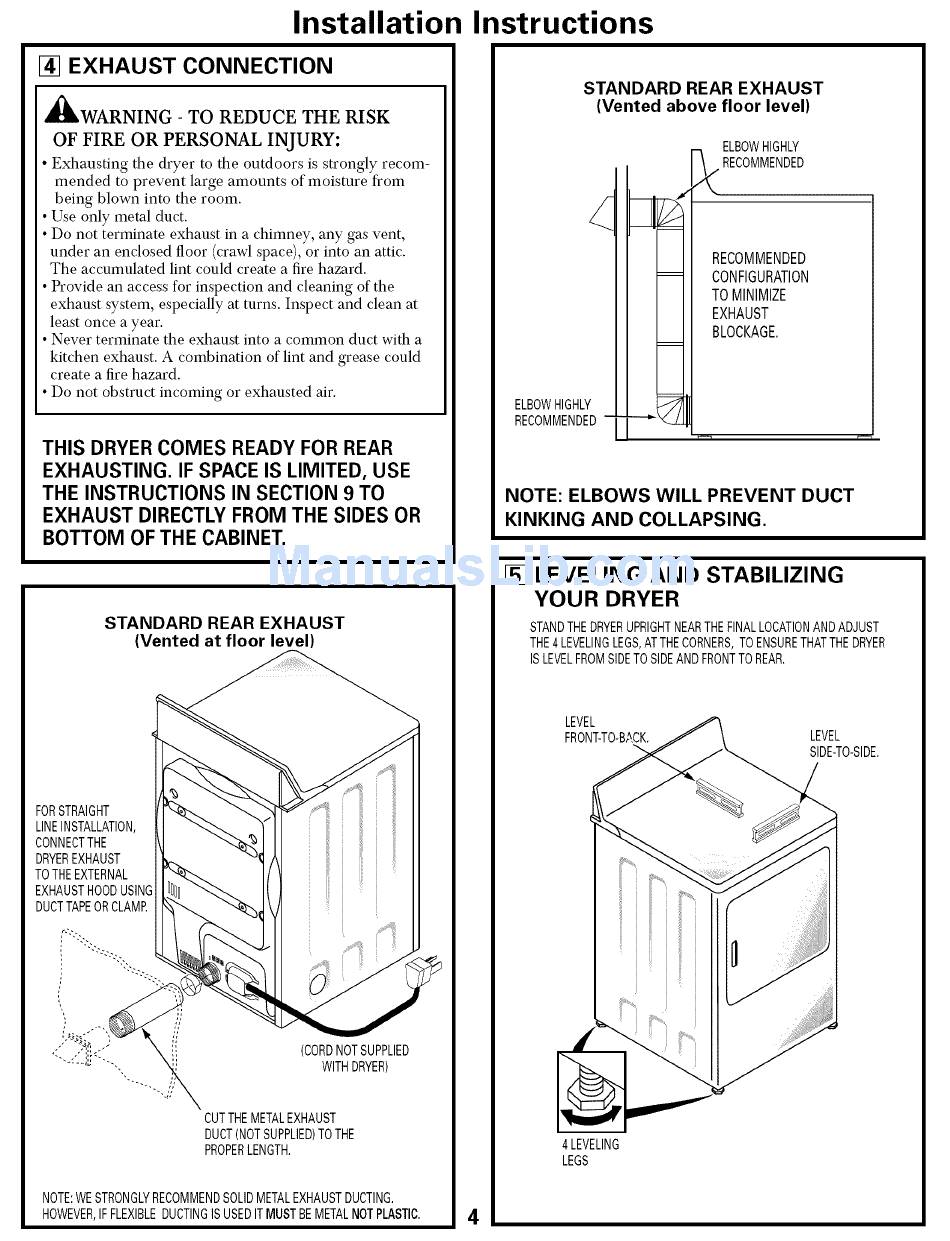

Installation Instructions
[] EXHAUST CONNECTION
,_,WARNING - TO REDUCE THE RISK
OF FIRE OR PERSONAL INJURY:
• Exhausting the dryer to the outdoors is strongly recom-
mended to prevent large amounts of moisture from
being blown into the room.
• Use only metal duct.
• Do not terminate exhaust in a chimney, any gas vent,
under an enclosed floor (crawl space), or into an attic.
The accumulated lint could create a fire hazard.
• Provide an access for inspection and cleaning of the
exhaust system, especially at turns. Inspect and clean at
least once a year.
• Never terminate the exhaust into a common duct with a
kitchen exhaust. A combination of lint and grease could
create a fire hazard.
• Do not obstruct incoming or exhausted air.
THIS DRYER COMES READY FOR REAR
EXHAUSTING. IF SPACE IS LIMITED, USE
THE INSTRUCTIONS IN SECTION 9 TO
EXHAUST DIRECTLY FROM THE SIDES OR
BOTTOM OF THE CABINET,
STANDARD REAR EXHAUST
(Vented above floor level)
ELBOW HIGHLY
RECOMMENDED
ELBOW HIGHLY
_ RECOMMENDED
RECOMMENDED
= CONFIGURATION
TO MINIMI7E
EXHAUST
BLOCKAGE.
NOTE: ELBOWS WILL PREVENT DUCT
KINKING AND COLLAPSING.
STANDARD REAR EXHAUST
(Vented at floor level)
FOR STRAIGHT
LINE INSTALLATION,
CONNECT THE
DRYER E XHAUST
TOTHE EXTERNAL
EXHAUST HOOD USIN(
DUCT TAPE ORCLAMR
CUT THEMETAL E XHAUST
DUCT (NOT SUPPLIED) TOTHE
PROPER LENGTH.
[] LEVELING AND STABILIZING
YOUR DRYER
STAND THE DRYER U PRIGHT NEAR THEFINAL LOCATION ANDADJUST
THE4LEVELING LEGS, ATTHE CORNERS, TOENSURE T HAT THE DRYER
ISLEVEL F ROM SIDE TOSIDE ANDFRONT T OREAR.
LEVEL
FRON_TO-BACK, LEVEL
SIDE-TO-SIDE,
4LEVELING
LEGS
NOTE: WESTRONGLY RECOMMEND SOLID METAL E XHAUST DUCTING.
HOWEVER, IFFLEXIBLE D UCTING I SUSED ITMUST BEMETAL N OT PLASTIC. 4
