Thank You

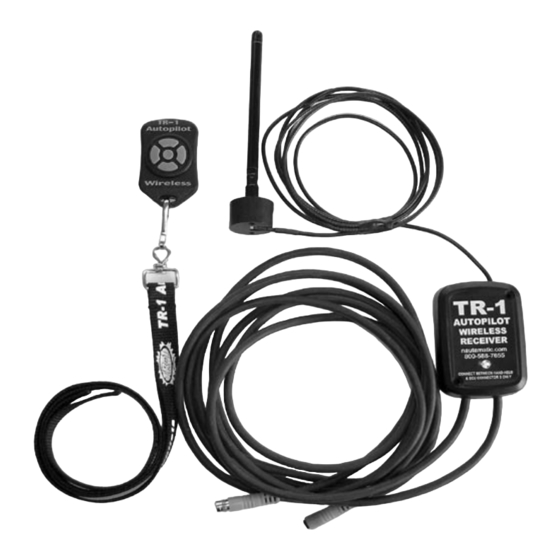

Thank You for the purchase of your TR-1 Gold wireless remote. Developed
with the fisherman in mind, the TR-1 wireless remote has been designed to
give fishermen that competitve edge in fishing and unparalleled precision and
control of their boat. Nautamatic Marine Systems,Inc. is dedicated to create
the finest controls and guidance systems for the best in boating and fishing.
Safety
You are responsible for the safe and prudent operation of your vessel. Your
TR-1 Gold autopilot and wireless remote is a tool that will enhance your
capability to operate your boat and catch fish. It does not relieve you from the
responsibility for safe operation of your vessel. You must avoid hazards to
navigation and never leave the helm unattended.
You must always be prepared to promptly regain manual control of your
kicker. The autopilot steering and throttle actuators can fail and hard over.
Learn to operate your autopilot on calm and hazard free waters.
Simultaneous operation of several radio-controlled autopilots in near
proximity may cause the autopilot to fail to respond to keypad button presses.
The near boat transmitter may jam your boat's receiver but will not control
your autopilot or render the wired remote useless.
The Wireless remote will not respond as quickly to multiple button presses as
the wired remote.
On occasion, the wired remote will erroneously leave an indicator light on
the throttle up/down and idle resume indicators. If this creates a problem for
you, we can load an updated software version on your ECU to eliminate the
erroneous indicators.
There is a remote possibility that talking on a cellphone may interfere
with, and possibly jam the radio receiver. Please use caution.
Note:
The wireless remote keypad is not waterproof. Do not expose the remote
to rain or water spray. Water in the remote will cause it to malfunction
and possibly cause throttle runaway. In the event the remote does get
wet, remove the battery from the remote immediately. If the remote is
subject to salt-water incursion, remove the battery and gently rinse the
disassembled unit with clean alcohol and let it dry out before re-assembly
and reuse.
Advertisement
Summary of Contents for Nautamatic TR-1 Gold
- Page 1 You are responsible for the safe and prudent operation of your vessel. Your TR-1 Gold autopilot and wireless remote is a tool that will enhance your capability to operate your boat and catch fish. It does not relieve you from the responsibility for safe operation of your vessel.
- Page 2 Wireless Kit Complete 120-2400-00 Item Description Part # Qty. Wireless keypad transmitter 120-2420-00 Neck Lanyard 305-2401-00 Antenna 240-2452-00 340-2451-00 Antenna Base 310-0072-03 #4-40 x 3/8 Php Screw Receiver/cable assembly 130-2410-00 #4-40 x 1 Oval head Screw 310-0104-16 #4 x 1 Php Sheet Metal Screw 310-0072-13 #4-40 x 1 Php Screw 310-0004-16...
- Page 3 Introduction Thank you for purchasing this accessory for your TR-1 Autopilot. Please read and understand this manual before installing and operating this system. The TR-1 wireless remote control is an add on system that provides the most often used functions of the standard TR-1 wired remote in a compact wireless form.
-
Page 4: Installation Considerations
Installation Considerations When installing the wireless remote system: 1) Mount the receiver box and antenna away from sources of electronic interference such as the autopilot hydraulic pump and the engines ignition systems. 2) Mount the antenna in free space and in a direct line of sight to where the keypad transmitter is expected to be used. -
Page 6: Security Codes
Security Codes Each keypad transmitter transmits its own unique identification code when a button is pressed. The receiver computer must be programmed to recognize your transmitter. Program the receiver/transmitter pair by: 1) Turn the TR-1 Autopilot on. 2) Watch the LED on the receiver box, when it starts blinking- press any button on the wireless keypad until the LED stops blinking. -
Page 7: Changing Batteries
Changing Batteries When the remote control system starts to respond erratically, the key- pad remote may need battery replacement. The wireless remote keypad is powered by a CR-2032 Button Lithi- um Cell Battery. To access the battery for replacement, gently pry apart the two halves of the keypad at the seam (fingernails will do for this) Once the unit is open, remove the battery by sliding the battery out from beneath the retainer. - Page 8 Nautamatic Marine Systems, Inc (NMSI) Limited Warranty Wireless Nautamatic Marine Systems, Inc. or TR-1 Autopilots (collectively referred to as “The Warrantor”) will repair this product with new or refurbished parts, free of charge, in the USA from the date of original purchase in the event of a defect in mate- rial or workmanship as follows: For one (1) Year-Receiver/cable assembly and Antenna only Wireless Keypad Transmitter has no warranty expressed or implied other than out of box failure.
