Akura AMTDR3101X Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Customer Help Line 01422 263313
DVD +/- ReWritable

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMTDR3101X and is the answer not in the manual?

Questions and answers

Related Manuals for Akura AMTDR3101X

Summary of Contents for Akura AMTDR3101X

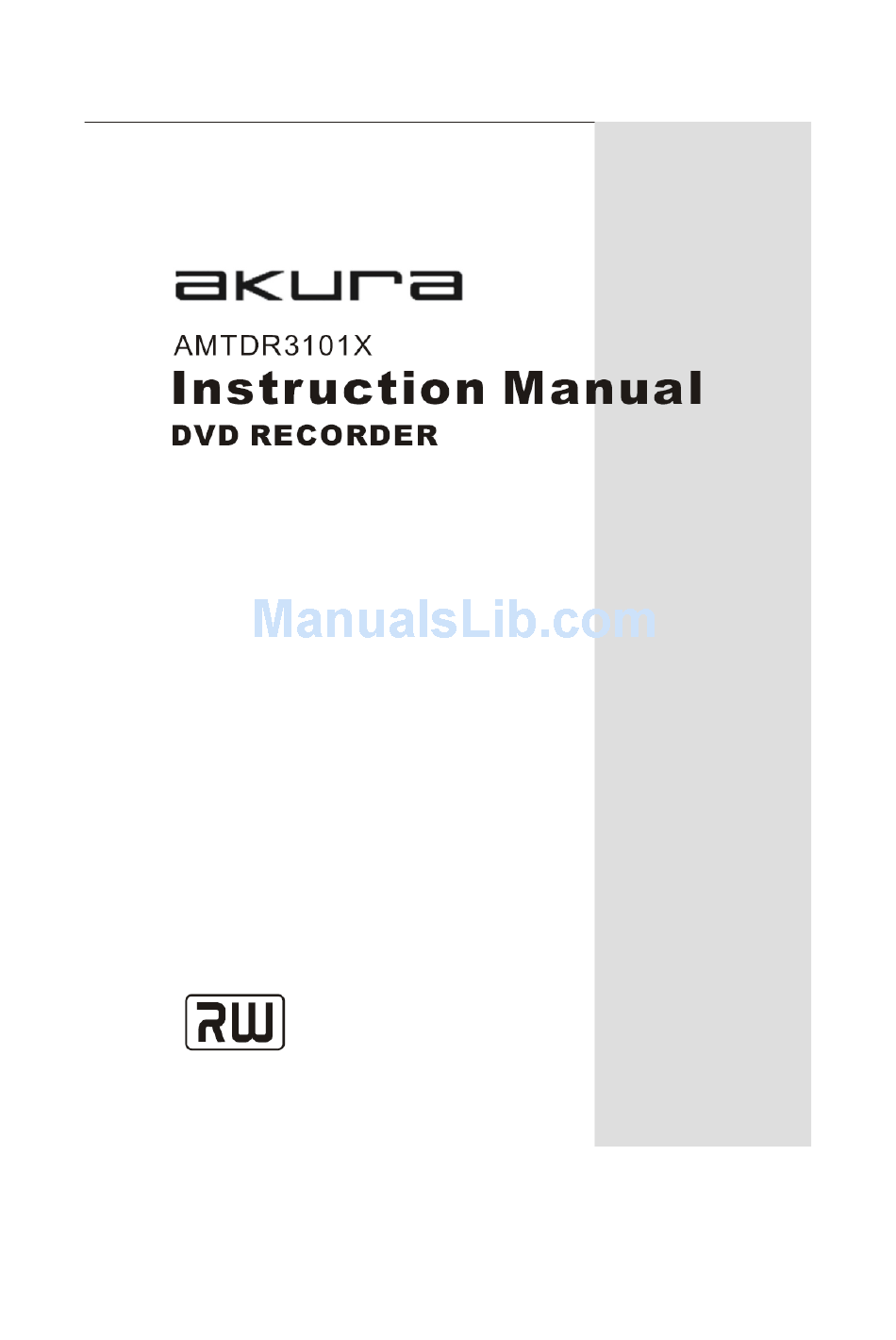

  • Page 1 Customer Help Line 01422 263313 DVD +/- ReWritable...
  • Page 3 TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT THE CUSTOMER HELP LINE 01422 263313. CAUTION: THIS DVD RECORDER EMPLOYS A LASER A lightning bolt with an arrowhead symbol within SYSTEM.
  • Page 4 CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard.

  • Page 5: Playable Discs

    This model combines the function of a DVD player, Tv receiver and recorder. As a DVD player, you will be able to enjoy full length movies with cinema picture quality, and stereo or multichannel sound (depending on the disc and your playback system). Unique features of this player include Scart &...
  • Page 6 POWER Button 7. PREV Button DVD Tray 8. STOP Button IR (Remote Sensor) 9. PLAY/PAUSE Button LED Display 10. NEXT Button DV (Firewire) input 11. OPEN/CLOSE Button USB Input 12. RECORD Button TV Aerial Input 6. Video Input TV Aerial Output (Rf Loopthrough) 7.
  • Page 8 1. Push downward and outward the leaf spring to remove the battery compartment cover. 2. Insert two AAA batteries according to the "+" and "-" markings. 3. Make sure the batteries have been properly installed, then close the battery compartment cover.
  • Page 12 SELECTING SOUND SOURCE SELECTING A SOURCE Press any function button (SOURCE, DVD, TV,DV,USB) to select the desired source. The appropriate symbol will appear in the display. Note: The desired program source will not play unless it and the selected signal source are turned on.
  • Page 13 1. Power on your recorder 2. Insert a DVD disc, Label side UP 3. Press direction keys or the number buttons to select the title...
  • Page 14 The name of the pre-recorded disc. The default is TITLE. The date and time of the recording. Time of the recorded title The quality The time length of the recording All playback operations can be selected by navigation. During playback, press the DISPLAY button twice or the NAVIGATION button once to access the control MENU:...
  • Page 15 Note The above features vary depending upon the disc type such as “Digital Audio”, Audio CD etc...
  • Page 16 2. Press the / / / buttons to select the title you want.
  • Page 17 Note. • The function is invalid on “Digital Audio” discs • For CD Discs, GOTO is used for track/time selection...
  • Page 18 Note There are two repeat modes for CD/”Digital Audio” discs. On CD discs, they are track repeat and disc repeat, on “Digital Audio” discs, they are repeat song and repeat directory.
  • Page 20 On “Digital Audio” discs the “AUDIO” button is used for selection of Left/Right and stereo...
  • Page 21 Note. On “Digital Audio” /CD discs there are some differences on the OSD...
  • Page 26 To Record TV programmes, you must first search for the Tv stations in your area. 1.Enter the setup menu and select “CHANNEL SCAN” and press the ENTER button. 2. It will now scan the channels automatically. To stop searching, press the STOP button. 3.
  • Page 27 ORMAL RECORDING 1. Make connections illustrated in pages 8 -12. 2. Insert a recordable DVD+RW or DVD+R disc into the recorder. 3. Press the DV, TV or SOURCE button to select the input source to which you have connected as step 1. F-CVBS: Front, Audio/Video Input (on the front panel) R-CVBS: Rear Audio/Video Input (on the rear panel) SCART: Rear SCART input (on the rear panel).
  • Page 28 1.First setup the clock of your system as “CLOCK SETUP” on page 26. It is recommended to setup your local date and time. 2.Press the TIMER button, the record scheduler will pop up. Note: If you want to delete a schedule, highlight if, press the ADD/CLEAR button. 3.Use the UP/DOWN button to select one schedule, and press the ENTER button to access Item Editor as below: In each item you can also use direction keys to highlight and press the ENTER button to choose...
  • Page 32 LOCK(only DVD+/-RW ) When the LOCK icon is displayed you may lock the current disc. Locking the disc stops you from recording anymore data on the disc. To unlock the disc select UNLOCK. Finalise (only DVD+/-R) (Make Compatible) Highlight the icon and press the ENTER button. It will take a few minutes to finalise the disc. Note: You must finalise a disc before it is played on another DVD player.
  • Page 33 Symptom Possible Cause Remedy No power to recorder. Check supply connections and Dead. No display ensure the power is turned on. Power button on recorder not pushed Press power button in. Display lit but no picture No connection to TV Check all connections to TV on screen.
  • Page 34 Compatible Discs DVD+/-R,DVD +/-RW DVD, CD Digital Audio, CD-R CD-RW Recordable disc formats DVD+/-RW, DVD +/-R...

  • Page 35: Mains Plug Wiring

    MAINS PLUG WIRING IMPORTANT For your safety. If the mains plug needs replacing, proceed as follows :- DO NOT CONNECT THE CENTRE PIN (EARTH). Connect the Blue wire to the (N) terminal ( this may be coloured blue). Connect the Brown wire to the (L) terminal adjacent to the fuse ( this may be coloured brown).
  • Page 36 DVD +/- Re Writeable...
