IMC Networks McPC 100 Mbps Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
McPC 100Mbps
(PCI Version)
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McPC 100 Mbps and is the answer not in the manual?

Questions and answers

Related Manuals for IMC Networks McPC 100 Mbps

Summary of Contents for IMC Networks McPC 100 Mbps

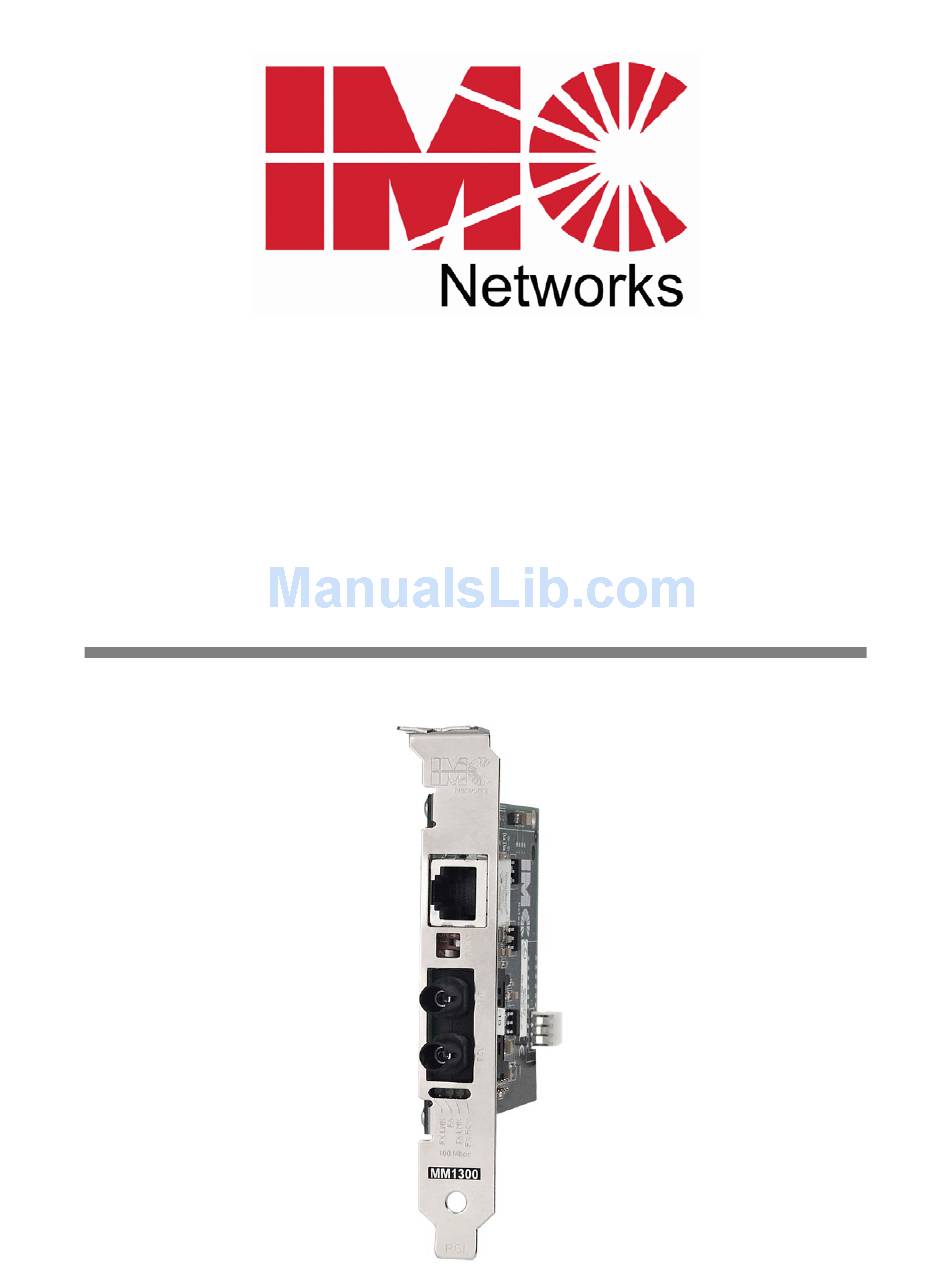

  • Page 1 McPC 100Mbps (PCI Version) Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the McPC 100Mbps.................1 LED Indicators....................3 LinkLoss and FiberAlert ..................3 Installation Troubleshooting ................6 Specifications .....................6 IMC Networks Technical Support...............6 Fiber Optic Cleaning Guidelines.................7 Electrostatic Discharge Precautions..............7 Safety Certifications....................8...

  • Page 4: About The Mcpc 100Mbps

    About the McPC 100Mbps The McPC 100Mbps is an IEEE 802.3 single-conversion PC media converter card designed to convert twisted pair (100Base-TX) connections to a variety of other fiber connections: 100 Base-SX 850 or 1300nm multi-mode or 100Base-FX 1310nm or 1550nm single-mode.

  • Page 5: Jumper Settings

    NOTE The default for all features except Auto Negotiation is "Disabled." Jumper Settings Jumper Factory Feature ON (pins) Position (pins) Default TXLL FXLL AutoCross The McPC 100Mbps includes AutoCross, a feature which automatically selects between a crossover workstation or a straight-through/repeater hub connection depending on the connected device.

  • Page 6: Led Indicators

    During normal operation, link integrity pulses are transmitted by all point-to-point Ethernet devices. When an IMC Networks media converter receives valid link pulses, it knows that the device to which it is connected is up and sending pulses, and that the copper or fiber cable coming from that device is intact.
  • Page 7 The McPC 100Mbps also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end. The combination of FiberAlert and LinkLoss allows this information to be obtained, even when physical access to a remote device (and its link integrity LED) is not available.
  • Page 8 Enabling TX and FX LinkLoss In order to enable the LinkLoss features, remove the cover from the unit and place the jumpers accordingly. Follow the instructions below, referencing the diagram. Make sure that there is no power going to the unit by UNPLUGGING THE POWER CORD.

  • Page 9: Installation Troubleshooting

    Electrical Input Load 100/240V±10% ~ 50/60Hz, 0.1/0.05A Dimensions A single PCI slot module for use in a PC chassis. IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com...

  • Page 10: Fiber Optic Cleaning Guidelines

    Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps.

  • Page 11: Safety Certifications

    Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
  • Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McPC 100Mbps is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
