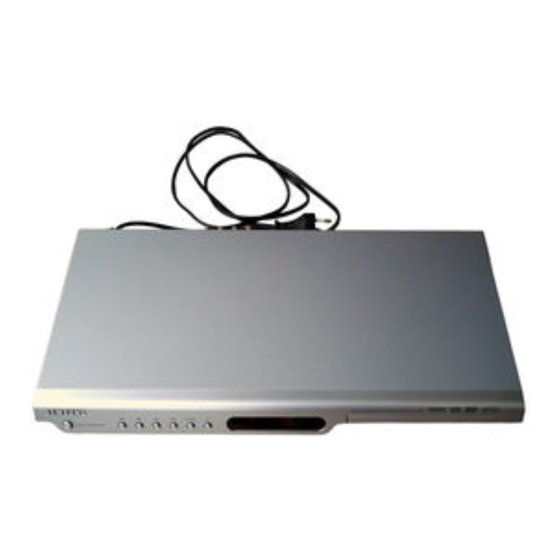

Samsung DVD-P355B/XEU Service Manual

Chassis: spino
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRONICS
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
international and/or domestic law.
© Samsung Electronics Co., Ltd. JUN . 2005
Printed in Korea
AK82-0000929A

DVD PLAYER

Chassis : Spino
DVD-P355B/XEU, XET, XEE, SED, XEO,
SERVICE
DVD PLAYER
XEC, XEL, FOU, XEG, XEH,
XEV
Manual
Merit & Character regarding Product
Π41mm With LED Module
Œ
´ Playback MPEG4 DVD-Audio
´
ˇ ZORAN Vaddis7 1-Chip Solution
ˇ

Advertisement

Table of Contents
loading

Related Manuals for Samsung DVD-P355B/XEU

Summary of Contents for Samsung DVD-P355B/XEU

  • Page 1: Dvd Player

    ˇ ˇ ZORAN Vaddis7 1-Chip Solution © Samsung Electronics Co., Ltd. JUN . 2005 This Service Manual is a property of Samsung Electronics Co.,Ltd. Printed in Korea Any unauthorized use of Manual can be punished under applicable international and/or domestic law.

  • Page 2: Table Of Contents

    CONTENTS 1. Precautions 1-1 ~ 1-6 1-1 Safety Precautions (1-1) 1-2 Servicing Precautions (1-3) 1-3 ESD Precautions (1-4) 1-4 Handling the optical pick-up (1-5) 1-5 Pick-up disassembly and reassembly (1-6) 2. Product Specification 2-1 ~ 2-4 2-1 Product Specification (2-1) 2-2 Chassis Product Specification (2-2) 2-3 Option Product Specification...
  • Page 3 CONTENTS 8. Block Diagram 8-1 ~ 8-2 9. Wiring Diagram 9-1 ~ 9-2 10. PCB Diagrams 10-1 ~ 10-4 10-1 Main PCB (10-2) 11. Schematic Diagrams 11-1 ~ 11-8 11-1 Power Drive (11-2) 11-2 Servo (11-3) 11-3 AV-Decoder (11-4) 11-4 Fromt Micom (11-5) 11-5 Audio (11-6)
  • Page 4 CONTENTS 14. Reference Information 14-1 ~ 14-16 14-1 Introduction to DVD (14-1) 14-2 DVD-Video Fromat (14-3) 14-1 DVD-Audio (14-9) 14-2 DivX (14-12)

  • Page 5: Precautions 1-1

    Metal Part cal return path to the chassis. Any current measured must not exceed 0.5mA. Reverse the instrument power cord plug in the out- ohmmeter let and repeat the test. See Fig. 1-1. Fig. 1-2 Insulation Resistance Test Samsung Electronics...
  • Page 6 (5) antenna wiring. Always inspect in all areas tinuously and new instructions are issued whenev- for pinched, out-of-place, or frayed wiring, Do not er appropriate. change spacing between a component and the printed-circuit board. Check the AC power cord for damage. Samsung Electronics...

  • Page 7: Servicing Precautions

    Components identi- fied by shading, by( ) or by ( ) in the circuit dia- gram are important for safety or for the characteris- tics of the unit. Always replace them with the exact replacement components. Samsung Electronics...

  • Page 8: Esd Precautions

    (6) Do not remove a replacement ESD device from its protective package until immediately before your are ready to install it.(Most replacement ESD devices are packaged with leads electrically short- ed together by conductive foam, aluminum foil or comparable conductive materials). Samsung Electronics...

  • Page 9: Handling The Optical Pick-Up

    ◆ Be sure to put on a wrist strap grounded to the sheet. ◆ Be sure to lay a conductive sheet made of copper etc. Which is grounded to the table. Samsung Electronics...

  • Page 10: Pick-Up Disassembly And Reassembly

    3) Make solder land 2 points short on Pick-up. (See Fig. 1-4) 4) Disassemble the Pick-up. Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged. SOLDER LAND 2 POINTS SHORT PICK-UP ASS'Y Fig. 1-4 Samsung Electronics...

  • Page 11: Product Specification

    2 Channel : L(1/L), R(2/R) 2 Channel L(1/L), R(2/R) 48KHz Sampling : 4Hz to 22KHz *Ferquency Response Audio Output 96KHz Sampling : 4Hz to 44KHz *S/N Ratio 110dB *Dynamic Range 100dB *Total Harmonic Distortion 0.004% * : Nominal specification Samsung Electronics...

  • Page 12: Chassis Product Specification

    PCM1753 PCM1753 PCM1753 PCM1753 AUDIO ADC M65855P M65855P M65855P M65855P FRONTMICOM eFHP5842 eFHP5842 eFHP5842 eFHP5842 MIC INPUT 1MIC 2MIC 1MIC 2MIC NTSC Default SCARTOUT MULTI MULTI MULTI MULTI 2CH/DIGI 2CH/DIGI 2CH/DIGI 2CH/DIGI D-AUDIO MPEG4 P-CD SVCD MEMORY CARD Samsung Electronics...

  • Page 13: Option Product Specification

    Description Fig Remote Model Stamdard AK59-00011K Control of DVD-P355B/XEL Model Stamdard Batteries for of DVD-P355B/XEL AC43-12002H Remote Control (AAA Size) S.N.A Model Stamdard AK68-00632G User ’ s Manual of DVD-P355B/XEL Model Stamdard V ideo/Audio AC39-42001R of DVD-P355B/XEL Cable Samsung Electronics...

  • Page 14: Alignment And Adjustments

    3. Alignment and Adjustment 3-1 Location of Test Point RIC1 SP37239 Pin29 of RIC1 RIC1 SP37239 Fig. 3-1 Location of Test Point Samsung Electronics...

  • Page 15: Skew Adjustment

    Test Point Adjustment Location TDV-533 “Pin 29 of RIC1” Screw A / B Chapter 14 Flat Waveform (Main PCB - Component Side) Ass’y Deck - Top Side (See Fig. 3-1) (See Fig. 3-2) Fig. 3-2 Ass’y Deck (Top Side) Samsung Electronics...
  • Page 16 If you cannot obtain a Flat waveform, then the unit is defective. Note : The Deck must be in a horizontal position. Use both “A” and “B” screws to adjust. Typical Waveform before Adjustment Waveform after Correct Adjustment Fig.3-3 Envelope Waveform Samsung Electronics...

  • Page 17: Disassembly And Reassembly

    4-1 Cabinet and PCB Note : Reassembly in reverse order. 4-1-1 Top Cabinet Removal 1) Remove 3 Screws Πthe back Top Cabinet. 2) Lift up the Top Cabinet in direction of arrow. Π3 SCREWS Fig. 4-1 Top Cabinet Removal Samsung Electronics...
  • Page 18 Note : If Tray Œ doesn’t open, insert a Screw driver ¨ into the Emergency hole ˇ (as shown in detailed draw- ing) and then push it in the direction of arrow “B”. Open Tray manually. Œ TRAY "B" ´ DOOR-TRAY "A" ¨ SCREW DRIVER ˇ EMERGENCY HOLE Fig. 4-2 Door-Tray Removal Samsung Electronics...
  • Page 19 Disassembly and Reaasembly 4-1-3 Ass’y Front-Cabinet Removal 1) Release 6 Hooks Œ, ´, ˇ, ¨ and Remove the Ass’y Front-Cabinet ˆ. ´ 1 HOOK ¨ 2 HOOKS Œ 2 HOOKS ˇ 1 HOOK ˆ A'ssy Front-Cabinet Fig.4-3 Ass’y Front-Cabinet Removal Samsung Electronics...
  • Page 20 4-1-4 Ass’y Deck Removal 1) Disconnect Flat-Cable from DCN1, DCN2 on Main PCB. 2) Remove 3 Screws Œ from the Ass’y Deck and lift it up. Œ 3 SCREWS FLAT-CABLE ASS'Y-DECK DCN1 DCN2 Fig. 4-4 Ass’y Deck Removal Samsung Electronics...
  • Page 21 Disassembly and Reaasembly 4-1-5 Main PCB Removal 1) Remove 4 Screws Œ. 2) Lift up the Main PCB ´. Œ 4 SCREWS ´ MAIN PCB Fig. 4-5 Main PCB Removal Samsung Electronics...

  • Page 22: Deck

    4-2-1 Holder Chuck Removal 1) Push 4 Hooks Œ in the direction of arrow “A” and lift up the Holder Chuck ´. ´ HOLDER CHUCK Œ 2 HOOKS "A" Œ 2 HOOKS "A" Fig. 4-6 Holder Chuck Removal Samsung Electronics...
  • Page 23 1) Insert a Screw Driver Œ into Emergency Hole ´ and push the Slider Housing ˇ in the direction arrow “A”. 2) When the Tray Disc ¨ comes out a little, pull it in the direction arrow “B” by hand. ˇ SLIDER HOUSING ¨ TRAY DISC "B" "A" ´ EMERGENCY HOLE Œ SCREW DRIVER Fig.4-7 Tray Disc Removal Samsung Electronics...
  • Page 24 1) Remove the 4 Soldering Œ (SL+, SL-, SP+, SP-). 2) Remove the 1 Screw ´ and lift up the Ass’y P/U Deck ˇ ´ 1 SCREW ˇ ASS'Y P/U DECK ¨ CHASSIS SUB <Assembly Point> Œ 4 SOLDERING Fig. 4-8 Assy P/U Deck Removal Samsung Electronics...
  • Page 25 ∏ 2 SCREWS Ô GEAR TRAY ˝ GEAR PULLEY "D" ’ 1 HOOK "C" ˆ 1 HOOK ” ASS'Y MOTOR LOAD ´ 2 HOOKS "A" "A" ˇ ASS'Y PCB DECK Œ 2 SOLDERING Fig. 4-9 Ass’y Housing Removal Samsung Electronics...
  • Page 26 Ú 2 SCREWS Ø MOTOR FEED ˇ HOOK ASS'Y "B" ∏ 2 SCREWS ˆ 2 SCREWS Œ HOOK "A" CHASSIS SUB ¨ GEAR FEED A ´ GEAR FEED B ” MOTOR SPINDLE Fig. 4-10 Ass’y Bracket Deck Removal 4-10 Samsung Electronics...

  • Page 27: Troubleshooting

    5. Troubleshooting No focus incoming FE in ZIC1-181 Check RIC1 and A, B, C, D input. is within specified range? (FE Waveform) FIC1-27, 28 output Check FIC1. are normal? Check open state from FIC1 to pick-up. Samsung Electronics...
  • Page 28 Troubleshooting No pick-up home positing ZIC1-191(SLED-PWM) Check ZIC1. output is normal? (1.7V ~ 1.8V) SLED+, SLED- Check FIC1. FIC1-13, 14 output are normal? Check the Sled Motor and connection. Samsung Electronics...
  • Page 29 Troubleshooting NO LD CD ON RIC1-22 is 5V? Check RIC1 Divide RQ2 emitter terminal voltage and 5V real voltage difference into 10ohm. Open check in related circuit. Current exceeds 0.1A? LD out pick-up replace. Samsung Electronics...
  • Page 30 Check RIC1 peripheral circuit. Actual velocity occurs Check ZIC1 peripheral circuit. at ZIC1-191 terminal? Actual velocity occurs Check FIC1 peripheral circuit. at FIC1-13, 14 terminal? Focus On? TE occurs in search range? (TE Waveform) See "Fine Seek Check" Samsung Electronics...
  • Page 31 TE is within ZIC1-169(TRD) 2V and 3V? output is normal? Check RIC1-6 terminal. (T+,T- Waveform) FIC1-26, 25(T+, T-) Pick-up transfer smooth. terminal outputs are normal? Check FIC1 peripheral circuit. Check Deck. Check RIC1 peripheral circuit. Check DCN1 and pick-up. Samsung Electronics...
  • Page 32 A, B, C, D. Check path to RIC1 and ZIC1. SPD output is normal? (ZIC1-189) Check ZIC1 peripheral circuit. FIC1-25 output Check FIC1 soldering and power. is normal? FIC1-23 signal Check ZIC1. MON is "H" ? Check or replace disc motor. Samsung Electronics...
  • Page 33 No Tray open/close ZIC1 129,130 Open ; "L" Check ZIC1 perpheral circuit. Close ; "H" (OPEN, CLOSE Waveform) Check FIC1-13, 14 Check FIC1 perpheral circuit. output at OPEN/CLOSE. Check signal line state from FIC1-13, 14 to tray motor. Samsung Electronics...
  • Page 34 AIC1-2? (DATA0 Waveform) Analog output of Check ZIC1-118 AIC1-7,9(Vout) is DVD;12.2884MHz normal? AIC5-1, 7 output Check AIC5 peripheral circuit. is normal? Base terminal level Check FMIC-11 mute. of AQ7, AQ9 are "L"? Check JACK1 peripheral soldering shot. Samsung Electronics...
  • Page 35 Troubleshooting S-Video output error Video output of display Select video output to "S-VIDEO". setup is "S-VIDEO". Samsung Electronics...
  • Page 36 Troubleshooting Y/Pr/Pb output error Video output of display Select video output to "I-SCAN". setup is "I-SCAN". 5-10 Samsung Electronics...
  • Page 37 Troubleshooting Progressive output error Video output of Select video output to "Pscan & HDMI". display setup is "Pscan & HDMI". Samsung Electronics 5-11...
  • Page 38 VL6 and pin 1in VIC1. (VIC-MUTE Waveform) Peak to peak Check the soldering of VIC1 voltage level of VIC1-20 Video signal of Check the connection between about 1V appears at VIC1 and output jack. output jack? Check the RCA cable. 5-12 Samsung Electronics...
  • Page 39 Troubleshooting No Power (Standby LED OFF) PFD01 error? Replace fuse. PDS01 voltage Check PDS01 ~ 04. is normal voltage? Replace PIC01. Switching operation Check feed back, 2st voltage. of PIC01 is normal? Replace PIC01 Samsung Electronics 5-13...

  • Page 40: Exploded View And Parts List

    6-2 DVD Mechanical Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4 Samsung Electronics...

  • Page 41: Cabinet Assembly

    Exploded View and Parts List 6-1 Cabinet Assembly W001 C015 W275 P001 W275 P025 CHASSIS - FRAME (S.N.A) S.N.A : Service Not Available A001 C001 C002 Samsung Electronics...
  • Page 42 C015 AK97-01103D ASSY CABINET-TOP;PCM T0.55,DVD-P355B/XE P001 AK92-00680B ASSY PCB-MAIN;DVD-P355/XEV,MAIN PCB ASSY CIS Only AK92-00680A ASSY PCB-MAIN;DVD-P355/XEO,MAIN PCB ASSY Other Only P025 AC39-12022K CBF-POWER CORD;AT,,GP2,HOUING(2P),250V,3 U.K Only AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH2-F,VDE/KE Other Only W001 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101 W275 6003-001561 SCREW-TAPTITE;BH,+,WT,B,M3,L6,ZPC(YEL),S Samsung Electronics...

  • Page 43: Dvd Mechanical Parts

    Exploded View and Parts List 6-2 DVD Mechanical Parts W212 H213 H212 H102 W012 H241 H206 H211 H214 H203 W273 H210 W010 H202 W274 W274 H204 H205 H105 H107 H207 H106 H103 W011 H108 H104 H109 Samsung Electronics...
  • Page 44 MOTOR-FEED ASSY;-,DP-9,-,-,-,-,-,-,-,-,- H211 AK97-01009B ASSY-PICK UP;-,DP-16,MITSUMI VE H212 AK61-00359A HOLDER-CHUCK;DP-16,POM,T3,W140,L96,BLK,- H213 AK61-00357A SPRING ETC-CLAMPER;-,SUS304CSP,-,-,-,-,- H214 AK66-00057A GEAR-BACKLASH;DP-16,POM,0.5,-,-,WHT,-,RA H241 AK41-00250B FFC-PU;DP-16,HYPER,PET 0.037mm,23P,0. W010 6003-001157 SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR W011 6001-001370 SCREW-MACHINE;CH,+,M1.7,L3.0,ZPC(YEL),SW W012 6002-001086 SCREW-TAPPING;PH,+,B,M1.7,L5.0,ZPC(YEL), W212 6003-001251 SCREW-TAPTITE;CH,+,B,M1.7,L3,ZPC(YEL),SW W273 6003-000233 SCREW-TAPTITE;PH,+,B,M2,L6,ZPC(BLK),SWRC W274 6001-001730 SCREW-MACHINE;BH,+,M1.7,L2.5,ZPC(YEL) Samsung Electronics...

  • Page 45: Electrical Parts List

    0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOT- 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP FC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT FC11 2203-001222 C-CER,CHIP;0.82NF,10%,50V,X7R,TP,1608 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, FC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 46 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 KIR1 0609-001188 MODULE REMOCON;VERTICAL,9.6MM,TR 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 KML1 AK07-00030A LED DISPLAY;BCD-9030B,DVD-P250K,-,7,7,27 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOT- KSW1 3404-001261 SWITCH-TACT;15V DC,20mA,100gf,7.4X7.95X1 KQ10 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT- KSW2 3404-001261 SWITCH-TACT;15V DC,20mA,100gf,7.4X7.95X1 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 47 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 RC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 PES55 2401-001358 C-AL;470uF,20%,10V,WT,TP,8x11.5mm,5 RC15 2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1608 PES57 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 RC16 2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1608 PES58 2401-002438 C-AL;47uF,20%,50V,WT,TP,6.3x11,5 RC17 2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1608 PES59 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 RC18 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 48 IC-VIDEO PROCESS;LA73054,-,36P,-,SSOP,7V SCC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 VIC2 1204-001748 IC-SELECTOR;MM1503XN,SOP,6P,63MIL,PLASTI SCC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 SCC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 SCC17 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608 VJACK1 3722-002297 JACK-PIN;7P+1P(VHS),SN,BA-RD-BU-GR/RD-W SCC18 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOT- Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 49 ZC47 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 ZC48 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR50 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR56 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 ZC51 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR61 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ZC52 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR62 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 50 S.N.A AK61-00155A SPRING ETC-REMOCON B(-);VR-6036,CS NI-CO S.N.A AK61-00156A SPRING ETC-REMOCON C;VR-6036,CS NI-CO S C457 AK64-00331A WINDOW-REMOCON;VR-6036,PC,-,-,-,-,VIO,- XT01 2802-000148 RESONATOR-CERAMIC;455KHz,0.4%,BK,7.0x3.5 S.N.A AC39-42001R CABLE-A/V;PVC,-,-,3P,-,-,- W001 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101 W275 6003-001561 SCREW-TAPTITE;BH,+,WT,B,M3,L6,ZPC(YEL),S Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 51: Block Diagram

    MEMORY ZORAN (FAN8026) Scart (Vaddis-7) Jack (ZR36778QC) RIC1 R/F IC A/V Decoder (ZR3723D) & DVD-Audio Optical MAIN-MICOM Coaxial AIC2 LPF/AMP Audio DAC LPF/AMP (PCM 1753) ZIC2 SDRAM 64MB 16Bit Samsung Electronics This Document can not be used without Samsung’s authorization.
  • Page 52 9. Wiring Diagram Samsung Electronics...

  • Page 53: Schematic Diagrams

    When replacing any of these components. Use only the same type. Block Identification of PCB Main PCB (Component Side) Main PCB (Component Side) Samsung Electronics This Document can not be used without Samsung’s authorization. 11-1...

  • Page 54: Schematic Diagrams 11-1

    Schematic Diagrams 11-1 Power Drive ON/ OFF Standby: 0V Play: 3.3V 11-2 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 55: Servo

    These are the waveforms of DVD-P355B. Caution) There can be some differences (Voltage, Frequency, etc.) among cameras. ¨ ¨ RF Waveform Typical Waveform before Adjustment Waveform after Correct Adjustment Samsung Electronics This Document can not be used without Samsung’s authorization. 11-3...

  • Page 56: Av-Decoder

    F/M, A/V Decoder ´ ˇ ´ ˇ GCLK-27MHz Waveform PCLK-135MHz Waveform These are the waveforms of DVD-P355B. Caution) There can be some differences (Voltage, Frequency, etc.) among cameras. 11-4 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 57: Fromt Micom

    Standby: 0V Play: 3.3V Play: 3.3V Œ FSCL, FSDA Waveform Œ These are the waveforms of DVD-P355B. Caution) There can be some differences (Voltage, Frequency, etc.) among cameras. Samsung Electronics This Document can not be used without Samsung’s authorization. 11-5...

  • Page 58: Audio

    XCK Waveform Ø XCK Waveform (DVD Play 12.288MHz) (CD Play 11.289MHz) These are the waveforms of DVD-P355B. Caution) There can be some differences (Voltage, Frequency, etc.) among cameras. 11-6 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 59: Video

    Schematic Diagrams 11-6 Video These are the waveforms of DVD-P355B. Caution) There can be some differences (Voltage, Frequency, etc.) among cameras. Analog Video Data ˆ CVBS Waveform ˆ Samsung Electronics This Document can not be used without Samsung’s authorization. 11-7...
  • Page 60 Schematic Diagrams MEMO 11-8 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 61: Operating Instructions

    Front Panel Display 1. Chapter/Track number indicator 2. Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ... no DISC: No disc loaded. OPEN: The disc tray is open. LOAD: Player is loading disc information. ENG-8 Samsung Electronics 12-1...
  • Page 62 TV’s menu system. - If Component (P-SCAN) Video Output is selected in Setup Menu, Video and S-Video Outputs do not work. - See pages 53 ~ 54 to get more information on how to use the setup menu. ENG-9 12-2 Samsung Electronics...

  • Page 63: Tour Of The Remote Control

    Allows you to repeat play a title, chapter, track, or disc. 21. ANGLE Button Use to access various camera angles on a DVD. 22. AUDIO Button Use this button to access various audio functions on a disc. ENG-10 Samsung Electronics 12-3...

  • Page 64: Choosing A Connection

    - The number and position of terminals may vary depending on your TV set. Please refer to the user's manual of your TV. - If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player. ENG-11 12-4 Samsung Electronics...
  • Page 65 - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16) - The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV. ENG-12 Samsung Electronics 12-5...
  • Page 66 - The component terminal of your TV may be marked “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “P , Y” depending on the manufacturer. The number and position of terminals may vary depending on the TV set. Please refer to the user's manual of your TV. ENG-13 12-6 Samsung Electronics...
  • Page 67 - Depending on your TV, the connection method may differ from the illustration above. Note - What is "Progressive Scan"? Progressive scan has twice as many scanning lines as the interlace output method. Progressive scanning method provides better and clearer picture quality. ENG-14 Samsung Electronics 12-7...
  • Page 68 - Please set the audio in the menu screen according to the Amplifier. (See pages 51 to 52) - The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier. ENG-15 12-8 Samsung Electronics...
  • Page 69 - Please set the audio in the menu screen according to the Amplifier. (See pages 51 to 52) - The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier. ENG-16 Samsung Electronics 12-9...

  • Page 70: Playing A Disc

    ) button again, it will pick up button to close the disc tray. where you left off. (unless the disc is removed or the player is unplugged, or if you press the STOP ( ) button twice.) ENG-17 12-10 Samsung Electronics...
  • Page 71 Reverse slow motion play will not work. Press and hold the SEARCH ( ) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or Note STEP mode. This ( ) icon indicates an invalid button press. ENG-18 Samsung Electronics 12-11...

  • Page 72: Using The Search And Skip Functions

    - If a track exceeds 15 minutes when playing a When playing VCD 2.0, this function works only VCD and you press the button, it moves when the menu is off. forward 5 minutes. If you press the button, it moves backward 5 minutes. ENG-19 12-12 Samsung Electronics...

  • Page 73: Using The Display Function

    Press the …/† buttons to select the desired item. 0:00:13 ENG 5.1CH When playing VCD 2.0, this function works only when the menu is off. 0:00:43 0:00:48 MPEG4 0:00:13 MP3 1/8 None 640x272 ENG-20 Samsung Electronics 12-13...
  • Page 74 File Size has a relationship with resolution of a title. The larger file size is, the higher resolution is displayed. If the file resolution is small, it scales up automatically. So you can see the larger screen. ENG-21 12-14 Samsung Electronics...

  • Page 75: Using The Disc And Title Menu

    Title Menu press the √ or ENTER Note button. - Depending on a disc, the Title Menu may not work. - Title Menu will only be displayed if there are at least two titles in the disc. ENG-22 Samsung Electronics 12-15...

  • Page 76: Using The Function Menu

    Press the …/† buttons control. - INFO to select one of the five - EZ VIEW functions. Then press the √ or ENTER button - REPEAT to access the function. ENG-23 12-16 Samsung Electronics...

  • Page 77: Repeat Play

    Off and press ENTER button. Note VCD/CD - Depending on a disc, the Repeat function may 01 A-B REPEAT ENTER not work. - When playing VCD 2.0, this function works only when the menu is off. ENG-24 Samsung Electronics 12-17...

  • Page 78: Slow Repeat Play

    (B). To return to normal play, Note press the CLEAR button When playing VCD 2.0, this function works only and then press the when the menu is off. PLAY/PAUSE ( ) button. ENG-25 12-18 Samsung Electronics...
  • Page 79 Play functions may not work. Press the œ/√ buttons to - While in playback mode, press the CLEAR button select RANDOM. on the remote control to cancel Program Play or Press the ENTER button. Random Play. ENG-26 Samsung Electronics 12-19...
  • Page 80 - Vertical Fit When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched. ENG-27 12-20 Samsung Electronics...
  • Page 81 - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. Note This function may behave differently depending on the type of disc. ENG-28 Samsung Electronics 12-21...

  • Page 82: Selecting The Audio Language

    - A DVD disc can contain up to 8 audio languages. - To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 48. ENG-29 12-22 Samsung Electronics...

  • Page 83: Selecting The Subtitle Language

    - A DVD disc can contain up to 32 subtitle icon, press the CLEAR or languages. RETURN button. - To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 49. ENG-30 Samsung Electronics 12-23...

  • Page 84: Changing The Camera Angle

    Use this function to skip playback about 10 seconds ahead of the current scene. Press the INSTANT SKIP button. - Playback will skip ahead 10 seconds. Note Depending on the disc, these functions may not work. ENG-31 12-24 Samsung Electronics...

  • Page 85: Using The Bookmark Function

    Up to three scenes may be marked at a time. Note - When playing VCD 2.0, this function works only when the menu is off. - Depending on a disc, the Bookmark function may not work. ENG-32 Samsung Electronics 12-25...
  • Page 86 The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 32. Press the œ/√ buttons to select the bookmark number you want to delete. Press the CLEAR button to delete a bookmark number. ENG-33 12-26 Samsung Electronics...

  • Page 87: Using The Zoom Function

    During VCD play, press ENTER to zoom in 2X/Normal in order. buttons to select the part of the screen you want to zoom in on. Note Press the ENTER button. When playing VCD 2.0, this function works only when the menu is off. ENG-34 Samsung Electronics 12-27...

  • Page 88: Dvd Audio Playback

    Group, Track, Page or to start the playback from the desired time. Press the œ/√ buttons to make the desired setup and then press the ENTER button. To make the screen disappear, press the INFO button again. ENG-35 12-28 Samsung Electronics...
  • Page 89 - Some DVD-AUDIO discs include a slide show. In the slide show mode, this function can not be used. - PAGE is still images. You can see the still images when a DVD- AUDIO disc is played back. ENG-36 Samsung Electronics 12-29...
  • Page 90 - LPCM : Linear Pulse Code Modulation. Not compressed Audio data format. - PPCM : Packet Pulse Code Modulation. DVD-AUDIO Lossless compressed Audio data format. PPCM 5.1CH Note Some DVD-AUDIO discs don’t allow audio down-mixing. ENG-37 12-30 Samsung Electronics...

  • Page 91: Folder Selection

    S O N G F I L E 1 Peer Folders S O N G F I L E 2 S O N G F I L E 3 M P E G 4 F I L E S ENG-38 Samsung Electronics 12-31...
  • Page 92 - Folder: Repeats the song files which have the same extension in the current folder. - Random: Song files which have the same extension will be played in random order. To resume normal play, press the CLEAR button. ENG-39 12-32 Samsung Electronics...
  • Page 93 Kbps or more, only rarely give better sound quality. of the player to read the files). Conversely, files with decompression rates below 128 Kbps - This unit can play a maximum of 3000 files and 300 folders will not be played properly. per disc. ENG-40 Samsung Electronics 12-33...

  • Page 94: Mpeg4 Playback

    - Folder : Repeats the AVI files which have the same extension in the current folder. - Title : repeats the title that is playing. - A-B : repeats a segment of the file that you select. ENG-41 12-34 Samsung Electronics...
  • Page 95 - Some MPEG4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported. - This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”. ENG-42 Samsung Electronics 12-35...

  • Page 96: Picture Cd Playback

    - Depending on a file size, the amount of time between each picture may be different from the set interval time. - If you don’t press any button, the slide show will start automatically in about 10 seconds by default. ENG-43 12-36 Samsung Electronics...
  • Page 97 - If the number of files in 1 Disc is over 3000, only 3000 JPEG files can be played. - If the number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played ENG-44 Samsung Electronics 12-37...

  • Page 98: Using The Setup Menu

    Press the √ or ENTER button to access the sub features. To make the setup screen disappear after setting up, press the MENU button again. Note Depending on the disc, some Setup Menu selections may not work. ENG-45 12-38 Samsung Electronics...

  • Page 99: Setting Up The Language Features

    Language Setup menu. Player Menu English Press the …/† buttons to - To make the setup menu disappear, press Français select the desired the MENU button. Deutsch Español language, then press the Italiano √ or ENTER button. Nederlands ENG-46 Samsung Electronics 12-39...
  • Page 100 Italiano √ or ENTER button. Nederlands - The language is selected and the screen Others returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. ENG-47 12-40 Samsung Electronics...
  • Page 101 - If the selected language is not recorded on Original Others the disc, the original pre-recorded language is selected. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. ENG-48 Samsung Electronics 12-41...
  • Page 102 Nederlands Others in that case the disc will use its original language setting. - The language is selected and the screen returns to setup menu. - To make the setup menu disappear, press the MENU button. ENG-49 12-42 Samsung Electronics...
  • Page 103 Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish and Swedish English, Albanian, Croatian, Czech, Hungarian, Central Polish, Romanian, Slovak, Slovene and Serbian(Latin) Greek English and modern Greek English and modern Greek English, Russian, Bulgarian, Belorussian, Cyrillic Macedonian, Moldavian, Serbian(Cyrillic), Ukrainian ENG-50 Samsung Electronics 12-43...

  • Page 104: Setting Up The Audio Options

    Dolby Digital Out : PCM Press the …/† buttons to MPEG-2 Digitla Out : PCM select the desired item, : Off Dynamic Compression : On then press the √ or PCM Down Sampling : On ENTER button. ENG-51 12-44 Samsung Electronics...
  • Page 105 • Some discs will only output down sampled audio through the digital outputs. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. ENG-52 Samsung Electronics 12-45...

  • Page 106: Setting Up The Display Options

    TV Aspect : Wide Still Mode : Auto select the desired item, Screen Messages : On then press the √ or Black Level : Off ENTER button. TV System : PAL √ Video Output : SCART ENG-53 12-46 Samsung Electronics...
  • Page 107 “PAL”, Interlace output format is PAL 60 Hz menu system. output. • If Video Output is set incorrectly, the • If your TV system only has NTSC, input you screen may be blocked. must choose “NTSC ”. ENG-54 Samsung Electronics 12-47...

  • Page 108: Setting Up The Parental Control

    MENU button. Enter your password. Enter Password The Re-enter Password screen appears to confirm - - - - the password. Enter your password again. The player is locked ( CREATE PASSWORD Re-enter Password - - - - ENG-55 12-48 Samsung Electronics...

  • Page 109: Setting Up The Rating Level

    Level 6 that contain Level 7,8 will not play. Level 5 you want, then press the Level 4 Level 3 √ or ENTER button. Level 2 Level 1 Kids Safe e.g) Setting up in Level 6. ENG-56 Samsung Electronics 12-49...
  • Page 110 Re-enter the new password again. CHANGE PASSWORD Enter New Password - - - - CHANGE PASSWORD Re-enter Password - - - - Note If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide. ENG-57 12-50 Samsung Electronics...

  • Page 111: Circuit Operating Descriptions 13-1

    Input : Common power to transformer (Vp). Fig. 13-2 The output Vs of transformer is determined by the ratio of 1st Np and 2nd Ns. Vs = (Ns/Np) x Vp Fig. 13-3 Vout Vout is output (DC) by diode and condensor. Fig. 13-4 Samsung Electronics 13-1...
  • Page 112 Fig. 13-6 ◆ Terms 1) 1st : Common power input to 1st winding. 2) 2nd : Circuit followings output winding of transformer. 3) f (Frequency) : Switching frequency (T : Switching cycle) 4) Duty : (Ton/T) x 100 13-2 Samsung Electronics...
  • Page 113 Vb is inducted to base winding coil NB. By inducted Vb, Ib start flow and the V voltage of PQR11 is sustained stable. Ib is constant and I increases in Proportion to time. After constant time passed Ib become to shortage and PIC1 is cut OFF (S/W OFF). Samsung Electronics 13-3...
  • Page 114 Circuit Operating Descriptions PTDI PDS34 Vout PES34 Snubber Drain Softs POWER-CTL Mos-Fet Icease VD-G < < < < PICF1 Fig. 13-8 Driving Circuit 13-4 Samsung Electronics...
  • Page 115 PICS1 F-B Voltage increase --> OUT DUTY increase TRANS Primary Cuttent Increase --> TRANS Primary Power increase --> Vout increase --> Vout maintain 4.4V - PRD31, PRD32 : Reduce 4.4V overshoot. - PRS32, PCS32 : Prevent PICS2 oscillation (for phase correction). Samsung Electronics 13-5...
  • Page 116 Converter Removal 5V Rectified 5V Rectified (SNUBBER) VoltageCircuit (x2) Smoothing Circuit Rectified Circuit Motor 8V 1 Port PWM IC Control Circuit Line Filter 12V Rectified 8V Rectified VoltageCircuit Feed Smoothing Circuit Back Circuit Power IN (AC85V~240V) Fig.13-10 13-6 Samsung Electronics...
  • Page 117 Fig. 13-11 shows the flow of signal generated by the pick-up. RF signal detected from pick-up is converted in to RF signal via RF interface and attennuators. A, B, C, D signals detected from pick-up are converted in to FE, TE, PI, CE, DEFECT signals. Fig. 13-11 Samsung Electronics 13-7...
  • Page 118 Circuit Operating Descriptions Fig.13-12 shows the waveform-equalizing block diagram for the RF signal. RF signal from the pick-up is the input of RF equalizer module of RIC1 (SP3723). RFSIN RF (FROM P/U) RFAC RF EQ Fig.13-12 13-8 Samsung Electronics...

  • Page 119: System Control

    13-3-2 Block Diagram RIC1 AIC1 RF AMP D/A CONVERTER (SP3723) (DSD1608) ZIC1 MPEG DECODER CPU (VADDIS 7) DATA BUS ZIC5 ZIC3 ADDRESS EEPROM FLASH MEMORY (4K bit) 2 Mbyte Fig. 13-13 Samsung Electronics 13-9...

  • Page 120: Servo

    SLED motor moves slightly (and counteracts the incline). 4) CLV SERVO (DISC Motor Control SERVO) : Controls the disc motor to maintain a constant linear velocity (necessary for RF signal). 13-4-2 Block Diagram 13 14 FIC1 POWER OPEN ZIC1(Vaddis 6E) ZIC1(Vaddis 6E) CLOSE Fig.13-14 13-10 Samsung Electronics...
  • Page 121 Meanwhile, DVD repeats the track jump from 1 to 4 in inner direction at normal play (because data- read speed from disc is faster than data output speed on screen). ´ For CD, VCD Receive the signal output through E, F of Pick-up, from ZIC1. The tracking error signal is similar to DVD. Samsung Electronics 13-11...
  • Page 122 If the existing track count is within fine seek range, tracking begins using fine seek. 4) CLV SERVO(DISC MOTOR CONTROL SERVO) Input RF signal (from Pick-up) to ZIC1 pin 172, 173. Detect SYNC signal from RF in ZIC1, and output PWM signal to ZIC1 pin 189 for constant linear velocity. 13-12 Samsung Electronics...

  • Page 123: Dvd Data Processor

    The basic operation repeats to perform as described above. 13-5-2 Block Diagram 68M bit 8026 16M bit Fig.13-16 Samsung Electronics 13-13...

  • Page 124: Video

    CVBS, Y, C, R, Pb(B), Pr(R) outputted from video encoder are inputted to VIC1 (Pin 2, 8, 6, 16, 14). The signal to which gain is adjusted by amplifier is outputted from jack via 75ohm Resistance (VR11~VR16). 13-14 Samsung Electronics...
  • Page 125 If you want to listen to the multichannel output, you have to connect digital output with AC-3 amp or MPEG/DTS amp. Mixed Audio Output (2-Channel) DATA0 ZIC1 AIC1 POST FILTER LRCK (Vaddis 7) PCM1753 A/V Decoder D/A CONVERTER POST FILTER Fig. 13-18 Audio Output Block Diagram Samsung Electronics 13-15...
  • Page 126 Circuit Operating Descriptions MEMO 13-16 Samsung Electronics...

  • Page 127: Introduction To Dvd

    Reflective layer Semi-reflective layer Polycarbonate Polycarbonate Dual Side Dual Layer : 17GByte Dual Side Single Layer : 9.5GByte Polycarbonate Polycarbonate Semi-reflective layer Reflective layer Reflective layer Bonding layer Bonding layer Reflective layer Reflective layer Semi-reflective layer Polycarbonate Polycarbonate Samsung Electronics 14-1...
  • Page 128 This can be virtually used as hard-disk, with a random DVD-RAM (more than 100,000times) read-write access Rewritable Similar to DVD-RAM except than its technology features DVD-RW (About 1000times) a separated read-write access more like phonograph than a hard disk. 14-2 Samsung Electronics...
  • Page 129 Recording type Dolby Digital Linear PCM MPEG-1 Layer 2 AUDIO Transmission rate 448Kbps/stream 6.144Mbps/stream 224Kbps 1 Analog CH. Channel 5.1CH/stream 8CH/stream 1 Stream of Dolby Digital 2 Digital CH. (16Bit/44.1KHz) Sampling frequency 48KHz 16, 20, 24Bit/48, 96KHz 16Bit/44.1KHz Samsung Electronics 14-3...
  • Page 130 Data loss and enables Time efficient compression. Loss area Amount of data • MPEG-1 (Fixed compression : Max. 1/140) • Frame unit compression. • Compresses all data using the same ratio. Video-CD - Fast movements are jagged, and unnatural Time 14-4 Samsung Electronics...
  • Page 131 • Various Digital Recordings are possible as shown in the table to the right. Sampling Frequency Bit Rate 16bit 48KHz 20bit 24bit 16bit 96KHz 20bit 24bit • Dolby Digital compatible Audio Mode Channel Format Audio Coding Front Surround (Rear) Remark Mode Mono Stereo Mono Mono Surround Samsung Electronics 14-5...
  • Page 132 • Up to 9 angles of view may be stored, enabling the viewer to select a specific viewpoint at a given time. --> Especially, for the Music Video and Sports Title, this provides a more lively image of the scene. Note ; This function is disc-dependent, may not work on all DVDs. 14-6 Samsung Electronics...
  • Page 133 • Region 6 : China. • Region 0 : Worldwide (All Code) ˆ Œ ´ Œ Ø ´ Œ ˇ ˆ ¨ ´ ¨ • Adoptation of the Macrovision System disables the copying on to other media. Samsung Electronics 14-7...
  • Page 134 • Different Authoring Process are used accoring to the Software developers, and this may affect the DVD image quality. • Authoring Process bit stream Video/Audio MPEG-2 Master Encoding Disc Production bit stream Video/Audio Surround Audio AC-3/MPEG Audio Cutting Subtitle Master Encoding Master Multiplexing bit stream Subtitle Subtitle Master Encoding Authoring Process 14-8 Samsung Electronics...
  • Page 135 – A reference point to a portion of an audio Track (Cell) – There may be up to 99 indices within a single Track Audio Still Video Audio Still Video - Still pictures playback with audio. Loading Music(Track) Non-mute Non-mute time Samsung Electronics 14-9...

  • Page 136: Audio

    AG Happy birt DVD-VIDEO Data in DVD-AUDIO Disc. DVD-VIDEO Data in DVD-AUDIO Disc. Only DVD-Audio Player DVD-Audio DVD-Audio Data Visual Menu DVD-Video Data DVD-Video (DVD-Audio Additinal Data Visual Menu DVD-Audio Player, DVD-Video Player Only DVD-Video Player DVD-Audio Disc 14-10 Samsung Electronics...
  • Page 137 DVD-VIDEO Data in DVD-AUDIO Disc. DVD-VIDEO Data in DVD-AUDIO Disc. Only DVD-Audio Player DVD-Audio DVD-Audio Data Visual Menu DVD-Video Data DVD-Video (DVD-Audio Additional Data Visual Menu DVD-Audio Player, DVD-Video Player Only DVD-Video Player DVD-Audio Disc Samsung Electronics 14-11...
  • Page 138 –‘Simple Profile’ (SP) is the most basic; other profiles are SP pl us other tools. • Advanced Simple Profile (ASP) is emerging as the standard for consumer and CE applications. Basic Video Basic Video Compression Compression Toolset Toolset BVOP QPel Simple Profile MPEG-4 Advanced Simple Profile MPEG-4 14-12 Samsung Electronics...
  • Page 139 •DivX remains MPEG-4 compatible: –A generic MPEG-4 Simple Profile decoder can decode Open DivX and DivX 4.x content –A generic MPEG-4 Advanced Simple profile decoder can decode content encoded with Open DivX, DivX 4.x and DivX 5.x. Samsung Electronics 14-13...
  • Page 140 • All DivX Certified CE devices require DivX DRM. • Pre-Encryption • Dynamic Watermarking • Key Rotation • Central Business Rule(s) • Encryption Rotation • Server Key Management • Static Watermarking • Secure Channels • Tamper Resistance 14-14 Samsung Electronics...
  • Page 141 Reference Information DivX Certification helps CE makers get high-quality devices to market. Samsung Electronics 14-15...
