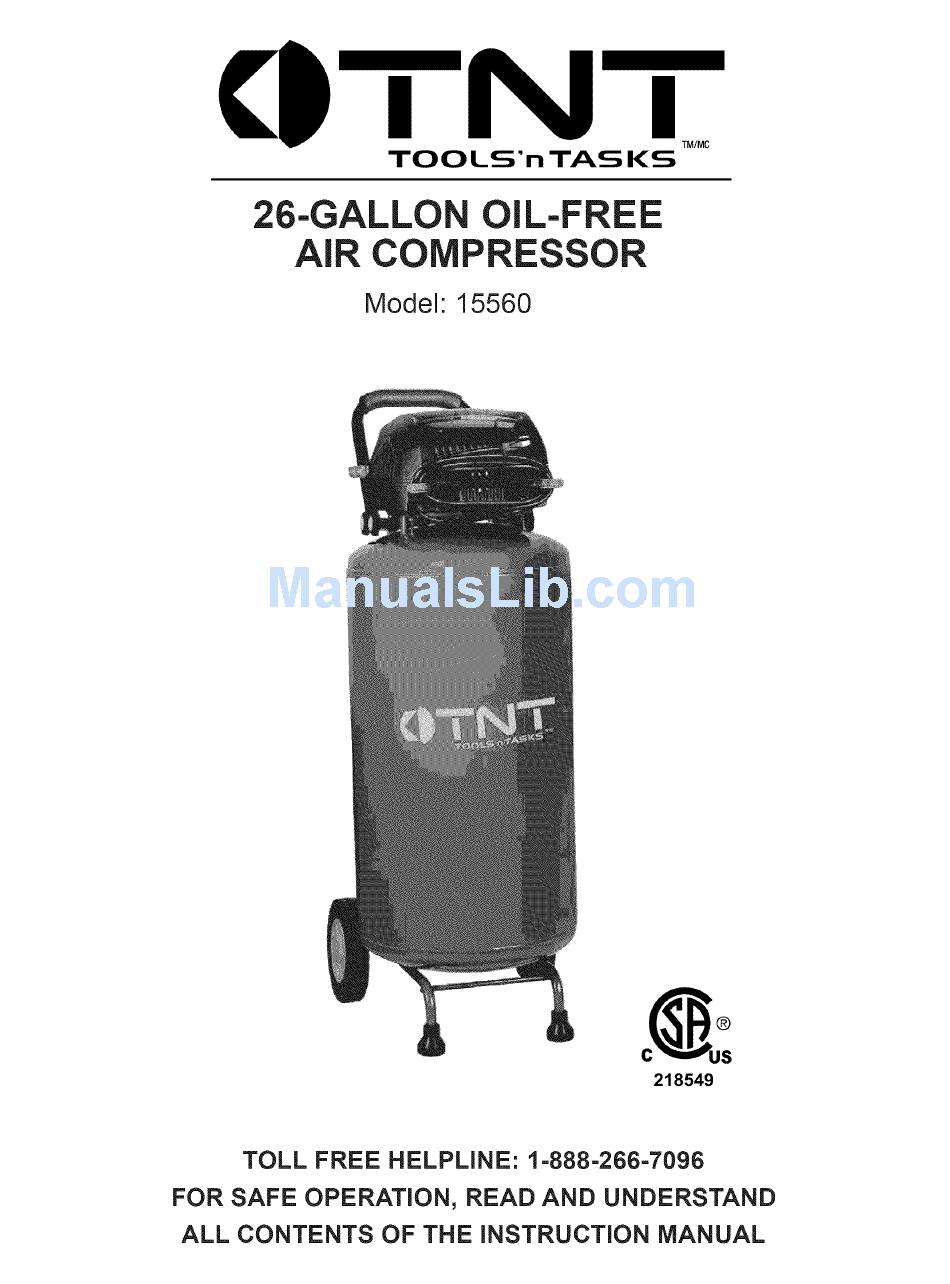

- Page 1 TM/MC TOOLS'n TASKS 26-.GALLON OIL-FREE AiR COMPRESSOR Model: 15560 218549 TOLL FREE HELPLINE: 1=888=266-7096 FOR SAFE OPERATION, READ AND UNDERSTAND ALL CONTENTS OF THE iNSTRUCTiON MANUAL...
- Page 2 SAVE THiS MANUAL Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product's serial number the back of the manual near the assembly diagram (or month and year of purchase product has no number).
- Page 3 GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool. Work area safety a.
- Page 4 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times.
- Page 5 CAUTION: Your Warranty is voided if you drop the Air Compressor. Always transport the Air Compressor using its Handle and Wheels. DANGER! This Air Compressor is NOT equipped and should not be used "as-is" to supply breathing air. For any application of air for human consumption, must fit the Air Compressor with suitable...
- Page 6 Never stand on the Air Compressor. Serious injury could result if the Compressor is tipped. Never leave the Air Compressor unattended when it is plugged in and running. Turn off the Compressor, and unplug the unit before leaving. Do not allow children and other unauthorized people to handle or play with the Air Compressor.
- Page 7 GROUNDING iNSTRUCTiONS Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the product is properly grounded. Repair or replace a damaged or worn cord immediately. This product is for use on a nominal t20 V circuit and has a grounding plug similar to the plug illustrated in figure.Only connect the product to an outlet having the same configuration...
- Page 8 SPECiFiCATiONS 120 V~ / 60 Hz / 13A 4.0 HP Motor (Peak) / 1500 Watts (Running) / 13000 Motor RPM Motor Thermal Protection Shut-Off: 275 Degrees Fahrenheit Electrical Requirements Thermal Protection Reset: Present (18 Amp Circuit Breaker Used) Power Cord: 16 AWG x 3C / 6' Long Power Plug: 3-Prong / Grounded Compressor Type Oilless for Maintenance Free Operation...
- Page 9 To extend the life of your tools and equipment, it is recommended that you install an oiler and water filter in-line with the Air Outlet Valve (8) of the Air Compressor, (See Figure REGULATOR FIGURE A COMPRESSOR Tool _! _ /_;...
- Page 10 GENERAL OPERATING INSTRUCTIONS Pull on the Safety Valve (18) to make sure it moves freely. (See Figure B, previous page) Check to make sure the Air Tank's Drain Valve (30), located at the bottom of the Air Tank (27), is fully closed. (See Figure C) AIR TANK (27) (30)
- Page 11 Switch to its "OFF" position. Wait until the Motor cools. Press the Overload Protector (3) button. Then restart the Air Compressor. To stop the Air Compressor, turn the Power Switch (2) to its "OFF" position. Then unplug the Compressor from its electrical outlet.
- Page 12 TROUBLESHOOTING Problem Probable Solutions Possible Causes Air Compressor will 1. No power at outlet. Check power at outlet. not start, 2. Cord not connected. Check that cord is plugged in. 3. Air Tank maximum air pressure Wait until Air Tank air pressure falls of 155 PSI has been reached.
- Page 13 PARTS LiST Part Description Q'ty Part Description Q'ty 3220404 Screw 3290283-1 Output Air Pressure Gauge 3630283-1 Power Switch 3290183-1 Gauge Tank Air Pressure 3630183-1 Overload Protector 3411535 Wire clip 3410483 Tool Box Cover 3330283 Handle 3410183-2 Upper Cover 3110283-1 Pressure Valve 3110551 Motor Assy 3321175...
- Page 14 ASSEMBLY DIAGRAM 34 19 20 1723 Page 14...
- Page 15 WARRANTY For TWO YEARS from the date of purchase within USA SEARS will, at its option, repair or replace for the original purchaser, free or charge, any part or parts found to be defective in material or workmanship. This warranty does not cover: 1.
- Page 16 TM/MC TOOLS'n TASKS 26-.GALLON OIL-FREE AiR COMPRESSOR Model: 15560 218549 TOLL FREE HELPLINE: 1=888=266-7096 FOR SAFE OPERATION, READ AND UNDERSTAND ALL CONTENTS OF THE iNSTRUCTiON MANUAL...
- Page 17 SAVE THiS MANUAL Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product's serial number the back of the manual near the assembly diagram (or month and year of purchase product has no number).
- Page 18 GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool. Work area safety a.
- Page 19 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times.
- Page 20 CAUTION: Your Warranty is voided if you drop the Air Compressor. Always transport the Air Compressor using its Handle and Wheels. DANGER! This Air Compressor is NOT equipped and should not be used "as-is" to supply breathing air. For any application of air for human consumption, must fit the Air Compressor with suitable...
- Page 21 Never stand on the Air Compressor. Serious injury could result if the Compressor is tipped. Never leave the Air Compressor unattended when it is plugged in and running. Turn off the Compressor, and unplug the unit before leaving. Do not allow children and other unauthorized people to handle or play with the Air Compressor.
- Page 22 GROUNDING iNSTRUCTiONS Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the product is properly grounded. Repair or replace a damaged or worn cord immediately. This product is for use on a nominal t20 V circuit and has a grounding plug similar to the plug illustrated in figure.Only connect the product to an outlet having the same configuration...
- Page 23 SPECiFiCATiONS 120 V~ / 60 Hz / 13A 4.0 HP Motor (Peak) / 1500 Watts (Running) / 13000 Motor RPM Motor Thermal Protection Shut-Off: 275 Degrees Fahrenheit Electrical Requirements Thermal Protection Reset: Present (18 Amp Circuit Breaker Used) Power Cord: 16 AWG x 3C / 6' Long Power Plug: 3-Prong / Grounded Compressor Type Oilless for Maintenance Free Operation...
- Page 24 To extend the life of your tools and equipment, it is recommended that you install an oiler and water filter in-line with the Air Outlet Valve (8) of the Air Compressor, (See Figure REGULATOR FIGURE A COMPRESSOR Tool _! _ /_;...
- Page 25 GENERAL OPERATING INSTRUCTIONS Pull on the Safety Valve (18) to make sure it moves freely. (See Figure B, previous page) Check to make sure the Air Tank's Drain Valve (30), located at the bottom of the Air Tank (27), is fully closed. (See Figure C) AIR TANK (27) (30)
- Page 26 Switch to its "OFF" position. Wait until the Motor cools. Press the Overload Protector (3) button. Then restart the Air Compressor. To stop the Air Compressor, turn the Power Switch (2) to its "OFF" position. Then unplug the Compressor from its electrical outlet.
- Page 27 TROUBLESHOOTING Problem Probable Solutions Possible Causes Air Compressor will 1. No power at outlet. Check power at outlet. not start, 2. Cord not connected. Check that cord is plugged in. 3. Air Tank maximum air pressure Wait until Air Tank air pressure falls of 155 PSI has been reached.
- Page 28 PARTS LiST Part Description Q'ty Part Description Q'ty 3220404 Screw 3290283-1 Output Air Pressure Gauge 3630283-1 Power Switch 3290183-1 Gauge Tank Air Pressure 3630183-1 Overload Protector 3411535 Wire clip 3410483 Tool Box Cover 3330283 Handle 3410183-2 Upper Cover 3110283-1 Pressure Valve 3110551 Motor Assy 3321175...
- Page 29 ASSEMBLY DIAGRAM 34 19 20 1723 Page 14...
- Page 30 WARRANTY For TWO YEARS from the date of purchase within USA SEARS will, at its option, repair or replace for the original purchaser, free or charge, any part or parts found to be defective in material or workmanship. This warranty does not cover: 1.
