Summary of Contents for Datatronics MiniCubis DA5600-6030-CD
- Page 1 Datatronics Technology, Inc. MiniCubis User’s Guide Models:...
-
Page 3: Table Of Contents
Table of Contents 1. Getting Started 1.1 What Is In The Box 1.2 System Requirement 2. Hardware Installation 2.1 Front View 2.2 Rear View 2.3 Set Up 3. Software Installation 3.1 Installing Driver 3.2 Installing DiDo 3.3 Installing Nero Express 4. - Page 4 7. FAQ 8. Specifications 9. Reference 9.1 Handling discs 9.2 Disc to avoid 9.3 Moving MiniCubis 9.4 Warranty...
-
Page 5: Getting Started

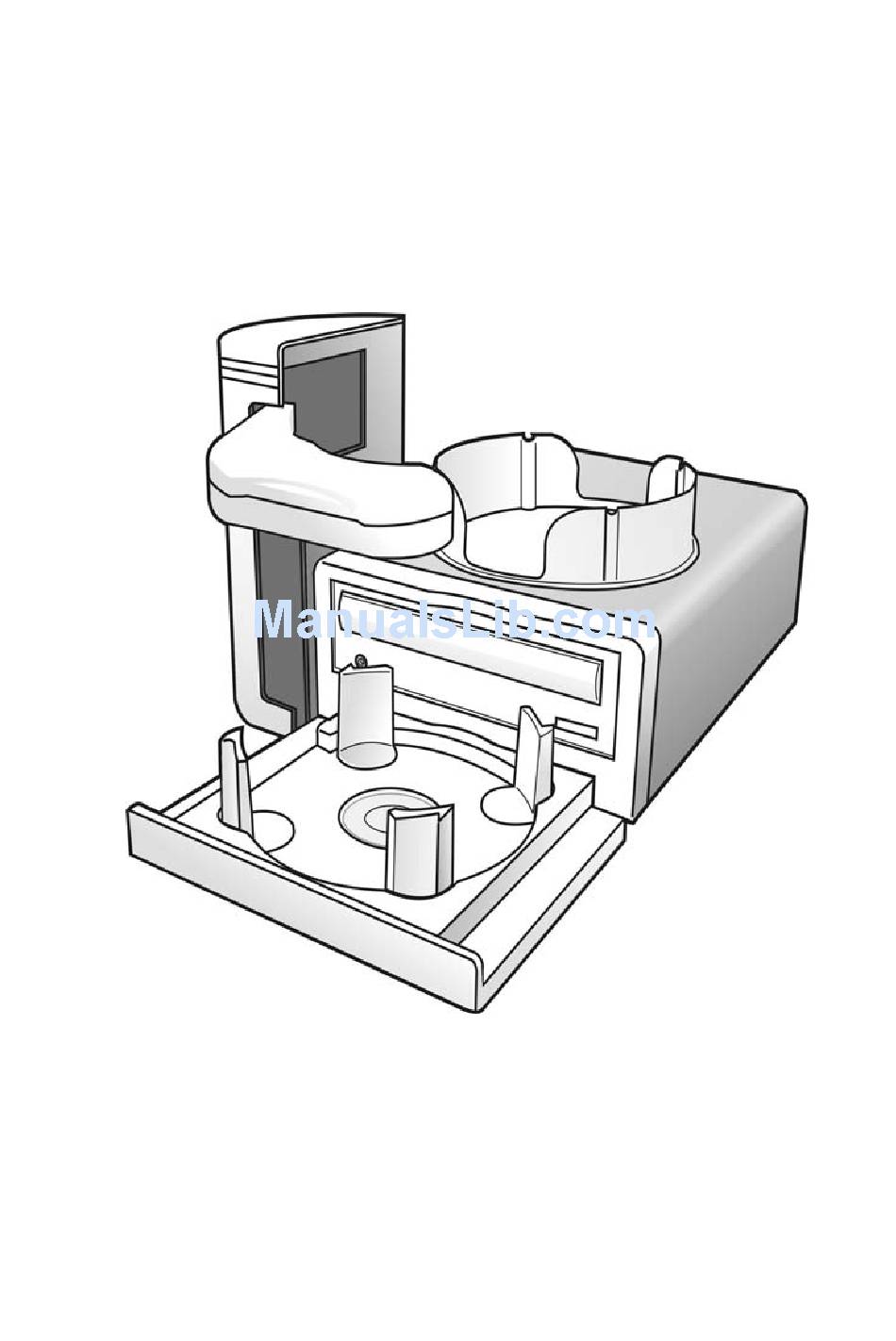

1 Getting Started MiniCubis is the world’s smallest automated desktop system that combines CD/DVD recorder and auto-loader for an automated burning process. Its patented tray enables users to duplicate 12cm, 8cm and business-card disc upon their needs with one easy turn on the disc holders. 1.1 What’s In The Box Please ensure that carton is not damaged and the following items are included. -
Page 6: Hardware Installation
At least 800x600 display with at least 16 Bit colors CD/DVD drive for installation USB 2.0 interface 2 Hardware installation 2.1 Front View Robotic Arm Status Indicator Green: Ready Yellow: Burning Red: Error Output Bin CD/DVD Burner Input Bin 2.2 Rear View USB Jack AC IN –... -
Page 7: Set Up
2.3 Set Up Please follow the procedures to set up: Step 1: Install the four pillars on the Input bin Note: There are two different sets of pillars, large and small connectors. Place the similar pillars diagonally across from each other. Step 2: Attach the Input bin with MiniCubis. - Page 8 Step 3: To use different discs just rotate the four pillars as shown in the diagram below, then you can easily use 12cm, 8cm and card size medias for duplication. 8 cm 12 cm Card Size Step 4: Connect your USB cable A-male end to MiniCubis USB slot and B-male end to your PC USB slot.
-
Page 9: Software Installation
3 Software Installation In order to use MiniCubis, you will need to install Driver, DiDo, and Nero Express. Please follow the instructions below to install the software included in the installation disc. 3.1 Installing Driver Step 1: Insert the installation CD into your CD/DVD drive. Step 2: Connect MiniCubis to your PC, then turn it on. -
Page 10: Using Dido
4 Using DiDo DiDo* is a simple loading program written specifically for MiniCubis to work with Nero Express. It is Windows 2000 and Windows XP compatible. 4.1 Setting The following is a step-by-step description of DiDo’s settings: 4.1.1 Double click the DiDo icon on your windows desktop, or you can also go to Start >... - Page 11 4.1.3 Click on the “Software” drop-down button to choose the version of your Nero Express. 4.1.4 Select MiniCubis from the list. If Windows cannot recognize MiniCubis, please re-install MiniCubis driver again.
- Page 12 4.1.5 Now click on to “Recorder” drop down, and then select the recorder that is installed in your MiniCubis. 4.1.6 Click on the “OK” button to finish the setting.
-
Page 13: Options
4.1.7 Now you can run the Nero Express to start a burning job with MiniCubis. Note: Please set the language of Nero Express in English. Run Nero Express, select “More”>”Configure”>, then choose language preference. Note: To ensure the maxium performance of DiDo, we recommend you do not run any other application while burning process is in progress. -
Page 14: Maintenance
4.2.2 Clear Log: This will erase all system log files. Only make such selection if you are sure the logs are no longer needed for troubleshooting. 4.2.3 Release Disc: If robotic arm fails to release the disc during duplication, please click “Release Disc” to solve the problem. -
Page 15: Uninstalling Dido
6. Uninstalling DiDo Step 1: Go to Start > Settings > Control Panel > Add or Remove Programs. Step 2: Select DiDo in the “Add or Remove Programs” window and click “remove”. Step 3: In some cases, you will find that when removing software, there will be one or two files that the operating system will ask if you want them removed since they may be shared by other programs. - Page 16 Please collect the following files and email it along with your questions or commands to the email address listed below. DiDo: “Log_MMDDYYYY.txt” - this file can be found in C:\Program Files\DiDo Nero: “NeroHistory.txt” - this file can be found in C:\Program Files\Ahead\Nero Tech Support: support-cdr@datatronics.com.tw...
-
Page 17: Specifications
8. Specifications 25 discs (disc quantity may vary due to Input Hopper Capacity disc thickness) 25 discs (disc quantity may vary due to Output Hopper Capacity disc thickness) Drive Type CD/DVD Max Write Speed CD Max 52x/DVD Max 16x Write Method PC connected Media Type 12cm / 8cm / Business card... -
Page 18: Handling Discs
9. Reference 9.1 Handling discs When holding discs of any type, make sure not to leave fingerprints, dirt or scratches on the disc surface. Hold the disc by its edge or by the center hole and edge. Damaged or dirty discs can affect playback and burning performance. -
Page 19: Warranty
9.4 Warranty Datatronics Technology, Inc. offers a one-year standard warranty program for the MiniCubis. For warranty service please send the unit in its original shipping carton to the store of purchase. To insure a proper processing, please contact the store purchased from for their RMA policy prior...
