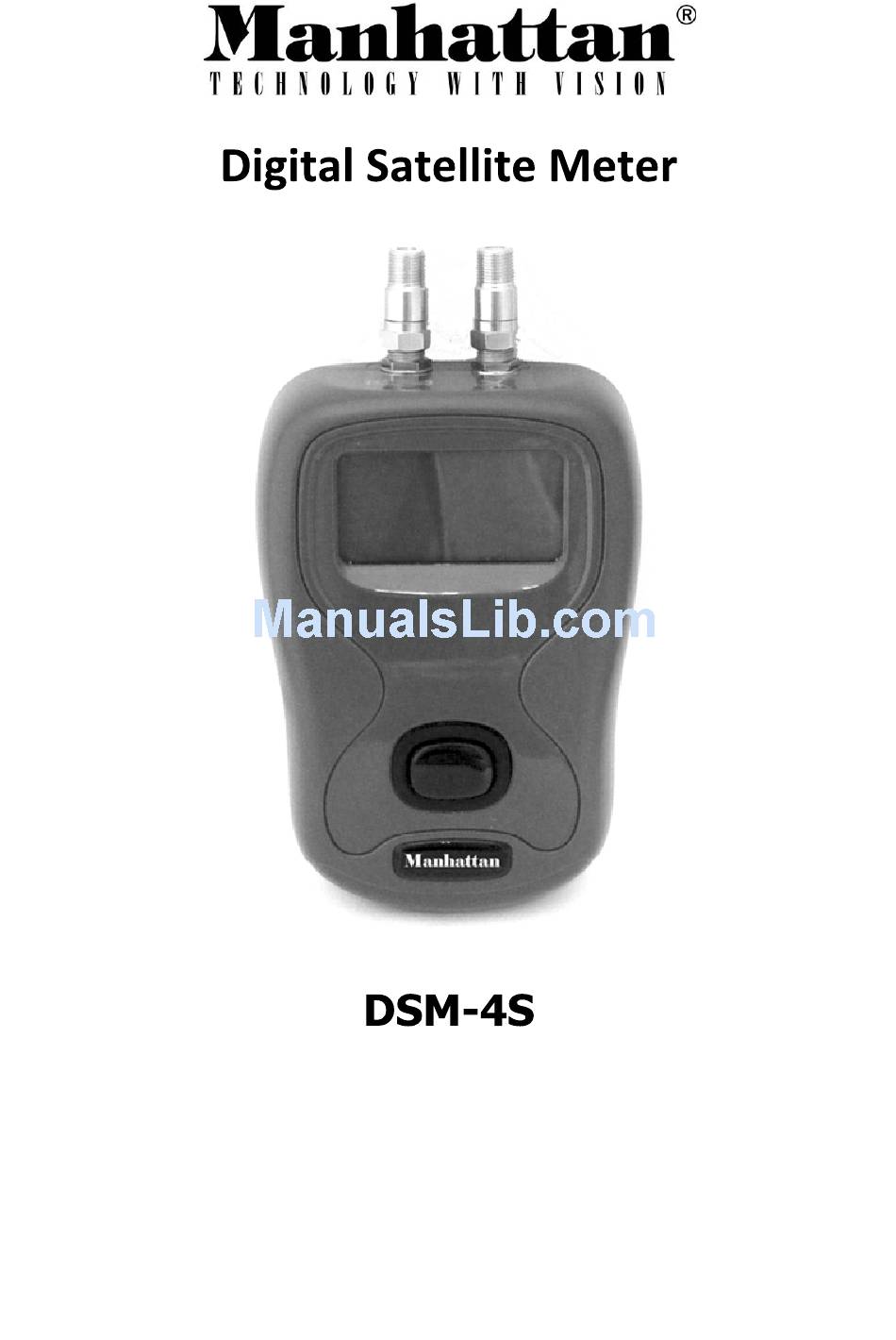

- Page 1 Instruction Manual (English) www.eurosat.com Issue 1...
-
Page 2: Table Of Contents
Thank you for your purchase of the DSM-4S, should you require further assistance with its use it is suggested that you initially contact your supplier with enquiries as many queries can be diagnosed via email or by phone. CONTENTS Overview / Please note / Speceifications... -
Page 3: Your Dsm-4S / Accessories
128 x 64 Pixel LCD USB connector Function Button Manhattan ACCESSORIES Everything you need is supplied with your DSM-4S including a USB cable for updates and a F to F lead for connecting to your LNB. USB Lead F - F Cable Port Savers... -
Page 4: Making Connections
CONNECTIONS Your DSM-4S is ready to use straight out of the box. How to connect your meter is illustrated below. Note: Always make all of your connections prior to switching your DSM-4S on. Manhattan LNB IN For the easiest method of connection disconnect the cable from the LNB on your dish and connect this to the Set Top Box (receiver symbol) connector on your DSM-S4. -
Page 5: Finding Satellites
FINDING SATELLITES Now that you have connected your DSM-S4 you are ready to find some satellites. Your DSM-S4 will be pre-loaded with a selection of satellites. These selections can be changed by downloading different region packs from the Eurosat web site. In the following examples we will be looking at the European pack of satellites which comprises of the following... -
Page 6: Improving Your Signal / Remember
Following the procedures above will greatly improve the performance of your dish, and over time your familiarity with installing your own dish will enable you to complete this procedure quickly. The DSM-4S is a satellite finding device it is not designed to be permanently left REMEMBER in line between your LNB and set top box. -
Page 7: Software Updates
SOFTWARE UPDATES From time to time it may be necessary to update the satellite selections on your DSM-4S satellite meter or you may wish to download an alternative satellite pack from the Manhattan web site. Before proceeding to download new or updated settings please insure that the USB drivers are correctly installed, this is usually an automatic process (as described below) but the drivers can also be manually downloaded and installed if required. - Page 8 Check to see that your DSM-4S is now in program mode as illustrated on the right and you are then ready to update you DSM-4S with your new satellite selections downloaded from the Manhattan web site.
-
Page 9: Downloads
DOWNLOADS To update or load your selected satellite file to your DSM-4S meter connect your meter via USB to your PC. The USB port is located on the lower right side of the casing. Program mode On connecting the DSM-4S to your PC the LCD will flash a few times and settle into program mode after a few seconds (as shown in the diagram on the right). - Page 10 NOTES Page 10...
- Page 11 NOTES Page 11...
-
Page 12: Limited Warranty
LIMITED WARRANTY Eurosat will, at our option, repair or replace any Manhattan DSM-4S Digital Satellite Meter found to be defective in manufacture within the warranty period (1 year). The warranty period is determined by the date of DSM-4S purchase. Keep your receipt as proof of purchase.
