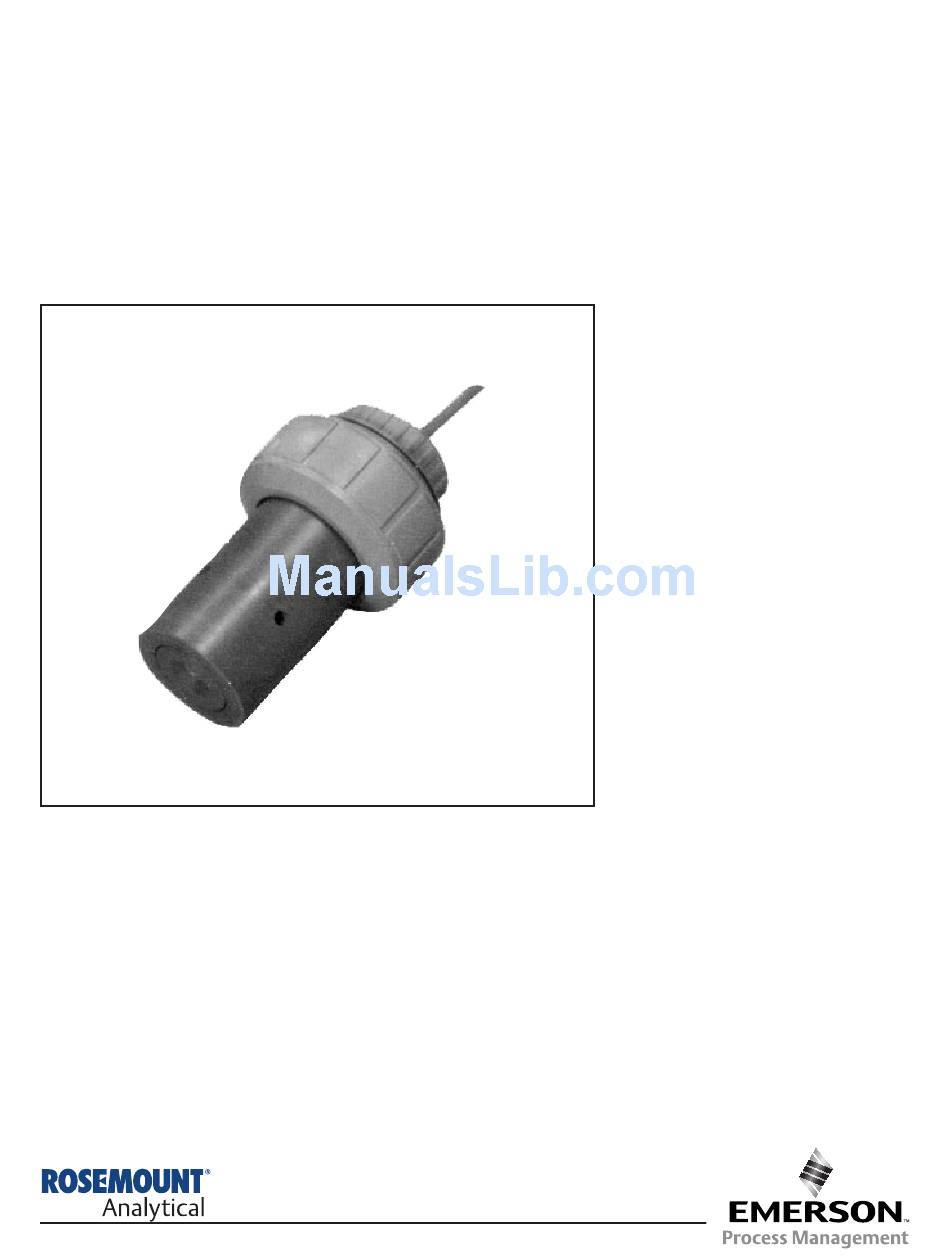

  • Page 1 Instruction Manual PN 51-430/rev.A Model 430 DO May 1996 Dissolved Oxygen Sensor...
  • Page 2 Date Notes 5/96 This is the initial release of the product manual. The manual has been refor- matted to reflect the Emerson documentation style and updated to reflect any changes in the product offering. Emerson Process Management Liquid Division 2400 Barranca Parkway...

  • Page 3: Table Of Contents

    MODEL 430 DO TABLE OF CONTENTS MODEL 430 DISSOLVED OXYGEN TABLE OF CONTENTS Section Title Page DESCRIPTION AND SPECIFICATIONS..............Features and Applications ..................Operation ........................ Available Models...................... Specifications......................Ordering Information ....................INSTALLATION ....................... General ........................Unpacking and Inspection ..................Mechanical Installation ................... Electrical Installation ....................
  • Page 4 MODEL 430 DO TABLE OF CONTENTS TABLE OF CONTENTS CONTINUED LIST OF FIGURES Number Title Page Flow Through Senson Assemblies ................. Optional Mounting Bracket ..................Code 01 and 02 Flow Through Installation ............Sensor Dimensions ....................Model 430 (Codes 01 and 02) Dissolved Oxygen Sensor ........Model 430 Sensor Assembly ..................

  • Page 5: Description And Specifications

    MODEL 430 DO SECTION 1.0 DESCRIPTION AND SPECIFICATIONS SECTION 1.0 GENERAL DESCRIPTION AND SPECIFICATIONS • LARGE ELECTROLYTE RESERVOIR allows up to twelve months and often longer between refills. • OPTIONAL MOUNTING BRACKET allows easy removal of the sensor from an aeration basin without the use of tools.

  • Page 6: Available Models

    MODEL 430 DO SECTION 1.0 DESCRIPTION AND SPECIFICATIONS 1.4 SPECIFICATIONS 1.3 AVAILABLE MODELS Process Connection: The Model 430-01 and -02 Sensor is a flow through 430-00/01 1-1/2 inch socket fitting assembly. The sensor is supplied in a 1-1/2 inch PVC Wetted Materials: HOUSING - PVC tee for installation into a process line.

  • Page 7: Optional Mounting Bracket

    MODEL 430 DO SECTION 1.0 DESCRIPTION AND SPECIFICATIONS MILLIMETER INCH DWG. NO. REV. 40043018 FIGURE 1-2 Optional Mounting Bracket...

  • Page 8: Ordering Information

    MODEL 430 DO SECTION 1.0 DESCRIPTION AND SPECIFICATIONS 1.5 ORDERING INFORMATION. The Model 430 Dissolved Oxygen Sensor: Includes PVC body with integral, oxygen-permeable membrane of Teflon . Temperature and pressure compensators included. Compatible with Model1181DO. MODEL 430 DO DISSOLVED OXYGEN SENSOR CODE MOUNTING HARDWARE 1-1/2”...

  • Page 9: Installation

    MODEL 430 DO SECTION 2.0 INSTALLATION SECTION 2.0 INSTALLATION 2.1 GENERAL. This section provides instructions for 2.3.1 Codes 01 and 02 (see Figure 2-1). These config- the Model 430 Dissolved Oxygen Sensor. urations are for flow through measurements. Install the tee using 1-1/2 inch PVC.
  • Page 10 MODEL 430 DO SECTION 2.0 INSTALLATION MILLIMETER INCH DWG. NO. REV. 40043001 FIGURE 2-1. Codes and 01 and 02 Flow Through Installation...

  • Page 11: Sensor Dimensions

    MODEL 430 DO SECTION 2.0 INSTALLATION MILLIMETER INCH DWG. NO. REV. 40043002 FIGURE 2-2. Code 03 Sensor Dimensions...

  • Page 13: Maintenance

    MODEL 430 DO SECTION 3.0 MAINTENANCE SECTION 3.0 MAINTENANCE 3.1 GENERAL. Sensor maintenance consists of keep- Fill the new reservoir housing assembly with elec- ing the sensor clean, recharging the sensor and trolyte to the hole in the inner wall of the reservoir replacing the membrane.

  • Page 14: Troubleshooting

    MODEL 430 DO SECTION 4.0 TROUBLESHOOTING SECTION 4.0 TROUBLESHOOTING 4.1 GENERAL. This section contains troubleshooting Readings offscale and inability to calibrate data for the Model 430 Sensor Assembly. are usually caused by a damaged mem- brane. If this is the case, replace the mem- TROUBLESHOOTING MODEL brane.

  • Page 15: Parts List

    MODEL 430 DO SECTION 5.0 PARTS LISTS SECTION 5.0 PARTS LISTS 5.1 GENERAL. This section contains the replacement parts lists and illustrations for the Model 430 Sensor Assembly. Parts are keyed with an item number. Use the illustration to locate the item number for the part in question. Then refer to the accompanying parts list for the part number, description and quantity needed.

  • Page 16: Model 430 Sensor Assembly

    MODEL 430 DO SECTION 5.0 PARTS LISTS DWG. NO. REV. 40043016 FIGURE 5-2. Model 430 Sensor Assembly Part Number Description Qty. 3002384 Base 9550116 O-ring (2-018)* 2002572 Reservoir housing assembly with membrane* 3002385 Retainer ,reservoir 9550133 O-ring (2-004) 3002382 Screw, vent 2002473 Recharge Kit...

  • Page 17: Model 430 (Code 03) Dissolved Oxygen Sensor

    MODEL 430 DO SECTION 5.0 PARTS LISTS DWG. NO. REV. 40043015 FIGURE 5-3. Model 430 (Code 03) Dissolved Oxygen Sensor Figure & Part Item No. Number Description Qty. SENSOR ASSY, Model 430 Dissolved Oxygen, submersion (Code 13) 9330020 Union, 3/4” NPT 3001617 Gasket 1001021...

  • Page 18: Model 430 (Code 04) Dissolved Oxygen Sensor

    MODEL 430 DO SECTION 5.0 PARTS LISTS DWG. NO. REV. 40043017 FIGURE 5-4. Model 430 (Code 04) Dissolved Oxygen Sensor Figure & Part Item No. Number Description Qty. SENSOR ASSY, Model 430 Dissolved Oxygen, with agitator (Code 04) 9380053 Pump, submersible Attaching parts for item 2: Screw, SPH SS (#8-32x3/8) Screw, SPH SS (#8-32x3/8) 3001150...

  • Page 19: Return Of Material

    Model 430 DO SECTION 6.0 RETURN OF MATERIAL SECTION 6.0 RETURN OF MATERIAL 6.1 GENERAL. To expedite the repair and return of Send the package prepaid to: instruments, proper communication between the cus- Rosemount Analytical Inc. tomer and the factory is important. A return material 2400 Barranca Parkway authorization (RMA) number is required.
  • Page 20 A Worldwide Network of Sales and Service Emerson Process Management’s field sales offices are your source for more information on the fill line of Rosemount Analytical products. Field sales personnel will work closely with you to supply technical data and application information.
  • Page 21 DUPLICATE SHIPMENT REFERENCE ROSEMOUNT ANALYTICAL SALES ORDER NO. _________ RETURN FOR CREDIT RETURN AUTHORIZED BY: ______________________________________ WARRANTY DEFECT____________________________________________________________________________________ _____________________________________________________________________________________________________ 24-6047 Emerson Process Management Rosemount Analytical Inc. 2400 Barranca Parkway Irvine, CA 92606 USA Tel: (949) 757-8500 Fax: (949) 474-7250 http://www.RAuniloc.com...
  • Page 23 NESS FOR PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS OR SERVICES. RETURN OF MATERIAL Material returned for repair, whether in or out of warranty, should be shipped prepaid to: Emerson Process Management Liquid Division 2400 Barranca Parkway...
  • Page 24 ON-LINE ORDERING NOW AVAILABLE ON OUR WEB SITE right now. http://www.raihome.com Specifications subject to change without notice. Credit Cards for U.S. Purchases Only. Emerson Process Management Liquid Division 2400 Barranca Parkway Irvine, CA 92606 USA Tel: (949) 757-8500 Fax: (949) 474-7250 http://www.raihome.com...
