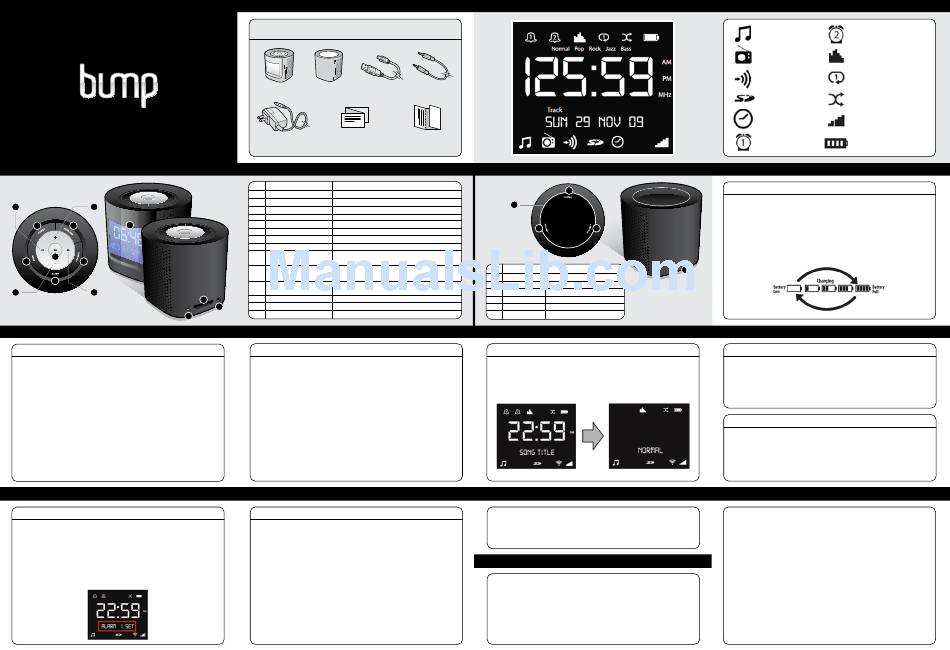

Aluratek Bump AWS01F Quick Start Manual

Digital MP3 / FM Radio Boombox with
Remote Wireless Speaker
Quick Start Guide
by Aluratek
AWS01F
aluratek.com
qsg Q10179 Copyright © 2010 Aluratek, Inc. All Rights Reserved.

Product Detail

Radio Boombox
9 7
14
1 2
6
5 3
4
8 10
11

Step 2: Connect the speaker to an audio source:

From a SD card:
1. Press the power button on the speaker until the blue color LED indicator is on
2. Insert the SD card into SD card slot
3. Press the "Mode" button to switch to the SD mode
4. Press the "Play" button to play/pause music
5. You can adjust the volume by pressing the volume buttons on top of the speakers
6. Press the "Right" or "Left" buttons to play the next or previous song
From a MP3 player:
1. Press the power button on the speaker until the blue color LED indicator is on.
2. Connect the music player Line out/headset out to the Line In port of the
speaker using included audio cable
3. You can now stream music from the MP3 player.
4. You can adjust the volume by pressing the volume buttons on top of the speaker
5. To turn of the speaker, press and release the "Power" button, LED indicator
will fade off

Step 6: How to set an alarm

1. In clock mode, press the "left" or "right" button to switch between Alarm 1,
Alarm 2 and current time
2. In Alarm 1 or Alarm 2, press and hold the "Mode" button until the "Hour" is blinking.
3. Press "left", "right" buttons to select hour or minute
4. Press "up", "down" buttons to selected the desired value
5. Press the "Play" button to confirm
6. In SD card music mode, select the desired audio file and start playing. During
playback, press and hold the "Alarm" button until you see the below screen.
In Radio mode, select the desired FM frequency, then press and hold the
"Alarm" button until you see the below screen.

Package Contents

Your order has been carefully packaged and inspected. The following should be included in your package.
Please inspect the contents of the package to ensure that you have received all items and that nothing has
been damaged. If you discover a problem, please contact us immediately for assistance.
Portable MP3 / FM USB 2.0 Cable (x2)
Wireless Speaker
Radio Boombox
Power Adapter Quick Start Guide
ITEM DESCRIPTION
1
Power To turn on/off speaker
2 Wireless button To turn on / off wireless connection
3
Channel button To change wireless channel
4 Alarm button To turn on/off alarm, To set alarm
5
Mode button To change operation mode: SD / Line in / Radio / Clock
6 Play button Press once to play/pause audio playback
7
Volume + To increase the volume
8
Volume - To lower the volume
9
Left button To move cursor left, press once for previous song,
press and hold to fast rewind
10
Right button To move cursor right, press once for next song, press
and hold to fast forward
11 USB port Connect to PC for data transfer, to power speaker using
USB cable
12 SD card slot Insert SD card for music playback
12
13
13 Audio Line-in port Line in for other audio source
14 Display Display
Step 2: Continued
To Listen to the Radio:
1. Press the power button on the speaker until the blue color LED indicator is on
2. Press the "Mode" button to switch to the Radio mode
3. Connect the provided Audio Line in cable into the Audio Line in port as an antenna
4. Press the "right" and "left" button to search for stations manually
5. Press and hold the "right" or "left" buttons to search for stations automatically.
Stations will be saved as preset stations automatically. It can store up to 20
preset stations
6. Press the "Play" button to access the Preset stations

Step 7: How to connect to the wireless speaker

1. Press the "Wireless" button on the Radio Boombox to enable wireless
2. Press the "Power" button of the wireless speaker
3. The two speakers will connect automatically
4. You can adjust the volume by pressing the volume buttons on top of the
speakers
Display Icon Detail
Auxillary Cable (x2)
Warranty / Registration
Card
Wireless Speaker
1
4
2
ITEM DESCRIPTION
1
Power To turn on / off speaker
2
Volume - To lower the volume
3
Volume + To increase the volume
4
LED Indicator Status indicator
5
USB port Power / charge speaker using USB cable
6
Audio port Line in for other audio source

Step 3: EQ Settings

While in music playback mode, press and hold the "Mode" button until the
equalizer icon appears.
Press the "left" or "right" buttons to change the EQ setting and press "play" to
confirm.

Technical Support

If you need further assistance, please contact the Aluratek support department for
troubleshooting prior to returning this device.
E-mail: support@aluratek.com
Web: www.aluratek.com/support
Radio and TV Interference Statement
WARNING!!! This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by whatever measures may be required to correct the interference.
Audio Player mode
FM Radio mode
Audio Line In mode
SD card indicator
Clock mode
Alarm 1

Product Operation

Step 1: Charging the Speaker

The Built-in Li-Ion Polymer battery is not fully charged and must be fully charged
before first use. It is recommended to charge the battery for a minimum of 3 hrs.
You can charge either thru the USB cable or the power adapter.
3
1. Connect the mini-B end of the provided USB cable or power adapter to the
USB port on AWS01F
2. Connect the type-A end of the same cable to a computer or the power adapter
to the wall outlet
3. The LED indicator will shown Red during charging and will go off when the
battery is fully charged
6
5

Step 4: Playback option

While in music playback mode, press and hold the "Mode" button until the
equalize icon appears. Then press and hold the "Mode" button again until you see
the shuffle icon.
Press the "Play" button to select shuffle play mode or Press and hole the "Mode"
button until you see the loop icon, then press the "Play" button to confirm.

Step 5: How to set the clock

1. Press the power button on the speaker until the blue color LED indicator is on
2. Press the "Mode" button to switch to the Clock mode
3. Press and hold the "Mode" button to enter clock setting
4. Press "left", "right" buttons to select among hour, min, day, month, and year
5. Press "up", "down" buttons to selected the desired value
6. Press the "Play" button to confirm

Warranty

Aluratek warrants this product against defect in material or workmanship for 1 Year
from the date of purchase.
Local (Tustin, CA): 714-586-8730 This warranty becomes invalid if the factory-supplied serial number or "warranty void" sticker
has been removed or altered on the product.
Toll free: 1-866-580-1978
This warranty does not cover:
A) Cosmetic damage or damage due to acts of God
B) Accident, misuse, abuse, negligence or modification of any part of the product.
C) Damage due to improper operation or maintenance, connection to improper equipment,
or attempted repair by anyone other than Aluratek.
D) Products sold AS IS or WITH FAULTS.
IN NO EVENT SHALL ALURATEK'S LIABILITY EXCEED THE PRICE PAID FOR THE
PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THE PRODUCT, IT'S ACCOMPANYING
SOFTWARE, OR IT'S DOCUMENTATION.
Aluratek makes no warranty or representation, expressed, implied, or statutory, with respect
to it's products, contents or use of this documentation and all accompanying software, and
specifically disclaims it's quality, performance, merchantability, or fitness for any particular
purpose. Aluratek reserves the right to revise or update it's product, software or documentation
without obligation to notify any individual or entity.
Alarm 2
Equalizer Settings
Audio Play mode - Loop
Audio Play mode - Shuffle
Volume Level
Battery Indicator
