Please refrain from using excessive force to open the tray as
this may damage your drive.
The Drive's Rear Panel
This section provides you with information on the connectors and
jumpers found on your drive's back panel as shown in Figure 1-5.
Digital Output Connector
The Digital Output Connector allows your CD-ROM drive to provide
digital output for recording to a digital audio tape (DAT) or
professional audio recording system.

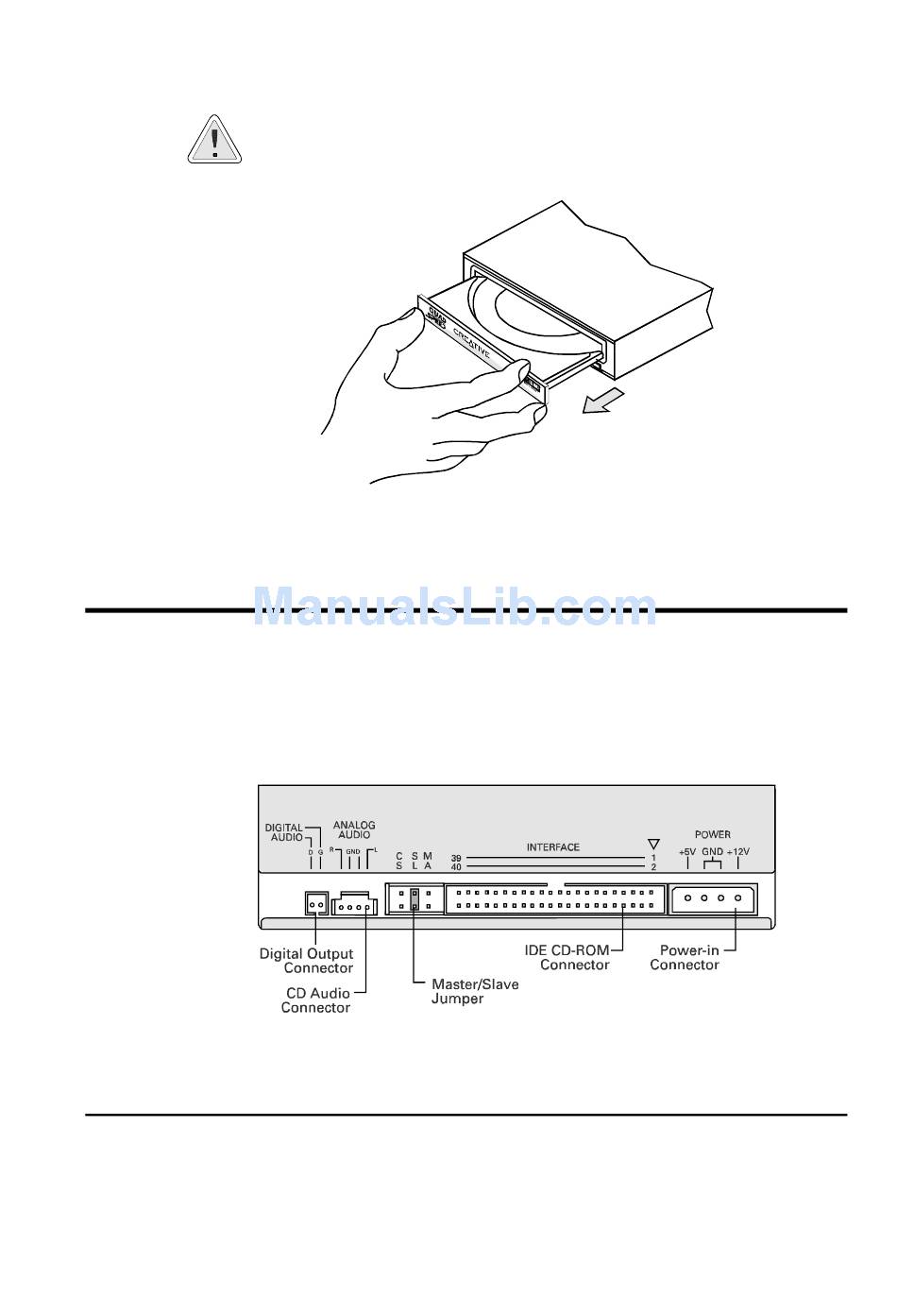

Figure 1-4: Pulling out the tray.
Figure 1-5: The rear panel of your CD-ROM drive.
Knowing Your CD-ROM Drive 1-5
