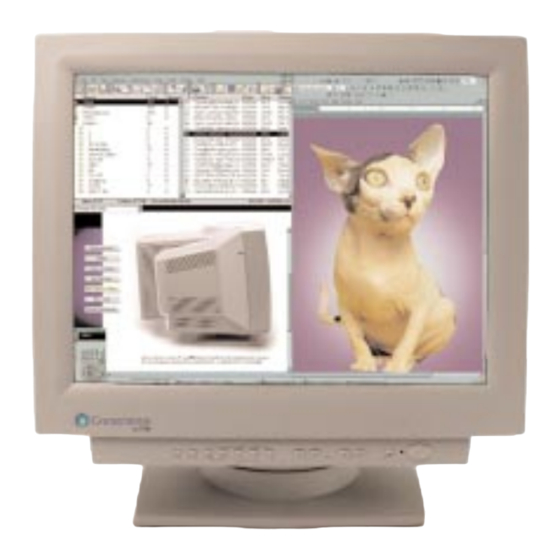

Cornerstone Peripherals Technology Cornerstone Professional P1600 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

U S E R S
G U I D E
p 16 0 0 : p 15 0 0
G E T F O C U S E D
: )
Congratulation on your purchase of a Cornerstone
™
high-performance, high-resolution, large-screen
monitor. The best monitor in the industry.
w w w . B i g M o n i t o r s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cornerstone Professional P1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cornerstone Peripherals Technology Cornerstone Professional P1600

  • Page 1 U S E R S G U I D E p 16 0 0 : p 15 0 0 G E T F O C U S E D Congratulation on your purchase of a Cornerstone ™ high-performance, high-resolution, large-screen monitor.
  • Page 2 READ THE INSTRUCTIONS INSIDE CAREFULLY. KEEP THIS USER MANUAL FOR FUTURE REFERENCE. For future reference, record the serial number of your color monitor. SERIAL No. The serial number is located on the rear of the monitor. ® This monitor is E compliant when used with a computer NERGY equipped with VESA DPMS.
  • Page 3 NOTE: * The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for any errors that may appear in this manual. * The reproduction, transmission or use of this documents or contents is not permitted without express written authority.

  • Page 4: Table Of Contents

    CONTENTS FEATURES ...................... 4 INSTALLATION ....................6 OPERATION ....................9 POWER SAVING SYSTEM ................17 PLUG & PLAY ....................17 SIGNAL CHECK ....................17 TROUBLESHOOTING ..................18 SPECIFICATIONS ................... 19 CAUTIONS ....................23 WARRANTY ..................... 39 CUSTOMER SUPPORT .................. 40 Tables: Table 1.

  • Page 5: Features

    FEATURES The following features are provided in this Color Monitor. Sharpest Focus and Highest Contrast Flat screen Enhanced Dot Pitch (EDP) CRT with anti-glare, dynamic focus circuit, dark glass and an INVAR shadow mask gives the sharpest focus and highest contrast to minimise eye fatigue.

  • Page 6: Color Adjustment

    Color Adjustment Color adjustments give the user the flexibility to customize color settings for different types of applications. Text based applications that use light backgrounds with black text benefit from cooler bluish white “paper like” colors. Color / graphics applications like web page development and pre press benefit from warmer reddish color adjustments.

  • Page 7: Installation

    INSTALLATION Before installing, read the chapter “CAUTIONS” carefully. Checking the contents Check whether the consignment agrees with the details in the following delivery note. Should you discover that the equipment has been damaged during transport or that the consignment does not correspond to the delivery note, notify your dealer immediately. Delivery Note: one Monitor one Power Cord one Signal Cable...

  • Page 8: Connecting The Monitor

    INSTALLATION (Continued) Connecting the monitor Rear Cover Front Cover Screen Power Switch AC Inlet Signal Input Power Cord Tilt & Swivel Base Front View Rear View to a power outlet to the host of the correct voltage Signal Cable computer 1.
  • Page 9 Installation Diskette p1500/p1600 User’s Guide MONITOR INF DISK Monitor INF Disk ® for Windows 95/98 ® for Windows 95/98 Copyright Cornerstone 1998-2001 All Right reserved. Windows is registered trademark of Microsoft Corporation. 1. Monitor INF file This monitor complies with DDC. If your computer system (including the video adapter) complies with DDC,...

  • Page 10: Operation

    OPERATION Power ON/OFF Press the power switch to switch the power ON or OFF. When the power is ON, the power indicator will light up. NOTE: First turn on the monitor, then the computer. After turning OFF the power switch, wait at least 5 seconds before restarting the monitor.
  • Page 11 OPERATION (Continued) Brightness/Contrast Adjustment (1) Press one of the adjustment buttons when the OSD (On Screen Display) is not shown. The OSD function will then show the brightness and contrast settings. (2) To adjust these settings, use the adjustment buttons for brightness, and for contrast.

  • Page 12: Table 1. Adjustment

    OPERATION (Continued) Table 1. Adjustment Item Adjustment Function button makes brightness darker BRIGHTNESS including background. makes brightness brighter including background. makes contrast darker excluding CONTRAST background. makes contrast brighter excluding background. changes to the previous mode. MAIN MENU H. SIZE  ZOOM  OSD EXIT  DEGAUSS  DMS  COLOR MENU?  COLOR SELECT  OSD MENU?  RECALL MENU?
  • Page 13 OPERATION (Continued) Table 1. Adjustment (Continued) Item Adjustment Function button (MAIN MENU) shrinks the top side, and expands the TRAPEZOID bottom side. expands the top side, and shrinks the bottom side. curves the left/right sides inward. PINCUSHION curves the left/right sides outwards. tilt to the left.
  • Page 14 OPERATION (Continued) Table 1. Adjustment (Continued) Item Adjustment Function button (MAIN MENU) (unavailable) (NO) OSD EXIT clears the OSD. (YES) shrinks horizontally and vertically. ZOOM expands horizontally and vertically. changes to the previous mode. SCREEN MENU H. MOIRE  HEMISPHERE  V.
  • Page 15 OPERATION (Continued) Table 1. Adjustment (Continued) Item Adjustment Function button (SCREEN MENU) makes the horizontal dynamic focus weaker. H. FOCUS makes the horizontal dynamic focus stronger. makes the vertical dynamic focus weaker. V. FOCUS makes the vertical dynamic focus stronger. curves the left and right top corners TOP CORNER inwards.
  • Page 16 OPERATION (Continued) Table 1. Adjustment (Continued) Item Adjustment Function button OSD MENU changes to the previous mode. OSD H. POS.  LANGUAGE SELECT  OSD V. POS.  OSD H. POS. changes to the next mode. OSD H. POS.  OSD V. POS.  LANGUAGE SELECT  OSD H.
  • Page 17 OPERATION (Continued) Lock out Function There are two special LOCK OUT Functions: 1. Lock Out Function 1 Disables all of the user control buttons except "Brightness/Contrast adjust” and “Input Select button” (1) Power Unit Off (2) Depress two buttons (3) Turn Power On. 2.

  • Page 18: Power Saving System

    POWER SAVING SYSTEM ® This monitor complies with VESA and E power saving requirements. The NERGY power saving system works only when used with VESA DPMS compliant PC’s and/or graphic controllers. Table 2. Power Saving System VESA DPMS Power Saving States Power Saving Video H.

  • Page 19: Troubleshooting

    TROUBLESHOOTING The following Table 4 is provided to assist you in common installation issues. Table 4. Troubleshooting Symptom Solution No power Verify the power cord is installed correctly. Press the power switch. No picture Increase Contrast and Brightness. Check Input Select status. No picture and the power indicator Check Signal Cable Connection.

  • Page 20: Specifications

    SPECIFICATIONS 21 inch type picture tube, 0.21 mm horizontal dot pitch, 0.20 mm horizontal mask pitch, Invar shadow mask, Black matrix, Short persistence phosphors, Dark tint, Anti-Reflection coat. Input Signal Video 0.70 Vp-p, Analog Sync. Separate H/V, TTL level Composite H/V, TTL level Synchronisation p1500 p1600...

  • Page 21: Table 5. Standard Settings

    SPECIFICATIONS (Continued) Standard Settings Microprocessor-based preset functions can store 32 sets of geometry settings incluexcept the standard settings. The following industrial standard settings have been pre-programmed by the factory. Table 5. Standard Settings Video Mode Name Horizontal p1500 p1600 (with Resolution and Vertical Frequency) Frequency 640  31.47 kHz...
  • Page 22 SPECIFICATIONS (Continued) NOTE: * Input signals with approximately the same frequencies may be regarded as the same signal. * The following horizontal timing conditions are recommended (at sync. H, V separate or H/V composite). for 31 kHz - 55 kHz horizontal frequency: Horizontal front porch should be more than 0.1 µs.

  • Page 23: Table 7. Pin Assignment

    SPECIFICATIONS (Continued) Pin Assignment Signal Input Connector of the Monitor Table 7. Pin Assignment Input 1 Input 2 Red Video Red Video Green Video Green Video Blue Video Blue Video No pin No pin No connection No connection Red Ground Red Ground Green Ground Green Ground...

  • Page 24: Cautions

    CAUTIONS ENGLISH Discontinue Usage if Abnormal Operation Occurs ! Abnormal operations such as smoke, burning smell, excessive sound, etc. could cause fire or electrical shock. If you observe any abnormal operation, you should turn Off the monitor and disconnect the power plug from the power outlet. You should check for smoke or fire and contact your dealer.
  • Page 25 CAUTIONS (Continued) ENGLISH CAUTION for 200 - 240V operation only This equipment relies on the protective devices in the building installation for short-circuit and over-current protection. Refer to the following table for the suitable number and location of the protective devices which should be provided in the building installation. Informative examples of protective devices in single - phase equipment or sub - assemblies Protection...

  • Page 26: Fcc Statement Warning

    CAUTIONS (Continued) ENGLISH FCC Statement Warning WARNING : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 27: For The Customers In The Uk

    CAUTIONS (Continued) ENGLISH For the Customers in the UK THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE UK PLEASE REFER TO THE NOTES ON THIS PAGE. IMPORTANT FOR UNITED KINGDOM WORDING FOR CLASS     EQUIPMENT INSTRUCTION BOOKS AND LABELS The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug.
  • Page 28 PRÉCAUTIONS FRANÇAIS Cessez l'utilisation du module si un incident se produit ! Un incident tel que fumée, odeur de brûlé, bruit excessif, etc. pourrait causer un feu ou un choc électrique. Si vous constatez un incident, éteignez le moniteur et débranchez le câble d'alimentation de la prise du secteur.
  • Page 29 PRÉCAUTIONS (Suite) FRANÇAIS ATTENTION uniquement destiné à l’utilisation en 200 - 240 V Cet équipement utilise les systèmes de protection électriques du bâtiment où il est installé pour l’isolation contre les courts-circuits ou les surtensions. Voir le tableau qui suit pour la localisation et le nombre adéquats de systèmes de protection du bâtiment. Exemples informatifs de dispositifs de protection dans les matériels et sous-ensembles monophasés Protection...
  • Page 30 PRÉCAUTIONS (Suite) FRANÇAIS À propos de l’entretien Avant tout nettoyage, éteignez le moniteur et débranchez-le de sa prise de courant. Pour le capot, utilisez de l’eau ou un détergent synthétique léger avec un tissu doux ou de la gaze. Pour l’écran, utilisez de l’eau avec un tissu doux ou de la gaze, délicatement. Ne nettoyez pas vous-même l’intérieur du moniteur, pour cause de grave danger.
  • Page 31 SICHERHEITSMASSNAHMEN DEUTSCH Betrieb des Gerätes einstellen, wenn anormale Bedingungen eintreten ! Anormale Bedingungen wie Rauch-Entwicklung, Brand-Geruch, übermäßige Geräusch- Entwicklung usw. können zu Feuer und elektrischen Schlägen führen. Wenn Sie anormale Bedingungen beobachten, sollten Sie den Monitor ausschalten und das Stromkabel aus der Steckdose ziehen.
  • Page 32 SICHERHEITSMASSNAHMEN (Forts.) DEUTSCH Entfernen Sie das Netzanschlußkabel, um den Monitor komplett vom Stromkreis zu trennen ! Um eine komplette Tremmung von der Stromquelle zu erreichen, entfemen Sie das Netzanschlußkabel vom Monitor oder ziehen es aus der Steckdose. Hinweis ausschließlich für den Betrieb mit 200 - 240V: Für den Betrieb des Geräts muß...
  • Page 33 SICHERHEITSMASSNAHMEN (Forts.) DEUTSCH Reinigung Bevor Sie mit der Reinigung beginnen, schalten Sie den Monitor aus und ziehen Sie den Netzstecker. Zum Renigen des Gehäuses verwenden Sie einen gazeartigen, weichen Lappen mit Wasser oder einer in Wasser verdünnten Waschlauge ohne Seife. Zum Reinigen des Bildschirms verwenden Sie einen gazeartigen, weichen Lappen mit Wasser.
  • Page 34 PRECAUCIONES ESPAÑOL Finalice su utilización en caso de funcionamiento anormal ! En caso de un funcionamiento anormal como humo, olor a quemado, zumbidos, etc, podría aparecer fuego o descargas eléctricas. Si observa alguna anomalía, apague rápidamente su monitor y desconecte el cable de alimentación de la red. Acuda a su distribuidor.
  • Page 35 PRECAUCIONES    Continuación    ESPAÑOL Precaución para funcionamiento 200 - 240V Para mayor seguridad compruebe que esta unidad va a ser utilizada en un edificio que disponga de dispositivos de protección contra cortocircuitos y sobrecorrientes. Consulte la siguiente tabla para comprobar el número y el tipo de dispositivos de protección necesarios.
  • Page 36 PRECAUZIONI ITALIANO Sconnetere il monitor in caso di Malfunzionamenti Gravi ! Malfuzionamenti Gravi quali fumo, odore di bruciato, rumorosità eccesive etc. sono sintomi di corto circuiti elettrici con possibilita’ di sviluppo d’incendio. In presenza di questi tipi di Malfunzionamento, spegnete immediatamente il Monitor e togliete la spina del cavo di alimentazione dalla presa di corrente.
  • Page 37 PRECAUZIONI    Continua    ITALIANO Attenzione (per funzionamento soltanto a 200 - 240V) Questo apparecchio fa affidamento su dispositivi di protezione localizzati negli impianti degli edifici, contro corto-circuito o sovracorrente. Riferirsi alla seguente tabella per l’idoneo numero e locazione di questi dispositivi di protezione. Esempi informativi di Dispositivi di protezione per apparecchiature monofase o sottoassemblate Protezione...
  • Page 38 TCO’99 STATEMENT Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. This product meets the requirements for the TCO'99 scheme which provides for an international environmental and quality labelling of personal computers.
  • Page 39 Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from: TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants...

  • Page 40: Warranty

    WARRANTY LIMITED WARRANTY Cornerstone stands behind the quality of its products. Cornerstone makes the following warranty to purchasers of its products in the United States and Canada: Your hardware product will remain free from defects in material workmanship for five years from the date it was originally purchased.

  • Page 41: Customer Support

    CUSTOMER SUPPORT Contacting Customer Support Cornerstone offers many support options to assist you with any problems you may have when installing, using, or repairing a Cornerstone product. When using or installing Cornerstone products, if you encounter problems you cannot resolve by reading this guide, you can obtain technical assistance by contacting Cornerstone using any of the methods below.

This manual is also suitable for:

P1500
