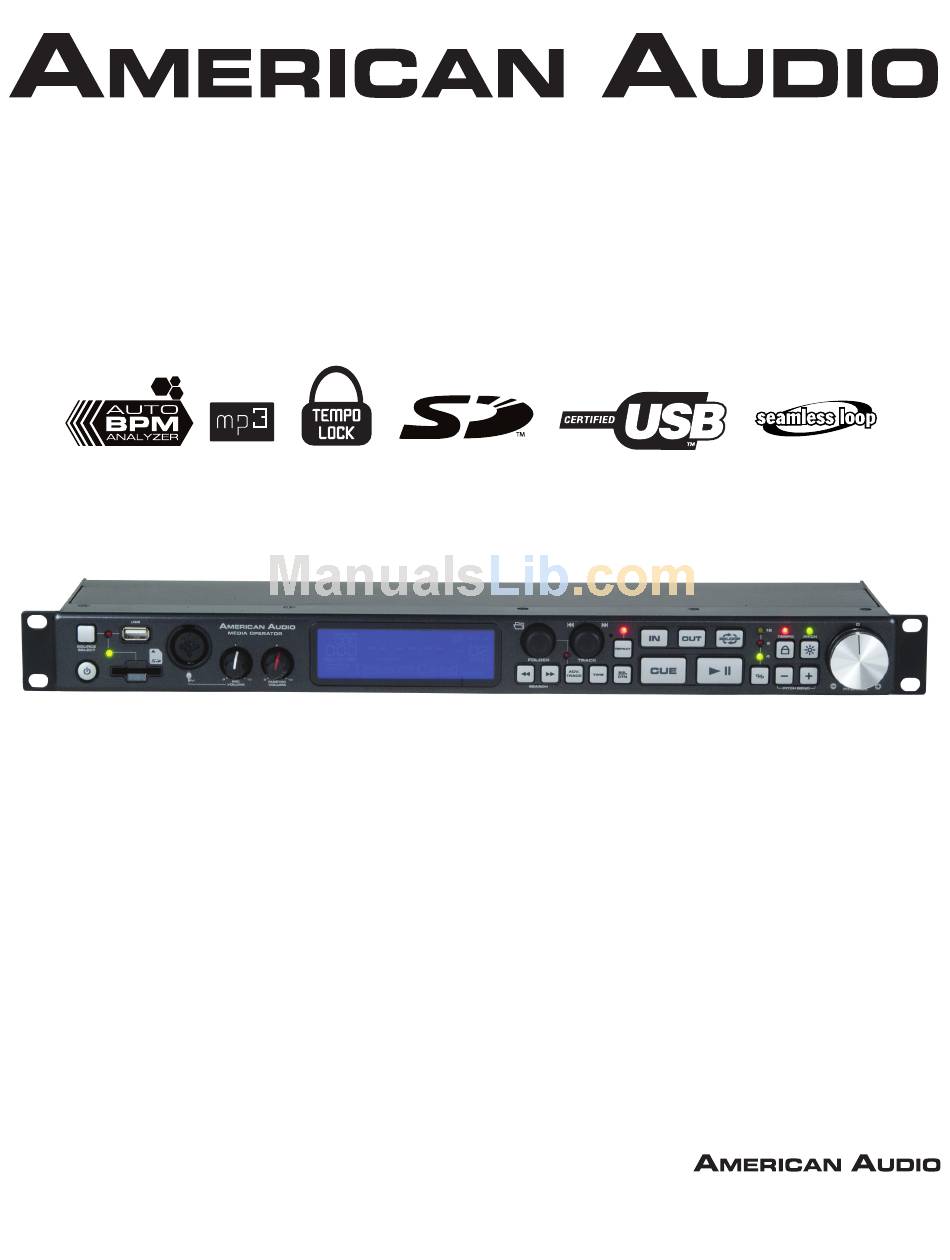

- Page 1 Media Operator Professional USB & SD Card Player "EASY, FAST, & RELIABLE" Featuring: User Guide and Reference Manual 6122 S. Eastern Ave Los Angeles Ca. 90040 www.americanaudio.us 5/08...
-
Page 2: Table Of Contents
Seamless Loop (uninterrupted loop playback) • Microphone Input with Volume Control • Adjustable Pitch Percentages: +/-4%, +/-8%, or +/-16% American Audio © - www.americanaudio.us - Media Operator™ Instruction Manual Page 2 ® • Track & Folder Search Knobs • Advance Track Search •... -
Page 3: Safety Precautions
GATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT. - www.americanaudio.us - Media Operator™ Instruction Manual Page 3 ® CAUTION NOTE: television reception. -
Page 4: Electrical Safety Precautions
OVErLOaDiNg — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. - www.americanaudio.us - Media Operator™ Instruction Manual Page 4 ® The exclamation point within an equilateral triangle is... -
Page 5: Safety Instructions
Please write down the numbers here and retain for future refer- ence. Model No.________________________________ Serial No.________________________________ purchase notes: Date of Purchase__________________________ Dealer Name______________________________ Dealer Address____________________________ _________________________________________ ________________________________________ Dealer Phone_____________________________ - www.americanaudio.us - Media Operator™ Instruction Manual Page 5 ®... -
Page 6: Unpacking
UNPaCkiNg Every Media Operator™ has been thoroughly tested and has been shipped in perfect operating condi- tion. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your media player for any damage and be sure all equipment necessary to operate the media player has arrived intact. -
Page 7: Important Sd Card & Usb Information
NO WAV files, photo files, etc... • The Media Operator™ is compatible with all SD and SDHC Cards (SDHC up to 32GB only) • The Media Operator™ can read Mp3 format files only. -
Page 8: General Functions And Controls
• Push this knob for 2 seconds to enter the PRESET MENU. See page 19 for PRESET MENU. 6. TRACk kNOB - Turning this knob will let you search either folders and tracks. The track and folder will be shown in the American Audio © - www.americanaudio.us - Media Operator™ Instruction Manual Page 8 ® Figure 2... - Page 9 Use this function to slow to another playing music source. Be sure to notice that this function is a momentary pitch adjustment. (+) PITCH BEND BUTTON - The (+) pitch bend function creates a momentary “BUMP” in the song's American Audio - www.americanaudio.us - Media Operator™ Instruction Manual Page 9 © ®...
- Page 10 22. SD CARD SLOT - This is where you load your SD card. Gently insert your SD Card into the slot. To eject your card, put the Media Operator in pause mode, and then press the SD Card gently. The SD Card should "Pop"...
- Page 11 26. AC VOLTAGE INPUT - This connector is used to supply main power to the unit via the included detachable power supply. Only use the supplied power adaptor to avoid damaging the unit. The unit receives an input power supply of DC 6V 1.5A. American Audio - www.americanaudio.us - Media Operator™ Instruction Manual Page 11 © ®...
-
Page 12: Lcd Display
42. PLAY & PAUSE INDICATORS - The "PLAY" indicator will glow when the unit is in play mode, and the "PAUSE" indicator will flash when the unit is pause mode. - www.americanaudio.us - Media Operator™ Instruction Manual Page 12 ® Figure 3... -
Page 13: Basic Operations
Figure 5 clock- Figure 7 clock- Figure 8 - www.americanaudio.us - Media Operator™ Instruction Manual Page 13 ® To disconnect a USB drive, stop playback FolDER knoB (5) Figure 5: Turning the clockwise will take you to the previous folder. -
Page 14: Playback
BUTTon (16) for 2 seconds. American Audio © Figure 10 - www.americanaudio.us - Media Operator™ Instruction Manual Page 14 ® 5. STOPPING PLAYBACk - Figures 9 & Stopping playback will not stop the read- ing mechanism, but merely pause or cue the track, this function allows the unit to begin play instantly. -
Page 15: Frame Search
American Audio © 2) You may also use the SEARch BUTTonS Figure 13 - www.americanaudio.us - Media Operator™ Instruction Manual Page 15 ® Figure 11 Figure 12 (19) to set a cue point. While a track is in... -
Page 16: Creating A Seamless Loop
SEAMLESS LOOP. The in BUTTon LED will blink. American Audio © Figure 16 - www.americanaudio.us - Media Operator™ Instruction Manual Page 16 ® Press plAy/pAUSE BUTTon (14) to acti- vate playback mode. Figure 15 Press the oUT BUTTon (8) to set the end- ing point for your SEAMLESS LOOP (Figure 16). -
Page 17: Changing Time Display
American Audio © of which time func - www.americanaudio.us - Media Operator™ Instruction Manual Page 17 ® Figure 17 11. REPLAY LOOP - The REloop (8) function allows you to return to your stored loop at any time. -
Page 18: Advance Track Search
2. Press the TRAck knoB (6) to select your desired track, ”SEARCH” will now be dis- played in the LCD. 4. Pressing the ADv. TRAck BUTTon (18) at anytime, will cancel this function. - www.americanaudio.us - Media Operator™ Instruction Manual Page 18 ® Figure 20 Figure 22... -
Page 19: Preset Menu
PRESET is displayed and press the FolDER knoB (5). You can also wait for at least 5 seconds and the fixture will automatically exit PRESET MENU. - www.americanaudio.us - Media Operator™ Instruction Manual Page 19 ® Figure 24 Figure 26... -
Page 20: Firmware Version
You are able to view the ARTIST, BIT RATE, TITLE NAME, and FILE NAME of the current song playing. To view this information press the TRAck knoB (6). - www.americanaudio.us - Media Operator™ Instruction Manual Page 20 ® Figure 28... -
Page 21: Pitch Adjustments
The piTch knoB (11) will only effect normal playback and loops when the piTch knoB (11) is active. Figure 31 - www.americanaudio.us - Media Operator™ Instruction Manual Page 21 ® Using the PITCH kNOB (11): Be sure the pitch function has been activated as described above. -
Page 22: Pitch Bending
Ton (12) will provide a slow down in the play- back pitch. Figure 35 American Audio © Figure 33 - www.americanaudio.us - Media Operator™ Instruction Manual Page 22 ® Using PITCH SELECTOR (13): You may choose a pitch operating range at any time. To change the operating range be sure the pitch function is turned on, see figure 31. -
Page 23: Adding Music To Your Media Device
4. Once you are finished loading music, eject the memory device, and load it into the Media Opera- tor. American Audio © - www.americanaudio.us - Media Operator™ Instruction Manual Page 23 ®... -
Page 24: Year Limited Warranty
United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, American Audio® shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof. -
Page 25: Specifications
SPECifiCaTiONS GENERAL Model: American Audio® Media Operator™ - Professional SD Player, USB Stick, or External Hard Drive player Type: SD Card and USB audio player. Pitch Range: Within +/- 4%, +/- 8%, +/- 16%, Pitch Bend: +/- 4%, +/- 8%, +/- 16%, Pitch Accuracy: +/-0.15%... - Page 26 ©American Audio® World Headquarters: 6122 S. Eastern Ave., Los Angeles, CA 90040 USA Tel: 323-582-3322 Fax: 323-582-3311 Web: www.americanaudio.us E-mail: info@americanaudio.us...
