Dash Control Installation
Placement And Mounting
The dash control may be mounted under the dash using its own bracket or
through a custom hole in the dash. It should be within reach of the driver and
in a spot where the LED is plainly visible.
Dash Bracket Installation
The dash control mounts with two screws which attach to the underside of
the dashboard. Slide under the dash and place the dash control in its mounting
position, mark the two mounting holes, drill pilot holes, and secure with
two screws.
Custom Installation
For that custom, finished look, the dash
control can be flush mounted directly
on the dash board (or anywhere else).
We have provided an extra label to help
make this happen. Referencing
Figure 5, disassemble The
Epicenter dash control from
the mounting bracket. Start
by pushing the LED from its
holder followed by remov-
ing the circuit board and rotary control from the bracket. Drill a 9/32" hole in
the dashboard for the control along with a 1/8" hole for the lock tab and a 13/
64" hole for the LED holder. Reassemble the dash control components on the
dashboard and apply the new label over the openings.
Dual-Color Dash Control LED
The LED on your dash control is rainforest green and should brighten or
dim when you turn the knob either clockwise or counter clockwise. Should you
wish to change the color to amber, remove the plug connected to the LED and
turn it 180 degrees and plug it back in.

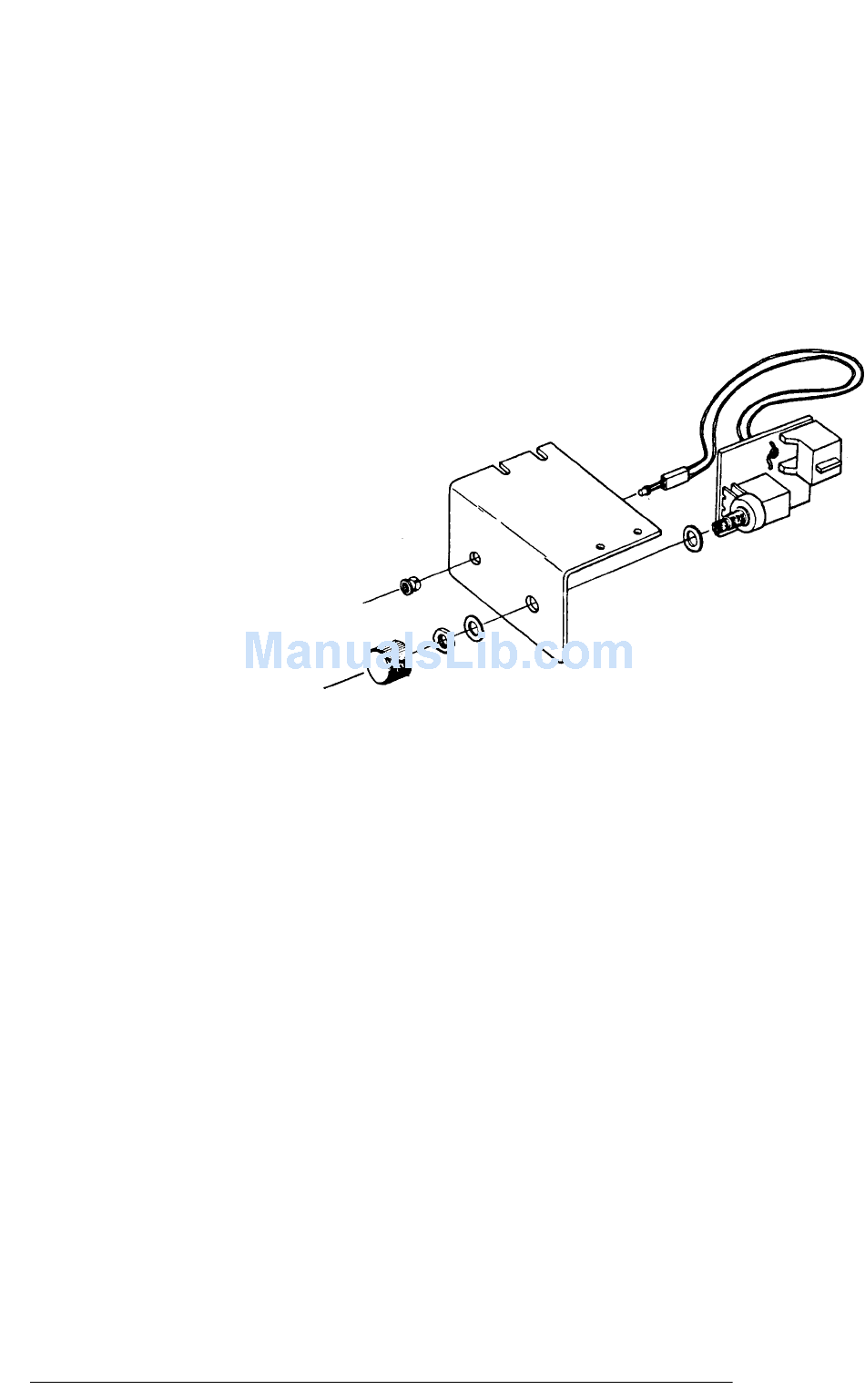

Figure 5: Picture of
dash mount remote
