- Page 1 MDA200 ™ Audio Switcher User Guide...
-
Page 2: Table Of Contents
Desk Phone Plus HL10 lifter and Power Supply (sold separately) 10 Desk Phone Plus EHS Cable 12 Computer: Connect and Call 13 Connect Your Computer and Place a Call MDA200 LED Indicators 14 Daily Use 15 Answer an Incoming Call 15 Place an Outgoing Call 15... -
Page 3: Welcome
Welcome Congratulations on purchasing your new Plantronics product. This guide contains instructions for setting up and using your MDA200 audio switcher. Please refer to the separate safety instructions for important product safety information prior to installation or use of the product. -
Page 4: What's In The Box
What’s in the Box Telephone Interface Cable MDA200 Audio Switcher... -
Page 5: Mda200 Basics

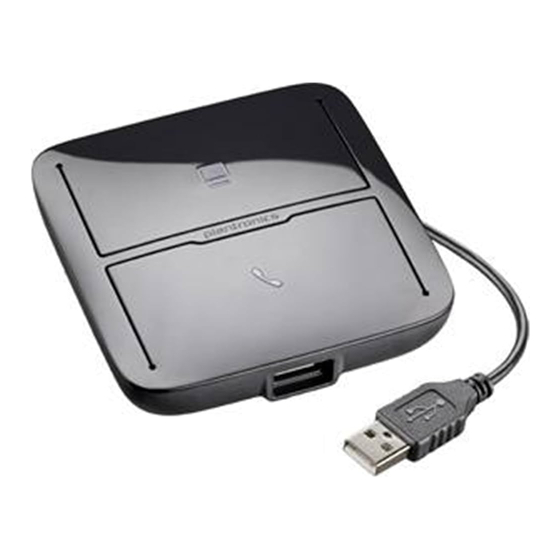

MDA200 Basics FRONT/TOP BACK BOTTOM Computer talk button Desk phone talk button USB headset/USB wireless adapter port (headset and adapter not included) USB cable (connect to computer) Handset lifter/EHS cable jack Telephone interface cable jack Power jack Configuration slide switch... -
Page 6: Accessories
HL10™ Lifter Automatically lifts handset and returns it to the cradle. Enables remote call answer/end with your headset. AC Power Supply Required when using the HL10 lifter. USB Extension Cable Extends the length of the USB cable between the MDA200 and computer. plantronics.com/accessories... -
Page 7: Connect Your Headset
Connect Your Headset Connect your Plantronics supported USB corded headset or wireless USB headset adapter to the MDA200 USB headset port.* NOTE Your headset will continue to function as if it were connected directly to the computer. *For a list of supported headsets and wireless USB headset adapters see plantronics.com/support. -
Page 8: Desk Phone: Connect And Call
Desk Phone: Connect and Call There are three setup options for connecting the MDA200 to your desk phone. Select one of the following and continue. • Desk phone (standard) • Desk phone + HL10™ lifter and power supply (sold separately) • Desk phone + EHS cable (sold separately) - Page 9 3 and the speaking volume dial is set to 2. Remove the handset from desk phone cradle. While wearing your headset, press the desk phone talk button on the MDA200. If you do not hear a dial tone, adjust the configuration switch (A-G) until you do.
-
Page 10: Desk Phone Plus Hl10 Lifter And Power Supply (Sold Separately)
Call. Desk Phone Plus HL10 lifter and Power Supply (sold separately) Plug one end of the power supply into the power jack on the back of the MDA200 and the other end into a working power outlet. Firmly press the handset lifter power cord into the handset lifter jack. - Page 11 Gently place the lifter on the desk phone in the pre-determined position. Press firmly to adhere. If You Do Not Hear a Dial Tone If you do not hear a dial tone, raise the lifter height switch to the next highest position. Repeat steps 3 through 6 above as necessary until you hear a dial tone.
-
Page 12: Desk Phone Plus Ehs Cable
Place ringer microphone over phone speaker. Remove adhesive tape and attach. For Nortel Phones Only Desk Phone Plus EHS Cable Connect the end of the EHS cable to the MDA200 and the other end to the desk phone as described in the EHS Adapter Getting Started guide. -
Page 13: Computer: Connect And Call
While wearing headset, dial test call from computer softphone. End call by pressing the computer talk button on the MDA200. NOTE To use call control feature with a soft phone on the PC you will need to install Plantronics Control Panel Software. See plantronics.com/software. -
Page 14: Mda200 Led Indicators
Desk phone audio connected Flashing yellow Active phone audio on hold Both icons MDA200 is booting up – once complete both LEDs flashing green will be off if no headset is connected. If a headset is for 2 seconds connected the PC icon will remain lit solid green. -
Page 15: Daily Use
Place an Outgoing Call Outgoing desk phone calls Wearing your headset, press the desk phone talk button on the MDA200. Remove the handset from the cradle. You will hear a dial tone. NOTE This step will be automatic if you install a lifter or EHS cable accessory. For a complete list of accessories, visit plantronics.com/accessories. -
Page 16: Troubleshooting
Troubleshooting Desk Phone I can’t hear a dial tone in the Adjust the configuration switch on the switcher until a dial tone headset. is heard. Fine tune the listening volume with the headset volume button. If the volume is still too low, adjust the listening volume dial on the switcher. -
Page 17: Softphone
Ensure that the Plantronics software is installed. To download, visit plantronics.com/software. If the Plantronics software is not installed and you do not have a compatible softphone, you must first press the headset call button and then use the softphone interface to place/answer/ end calls. -
Page 18: Need More Help
Netherlands © 2011 Plantronics, Inc. All rights reserved. Plantronics, the logo design, MDA200, and HL10 are trademarks or registered trademarks of Plantronics, Inc. Windows, Windows 7, Windows Vista, and Windows XP are registered trademarks of Microsoft Corporation in the US and other countries.
