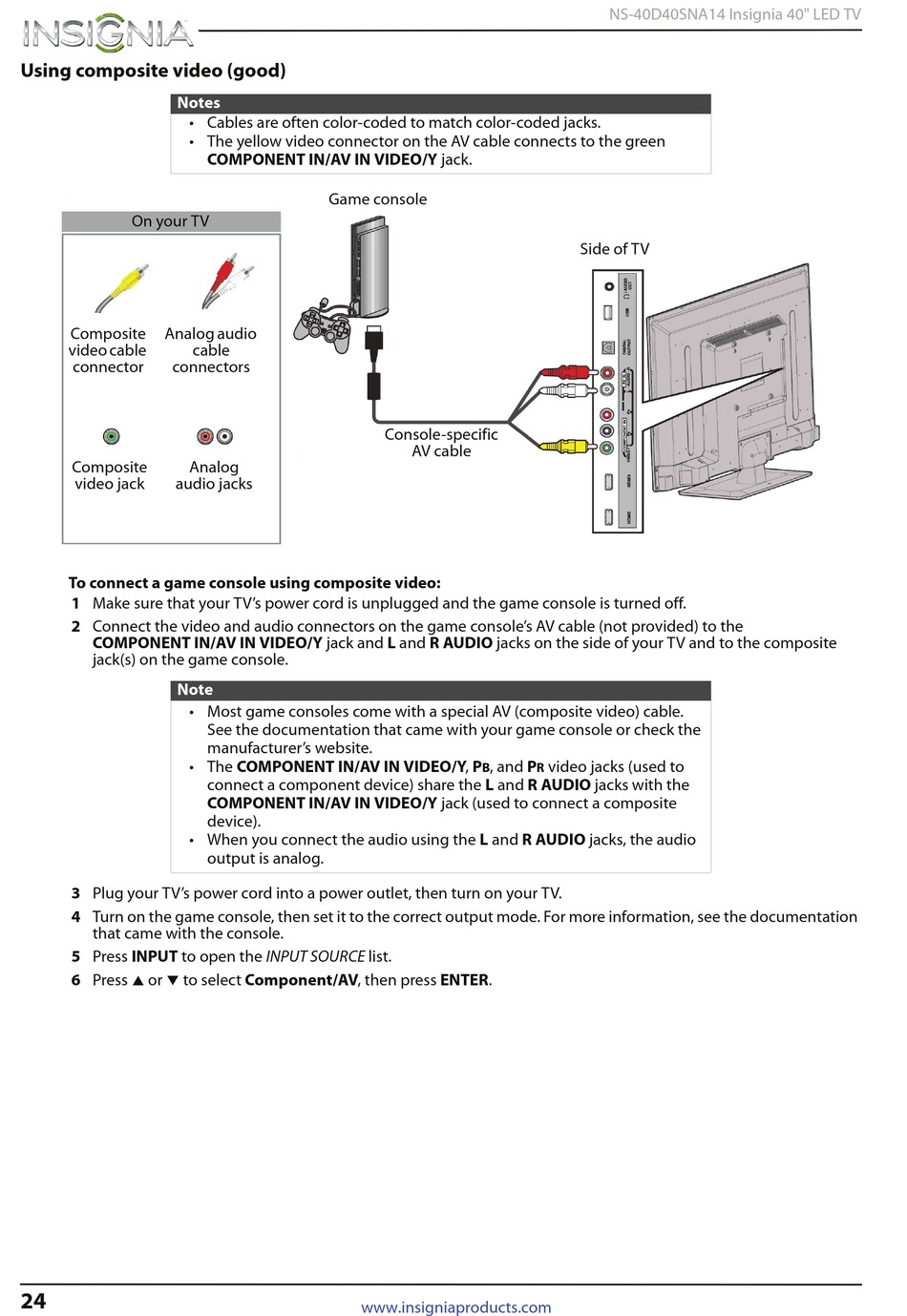

Using composite video (good)

Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
On your TV
Composite Analog audio
video cable cable
connector connectors
Composite Analog
video jack audio jacks
To connect a game console using composite video:
1 Make sure that your TV's power cord is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the game console's AV cable (not provided) to the
COMPONENT IN/AV IN VIDEO/Y jack and L and R AUDIO jacks on the side of your TV and to the composite
jack(s) on the game console.
Note
• Most game consoles come with a special AV (composite video) cable.
• The COMPONENT IN/AV IN VIDEO/Y, P
• When you connect the audio using the L and R AUDIO jacks, the audio
3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the game console, then set it to the correct output mode. For more information, see the documentation
that came with the console.
5 Press INPUT to open the INPUT SOURCE list.
6 Press or to select Component/AV, then press ENTER.
24
COMPONENT IN/AV IN VIDEO/Y jack.
Game console
See the documentation that came with your game console or check the
manufacturer's website.
connect a component device) share the L and R AUDIO jacks with the
COMPONENT IN/AV IN VIDEO/Y jack (used to connect a composite
device).
output is analog.
www.insigniaproducts.com
Console-specific
AV cable
, and P video jacks (used to
B R
NS-40D40SNA14 Insignia 40" LED TV
Side of TV
