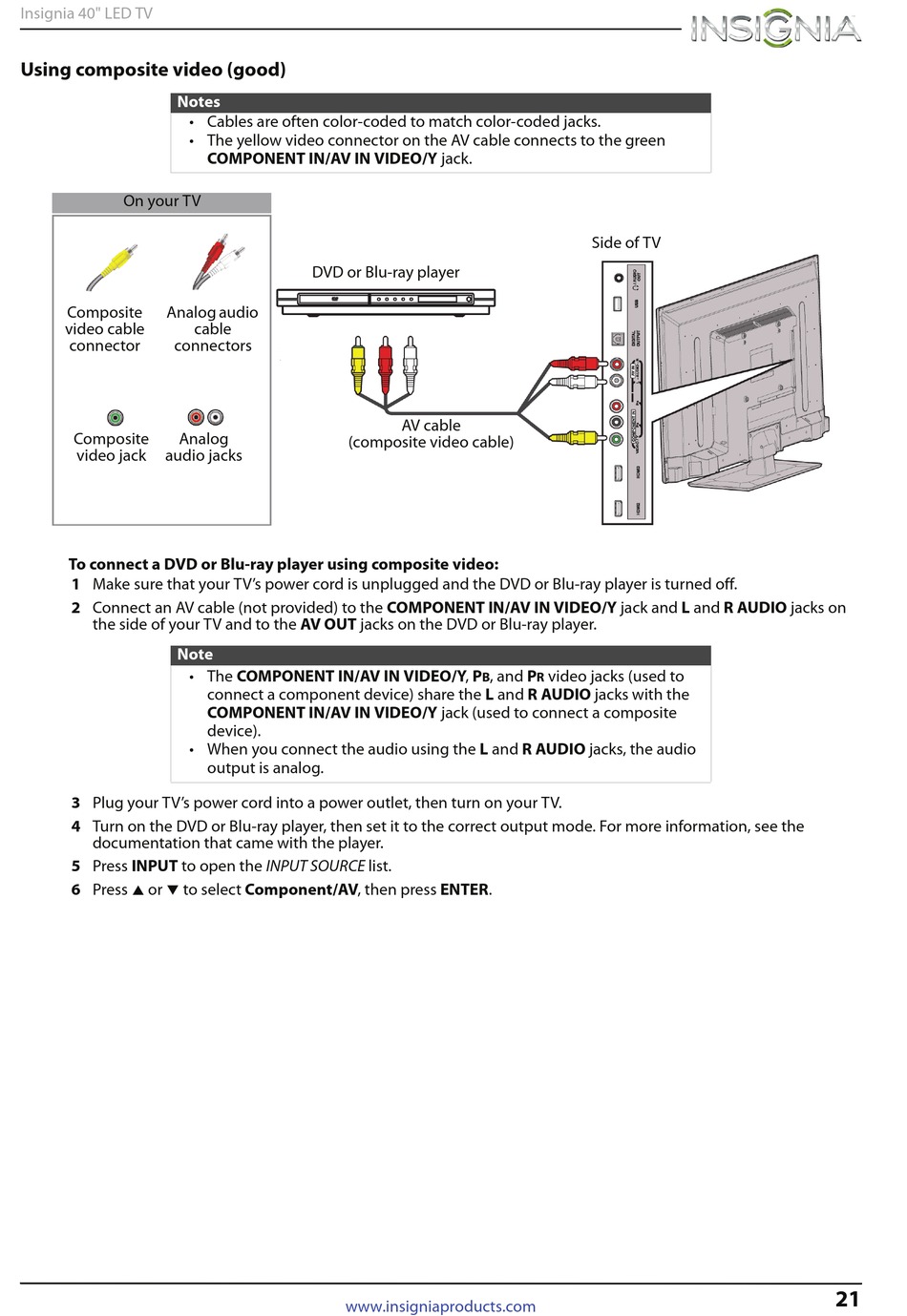

Using composite video (good)

Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
On your TV
Composite Analog audio
video cable
connector connectors
Composite Analog
video jack audio jacks
To connect a DVD or Blu-ray player using composite video:
1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the COMPONENT IN/AV IN VIDEO/Y jack and L and R AUDIO jacks on
the side of your TV and to the AV OUT jacks on the DVD or Blu-ray player.
Note
• The COMPONENT IN/AV IN VIDEO/Y, P
• When you connect the audio using the L and R AUDIO jacks, the audio
3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the
documentation that came with the player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press or to select Component/AV, then press ENTER.
COMPONENT IN/AV IN VIDEO/Y jack.
DVD or Blu-ray player
cable
(composite video cable)
connect a component device) share the L and R AUDIO jacks with the
COMPONENT IN/AV IN VIDEO/Y jack (used to connect a composite
device).
output is analog.
www.insigniaproducts.com
AV cable
, and P video jacks (used to
B R
Side of TV
