T R O U B L E S H O O T I N G
Troubleshooting for your Heater
Trouble
Probable Cause
Solution
• Heater
☛ Manual user reset is activated.
✔ Follow reset instructions listed in this manual.
Does Not
☛ Not plugged in properly.
✔ Ensure plug is properly inserted. Make sure
electrical outlet and circuit breaker are working.
Turn On.
☛ Electrical outlet does not hold plug
✔ Have outlet replaced by a licensed electrician.
in securely.
☛ Thermostat set too low.
✔ Press the Mode Button to select the highest
temperature setting.
☛ Obstruction causing the heater not
✔ Unplug the heater and remove all obstructions.
to operate.
Position your heater 36 inches (91cm) away from
all objects.
☛ Circuit breaker trips.
✔ Make sure no other high wattage appliances are
operating on the same circuit and reset breaker if
needed.
• Not Enough
☛ Heater is in reduced heat setting.
✔ Change setting to Max Heat.
Heat.
☛ Thermostat set too low.
✔ Press the Mode Button to select the highest
temperature setting.
• Heater
☛ The thermostat automatically turns
✔ To make this occur less frequently press the Mode
Cycles ON
the heater on and off to maintain
Button to select the highest setting.
and OFF
selected comfort level.
Frequently.
☛ Every 5-10 minute the heater turns
✔ This is normal operation to ensure the heater is
on and runs for 3 minutes.
maintaining the room temp accurately.
• Fan Speed
☛ Heat settings control the heat
✔ Run heater in Max Heat for maximum heat
Doesn't
output of the heater and not the
output.
Change.
fan speed. Fan runs at the same
speed on all settings.
• Unexpected
☛ You may hear a popping or
✔ If the noise persists, visit our website at
Noise.
crackling sound as the heater heats
www.holmesproducts.com.
up. This is normal and safe
operation. Once the heater heats up,
the crackling sound will go away.
• Unexpected
☛ There may be an odor or vapor
✔ This is normal and is the result of dust or other
Smell.
coming from the heater the first
debris accumulating on the heating element.
time you use it or after prolonged
Make sure the heater is in a well ventilated area
or seasonal storage.
and continue running until the odor or vapor goes
away.
D I A G N O S T I C O D E P R O B L E M A S
Solución de problemas del calefactor
Problema
Posible Causa
Solución
• El calefactor
☛ El restablecimiento manual de
✔ Siga las instrucciones de restablecimiento que
no
usuario está activado.
aparecen en este manual.
enciende.
☛ No está conectado correctamente.
✔ Compruebe que el enchufe esté insertado
correctamente. Asegúrese de que el tomacorriente
y el interruptor de circuito funcionen.
☛ El tomacorriente no sostiene el
✔ Contrate a un eléctrico con licencia para
enchufe de manera segura.
reemplazar el tomacorriente.
☛ El termostato está en un valor
✔ Presione el botón de modo para seleccionar la
demasiado bajo.
configuración de temperatura más alta.
☛ Hay obstrucciones que hacen que el
✔ Desconecte el calefactor y retire las obstrucciones.
calefactor no funcione.
Coloque el calefactor a 91 cm de distancia de los
demás objetos.
☛ El interruptor de circuito está
✔ Compruebe que no haya otros aparatos de alto
desactivado.
vataje funcionando en el mismo circuito y, si es
necesario, restablezca el interruptor.
• No hay
☛ El calefactor está en la configuración
✔ Cambie la posición a máximo calor.
suficiente
de poco calor.
calefacción.
☛ El termostato está en un valor bajo.
✔ Presione el botón de modo para seleccionar la
configuración de temperatura más alta.
• El calefactor
☛ El termostato automáticamente enciende
✔ Para hacer que esto ocurra con menos frecuencia,
se enciende
y apaga el calefactor a fin de mantener
presione el botón de modo hasta llegar a la
y apaga con
el nivel de confort seleccionado.
configuración más alta.
frecuencia.
☛ Cada 5-10 minutos el calefactor se
✔ Se trata del funcionamiento normal para asegurar
enciende y funciona por tres minutos.
que el calefactor está manteniendo la
temperatura ambiente con precisión.
• La velocidad
☛ La configuración de calor controla
✔ Haga funcionar el calefactor en la posición de
del
la salida de calor del calefactor y
Máximo calor para generar la salida de máximo
ventilador
calor.
no la velocidad del ventilador. El
no cambia.
ventilador funciona a la misma
velocidad en todas las opciones.
• Ruido
☛ Es posible que se escuchen chasquidos o
✔ Si el ruido persiste, visite nuestro sitio web
inesperado.
crujidos cuando el calefactor se calienta.
www.holmesproducts.com.
Esto es parte del funcionamiento normal
y seguro. Una vez que el calefactor se
caliente, los crujidos cesarán.
• Olor
☛ Es posible que el calefactor
✔ Esto es normal y es el resultado del polvo u otros
inesperado.
produzca olores o vapores la
residuos que se acumulan en el dispositivo de
primera vez que lo utilice o después
calefacción. Asegúrese de que el calefactor se
de haber estado almacenado una
encuentre en un área ventilada y que siga
temporada.
funcionando hasta que el olor o vapor desaparezcan.
HCH7502-UM_13ESM1.indd 1
WA R R A N T Y I N F O R M AT I O N
1
YEAR LIMITED WARRANTY
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada)
Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of one year from
the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair
or replace this product or any component of the product found to be defective during the warranty period.
Replacement will be made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT
attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly,
repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS's Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for
a particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use
the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any questions regarding this warranty or would like to obtain warranty service, please visit our website at
www.holmesproducts.com.
In Canada
If you have any questions regarding this warranty or would like to obtain warranty service, please visit our website at
www.holmesproducts.com.
I N F O R M A C I O N D E L A G A R A N T I A
GARANTÍA LIMITADA DE 1 AÑO
Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions, o en Canadá, Sunbeam Corporation
(Canada) Limited operando bajo el nombre de Jarden Consumer Solutions, (en forma conjunta, "JCS"), garantiza que
por un período de uno año a partir de la fecha de compra, este producto estará libre de defectos de materiales y
mano de obra. JCS, a su elección, reparará o reemplazará este producto o cualquier componente del mismo que
presente defectos durante el período de garantía. El reemplazo se realizará por un producto o componente nuevo o
reparado. Si el producto ya no estuviera disponible, se lo reemplazará por un producto similar de valor igual o
superior. Ésta es su garantía exclusiva. No intente reparar o ajustar ninguna función eléctrica o mecánica de este
producto. Al hacerlo elimínará ésta garantía.
La garantía es válida para el comprador minorista original a partir de la fecha de compra inicial y la misma no es
transferible. Conserve el recibo de compra original. Para solicitar servicio en garantía se requiere presentar un recibo
de compra. Los agentes y centros de servicio de JCS o las tiendas minoristas que venden productos de JCS no tienen
derecho a alterar, modificar ni cambiar de ningún otro modo los términos y las condiciones de esta garantía.
Esta garantía no cubre el desgaste normal de las piezas ni los daños que se produzcan como resultado de uso
negligente o mal uso del producto, uso de voltaje incorrecto o corriente inapropiada, uso contrario a las instrucciones
operativas, y desarme, reparación o alteración por parte de un tercero ajeno a JCS o a un Centro de Servicio
autorizado por JCS. Asimismo, la garantía no cubre actos fortuitos tales como incendios, inundaciones, huracanes y
tornados.
¿Cuál es el límite de responsabilidad de JCS?
JCS no será responsable de daños incidentales o emergentes causados por el incumplimiento de alguna garantía o
condición expresa, implícita o legal.
Excepto en la medida en que lo prohíba la ley aplicable, cualquier garantía o condición implícita de comerciabilidad o
aptitud para un fin determinado se limita, en cuanto a su duración, al plazo de la garantía antes mencionada.
JCS queda exenta de toda otra garantías, condiciones o manifestaciones, expresa, implícita, legal o de cualquier otra
naturaleza.
JCS no será responsable de ningún tipo de daño que resulte de la compra, uso o mal uso del producto, o por la
imposibilidad de usar el producto, incluidos los daños incidentales, especiales, emergentes o similares, o la pérdida de
ganancias, ni de ningún incumplimiento contractual, sea de una obligación esencial o de otra naturaleza, ni de ningún
reclamo iniciado contra el comprador por un tercero.
Algunas provincias, estados o jurisdicciones no permiten la exclusión o limitación de los daños incidentales o
emergentes ni las limitaciones a la duración de las garantías implícitas, de modo que es posible que la exclusión o las
limitaciones antes mencionadas no se apliquen en su caso.
Esta garantía le otorga derechos legales específicos y es posible que usted tenga otros derechos que varían de un
estado, provincia o jurisdicción a otro.
Cómo solicitar el servicio en garantía
En los Estados Unidos
Si tiene alguna pregunta sobre esta garantía o desea recibir servicio de garantía, póngase visite nuestro sitio web
www.holmesproducts.com.
En Canadá
Si tiene alguna pregunta sobre esta garantía o desea recibir servicio de garantía, póngase visite nuestro sitio web
www.holmesproducts.com.
WA R R A N T Y I N F O R M AT I O N
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located
in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing
business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any
other problem or claim in connection with this product, please write our Consumer Service Department. PLEASE DO
NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.
© 2013 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved.
Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
I N F O R M A C I O N D E L A G A R A N T I A
En los Estados Unidos, esta garantía es ofrecida por Sunbeam Products, Inc. operando bajo el nombre de Jarden
Consumer Solutions, Boca Ratón, Florida 33431. En Canadá, esta garantía es ofrecida por Sunbeam Corporation
(Canada) Limited operando bajo el nombre de Jarden Consumer Solutions, 20 B Hereford Street, Brampton, Ontario
L6Y 0M1. Si usted tiene otro problema o reclamo en conexión con este producto, por favor escriba al Departamento
de Servicio al Consumidor. POR FAVOR NO DEVUELVA ESTE PRODUCTO A NINGUNA DE ESTAS
DIRECCIONES NI AL LUGAR DE COMPRA.
© 2013 Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions. Todos los derechos reservados.
Distribuido por Sunbeam Products, Inc. operando bajo el nombre de Jarden Consumer Solutions, Boca Raton, Florida 33431.
157433/9100020014383
HCH7502-UM_13ESM1
GCDS-HOL27999-PH

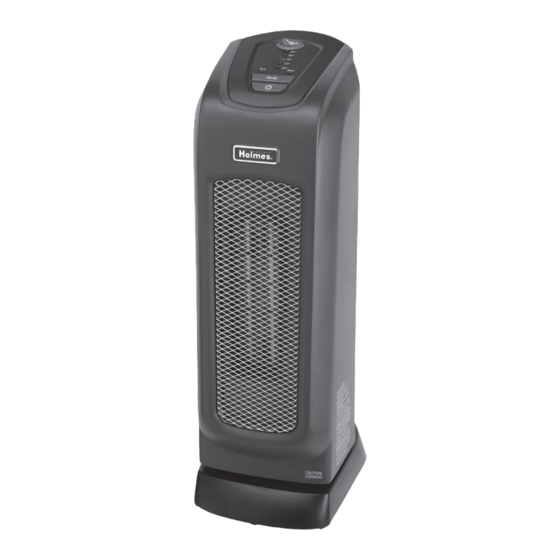

Holmes
Heater
®
Holmes
Calefactor
®
PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS
LEA Y CONSERVE ESTAS IMPORTANTES INSTRUCCIONES
Printed In China
GO ONLINE NOW to
http://www.holmesproducts.com/HOLCLG201
to receive a
FREE GIFT OR PROMO CODE*.
It's our "thanks" to you for being a Holmes
-You will also get access to special sale items
& promotions on a full assortment of Holmes
branded products.
HURRY & SIGN UP TODAY!
*While supplies last; subject to availability.
INGRESE AHORA MISMO al sitio
http://www.holmesproducts.com/HOLCLG201
para recibir un
OBSEQUIO GRATIS O UN CÓDIGO DE
PROMOCIÓN*.
Es nuestra manera de decirle "gracias" por
ser cliente de la marca Holmes
.
®
-También obtendrá acceso a promociones y
artículos de venta especiales de una completa
variedad de productos de la marca Holmes
¡APRESÚRESE Y REGÍSTRESE HOY MISMO!
Impreso en China
*Hasta agotar el stock; sujeto a disponibilidad
Owner's Guide
Guía del usuario
HCH7502
brand customer.
®
®
.
®
4/9/13 2:43 PM
Need help?
Do you have a question about the HCH7502 and is the answer not in the manual?
Questions and answers
