Sony VPL-SW526M Service Parts

Ultra Short Throw Projector
VPL-SW526M

Key Features

• 2,500 lumens (ISO 21118)
• Native WXGA (1,280x800) resolution
• High contrast ratio
• BrightEra ® Panel
• Ultra Short throw distance (TR= 0.27:1-0.29:1)
• Optical lens shift and zoom for easy adjustment
• Long-lasting lamp
Recommended lamp replacement time 6000h (low mode)
• Synchronized lamp and filter maintenance cycle
• Energy efficient design
- Auto power saving mode
- Blank with lamp dimming
- 4 lamp mode (High, Std, Low, Auto*)
*Auto lamp control by picture brightness
- ECO MODE key
• Convenient terminals including HDMI,RS-232C and RJ-45
• 16W Speaker
• USB display
• USB media viewer
• Wireless capability (option)
• Supplied wall mount

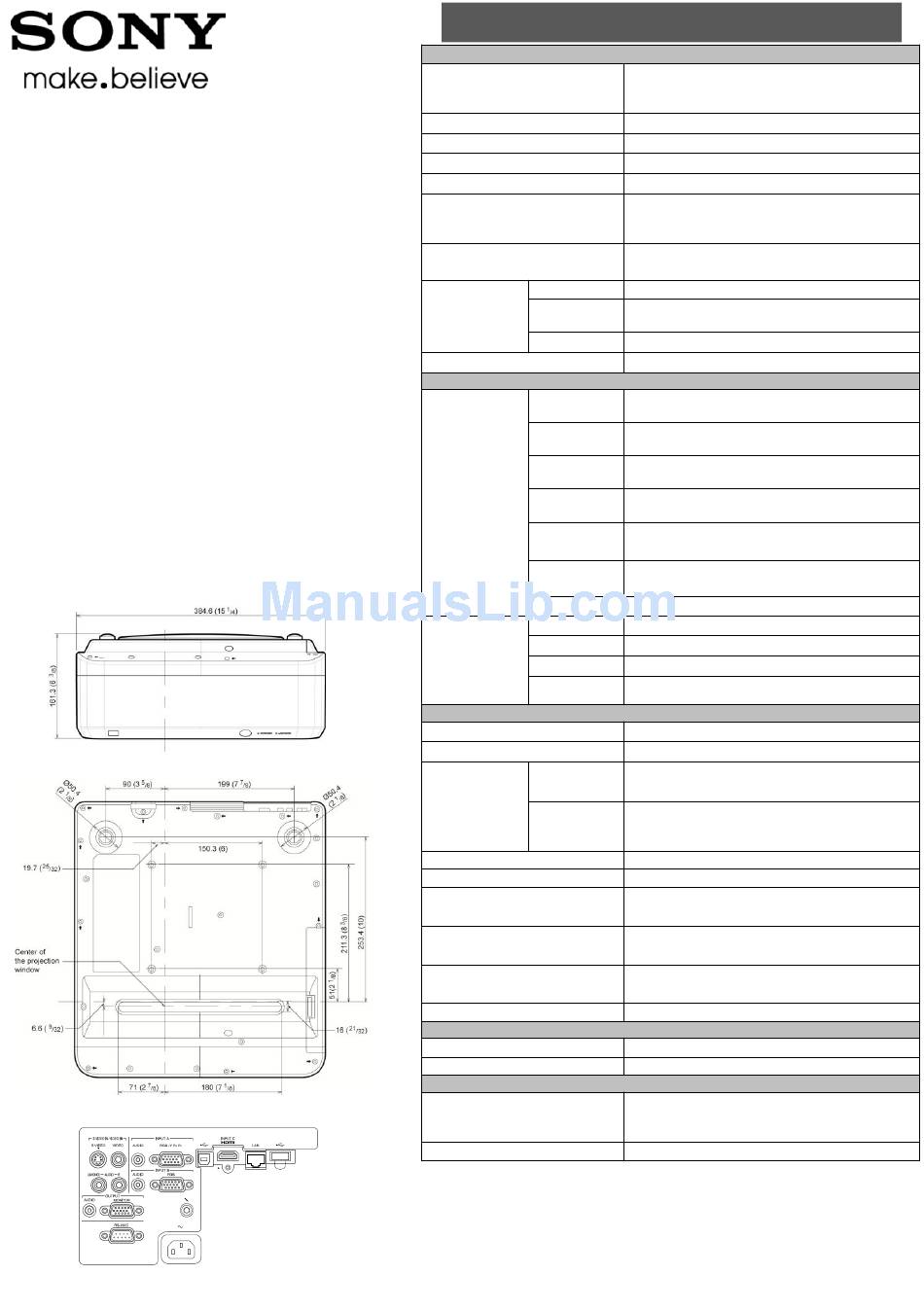

Dimensions (Front)
Dimensions (Bottom)
Connector Panels
© 2013 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and
dimension are approximate. Sony, make.believe and BrightEra logos are trademarks of Sony Corporation. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries. All other trademarks are the property of their respective owners.
Optical
Light Output /
Color Light Output
LCD Panels
Panel Display Resolution
Contrast Ratio
Light Source
Recommended Lamp Replacement
Time*
Filter Cleaning Cycle*
Projection Lens
Screen Size
Interface
Computer and
Video
Input/Output
Unit: mm (inches)
Other Signal
Input/Output
General
Speaker
Scanning Frequency
Display
Resolution
Color System
Power Requirements
Power Consumption
Standby Mode
Power Consumption
Dimensions (WxHxD)
(without protrusion)
Mass
Optional Accessories
Replacement Lamp
Wireless LAN Module
Service Parts
Replacement Filter
Replacement Remote
* The value is average with lamp dimming.
1
* The figures are expected maintenance time and not guaranteed.
2
They will depend on the environment or how the projector is used.
* Works as an audio switcher function. Output from a selected channel, not available in standby.
3
For more information, visit: www.sony.com/projectors
WXGA / 2,500 lm
2500 lumens (Lamp mode: High)
2100 lumens (Lamp mode: Standard)
1800 lumens (Lamp mode: Low)
0.75"x3 BrightEra LCD Panel
WXGA (1280x800 dots)
2,500:1 (Full white/full black)*
Ultra high-pressure mercury lamp 210 W type
3000H (Lamp mode: High)
4500H (Lamp mode: Standard)
2
6000H (Lamp mode: Low)
Max. 6000H
2
Same time as the lamp replacement is
recommended
Zoom / Focus Approx. 1.05x Manual Zoom / Manual Focus
Manual, Vertical +/- 4%
Lens Shift
Horizontal + /- 2%
Throw Ratio 0.27:1 to 0.29:1
70" to 130"
Mini D-sub 15-pin (RGB/Y Pb Pr)
INPUT A
Audio: Stereo mini jack
Mini D-sub 15-pin (RGB)
INPUT B
Audio: Stereo mini jack
HDMI® (Digital RGB/Y Pb Pr, Digital Audio)
INPUT C
(HDCP support)
Pin Jack
VIDEO IN
Audio : Pin jack (x2) (shared with S VIDEO IN)
Mini DIN 4-pin
S VIDEO IN
Audio : Pin jack (x2) (shared with VIDEO IN)
Mini D-sub 15-pin
Monitor OUT
(from INPUT A and INPUT B)
Audio OUT Stereo mini jack (variable out)*
RS-232C D-sub 9-pin (male)
LAN RJ-45, 10BASE-T/100BASE-TX
USB Type-A, Type-B
Microphone
Mini jack
input
16Wx1 (monaural)
H: 15 to 92 kHz, V: 48 to 92 Hz
Computer Maximum display resolution :
Signal Input 1600x1200 dots
Video(Composite), 15k(480/60i, 575/50i),
Video
DTV (480/60p, 575/50p, 720/60p, 720/50p,
Signal Input
1080/60i, 1080/50i, 1080/60p, 1080/50p)
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
AC 100 V to 240 V, 3.0 A to 1.3 A, 50 Hz/60 Hz
291 W (AC 100 V-120 V)
282 W (AC 220 V-240 V)
5.7 W (Std)/ 0.5 W (Low) (AC 100V-120 V)
5.9 W (Std)/ 0.5 W (Low) (AC 220V-240 V)
384.4 x 122.5 x 423.4 mm
15 1/8 x4 13/16 x16 21/32 "
6.9kg /15 lb 3 oz
LMP-E212
IFU-WLM3
4-400-488-01 (FILTER A [Outside] )
4-400-490-01 (FILTER B [Inside] )
(Filters are cleanable)
1-490-463-11 (RM-PJ8)
1
3
1/13
