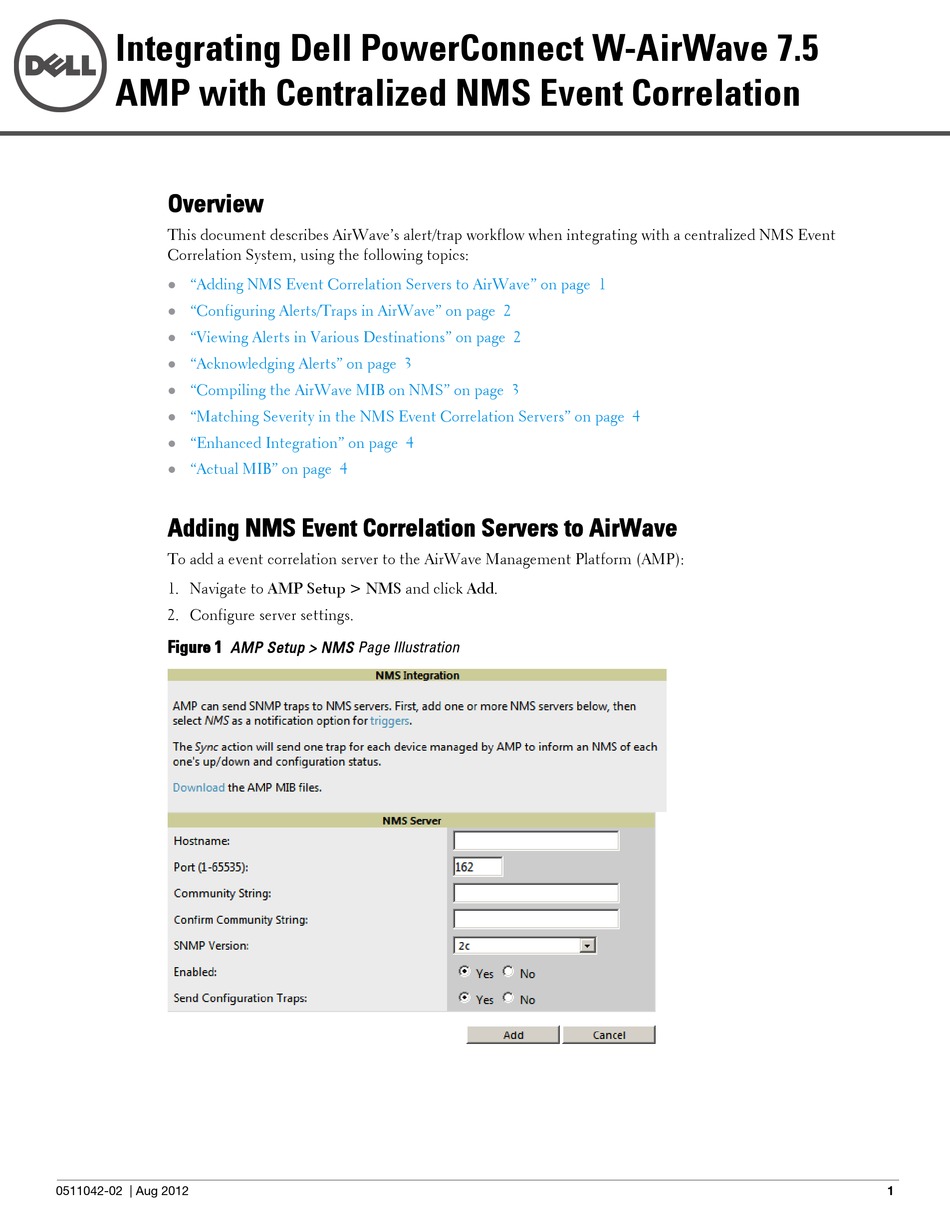

Integrating Dell PowerConnect W-AirWave 7.5
AMP with Centralized NMS Event Correlation
Overview
This document describes AirWave's alert/trap workflow when integrating with a centralized NMS Event
Correlation System, using the following topics:
"Adding NMS Event Correlation Servers to AirWave" on page 1
"Configuring Alerts/Traps in AirWave" on page 2
"Viewing Alerts in Various Destinations" on page 2
"Acknowledging Alerts" on page 3
"Compiling the AirWave MIB on NMS" on page 3
"Matching Severity in the NMS Event Correlation Servers" on page 4
"Enhanced Integration" on page 4
"Actual MIB" on page 4
Adding NMS Event Correlation Servers to AirWave
To add a event correlation server to the AirWave Management Platform (AMP):
1. Navigate to AMP Setup > NMS and click Add.
2. Configure server settings.
Figure 1
AMP Setup > NMS Page Illustration
0511042-02 | Aug 2012
1
Advertisement
Related Manuals for Dell PowerConnect W-Airwave
Summary of Contents for Dell PowerConnect W-Airwave
- Page 1 Integrating Dell PowerConnect W-AirWave 7.5 AMP with Centralized NMS Event Correlation Overview This document describes AirWave’s alert/trap workflow when integrating with a centralized NMS Event Correlation System, using the following topics: “Adding NMS Event Correlation Servers to AirWave” on page 1 ...
- Page 2 Viewing Alerts in Various Destinations As seen on the System > Alerts page of the AirWave console: Figure 3 System > Alerts Page Illustration As seen in email from the recipient’s perspective: Dell PowerConnect W-AirWave 7.5 | NMS Integration Guide...
-
Page 3: Acknowledging Alerts
NMS server. Compiling the AirWave MIB on NMS 1. Navigate to AMP Setup > NMS. 2. Click on the Download link. 3. Transfer to NMS server. Dell PowerConnect W-AirWave 7.5 | NMS Integration Guide... - Page 4 SYNTAX INTEGER MAX-ACCESS read-only STATUS current DESCRIPTION "Level 1-6" ::= { awampEventObject 102 } awampEventDescription OBJECT-TYPE SYNTAX DisplayString MAX-ACCESS read-only STATUS current DESCRIPTION "Concatenated String produced from AMP." ::= { awampEventObject 103 } Dell PowerConnect W-AirWave 7.5 | NMS Integration Guide...
- Page 5 AP for a period of time. " ::= { awampEventPrefix 3 } toomuchBWAMP NOTIFICATION-TYPE OBJECTS { awampEventID, awampEventSeverityCode, awampEventDescription } STATUS current DESCRIPTION "This trap is sent when there is too much BW being Dell PowerConnect W-AirWave 7.5 | NMS Integration Guide...
- Page 6 NOTIFICATION-TYPE OBJECTS { awampEventID, awampEventSeverityCode, awampEventDescription } STATUS current DESCRIPTION "This trap is sent when the AMP discovers a Rogue AP." ::= { awampEventPrefix 12 } downAP NOTIFICATION-TYPE OBJECTS { awampEventID, Dell PowerConnect W-AirWave 7.5 | NMS Integration Guide...
- Page 7 DOWN by the AMP." ::= { awampEventPrefix 15 } genericTrap NOTIFICATION-TYPE OBJECTS { awampEventID, awampEventSeverityCode, awampEventDescription, awampAPIP } STATUS current DESCRIPTION "This trap will catch things not defined." ::= { awampEventPrefix 50 } Dell PowerConnect W-AirWave 7.5 | NMS Integration Guide...
