Insignia NS-24E200NA14 Quick Setup Manual

QUICK SETUP
GUIDE
24" LED TV
NS-24E200NA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
1 2
4 5
USER GUIDE ONLINE!
7 8
0
We are going green so a copy of your
ENTER
ASPECT
User Guide is not provided in the box
+
VOL MUTE
-
SLEEP FAVORITE
but is available online.
Go to www.insigniaproducts.com,
NS-RC4NA-14
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .

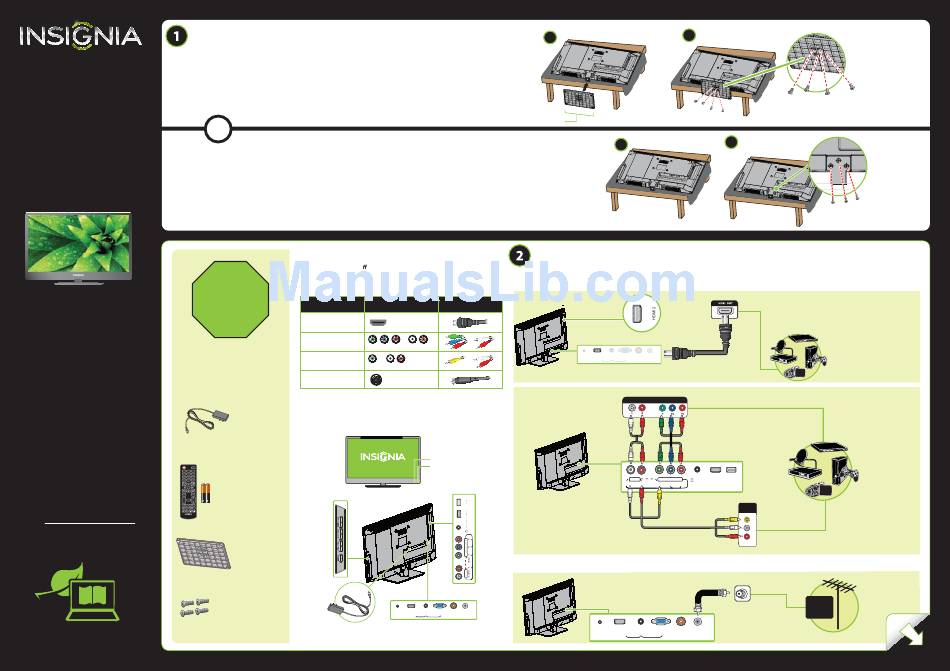

START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Secure the TV stand to the TV with the four provided screws.
- OR -
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
B Remove the three screws that secure the stand column to the TV,
then remove the stand column.
See the instructions that came with your wall mount for more information about how to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power cable in until
all other devices have
VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
GOOD
Note: You can use the HDMI 1/DVI jack to connect a DVI device to your TV. Attach an
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device's jack.
Power cable
Features
Front view
INPUT
3
6
9
Remote control
and two AAA batteries
CCD
CH
Back view
MTS/ASP PICTURE
AUDIO
TV stand
B4 type (18mm length)
(4pcs.)
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game console, or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Composite video and analog audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Power indicator
Remote control sensor
How do I connect my TV to an antenna or cable wall jack?
PC / DVI
POWER H D M I 1 / D I V V G A DIGITAL
ANT / CABLE
AUDIO IN OUTPUT
B
Front
B
A
PC / DVI DIGITAL
POWER H D M I 1 / D I V V G A
AUDIO IN OUTPUT ANT / CABLE
AUDIO/VIDEO OUT
Component cable option
AV IN COMPONENT IN / AUDIO OUT HDMI 2 USB
L - AUDIO - R VIDEO / Y P P
B R
PC / DVI
DIGITAL
POWER H D M I 1 / D I V V G A
ANT / CABLE
AUDIO IN OUTPUT
B4 type (18mm length)(4pcs.)
Multipurpose jacks: You can plug any
device that uses HDMI into the HDMI
1/DVI jack. However, a DVI device must
be connected to the HDMI 1/DVI jack.
See the instructions that came with
your DVI device for more information.
Note: The component video and AV
jacks are shared. This means you can
connect only one component video or
AV device at a time. We suggest using
HDMI if your device supports it.
AUDIO/VIDEO Note: Connect the yellow video cable
OUT
connector to the green VIDEO/Y jack
on the back of your TV.
AV cable option
CABLE
OVER
