- Page 1 Dell DVS Simplified Appliance Reference Architecture Dell Desktop Virtualization Solutions 10/29/2012...
-
Page 2: Table Of Contents
4.2.4 Persistent vs. Non-Persistent Desktop Characteristics ......21 4.2.5 Persistent vs. Shared Image Disk Space Planning ........21 4.3 Dell Wyse Xenith 2 and Xenith Pro Zero Clients ........... 23 5 Software Components ..............24 5.1 Citrix VDI-in-a-Box 5.1 ................. 24 5.2 The DVS Simplified Hypervisors ............... - Page 3 8 High Availability ................. 67 8.1 DVS Simplified Appliance Resiliency ............67 9 Customer Provided Stack Components ..........68 9.1 Customer Provided Switching Requirements ..........68 10 Conclusion ................69 11 Acknowledgements ..............70 Dell DVS Simplified Appliance Reference Architecture...
-
Page 4: Executive Summary
100 user deployment. In this way, Dell‖s Desktop Virtualization Solutions (DVS) are indeed giving you the power to do more. -
Page 5: Introduction
Introduction Introducing the DVS Simplified Appliance Dell’s DVS Simplified Appliance is a simple, practical VDI appliance designed specifically to address the business and technical needs of mid-sized virtual desktop deployments so you can unlock innovation and productivity enabled by the mobile “consumerization”... -
Page 6: Why Dell
Dell server hardware to radically simplify management and provisioning of desktops Affordable All in one appliance – Integrates VDI Manager software, Dell ProSupport and Dell PowerEdge servers to create a cost-efficient simple appliance with no requirement for network storage ... -
Page 7: Feature Overview
The solution will maintain long term agility and financial viability for years to come. Differentiation: Only Dell offers an end-to-end solution. Single point of contact for all hardware, software and services support. Feature Overview Design Principles 2.4.1... -
Page 8: Ideal Deployments
Ideal Deployments The Dell DVS Simplified Appliance is designed for the progressive mid-market VDI customer supporting anywhere from 50 users to hundreds of end users. While these customers may have considerable IT expertise, they may not have the resources to design and implement a highly flexible and scalable desktop virtualization solution. -
Page 9: When Is Dvs Simplified Appliance Right For Me
When is DVS Simplified Appliance Right for Me? The Dell DVS Simplified Appliance is specifically targeted at customers that have hundreds of users versus the DVS Enterprise customers that have thousands of users. DVS Simplified is an architecture that has been perfected to meet the features and requirements of small and medium business. -
Page 10: New Features
IT departments can maintain one master copy of desktop images while preserving the personalization of user applications and data. This dramatically reduces recurring management overhead and can cut data center storage costs by up to 90 percent. Dell DVS Simplified Appliance Reference Architecture... -
Page 11: Dell Prosupport And Professional Services Overview
With Dell ProSupport, customers can access highly trained experts to help resolve any issue quickly and effectively 24 hours a day, 365 days per year. Additionally, Dell ProSupport provides access to software updates, bug fixes/patches and product updates for Citrix VDI-in-a-Box and Citrix XenServer. -
Page 12: Desktop Virtualization Solutions Overview
Dell DVS Simplified Appliance. Desktop Virtualization Solutions Overview A typical Dell DVS Enterprise VDI deployment requires components that are not needed for the typical DVS Simplified Appliance customer. An illustration of a typical DVS Enterprise deployment is shown in Figure 1 and described below: Provisioning Servers: These management servers control the dynamic provisioning and de-allocation of virtual desktops. - Page 13 While this DVS Enterprise VDI architecture is cost-effective for large deployments, it requires a sizable investment that may not be efficient for smaller deployments. Dell configures the solution for customers and provides a thoroughly-tested, well-integrated appliance.
- Page 14 PowerEdge servers. Then add the new servers to the VDI-in-a-Box grid by answering two simple questions posed by the Citrix management software. VDI-in-a-Box automatically prepares the new servers with the appropriate desktop images and load balances the desktop workload across the grid. Figure 2: Citrix VDI-in-a-Box Dell DVS Simplified Appliance Reference Architecture...
-
Page 15: Solution Architecture
3.1.1 Customers can now choose between two appliance hardware form factors. The DVS Simplified appliance can either be ordered as a rack-based solution based on Dell‖s PowerEdge R720 platform, or as a tower-based solution based on Dell‖s PowerEdge T620 platform. -
Page 16: Appliance User Loads
VDI-in-a-box Core Components DVS Simplified Appliance VDI-in-a-box Load Template Balancing Manager VDI Desktop Pool Citrix vdiManager Common Base OS Image Hypervisor Platform Dell DVS Simplified Appliance Reference Architecture... - Page 17 Active Directory Integration. VDI-in-a-Box optionally uses Active Directory for security services like authentication. o Antivirus Management - An optional component that is not built into the solution but is highly recommended. Dell DVS Simplified Appliance Reference Architecture...
-
Page 18: Hardware Components
Dell‖s newest 12G PowerEdge R720 servers feature energy-tuned technologies designed to reduce power consumption while increasing performance and capacity. Enhancements include: ... -

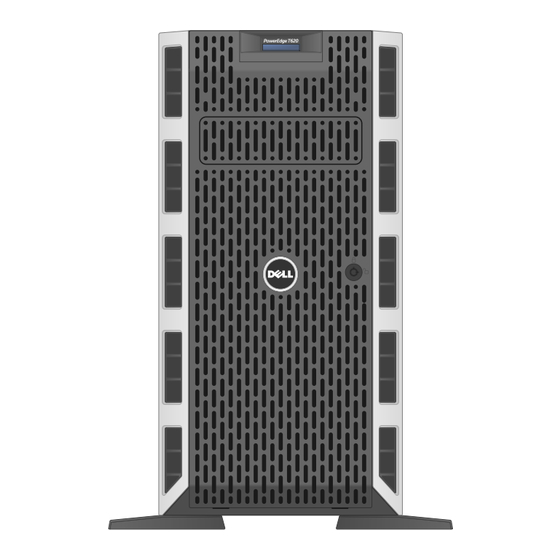

Page 19: Poweredge T620 Tower-Based Solution
R720; only CPU1 delivering it in Dell‖s tower-based form factor. The T620 tower-based form factor is ideal for deployments where rack and power resources are unavailable (small branch offices or remote... -
Page 20: Disk Space Requirement By Workload
Recommended Buffer Space 10% × 20GB ×129 VMs = 258 GB Standard Golden Images 2 x 25GB × 2 Golden Images = 100GB Workload Virtual Machines 15% × 25GB × 100 VMs = 375GB Dell DVS Simplified Appliance Reference Architecture... - Page 21 15% × 30GB × 35 VMs = 158GB Total Server Capacity 120GB + 158GB + 88GB(Swap) + 75GB (vdiManager VM) = 441GB per Server Recommended Buffer Space 10% × 30GB × 35 VMs = 105GB Dell DVS Simplified Appliance Reference Architecture...
-
Page 22: Drive Iops Requirement By Workload
PVD desktop users as well as to support an increase in IOPS without a dramatic increase in the price of the solution. These additional drives will also allow the array to be configured as RAID-10; Dell DVS Simplified Appliance Reference Architecture... -
Page 23: Persistent And Non-Persistent Desktops Defined
All desktop-related modifications, such as user installed applications, are removed when the user logs off, reverting back to a clean image on reboot. User-specific settings (persona/profile) that are recorded in the user profile, however, can optionally be stored and re-used. Dell DVS Simplified Appliance Reference Architecture... -
Page 24: Persistent Vs. Non-Persistent Desktop Characteristics
Note: Any number of golden images can be supported. The table below is displaying three data points of 2, 5 and 10 golden images for example purposes only. Dell DVS Simplified Appliance Reference Architecture... - Page 25 30 GB 2.5 GB Basic 20 GB 1 GB Standard 25 GB 1.5 GB Premium 30 GB 2.5 GB Basic 20 GB 1 GB Standard 25 GB 1.5 GB Premium 30 GB 2.5 GB Dell DVS Simplified Appliance Reference Architecture...
-
Page 26: Dell Wyse Xenith 2 And Xenith Pro Zero Clients
Dell Wyse cloud client devices. Xenith 2 delivers outstanding performance based on its system-on-chip (SoC) design optimized with its Dell Wyse zero architecture and a built-in media processor delivers smooth multimedia, bi-directional audio and Flash playback. Flexible mounting options let you position Xenith 2 vertically or horizontally on your desk, on the wall or behind your display. -
Page 27: Software Components
Desktops as a cloud-based service and managed services: The scale-on-demand ● architecture of VDI-in-a-Box enables service providers to incrementally scale their data center as demand grows, without having to over-invest and over- provision upfront. Dell DVS Simplified Appliance Reference Architecture... - Page 28 If the host server fails, another server in the grid becomes the host and fields the connection requests. The grid-wide virtual IP address feature provides end-to-end high availability without requiring a load Dell DVS Simplified Appliance Reference Architecture...
- Page 29 VDI-in-a-Box allows the use of a Network Time Protocol server as the master clock with which all the VDI Managers in the grid synchronize. This ensures that cross-server logs are consistent with respect to time. Click HERE to learn more about Citrix VDI-in-a-Box. Dell DVS Simplified Appliance Reference Architecture...
-
Page 30: The Dvs Simplified Hypervisors
The free edition of XenServer starts with a 64-bit hypervisor and centralized management, live migration and conversion tools to create a virtual Dell DVS Simplified Appliance Reference Architecture... -
Page 31: Microsoft Licensing With Dvs Simplified
For more information, please refer to “VDI-in-a-Box Best Practices for Microsoft Office Activation:” http://support.citrix.com/article/CTX134351. Citrix Desktop Receiver The Citrix Desktop Receiver is a client-based plug-in that is installed on the user‖s endpoint device. This is to be used in-conjunction with Citrix VDI-in-a-box when the user Dell DVS Simplified Appliance Reference Architecture... -
Page 32: Citrix Xencenter
Communication with XenServer infrastructure VDI-in-a-box VDI TCP 1494/2598 Citrix ICA/HDX Client Communication VDI-in-a-box Web UI TCP 80/443 VDI-in-a-box Web UI for admin and user access Click HERE for more information on VDI-in-a-Box and XenDesktop port communication. Dell DVS Simplified Appliance Reference Architecture... -
Page 33: Citrix Desktop Receiver
Read/Write Print spooler directory – Best practice Windows Active Directory Integration Active Directory (AD) is required for user authentication for desktops in the Windows Domain. You can use any read-only user account from AD to provide authentication. You Dell DVS Simplified Appliance Reference Architecture... -
Page 34: Network Architecture
HW Management VDI-in-a-Box & VDI Hypervisor Management MASTER 1/7 2/8 3/9 Unit 7-12 /ACT /HDX DIAG STACK ID TEMP 4/10 5/11 6/12 RESET LNK/ACT LNK/ACT LNK/ACT LNK/ACT 1 Gbps Network http://support.citrix.com/proddocs/topic/vdi-51/vdi-architecture.html Dell DVS Simplified Appliance Reference Architecture... -
Page 35: End-User Workload Characterization
In the Dell Desktop Virtualization solution this will map directly to the SLA levels we offer in our Integrated Stack. There are three levels, each of which is bound by specific metrics and capabilities. -
Page 36: Premium Workload Characterization
Reservation Disk Space Allocation Premium 2.5GB 1.5GB This user workload leverages a shared desktop image emulates a high level knowledge worker. Eight applications are open simultaneously and session idle time is approximately two minutes. Dell DVS Simplified Appliance Reference Architecture... -
Page 37: Workload Characterization Testing Details
The heavy workload is based on the standard workload; the differences in comparison to the standard workload are: Type rate is 130ms per character. Idle time total is only 40 seconds. The heavy workload opens up to 8 apps simultaneously Dell DVS Simplified Appliance Reference Architecture... -
Page 38: Performance And Testing
Active Directory ● ● DHCP ● Anti-Virus ● Stratusphere UX calculates the User Experience by monitoring key metrics within the Virtual Desktop environment, the metrics and their thresholds are shown in the following screen shot; Dell DVS Simplified Appliance Reference Architecture... -
Page 39: Testing Summary
Dell team found it was necessary to configure the Login VSI tool to launch more sessions than were actually needed since there is always a percentage of the users that fail to fully connect in every run, this is something that was noted by Login Consultants in their documentation. -
Page 40: Testing
Testing Methodology 7.2.1 The testing undertaken by the Dell DVS Engineering team was intended to provide a set of results that were as closely aligned with a production environment as possible within a lab based environment. In addition multiple runs for each workload were completed to allow the team to understand and record any performance differences within the environment. -
Page 41: Testing Results - Standard Configuration
Testing Results – Standard Configuration Hyper-V 2008 R2 7.3.1 Test: Standard Run 1 (110 Users) 7.3.1.1 The graphs below show the CPU, memory, local disk IOPS, network and VDI UX scatter plot results from this validation. Dell DVS Simplified Appliance Reference Architecture... - Page 42 Avg. Duration Load Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 14.13 1.59% 621.72 4.29 25.60 52.41 Maximum 15.00 2.27% 673.87 4.30 41.25 172.00 Minimum 13.00 0.43% 569.27 4.27 2.07 9.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 43 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 0.66% 3.31 252.46 560.40 623.56 6.11 4.23 19.30 Maximum 1.09% 10.20 398.00 594.68 1673.00 14.59 9.47 46.45 Minimum 0.37% 1.49 169.00 533.56 322.00 4.25 0.59 2.59 Dell DVS Simplified Appliance Reference Architecture...
- Page 44 Avg. Duration Load Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 14.22 1.28% 609.31 4.30 18.69 40.83 Maximum 16.00 2.22% 664.29 4.43 41.74 130.00 Minimum 13.00 0.32% 565.50 4.26 0.64 8.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 45 Test: Basic Run (140 Users) 7.3.1.3 The graphs below show the CPU, memory, local disk IOPS, network and VDI UX scatter plot results from this validation. Dell DVS Simplified Appliance Reference Architecture...
- Page 46 Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 15.38 35.67 1.56% 601.50 5.10 21.38 25.29 Maximum 17.00 35.67 3.76% 642.19 9.80 41.65 39.00 Minimum 13.00 35.67 0.32% 553.48 4.27 0.90 11.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 47 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 0.83% 1.13 303.84 621.24 942.36 7.07 7.64 17.83 Maximum 1.14% 2.03 501.00 658.79 1632.00 15.11 9.45 53.36 Minimum 0.41% 0.79 196.00 593.66 482.00 4.17 4.80 0.70 Dell DVS Simplified Appliance Reference Architecture...
- Page 48 Avg. Duration Load Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 17.00 2.22% 692.30 4.29 22.94 192.00 Maximum 17.00 2.22% 692.30 4.29 22.94 192.00 Minimum 17.00 2.22% 692.30 4.29 22.94 192.00 Dell DVS Simplified Appliance Reference Architecture...
-
Page 49: Xenserver 6.0.2
Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 1.12% 5.09 412.76 731.30 2068.93 12.58 5.85 26.10 Maximum 1.60% 7.22 583.31 779.06 2796.12 23.70 9.57 58.92 Minimum 0.79% 3.35 223.25 681.36 1370.77 4.78 1.28 3.89 Dell DVS Simplified Appliance Reference Architecture... - Page 50 15.00 30.00 1.48% 706.81 4.76 13.61 14.00 Test: Standard Run 2 (110 Users) 7.3.2.2 The graphs below show the CPU, memory, local disk IOPS, network and VDI UX scatter plot results from this validation. Dell DVS Simplified Appliance Reference Architecture...
- Page 51 Graphics Disk Network Memory Time (s) Intensity IOPS I/O (KB/s) Average 19.08 73.69 2.61% 828.92 15.76 31.38 67.99 Maximum 26.00 124.50 3.66% 995.59 76.19 42.83 118.00 Minimum 13.00 41.00 1.24% 733.30 4.73 1.54 9.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 52 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 1.55% 5.36 684.55 770.12 3288.67 24.89 6.03 26.24 Maximum 2.04% 6.90 873.06 809.43 4342.80 33.38 8.77 40.40 Minimum 0.96% 3.76 348.72 716.57 1496.04 14.16 3.36 10.27 Dell DVS Simplified Appliance Reference Architecture...
- Page 53 Test: 10GB PVD Standard Run (50 Users) 7.3.2.4 Each desktop was configured to use a 10GB personal disk. The graphs below show the CPU, memory, local disk IOPS, network and VDI UX scatter plot results from this validation. Dell DVS Simplified Appliance Reference Architecture...
- Page 54 Disk Network Load Memory Intensity IOPS I/O (KB/s) Time (s) Average 17.08 91.33 2.71% 858.76 11.90 41.28 58.75 Maximum 20.00 93.00 3.97% 952.96 43.17 47.58 107.00 Minimum 14.00 88.00 2.28% 808.61 4.73 34.90 22.00 Dell DVS Simplified Appliance Reference Architecture...
-
Page 55: Hyper-V
Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 2.26% 3.58 268.54 572.68 644.54 14.60 4.11 12.31 Maximum 3.99% 6.79 397.00 621.66 1,205.00 28.46 8.81 48.46 Minimum 0.94% 1.79 149.00 518.11 301.00 4.27 0.53 0.32 Dell DVS Simplified Appliance Reference Architecture... - Page 56 Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 21.33 85.00 3.28% 609.20 4.79 28.66 41.06 Maximum 33.00 85.00 5.41% 655.14 8.34 46.58 69.00 Minimum 15.00 85.00 0.70% 559.76 4.27 0.57 4.33 Dell DVS Simplified Appliance Reference Architecture...
- Page 57 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 1.19% 3.99 209.36 565.68 604.58 6.53 3.09 11.78 Maximum 2.30% 10.38 494.00 637.13 1457.00 21.33 11.10 45.29 Minimum 0.83% 1.81 172.00 537.35 200.00 4.26 0.49 3.82 Dell DVS Simplified Appliance Reference Architecture...
- Page 58 Avg. Duration Load Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 18.86 2.69% 616.59 4.79 19.53 35.90 Maximum 24.00 4.65% 680.14 6.80 40.41 103.00 Minimum 17.00 0.60% 573.06 4.26 0.51 6.68 Dell DVS Simplified Appliance Reference Architecture...
- Page 59 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 1.31% 4.53 223.04 552.56 597.51 6.82 3.20 9.85 Maximum 2.83% 10.64 451.00 609.91 2009.00 17.03 7.31 20.54 Minimum 0.73% 1.50 173.00 537.69 369.00 4.23 0.60 4.50 Dell DVS Simplified Appliance Reference Architecture...
- Page 60 Test: 10GB PVD Standard Run (30 Users) 7.3.3.4 Each desktop was configured to use a 10GB personal disk.The graphs below show the CPU, memory, local disk IOPS, network and VDI UX scatter plot results from this validation. Dell DVS Simplified Appliance Reference Architecture...
- Page 61 Avg. Avg. Avg. Avg. Duration Load Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 3.09% 649.58 4.27 14.70 77.49 Maximum 4.78% 696.04 4.29 30.41 163.00 Minimum 1.09% 611.68 4.18 0.57 8.45 Dell DVS Simplified Appliance Reference Architecture...
-
Page 62: Xenserver 6.0.2
Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 2.78% 4.75 280.63 705.22 1650.83 7.61 6.99 16.23 Maximum 4.53% 8.21 582.31 789.90 2896.10 21.73 19.24 95.94 Minimum 1.51% 2.16 197.68 673.54 1220.13 4.72 0.33 0.99 Dell DVS Simplified Appliance Reference Architecture... - Page 63 Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 32.62 118.91 7.66% 821.47 14.00 34.16 67.88 Maximum 39.00 171.00 11.28% 957.72 58.30 43.25 148.00 Minimum 28.00 69.75 3.77% 714.37 4.73 16.82 14.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 64 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 2.94% 5.23 358.24 730.02 1557.43 15.37 4.51 23.99 Maximum 5.18% 9.34 772.24 819.10 2322.25 34.20 7.78 41.16 Minimum 1.92% 2.38 214.30 681.89 1263.30 4.88 0.62 3.87 Dell DVS Simplified Appliance Reference Architecture...
- Page 65 Total Load Graphics Disk Duration Memory Time Intensity IOPS (KB/s) Average 30.73 77.22 6.65% 828.04 21.09 28.00 24.59 Maximum 35.00 77.33 13.95% 970.26 93.55 42.65 63.00 Minimum 22.00 77.00 2.81% 714.21 4.76 0.59 6.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 66 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 2.50% 5.28 248.88 666.01 1418.70 7.87 1.90 10.46 Maximum 4.27% 10.00 505.41 722.80 2636.85 9.97 15.33 27.30 Minimum 1.77% 1.63 209.94 650.37 1236.27 4.71 0.40 2.96 Dell DVS Simplified Appliance Reference Architecture...
- Page 67 Disk Network Load Memory Intensity IOPS I/O (KB/s) Time (s) Average 33.46 46.33 7.35% 788.45 14.86 29.47 49.75 Maximum 42.00 62.00 13.95% 960.93 93.55 45.80 224.00 Minimum 22.00 15.00 2.91% 686.40 4.76 1.00 6.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 68 Queue Switches Faults IOPS (MB) Intensity (KB/s) Averages 4.57% 1.54 480.29 755.93 1755.74 16.22 16.10 56.40 Maximum 9.05% 2.59 1113.36 880.33 3841.25 45.75 22.77 141.57 Minimum 2.16% 0.49 244.19 694.34 1028.77 5.08 10.06 0.00 Dell DVS Simplified Appliance Reference Architecture...
- Page 69 Graphics Disk Network Memory Time Intensity IOPS I/O (KB/s) (ms) Average 26.23 287.08 8.21% 794.76 10.49 32.21 37.53 Maximum 33.00 639.00 12.70% 907.53 62.17 37.96 196.94 Minimum 19.00 47.00 6.72% 750.55 5.18 25.58 8.00 Dell DVS Simplified Appliance Reference Architecture...
-
Page 70: High Availability
Regardless of deployment size only one (1) extra server is required for failover. Dell DVS Simplified Appliance Reference Architecture... -
Page 71: Customer Provided Stack Components
1Gbps network connectivity. 1Gbps Ports 1x for Hypervisor Management 1x for Hardware Management 1x for Virtual Desktop Access VLAN Support IEEE 802.1Q tagging and port-based VLAN support. Stacking Capability Optional Dell DVS Simplified Appliance Reference Architecture... -
Page 72: Conclusion
Citrix and Microsoft, with the portfolio of Dell Wyse software and with powerful end points including Dell Wyse thin, zero and cloud clients. In that way, Dell is giving small and medium business owners the power to do more. The Dell Team is with you every step of the way to ensure extremely high levels of performance that meet or exceed end users‖... -
Page 73: Acknowledgements
Citrix Systems Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
