Insignia NSDXA2 Quick Setup Manual

Congratulations on your purchase of a high-quality Insignia
product. Your NS-DXA2 represents the state of the art in
converter box technology and is designed for reliable and
trouble-free performance.
Package contents
• Converter box
• Remote control and batteries (2)
• AC adapter
• Coaxial cable
• Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
We are going green so a copy of your User Guide is not provided
in the box but is available online. Go to
www.insigniaproducts.com, then click Support & Service.
Enter your model number in the box under Manual,
Firmware, Drivers & Product Information, then click .
OPEN SOURCE SOFTWARE NOTICE
This product includes zlib: Copyright © 1995-2005
Jean-loup Gailly and Mark Adler. Additional terms can be found
in your User Guide at www.insigniaproducts.com.
Before using your new product, please read these
instructions to prevent any damage.
Installing the remote control batteries
1 Press the battery compartment cover latch, then remove the
cover.
2 Insert two AAA Alkaline batteries (included) into the battery
compartment. Make sure that the + and – symbols on the
batteries match the + and – symbols in the battery compartment.
3 Replace the cover.

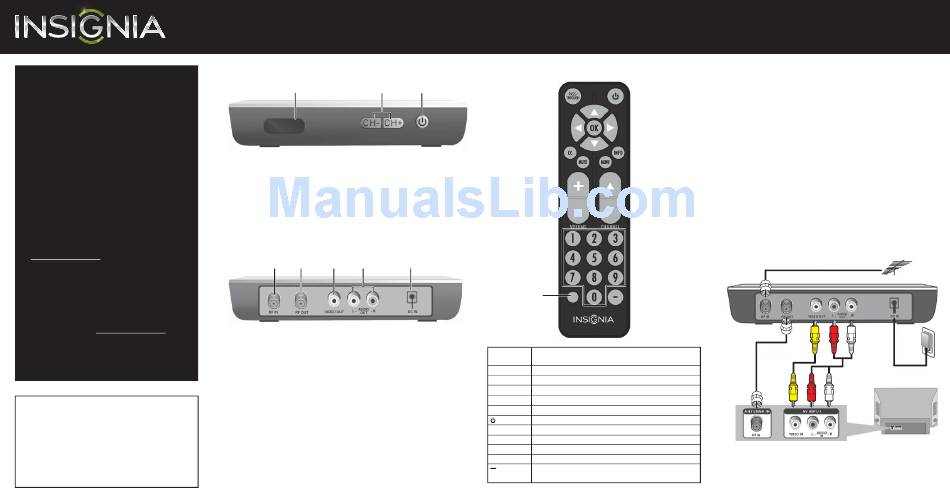

Front view
Power LED Channel - / +
IR Remote Sensor
NOTE: Do not cover the
window with objects.
Back view
VIDEO AUDIO L/R
RF IN RF OUT OUT OUT DC IN
Remote control
Power button
Currently
not in use
PASS-THROUGH Press to by-pass the converter box so your TV functions as it did without the
converter box (receive analog channels only).
OK Press to select a highlighted menu item.
CC Press to turn on Closed Captioning.
MUTE Press to turn off the sound.
VOLUME +/- Press to increase or decrease volume.
Numbers Press to enter channel number or parental control password.
(power) Press to turn the converter box ON and OFF.

Press to navigate through the on-screen menus.
INFO Press to display information about the current channel.
MENU Press to open or close the on-screen menu.
CHANNEL 
Press to change channels.
Press to enter a sub channel number. For example, to enter sub channel 1 for
the main channel 2, press 2, press this button, then press 1.
Quick Setup Guide
NS-DXA2 | Converter Box
Connecting your converter box
1 Connect your existing antenna cable to the RF IN jack on the converter box. You
may need to remove the antenna cable from the back of your TV and connect it to
the converter box.
Note: An antenna connection is mandatory.
2 Connect the converter box to your TV:
Option 1 (Best):
A. Connect one end of a yellow video cable (not included) to the VIDEO OUT jack
on the converter box. Connect the other end to the VIDEO IN jack on the TV.
B. Connect one end of the red and white audio cable (not included) to the AUDIO
OUT L/R jack on the converter box. Connect the other end to the AUDIO IN
L/R jack on the TV.
Option 2 (Good): Connect one end of a coaxial cable (included) to the RF OUT
jack on the converter box. Connect the other end to the RF IN jack on the TV.
3 Connect the AC adapter to the DC IN jack and to an AC outlet.
4 Follow Setting up your converter box on the other side of this guide to complete
setting up your converter box.
Antenna
Video cable
(not included)
AC adapter
Coaxial cable Audio cable
(included) (not included)
OR
TV
