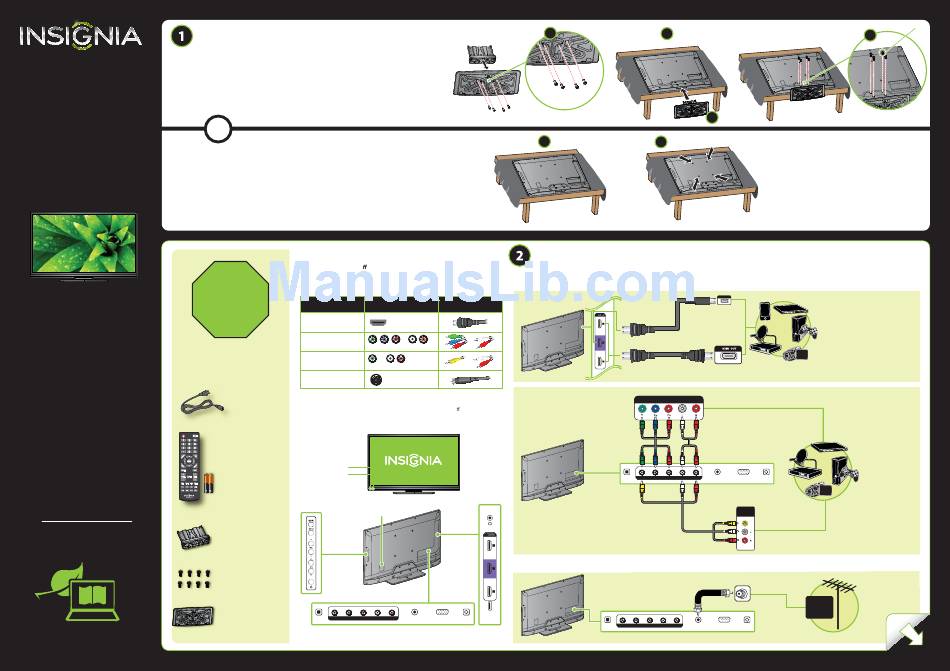

Insignia NS-39E400NA14 Quick Setup Manual

QUICK
SETUP GUIDE
39" LED TV
NS-39E400NA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Secure the stand column to the TV stand using the four provided screws.
B Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
C Insert the stand column into the TV.
D Secure the stand column to the TV with the four provided screws.
- OR -
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
B Locate the mounting screw holes on the back of your TV and see the
instructions that came with your wall mount for more information
about how to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power cord in until all
other devices have
VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Note: You can use the HDMI 3/DVI jack to connect a DVI device to your TV. Attach an
Power cord
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device's jack. See your online User Guide for more information about di erent types of
HDMI (ARC, DVI, MHL).
Features
Front view
Power indicator
Remote control sensor
Remote control
and two AAA batteries
Back view
Power connector
Stand column
M4 (8 mm length) (8)
Y / VIDEO P P L
B R
TV stand
DIGITAL
C C O O M M P P O O N N E E N N T T / / A A V V
OUTPUT
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
A
M4 (8 mm length)
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) and/or connect a device such as a DVD
or Blu-ray Disc player, game station, MHL-enabled device, Roku Streaming Stick or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
/AUDIO
OUT
3
DVI
How do I connect my TV to an antenna or cable wall jack?
2
MHL
1
ARC
R
USB
PC / DVI
ANT / CABLE VGA
AUDIO IN
B
C
B
/AUDIO
OUT
MHL PORT
/AUDIO
OUT
3
DVI
2
MHL
1
ARC
USB
AUDIO/VIDEO OUT
Component cable option
Y / VIDEO P B P R L R
PC / DVI
DIGITAL ANT / CABLE VGA
C C O O M M P P O O N N E E N N T T / / A A V V
OUTPUT AUDIO IN
AUDIO/VIDEO
OUT
AV cable option
VIDEO
Y / VIDEO P P L R
B R
DIGITAL PC / DVI
C C O O M M P P O O N N E E N N T T / / A A V V ANT / CABLE VGA
OUTPUT AUDIO IN
M4 (8 mm length)
D
Multi-purpose jacks: You can plug any
device that uses HDMI into the HDMI1
(ARC), HDMI2 (MHL), or HDMI3 (DVI)
jacks. However, certain devices must be
connected to the HDMI1 (ARC), HDMI2
(MHL), or HDMI3 (DVI) jack. See the
instructions that came with your MHL,
ARC, or DVI device for more information.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
Note: Connect the yellow video
cable connector to the green
Y/VIDEO jack on the back of your TV.
CABLE
OVER
