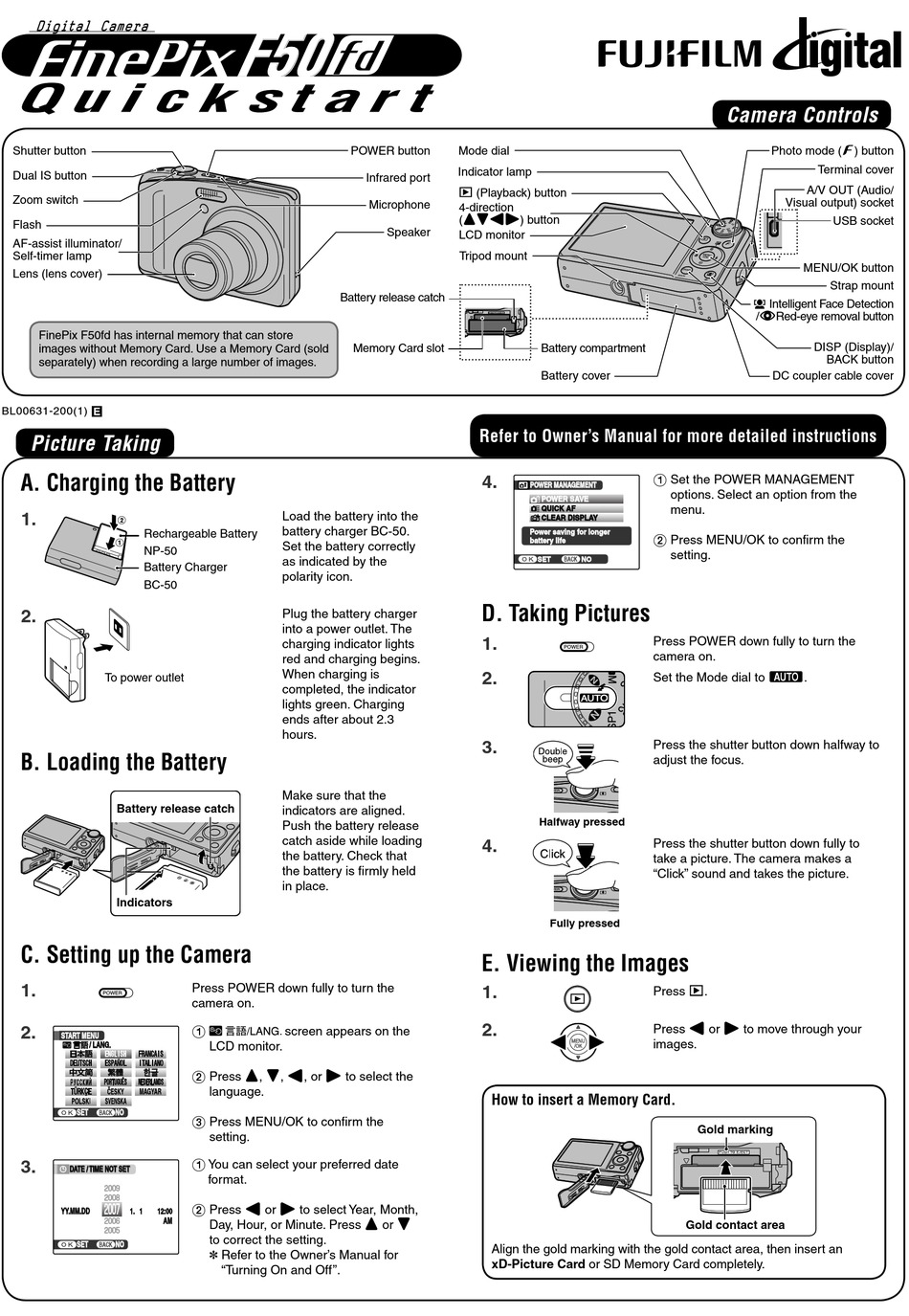

FujiFilm FinePix F50 Quick Start

Shutter button
Dual IS button
Zoom switch
Flash
AF-assist illuminator/
Self-timer lamp
Lens (lens cover)
FinePix F50fd has internal memory that can store
images without Memory Card. Use a Memory Card (sold
separately) when recording a large number of images.
BL00631-200(1)
E
Picture Taking

A. Charging the Battery

1.
Rechargeable Battery
NP-50
Battery Charger
BC-50
2.
To power outlet

B. Loading the Battery

Battery release catch
Indicators

C. Setting up the Camera

1.
2.
START MENU START MENU
/ LANG. / LANG.
SET SET NO NO
3.
DATE / TIME NOT SET DATE / TIME NOT SET
YY.MM.DD YY.MM.DD 1. 1 1. 1 12:00 12:00
AM AM
SET SET NO NO
F50 F50
POWER button
Battery release catch
Memory Card slot
Load the battery into the
battery charger BC-50.
Set the battery correctly
as indicated by the
polarity icon.
Plug the battery charger
into a power outlet. The
charging indicator lights
red and charging begins.
When charging is
completed, the indicator
lights green. Charging
ends after about 2.3
hours.
Make sure that the
indicators are aligned.
Push the battery release
catch aside while loading
the battery. Check that
the battery is firmly held
in place.
Press POWER down fully to turn the
camera on.
A
screen appears on the
LCD monitor.
B Press n, o, p, or q to select the
language.
C Press MENU/OK to confirm the
setting.
A You can select your preferred date
format.
B Press p or q to select Year, Month,
Day, Hour, or Minute. Press n or o
to correct the setting.
✽ Refer to the Owner's Manual for
"Turning On and Off".
Mode dial
Indicator lamp
Infrared port
w (Playback) button
Microphone
4-direction
(nopq) button
Speaker
LCD monitor
Tripod mount
Refer to Owner's Manual for more detailed instructions
4.
POWER MANAGEMENT POWER MANAGEMENT
Power saving for longer Power saving for longer
battery life battery life
SET SET

D. Taking Pictures

1.
2.
3.
4.

E. Viewing the Images

1.
2.
How to insert a Memory Card.
Align the gold marking with the gold contact area, then insert an
xD-Picture Card or SD Memory Card completely.
Battery compartment
Battery cover
A Set the POWER MANAGEMENT
options. Select an option from the
POWER SAVE POWER SAVE
QUICK AF QUICK AF menu.
CLEAR DISPLAY CLEAR DISPLAY
B Press MENU/OK to confirm the
setting.
NO NO
Press POWER down fully to turn the
camera on.
Set the Mode dial to B.
Press the shutter button down halfway to
adjust the focus.
Halfway pressed
Press the shutter button down fully to
take a picture. The camera makes a
"Click" sound and takes the picture.
Fully pressed
Press w.
Press p or q to move through your
images.
Gold marking
Gold contact area

Camera Controls

Photo mode (p) button
Terminal cover
A/V OUT (Audio/
Visual output) socket
USB socket
MENU/OK button
Strap mount
Intelligent Face Detection
/bRed-eye removal button
DISP (Display)/
BACK button
DC coupler cable cover
