Summary of Contents for Sharp Aquos LC-45GD1E

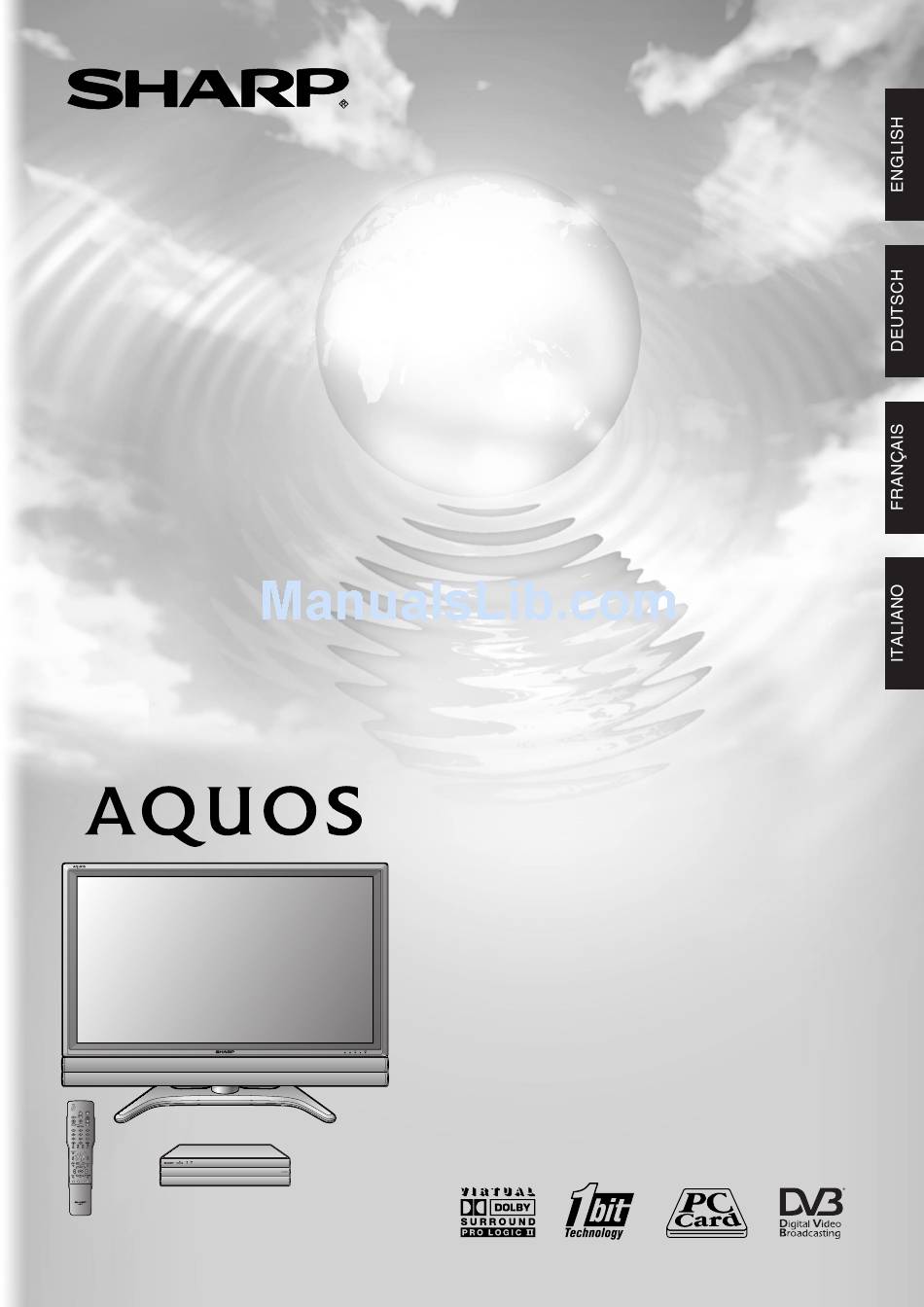

- Page 1 LC - 45GD1E (DISPLAY/DISPLAY/ECRAN/SCHERMO) TU-45GD1E (AVC SYSTEM/AVC-GERÄT/SYSTÈME AVC/SISTEMA AVC) LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN À CRISTAUX LIQUIDES (LCD) TELEVISORE A COLORI LCD OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI...
- Page 2 SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
-
Page 3: Table Of Contents
LCD COLOUR TELEVISION ENGLISH OPERATION MANUAL Contents Contents …………………………………………………… 1 Basic adjustment settings (Digital) …………………… 31 Dear SHARP customer …………………………………… 3 DTV input mode menu items ………………………… 31 Important Safety Precautions ………………………… 3 Selecting DTV mode ………………………………… 31 Supplied accessories …………………………………… 5 About colour buttons …………………………………... - Page 4 Contents Basic adjustment settings (Analogue/Digital) ……… 44 Useful adjustment settings ……………………………… 65 Language setting for on-screen display …………… 44 Image position (for TV/AV input mode) ……………… 65 OPC setting …………………………………………… 44 Audio Only ……………………………………………… 65 Picture adjustments …………………………………… 45 Auto Sync. adjustment (PC input mode only) ……… 65 C.M.S.
-
Page 5: Dear Sharp Customer
Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble- free operation of your product, please read the Important Safety Precautions carefully before using this product. Important Safety Precautions Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. - Page 6 Important Safety Precautions • Cleaning—Unplug the AC cord • The LCD panel used in this from the AC outlet before cleaning product is made of glass. the product. Use a damp cloth to Therefore, it can break when the clean the product. Do not use product is dropped or impact liquid cleaners or aerosol applied.
-
Page 7: Supplied Accessories
Page 13 Operation manual Optional accessories The listed optional accessories are available for the LCD colour TV. Please purchase them at your LC-45GD1E nearest shop. TU-45GD1E • Additional optional accessories may be available in near future. When purchasing, please read the newest catalogue for compatibility and check the availability. -
Page 8: Preparation
Preparation Where to place the System “System” means the Display and AVC System. First select the location where to place the System. Selecting the location of the System • The Display and the AVC System are connected by the system cable. (See page 7 for details.) •... -
Page 9: Setting The System
Preparation Setting the System After putting the Display and the AVC System in place, connect the system cables and AC cords. Use the cable clamps for bundling the cables. Removing the terminal cover Display (rear view) Press the two hooks toward the centre of the Display and remove the cover toward you. - Page 10 Preparation Attaching the clamp and bundling the cables with the clamp Fasten the speaker cable with the holder. Cable clamp Insert the cable clamp in the hole on the Display as shown. Closing the terminal cover Cables come out from the small opening.
-
Page 11: Setting The Avc System With The Stand
Preparation Setting the AVC System with the stand How to install the AVC System vertically using the stand unit. • Use the supplied stand unit for installing the AVC System vertically in an upright position. Stick each spacer to the Attach each cushion to Fit the stand to the AVC stand as shown. -
Page 12: Removing Speakers
Preparation Removing speakers Unfasten the screw used to secure the speaker Unfasten the screws. bracket. Take off the speaker terminal cover. Disconnect the cable from the speaker. CAUTION • Do not remove the stand and speaker from the Display unless using an optional bracket to mount it. •... -
Page 13: Removing The Stand
• Installing the LCD Colour TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury. -
Page 14: Inserting The Batteries
Preparation Inserting the batteries Before using the System for the first time, insert two “AAA” size batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries. Press and slide the battery cover to open it. Insert two supplied “AAA”... -
Page 15: Basic Connection
Preparation Simple operations for watching a TV programme Basic connection Connecting to an antenna To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for coaxial cable. (ex. -
Page 16: Initial Auto Installation
Preparation (Analogue) After this setting, auto search starts with the following Initial auto installation order. 1 Programme auto search When the System powers on for the first time after 2 Auto labelling purchase (see page 20), the initial auto installation is 3 Auto sorting invoked. -
Page 17: Virgin Mode
Preparation (Digital) Digital Video Broadcasting is a transmission scheme. It is much more than a simple replacement for existing Press OK, and Search finds all the digital analogue television transmission. DVB provides more broadcasting channels viewable in your area. stations, clearer picture quality and other services to Search be displayed on screen. -
Page 18: Part Names
Part names Display CHANNEL buttons (Ps/r) MAIN POWER button ( VOLUME buttons INPUT button ( il/k ) OPC indicator Remote control sensor OPC sensor* Remote Control indicator STANDBY/ON indicator *OPC: Optical Picture Control (See page 44.) -
Page 19: Avc System
Part names AVC System Front view INPUT 4 (VIDEO) INPUT 4 (AUDIO L/R) STANDBY/ON indicator INPUT 4 (S-VIDEO) POWER button CARD indicator How to open the door. RESET* SYSTEM RESET** Headphone PC CARD slot (When connecting headphones, the sound from the speakers is muted.) * Press RESET if the system cannot return to its original state after performing various operations. -
Page 20: Remote Control Unit
Part names Remote control unit B (STANDBY/ON) To switch the power on and off. (See page 20.) To switch the Optical Picture Control on and off. (See page 44.) c (DUAL screen) Set the dual picture mode. Press c again to return to normal view. - Page 21 Part names Switch from the Digital-TV mode and other input source. For example, when viewing an image from INPUT2, press DTV to switch to the Digital-TV mode. Press DTV again to return to INPUT2 screen. m (TELETEXT) Select the TELETEXT mode. (all TV image, DTV/DATA image, all TEXT image, TV/TEXT image) (See pages 76 and 77.) DTV input mode: Select DTV data broadcasting and TELETEXT.
-
Page 22: Watching Tv
Watching TV Turning on the power Display Before turning on the power make sure you have completed required connections. (See pages 7 and 13) MAIN POWER (a a a a a ) Press MAIN POWER (a a a a a ) on the Display. •... -
Page 23: Simple Button Operations For Changing Channels
Watching TV (Analogue) Channel display Simple button operations for Channel display changes approximately after 3 changing channels seconds as shown below. You can change channels in several ways. (Example) SAT.1 SAT.1 Using Pr/son the remote control unit • Press Pr to increase channel number. •... - Page 24 Watching TV (Analogue) Using SOUND on the remote control unit In the NICAM TV broadcasts When receiving a stereo signal Each time you press SOUND, the mode switches between NICAM STEREO and MONO. When receiving a bilingual signal Each time you press SOUND, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.
-
Page 25: Simple Button Operation For Changing Volume/Sound
Watching TV Using e on the remote control unit Simple button operation for changing e mutes the current sound output. volume/sound Changing the volume You can change the volume on the Display or on the remote control unit. il l l l l /k k k k k Press e. -
Page 26: Basic Adjustment Settings (Analogue)
Basic adjustment settings (Analogue) Menu operation buttons On-Screen Display Use the following buttons on the remote control to Example operate the menu. [ Option ... Quick Shoot ] MENU Option Audio Only 3D-NR [Off] Mosquito Noise Reduction [Off] Input Select [CVBS] Audio Out Quick Shoot... -
Page 27: Tv/Av Input Mode Menu Items
Basic adjustment settings (Analogue) TV/AV input mode menu items PC input mode menu items List of AV menu items to help you with operations List of PC menu items to help you with operations Picture Picture OPC ............Page 44 OPC ............ -
Page 28: Auto Installation
Basic adjustment settings (Analogue) Auto installation Programme setup You can run auto installation again, even after setting You can run the auto installation procedure again at up the preset channels. any time, by accessing the Setup menu, then Programme Setup. Channels can be tuned automatically or manually. -
Page 29: Manual Setting For Each Channel
Basic adjustment settings (Analogue) Manual setting for each channel Fine tuning You can set some channel items manually. They are Fine (TV frequency), Colour sys., Sound sys., Label Press a/b/c/d to select the channel you (Network name), Skip, Decoder, Lock (Child Lock) and want to edit, and then press OK. -
Page 30: Colour System
Basic adjustment settings (Analogue) Labelling channels Manual setting for each channel (continued) When a TV channel sends its Network Name, the auto Colour system installation detects the information and assigns a name to it. However, you can change individual channel names. -
Page 31: Skipping Channels
Basic adjustment settings (Analogue) Setting the child lock Manual setting for each channel (continued) You can block the viewing of any channel. Skipping channels Channels with “Skip” set to “On” are passed over when Press a/b/c/d to select the channel you using Pr/Ps even if selected while watching the want to edit, and then press OK. -
Page 32: Sort
Basic adjustment settings (Analogue) Sort Erase Programme Channel positions can be sorted freely. The individual programme can be erased. Press MENU and the MENU screen displays. Repeat steps 1 to 3 in Sort. Press c/d to select “Setup”. Press a/b to select “Erase Programme”, and then press OK. -
Page 33: Basic Adjustment Settings (Digital)
Basic adjustment settings (Digital) DTV input mode menu items List of DTV menu items to help you with operations. Numbers within brackets indicate the page where the topic is explained. Guide Theme [37] (RED) Mode [39] Setup Service lists Service list type (GREEN) TV service lists Rearrange TV services [40]... -
Page 34: Icons
Basic adjustment settings (Digital) Icons Press a/b to select “Time Zone”, and then press OK. Press a/b to select the Time Zone where you are located, and then press OK. Time Zone 3 4 5 [GMT] Lisbon, London [GMT+ 1:00] Amsterdam, Berlin, Bern [GMT+ 1:00] Brussels, Copenhagen [GMT+ 1:00] Luxembourg, Madrid, Oslo [GMT+ 1:00] Paris, Rome, Stockholm, Vienna... -
Page 35: Found Tv Services
Basic adjustment settings (Digital) Found TV services Store The Found TV services function is used to see which Store all found services. new TV services were found after performing a search NOTE or after Reinstalling all services. • This item can only be selected after performing “Search” or “Reinstall all services”. -
Page 36: Banner Duration
Basic adjustment settings (Digital) Banner duration Audio You can set the time (in seconds) to display the banner. Select the default audio language for all services. Repeat steps 1 to 3 in Banner duration. Press DTV MENU to display the DTV Menu screen. -
Page 37: Subtitle
Basic adjustment settings (Digital) Subtitle Reinstall all services Select the default subtitle language for all services. Cancel all channel information then download and install again. Press DTV MENU to display the DTV Menu Press DTV MENU to display the DTV Menu screen. -
Page 38: Access Restrictions
Basic adjustment settings (Digital) Access restrictions Press a/b to select the TV services you want Allows you to set the PIN to limit viewing certain to restrict, then press c/d to select the services and protect certain settings from being programme, and then press OK. -
Page 39: Setting The Theme
Basic adjustment settings (Digital) Setting the theme You can categorise the programmes for easy channel selection. Press GUIDE to display the EPG screen. Next BBC ONE Trading Treasures 13:45 Passport To The Sun BBC TWO Anthony Ant 13:45 UGetMe BBC CHOICE Newsround 13:45 House Invaders... -
Page 40: Using Epg (Electronic Programme Guide)
Basic adjustment settings (Digital) Using EPG (Electronic Programme Guide) Press a/b/c/d to select a desired You can select a programme from EPG while reading programme, and then press OK. the programme information on the screen. • Press a/b to select programme, c/d to select the previous/next service. -
Page 41: Mode
Basic adjustment settings (Digital) Mode Subtitle language You can choose between TV and radio mode. You can select the preferred subtitle language from the list. Repeat steps 1 to 2 in Audio Language. Press the GREEN button to display the Subtitle language screen. -
Page 42: Rearrange Tv Services
Basic adjustment settings (Digital) Rearrange TV services New TV services Channel positions can be sorted freely. Displays a list with all new installed TV services. Press DTV MENU to display the DTV Menu Repeat steps 1 to 3 in Rearrange TV screen. -
Page 43: Installed Tv Services
Basic adjustment settings (Digital) Installed TV services Country You can confirm the installed services and delete the Select the country where you are located. unwanted services from the TV service list. Press DTV MENU to display the DTV Menu Press DTV MENU to display the DTV Menu screen. -
Page 44: Using Over Air Download Function
Basic adjustment settings (Digital) Using Over Air Download function A confirmation message for the Update Information appears. The software for controlling the built-in DTV decoder Software download can be upgraded when necessary. In Great Britain this can be achieved via an Over Air Download. To make use of this function it needs to be enabled in the The message shows the time of software update. -
Page 45: Common Interface
Basic adjustment settings (Digital) Common Interface With “Accept this software” selected in step 2, the screen now shows the time of next A single DVB Common Interface (CI) will be software update. implemented to allow adoption of a Conditional Access Software download (CA) system by means of a plug-in CA module. -
Page 46: Basic Adjustment Settings (Analogue/Digital)
Basic adjustment settings (Analogue/Digital) Language setting for on-screen OPC setting display Automatically adjusts the brightness of the screen. You can also select a language from setup menu. Using OPC on the remote control unit Select from among 10 languages. Press MENU and the MENU screen displays. Press c/d to select “Setup”. -
Page 47: Picture Adjustments
Basic adjustment settings (Analogue/Digital) Picture adjustments Press MENU and the MENU screen displays. Adjust the picture to your preference with the following picture settings. Press c/d to select “Picture”. Press a/b to select a specific adjustment item. Press c/d to adjust the item to your desired position. -
Page 48: Colour Management System)
Basic adjustment settings (Analogue/Digital) Colour temperature C.M.S. (Colour Management System) Adjusts the colour temperature to give the best white Colour tone is managed using the six-colour image. adjustment setting. Repeat steps 1 to 3 in C.M.S. (Colour Press MENU and the MENU screen displays. Management System). -
Page 49: I/P Setting
Basic adjustment settings (Analogue/Digital) I/P setting 3D-Y/C Adjusting the image and input signal can give you a Provides high quality images with minimal dot crawl more beautiful picture. and cross colour noise. Repeat steps 1 to 3 in I/P setting. Press MENU and the MENU screen displays. -
Page 50: Audio Adjustment
Basic adjustment settings (Analogue/Digital) Audio adjustment Dolby Virtual You can also produce Dolby Virtual effects from the You can adjust the sound quality to your preference “Audio” setting. with the following settings. Press MENU and the MENU screen displays. Press MENU and the MENU screen displays. Press c/d to select “Audio”. -
Page 51: Power Control
Basic adjustment settings (Analogue/Digital) Power control Power control for PC source Power control setting allows you to save energy. Power control setting allows you to save energy. Power control for AV source Power management When set, the power will automatically shut down. No signal off When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes. -
Page 52: Using Memory Card
Important notes on using memory cards • Sharp cannot be held responsible for misuse of the LCD TV set, any troubles during use, or other problems, or any damages arising out of the use of the LCD TV set, except for those cases for which Sharp is liable by law. - Page 53 Using memory card You can use memory cards (commercially available) Commercially available memory cards for recording and playing back pictures. • Please use an appropriate PC card adapter PC card adapter SD Memory PC Card (commercially available) for each memory card. Card Hard Disk •...
-
Page 54: Card Setup Mode Menu Items
Using memory card Card Setup mode menu items Press the CARD button first to access following items. Still Setup Slide Show Setup Interval 1-10/15/20/25/30/ 45/60 Sec. 15/30/60 Min. Normal/Random/ Order My Programme Repeat On/Off My Programme Setup/Erase Card Audio Select Off/TV/DTV/Input1-Input5 Edit Protect/Delete File/ Delete All... -
Page 55: Recording A Still Image
Using memory card Inserting a PC card adapter Recording a still image • Press in the EJECT button if it is popped out. • Insert a memory card to a PC card adapter You can record a still image on the card. beforehand. -
Page 56: Displaying A Still Image
Using memory card Setting Slide Show Displaying a still image You can adjust the interval, order and repeat settings. Press CARD and the card mode screen displays. Press CARD and the card mode screen displays. Press c/d to select “Still” and press OK. Press MENU and the MENU screen displays. -
Page 57: My Programme
Using memory card Audio Select My Programme You can enjoy the audio from TV or other external You can select up to thirty-two pictures and specify equipment during the still image playback. the order for displaying in slide show. Repeat steps 1 to 4 in My programme. Press CARD and the card mode screen displays. -
Page 58: Deleting A Still Image File
Using memory card Deleting a still image file Recording a motion picture Use this setting to record images you are currently watching. Press CARD and the card mode screen Record with the settings made in “Rec. Mode” and displays. “Pre-recording”. Press MENU and the MENU screen displays. -
Page 59: Displaying A Motion Picture
Using memory card Displaying a motion picture Pre-recording You can record the picture slightly before the point where you pressed the record button, enabling you to Press CARD and the card mode screen record just the scene you wanted. displays. Repeat steps 1 to 4 in Rec. -
Page 60: Protecting/Unprotecting Motion Picture Files
Using memory card Protecting/unprotecting motion picture files Press c/d to select “Yes”, and then press You can protect any file you do not want to delete. Repeat the operations in steps 3 and 4 Press CARD and the card mode screen above. -
Page 61: Using External Equipment
Using external equipment You can connect many types of external equipment to your System, like a decoder, VCR, DVD player, PC, game console and camcorder. To view external source images, select the input source from b on the remote control unit or INPUT on the Display. Displaying an external equipment image Displaying a DVD image (Example) Explanation here is for the setting when connecting... -
Page 62: Connecting A Decoder
Using external equipment Connecting a decoder You can use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment. NOTE • In cases when the decoder needs to receive signal from the System, make sure to set “Decoder” to “INPUT1” in the Programme Setup “Manual Adjust”... -
Page 63: Using Av Link Function
Using external equipment Using AV Link function This System incorporates four typical AV Link functions for smooth connections between AVC System and other audiovisual equipment. NOTE • Only works when the audiovisual equipment is connected to the INPUT 2 terminal on the AVC System with AV Link via a fully wired SCART. -
Page 64: Connecting A Dvd Player
Using external equipment Connecting a DVD player You can use the INPUT 3 terminal when connecting to a DVD player and other audiovisual equipment. To watch an image from this input terminal, you may select the input source (see page 59) and the input signal type (see page 66). -
Page 65: Connecting A Pc
Using external equipment Connecting a PC Use the INPUT5 terminals to connect a PC. NOTE • The PC input terminals are DDC1/2B-compatible. • Refer to page 79 for a list of PC signals compatible with the System. AVC System (rear view) To watch the image from this input terminal, you may select input source (see... -
Page 66: Speaker Setup
Using external equipment Speaker Setup Selecting speakers You can output audio using the supplied speakers or Connecting external speakers other external speakers. Press MENU and the MENU screen displays. Rear view Press c/d to select “Setup”. Press a/b to select “Speaker Setup”, and then press OK. -
Page 67: Useful Adjustment Settings
Useful adjustment settings Image position (for TV/AV input mode) Audio only For adjusting a picture’s horizontal and vertical When listening to music from a music programme, you position. can set the Liquid Crystal display off and enjoy audio only. Press MENU and the MENU screen displays. Press MENU and the MENU screen displays. -
Page 68: Fine Sync. Adjustment (Pc Input Mode Only)
Useful adjustment settings Fine Sync. adjustment (PC input Input Select mode only) Selecting input source Can use for selecting the input source. Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimise the image. -
Page 69: Input Label
Useful adjustment settings Colour system setting (for TV/AV Input Label input mode) You can assign each input source a label you like. u can change the colour system to one that is compatible with the image on the screen. Press MENU and the MENU screen displays. Press b to select the desired input source. -
Page 70: Av Mode Selection
Useful adjustment settings Wide screen signalling (WSS) (for AV mode selection TV/AV input mode) AV mode gives you five viewing options to choose from to best match the system environment, which can vary WSS allows a television to switch automatically among due to factors like room-brightness, type of programme the different screen formats. -
Page 71: Wide Mode (For Tv/Av Input Mode)
Useful adjustment settings WIDE mode (for TV/AV input mode) WIDE MODE Normal Manual Selection Zoom 14:9 Press f. Panorama • The WIDE MODE menu displays. Full • The menu lists the wide mode options selectable for the type of video signal currently received. Cinema 16:9 Cinema 14:9 Press f or a/b while the WIDE MODE... -
Page 72: Wide Mode (For Pc Input Mode)
Useful adjustment settings WIDE mode (for PC input mode) Input signal (640m480) You can select the screen size. WIDE MODE NOTE • Connect the PC before making adjustments. (See page Normal 63.) Cinema • Selectable screen size may vary with input signal type. Full Press f. -
Page 73: Input Signal (Pc Input Mode Only)
Useful adjustment settings Input signal (PC input mode only) Quick Shoot • Some input signals may have to be registered manually Improves LCD response when viewing fast-moving to display properly. images. The effect is greater at low room temperatures • The pairs of input signals (resolutions) in the list below (at or below 15˚C/59˚F). -
Page 74: Standby Recording
Useful adjustment settings Standby Recording Audio out Even when the System is in the standby mode, you Allows you to select what controls the audio output. can record to external recording equipment (VCR or NOTE DVD recorder) connected to AV OUTPUT or SCART •... -
Page 75: Pin Setting For Child Lock (For Tv/Dtv/Av Input Mode)
Useful adjustment settings PIN setting for child lock (for TV/DTV/ Enter the same 4-digit number as in step 6 AV input mode) to confirm. • “The system PIN has been changed Allows you to use a PIN to protect certain settings from successfully”... -
Page 76: Centre Channel Input
Useful adjustment settings Centre Channel Input You can use the speaker as the centre speaker when using a 5.1ch surround system. Speaker AV amplifier * Connect to external audio equipment that supports a 5.1ch surround system. Refer to your external equipment operation manual for details. -
Page 77: Useful Features
Useful features Picture and still image Dual screen functions You can freeze a motion picture on the display. Allows you to display two pictures on the screen at one time. Dual screen You can display two pictures except when inputting from a INPUT 5 terminal and card. -
Page 78: Teletext Function
Useful features Teletext function What is Teletext? Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format DATA* for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available. - Page 79 Useful features Displaying Subtitle Time display You can display several subtitles as they are You can display the time information included in the transmitted. DTV and Teletext broadcasts. Press [ to display the subtitle. NOTE • Subtitle is updated by the information sent by •...
-
Page 80: Appendix
Appendix Troubleshooting Problem Possible Solution • No power. • Make sure the Display and the AVC System are connected correctly. (See page • Check if you pressed B on the remote control unit. (See page 20.) If the indicator on the Display lights up red, press B. •... -
Page 81: Pc Compatibility Chart
Appendix PC compatibility chart PC/MAC Resolution Horizontal Frequency Vertical Frequency VESA Standard 31.5 kHz 60 Hz 640 x 400 37.9 kHz 85 Hz 31.5 kHz 60 Hz 720 x 400 37.9 kHz 85 Hz 31.5 kHz 60 Hz 37.9 kHz 72 Hz 640 x 480 37.5 kHz... -
Page 82: Rs-232C Port Specifications
Appendix RS-232C port specifications PC Control of the System • When a program is set, the display can be controlled from the PC using the RS-232C terminal. The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing. - Page 83 Appendix Response code format Normal response Return code (0DH) Problem response (communication error or incorrect command) Return code (0DH) Commands CONTROL CONTROL CONTROL ITEM COMMAND PARAMETER CONTROL ITEM COMMAND PARAMETER CONTENTS CONTENTS POWER SETTING POWER OFF (STANDBY) POSITION H-POSITION (AV) ( 10 – INPUT SELECTION A INPUT SWITCHING (TOGGLE) H-POSITION (PC) (0 –...
-
Page 84: Specifications
(g2), AVC system stand unit (g1), Cable clamp (g1), Antenna cable (g1) • As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production... -
Page 85: Dimensional Drawings
Dimensional drawings Display Unit: mm 1084 86.5 989.1... - Page 86 Dimensional drawings AVC System Unit: mm Maturity rating Rating Universal — — — — — — — — — — — — — — viewing Parental approval — — — — — — — — — — preferable X-rated Parental approval Rating Universal viewing X-rated...
-
Page 87: How To Set The Factory Presets
(1) For our customers in Belgium, The Netherlands, Sweden, and Switzerland SHARP takes part in the respective national recycling systems for electronic equipment, which have been founded on the base of the environmental laws in these countries. -
Page 88: Sharp Corporation
SHARP CORPORATION Printed in Japan Gedruckt in Japan Imprimé au Japon Stampato in Giappone Printed on 100% post-consumer recycled paper. TINS-B615WJZZ Gedruckt auf 100% wiederverwertungs Papier. Imprimé sur 100% de papier recyclé. 04P10-JKG Stampato su carta riciclata al 100%.
