Power Acoustik DTV-1 User Manual

Power Acoustik DTV-1 User Manual

Atsc digital tv tuner receiver
Hide thumbs

Advertisement

Quick Links

Download this manual

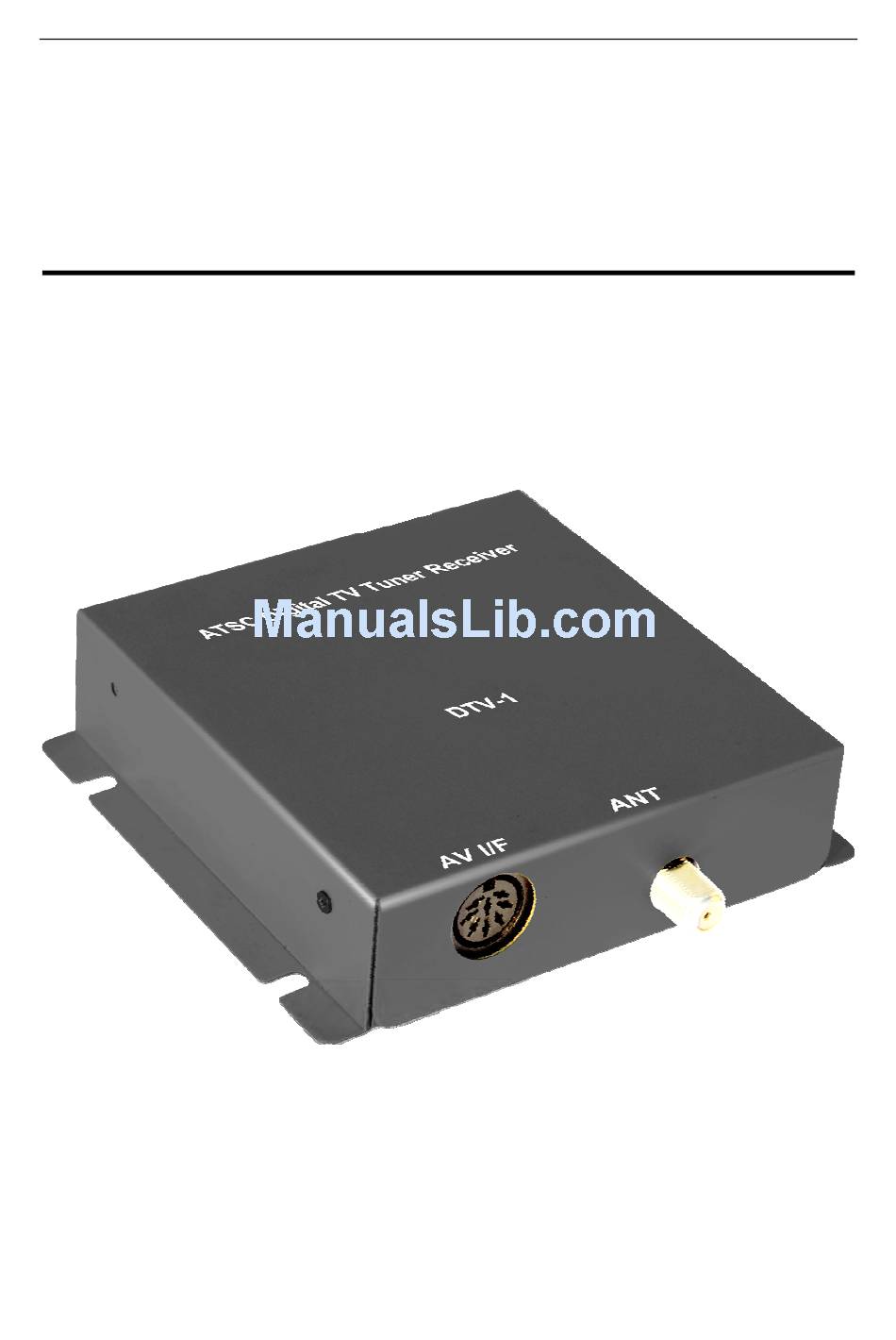

ATSC DIGITAL TV TUNER RECEIVER
User's Manual
1

Advertisement

loading

Related Manuals for Power Acoustik DTV-1

Summary of Contents for Power Acoustik DTV-1

  • Page 1 ATSC DIGITAL TV TUNER RECEIVER User’s Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents………………………..…………………….…………….………………………..1 Safety Information…………………………….……………………………….………………………2 Wire Connection……………...…………………..…………………..……………………………….2 Remote Control…………………………………………………………………………………..……3 Menu Operations…………………………………………….…….….………………………………6 Special Features……………………………………………….…………..…..……………………15 NOTE: This user's manual is only for reference. Modifying rights are reserved. Specifications are subject to change without notice.

  • Page 3: Safety Information

    SAFETY INFORMATION Always be careful when using your product. To reduce the risk of fire, electrical shocks, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine. Be sure to read this user’s manual before starting your operation. Never open the cover.

  • Page 4: Remote Control

    REMOTE CONTROL 1. MUTE 8. DOWN / CH- 15. FAV.L 2. NUMBER BUTTONS 9. FAV.SET 16. INFO 3. MENU 10. PRG.L 17. RETURN 4. CH+ / UP 11. AUDIO 18. - 5. LEFT / VOL- 12. CC 19. RECALL 6. ENTER 13.EXIT 20.
  • Page 5 1. MUTE Press to switch off the sound; press it again to resume to the previous volume level. 2. NUMBER BUTTONS / 18. - Press to input the channel number. 3. MENU Press to display the Main Menu on the screen. 4.

  • Page 6: Menu Operations

    MENU OPERATIONS Press MENU key to display the main menu. It consists of six items as following: · Auto Search · CH Setup · CC Setup · EAS Setup · Parental Control · System Setup Figure 1 Use UP/DOWN keys to move up and down from one item to another , and press RIGHT key to display corresponding sub-menu.
  • Page 7 1. Auto Search We suggest searching the TV program by using the auto search function in Auto Search menu for first use. 1> Use UP/DOWN keys to select Auto Search item in Main menu, you will see the menu as Figure 2. 2>...
  • Page 8 2. CH Setup In Main menu, select CH Setup item and press RIGHT key to enter into Channel Setup menu (Figure 5). ·Skip / unskip a channel If you want to skip a channel, you should use this menu and do the following two steps: 1>...
  • Page 9 3. CC Setup In Main menu, select CC Setup item and press RIGHT key to enter into Closed Captioning Setup. (CC608/CC708). 1> Use UP/DOWN key to select CC Setup item in main menu ,and press RIGHT key to enter into CC Setup menu (Figure7). 2>...
  • Page 10 Some important things about 608CC/708CC 1> If you set CC Display On, and the program has CC608 and CC708 at the same time, CC 708 display is higher priority than the CC608 display. 2> If you have not set the 608CC and 708CC type to proper setting, the CC will not be displayed even the current program contains CC information.
  • Page 11 5. Parental Control Before entering Parental Control menu, you need to input password in order to prohibit from the child to change any settings on the Parental Control. How to enter into Parental Control menu 1> In main menu(Figure 1), use UP/DOWN key to select Parental Control item and press RIGHT key to enter into Parental Control password input page(Figure 11).
  • Page 12 Example: How to set Movie ratings; 1> Select Movie ratings item in V-chip Setting menu(Figure 13) and press OK key to enter into Movie ratings menu(Figure 14); 2> Press UP/DOWN key to select sub item; 3> Press ENTER key to set view or block, default setting is view;...
  • Page 13 ·Change Password 1> Select Change Password item in Parental Control menu (Figure 12) and press RIGHT key to enter into Change Password menu (Figure 16). 2> Input the new password , after that, the system will require you to confirm the new password as Figure 17 3>...
  • Page 14 6. System Setup In main menu, select System Setup item and press RIGHT key to enter into System Setup menu (Figure 19). Press UP/DOWN to select item and RIGHT key to enter into sub menu or change current item setting. 1>...

  • Page 15: Special Features

    SPECIAL FEATURES 1. Channels List 1> Press PRG.L key when TV is showing no menu, the channels list will be displayed (Figure 21), you can get the information about channel number, channel name, skip status of all channels. 2> Press UP/DOWN key to select item and Press RIGHT key to switch current channel to your selected channel.
  • Page 16 4. Audio Language Press AUDIO key to set audio language of the current program. program contains several audio languages, you can switch the audio language between these languages by pressing AUDIO key. The system can display the full language name of English, Spanish, French, German, Italian, Japanese, Chinese, Korean, but others just only use the front three letters of language name instead of the full name.
