Behringer Acoustic Modeler AM300 Manual

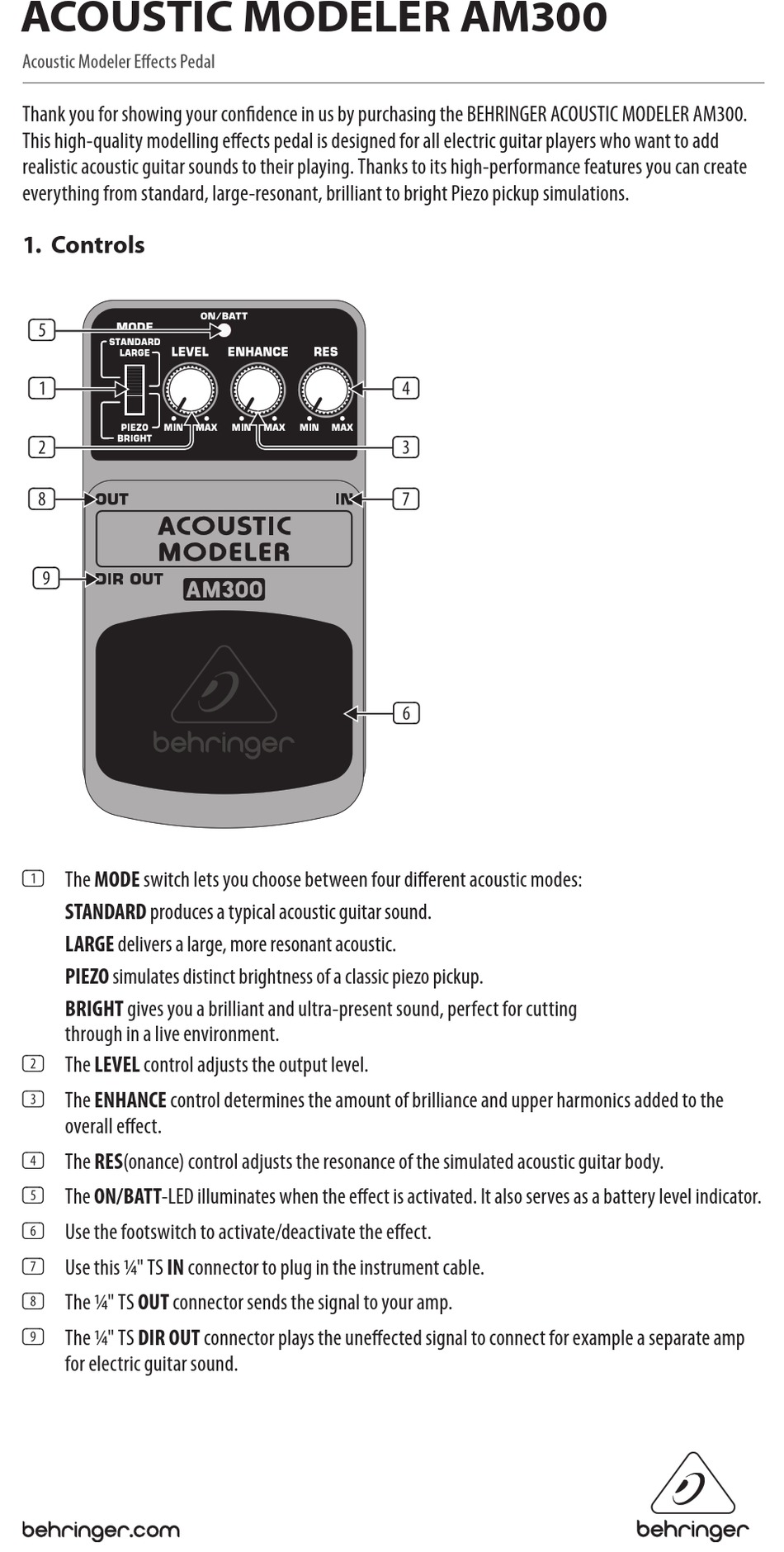

ACOUSTIC MODELER AM300
Acoustic Modeler Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER ACOUSTIC MODELER AM300.
This high-quality modelling effects pedal is designed for all electric guitar players who want to add
realistic acoustic guitar sounds to their playing. Thanks to its high-performance features you can create
everything from standard, large-resonant, brilliant to bright Piezo pickup simulations.
1. Controls
(5)
(1)
(2)
(8)
(9)
(1) The MODE switch lets you choose between four different acoustic modes:
STANDARD produces a typical acoustic guitar sound.
LARGE delivers a large, more resonant acoustic.
PIEZO simulates distinct brightness of a classic piezo pickup.
BRIGHT gives you a brilliant and ultra-present sound, perfect for cutting
through in a live environment.
(2) The LEVEL control adjusts the output level.
(3) The ENHANCE control determines the amount of brilliance and upper harmonics added to the
overall effect.
(4) The RES(onance) control adjusts the resonance of the simulated acoustic guitar body.
(5) The ON/BATT-LED illuminates when the effect is activated. It also serves as a battery level indicator.
(6) Use the footswitch to activate/deactivate the effect.
(7) Use this 1/4" TS IN connector to plug in the instrument cable.
(8) The 1/4" TS OUT connector sends the signal to your amp.
(9) The 1/4" TS DIR OUT connector plays the uneffected signal to connect for example a separate amp
for electric guitar sound.
(4)
(3)
(7)
(6)
