Summary of Contents for Polaroid DMC 1e

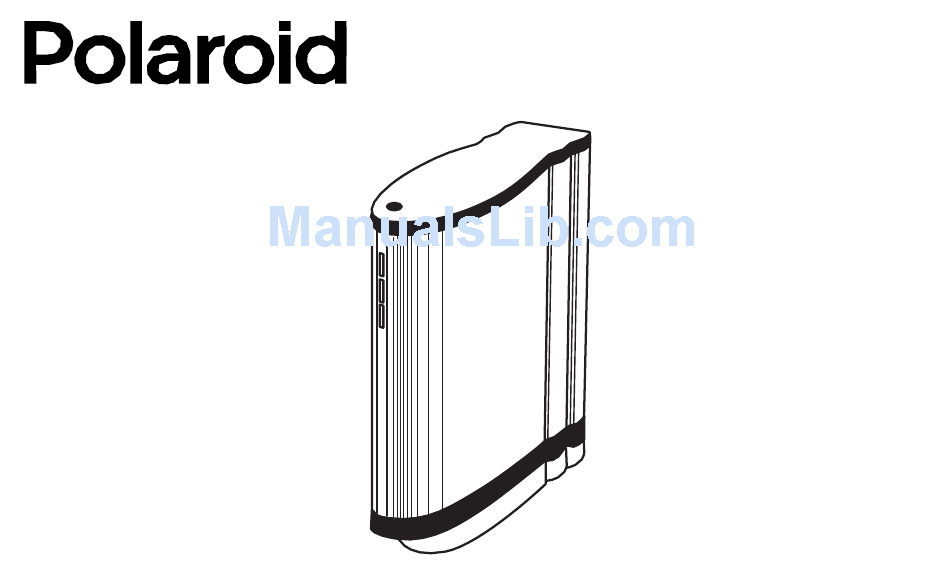

  • Page 1 DMC Ie Installation Quickstart...
  • Page 2 Polaroid DMC Ie English_______________________________3...

  • Page 3: Installation Quickstart

    Do not disassemble the camera. Doing so could result in severe electrical shock and damage to the camera. This action may also void your warranty. Contact Polaroid Technical Support or your dealer if the camera is malfunctioning. (To contact Polaroid from within the U.S.A., call 1-800-432-5355.

  • Page 4: Install The Software

    English 2 Install the Software Turn the computer on. Close any applications that may be running. Insert the Polaroid DMC Ie software CD into the drive. Power Mac or Windows 95, 98 or NT PowerPC Select Polaroid Wait for the DMC install pro- DMC Installer.
  • Page 5 Connecting the camera to the microscope: 3 Attach the Camera to the Microscope You need a 0.63 or 1:1 c-mount adapter (not provided) compatible with your microscope. (Do not use a 0.5 c-mount adapter.) Refer Indicator LEDs to your microscope manual for more information about c- mounts.

  • Page 6: Connect The Camera To The Computer

    English Turn the camera power switch to off (0) and set the SCSI address 4 Connect the Camera to the Computer switch to a value not used by any other device. The DMC Ie camera requires a SCSI host adapter in your computer.
  • Page 7 Connect the SCSI cables: Set termination: Place the DMC camera at the end of the SCSI chain as shown or The last device in a SCSI chain must be terminated (or have between the computer and other SCSI devices. Use the shortest termination on), while all other devices must be unterminated (or possible cables.
  • Page 8 English 5 Connect the Camera to AC Power and Turn On Connect the camera to AC power and turn the power switch on. Power switch (on=1) Verify that the green and yellow LEDs are on, indicating AC and termination power are on. Turn the computer on.
  • Page 9 Windows 95, 98 or NT • Double-click • Select Programs from the Polaroid DMC Ie. Start menu. • Point to Polaroid Digital Microscope Camera and select Polaroid DMC Ie. Place a specimen under the microscope and focus it through the microscope eyepiece.
  • Page 10 Windows 95, 98 or NT 1 Double-click DMC Ie, 1 Select DMC Help from the launching the DMC Ie Help menu. program. 2 Select Programs from the Start menu. 3 Point to Polaroid Digital Microscope Camera and select User's Guide.

  • Page 11: Installing A Scsi Host Adapter

    (Adapters are not available for iMac computers.) © Copyright Polaroid Corporation, 1999. All rights reserved. “Polaroid” is a registered trademark of Polaroid Corporation, Cambridge, MA, U.S.A. All other product names may be trademarks of their respective owners. PN 1BH207C (PU-20854M-1)
  • Page 12 PU-20854M-1 5/99...
