6. Disassembly and Assembly instructions

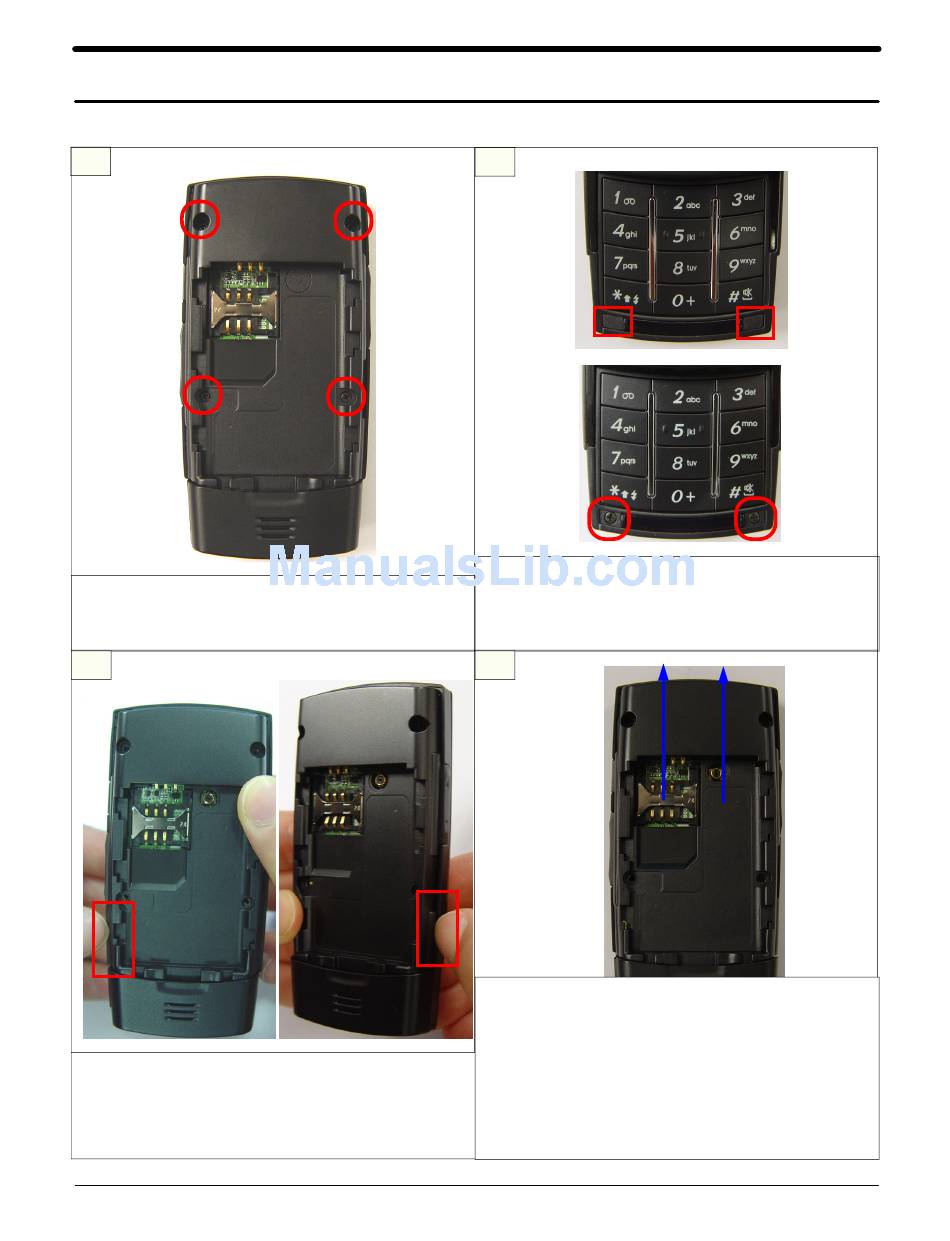

6-1. Disassembly
1
1) RELEASE SCREW AT 4POINTS
※ caution
1. DO NOT MAKE SCRATCH ON CASE
3
1) DISASSEMBLE REAR LOCKING PART
USING TOOS
※ caution
1. DO NOT MAKE SCRATCH ON CASE
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
2
1) DETACH FRONT SCREW CAP
2) RELEASE SCREW AT 2 POINT
※ caution
1
DO NOT MAKE SCRATCH ON CASE
.
4
1) PUSH REAR ARROW DIRECTION,
CAN DISASSEMBLE
※ caution
1.DO NOT MAKE SCRATCH ON CASE
2.IN CASE THAT FORCE TO DISJOINT,
BREAKE SPK WIRE. DO NOT TAKE
EXCESSIVE FORCE AT REAR
